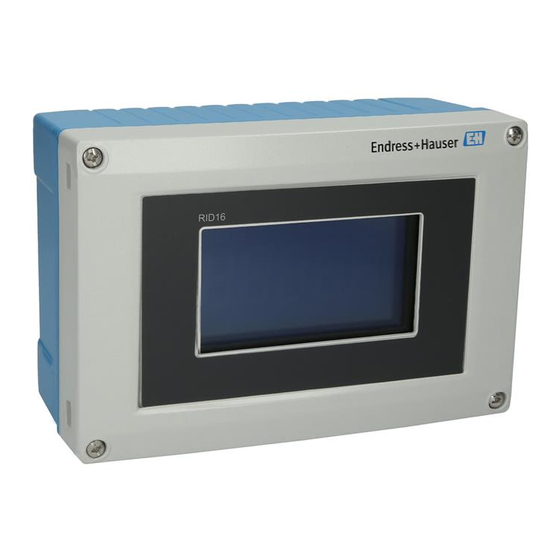

Endress+Hauser Fieldbus RID16 Operating Instructions Manual
Field indicator with foundation fieldbus - protocol
Hide thumbs
Also See for Fieldbus RID16:
- Brief operating instructions (44 pages) ,
- Operating instructions manual (62 pages) ,
- Brief operating instructions (24 pages)
Related Manuals for Endress+Hauser Fieldbus RID16
Summary of Contents for Endress+Hauser Fieldbus RID16

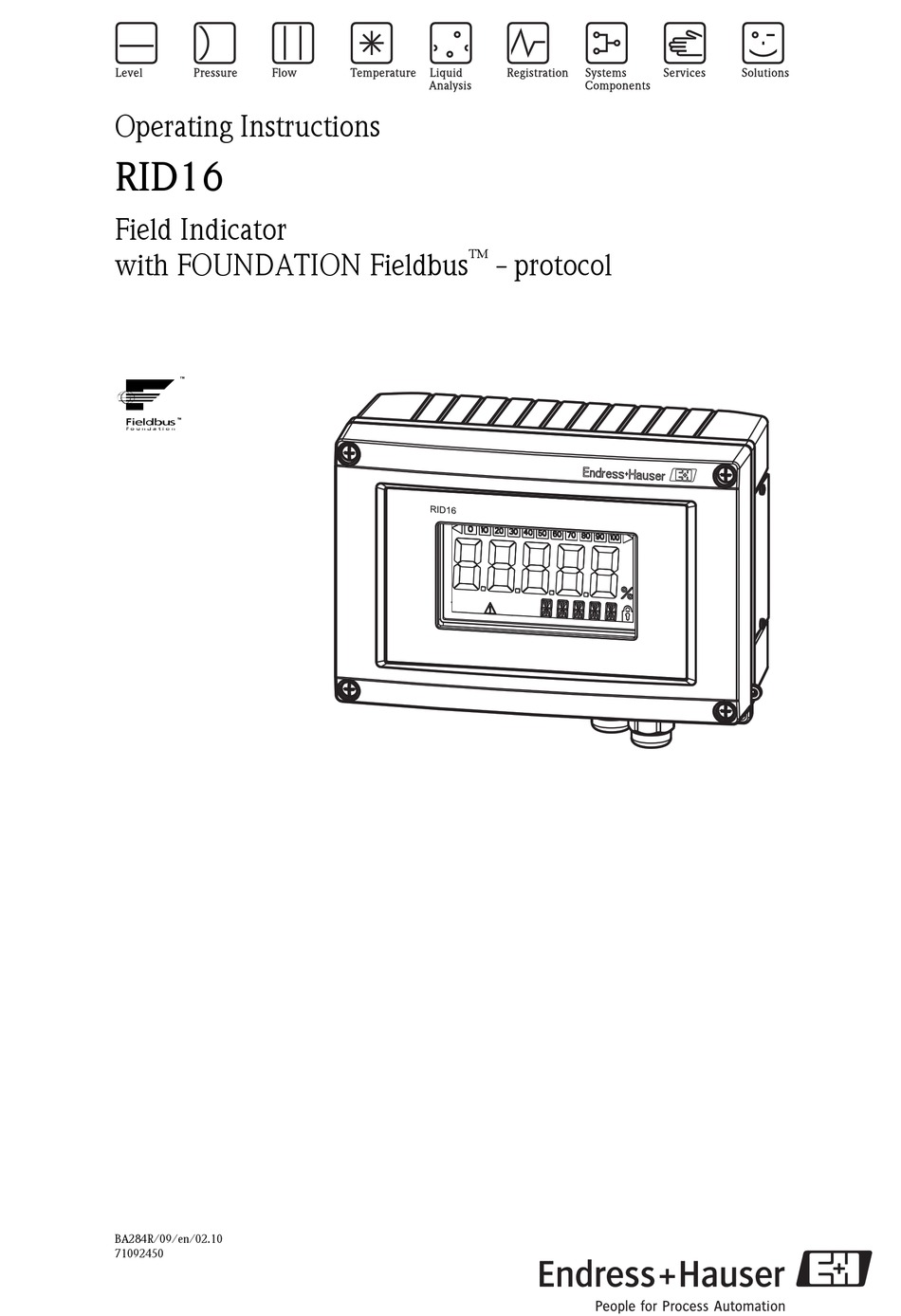

- Page 1 Operating Instructions RID16 Field Indicator ™ with FOUNDATION Fieldbus - protocol BA284R/09/en/02.10 71092450...
- Page 2 Information on configuration and operating programs from other manufacturers. Information about setting the hardware write protection, device address, etc. for FOUNDATION Fieldbus communication Æ → ä 26 Commissioning Commissioning via the FOUNDATION Fieldbus interface - quick start for device configuration for standard operation Endress+Hauser...
-
Page 3: Table Of Contents
Disposal ....... . 34 Software history and overview of compatibility . . . 34 Endress+Hauser... -
Page 4: Safety Instructions
Repairs must only be carried out by your supplier's service organisation or specially trained personnel. Enclose a note describing the fault and the application when sending the unit in for repair. Please inform the haulier and the supplier if the goods are damaged in transport. Endress+Hauser... -
Page 5: Notes On Safety Conventions And Icons
Devices in the non-hazardous area must also be certified if connecting cables lead into the hazardous area. ESD - Electrostatic discharge Protect the terminals against electrostatic discharge. Failure to comply with this instruction can result in the destruction of parts or malffunction of the electronics. Endress+Hauser... -
Page 6: Identification
The device described in these Operating Instructions thus meets the legal requirements of the EU directives. The manufacturer confirms that the device has been tested successfully by affixing the CE mark. Recognized component to UL 3111-1 (pending). CSA General Purpose (pending). Endress+Hauser... -
Page 7: Registered Trademarks
If the device is operated in the upper temperature limit range, this reduces the operating life of the indicator. Note! The display may react slowly at temperatures below -20 °C (-4 °F). Readability of the display cannot be guaranteed at temperatures below -30 °C (-22 °F). Endress+Hauser... -
Page 8: Mounting Instructions
The device can be mounted directly on the wall or the optional mounting plate can be used for wall or pipe mounting (→ å 3). 3.3.1 Direct wall mounting Proceed as follows to mount the device directly on the wall: • Drill 4 holes • Attach the device to the wall with 4 screws (∅5). Endress+Hauser... -
Page 9: Post-Installation Check
Is the sealing ring undamaged? Visual check Is the device fixed securely to the wall or mounting plate? Is the front cover fixed tightly? Does the device comply with the measurement point See Section 'Technical data' specifications, e.g. ambient temperature etc.? Endress+Hauser... -
Page 10: Wiring
Opening a knock-out on the bottom of the field indicator Proceed as follows for mounting (→ å 7): Open the housing front of the field housing. a0011636 Fig. 6: Opening the housing of the field indicator internal grounding terminal (only aluminum housing) Endress+Hauser... - Page 11 Cable gland Fieldbus connector 4.1.2 Mounting the cable gland or fieldbus connector in the aluminum housing With the aluminum housing, the cable gland or the fieldbus connector can be screwed directly into the housing. No mounting plate is required. Endress+Hauser...
- Page 12 Fig. 8: Terminal assignment ESD - electrostatic discharge Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction or malfunction of parts of the electronics. Terminal Terminal assignment FOUNDATION Fieldbus™ connection (+) FOUNDATION Fieldbus™ connection (-) Endress+Hauser...
-
Page 13: Connection To The Foundation Fieldbus
Shielded fieldbus cable (FOUNDATION Fieldbus™) Note! • The terminals for the fieldbus connection (1+ and 2-) are not polarity sensitive. • Conductor cross-section: – Max. 2.5 mm for screw terminals • A shielded cable must be used for the connection. Endress+Hauser... - Page 14 Optionally, a fieldbus connector can be installed in field housing instead of a cable gland. Fieldbus connectors can be ordered from Endress+Hauser as an accessory (see Section 8 'Accessories'). The connection technology of FOUNDATION Fieldbus™ allows measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.
-
Page 15: Foundation Fieldbus™ Cable Specification
3.28 ft). Note the following points: • The maximum permissible overall cable length depends on the cable type used. • If repeaters are used, the maximum permissible cable length is doubled. A maximum of three repeaters are permitted between user and master. Endress+Hauser... - Page 16 In systems without potential equalization, therefore, cable shielding of fieldbus systems should only be grounded on one side, for example at the fieldbus supply unit or at safety barriers, → å 11 Endress+Hauser...
- Page 17 General information and further points on wiring can be found on www.fieldbus.org, the Web site of the Fieldbus Foundation or in the Operating Instructions "FOUNDATION Fieldbus™ Overview" which can also be found on the CD-ROM. (Additional sources: → www.endress.de → Download). Endress+Hauser...
-
Page 18: Degree Of Protection
Has the max. length of the fieldbus cable been observed in accordance with the FOUNDATION Fieldbus™ specifications? → ä 15 Has the max. length of the spurs been observed in accordance with the FOUNDATION Fieldbus™ specifications? Is the fieldbus cable fully shielded (90%) and correctly grounded? Endress+Hauser... -
Page 19: Operating The Field Indicator
5.1.2 Function block connection mode In function block connection mode, a published value that is subscribed by a function block within the field indicator can be displayed. This can be IN and OUT parameters in the function blocks. Endress+Hauser... -
Page 20: Display And Operating Elements
Please refer to Operating Instructions BA 013S/04/en “FOUNDATION Fieldbus Overview: Installation and Commissioning Guidelines” for configuration information. 5.3.1 System architecture The following figure shows an example of a FOUNDATION Fieldbus™ network with the associated components. Endress+Hauser... - Page 21 The superior bus system is realized via the High Speed Ethernet (HSE) with a transmission rate of max. 100 MBit/s. This serves as the 'backbone' (basic network) between various local sub- networks and/or where there is a large number of network users. Endress+Hauser...
- Page 22 The FOUNDATION Fieldbus™ uses predefined function blocks to describe the functions of a device and to specify uniform data access. The function blocks implemented in each fieldbus device provide information on the tasks which a device can accept in the whole of the automation strategy. Endress+Hauser...
-
Page 23: Configuration Of The Indicator And Ff Functions
The FF communication system will only function properly if correctly configured. You can obtain special configuration and operating programs from various manufacturers for the configuration. Process control systems Asset management systems Endress+Hauser ControlCare National Instruments NI-Configurator (≥ 3.1.1) Emerson DeltaV Emerson AMS and Handheld FC375... - Page 24 → ä 27 together with information on configuring device-specific parameters. System files You require the following files for commissioning and configuring the network: • Commissioning → device description (DD: *.sym, *.ffo) • Network configuration → CFF file (Common File Format) Endress+Hauser...
-
Page 25: Hardware Settings
Configure the DIP switch on the electronics accordingly. Switch to ON = function enabled, switch to OFF = function disabled. Close the housing front cover and secure it with the 4 screws. a0011641 Fig. 15: Hardware settings via DIP switches Switch position ON Switch position OFF Write lock Endress+Hauser... -
Page 26: Commissioning
ID, device type and device serial number. It is unique and can never be assigned twice. The DEVICE_ID of the device is composed as follows: DEVICE_ID = 452B4810CF-XXXXXXXXXXX 452B48 = Endress+Hauser 10CF = RID1x XXXXXXXXXXX = device serial number (11-digit) - Page 27 The first time you establish a connection, the device reacts as follows in the configuration system: – EH_RID14-xxxxxxxxxxx (tag name PD-TAG for RID14) or EH_RID16-xxxxxxxxxxx (tag name PD-TAG for RID16) – 452B4810CF-xxxxxxxxxxx (DEVICE_ID) – Block structure: Block description Permanent Block class Resource Extended Display Transducer Manufacturer-specific Advanced Diagnostic Manufacturer-specific Standard Endress+Hauser...
- Page 28 For this purpose, configuration software, e.g. NI-FBUS Configurator from National Instruments, is used to connect the function blocks to the desired control strategy (mostly using graphic display) and then the time for processing the individual process control functions is specified. Endress+Hauser...
-
Page 29: Maintenance
• NPT ½" → 7/8" – 150 mm 71005803 – 250 mm 71005804 • M20 → 7/8" – 150 mm 71005805 – 250 mm 71005806 Pipe mounting kit • with plastic mounting plate 71089844 • with stainless steel mounting plate 71091611 Endress+Hauser... -
Page 30: Trouble-Shooting
Note! In the event of a serious fault, an indicator might have to be returned to the manufacturer for repair. Follow the instructions in → Chap. 9.4 before returning the indicator to Endress+Hauser. Check local display No display visible - No connection 1. -
Page 31: Status Messages
Parameter "DISP_ALTERNATING_TIME" If the ALARM "F437" is generated by a channel the value of that channel will be replaced on the display by "- - - - -" Endress+Hauser... - Page 32 Check the configuration of the blocks; the parameter CURRENT_STATUS_MAINTENANCE shows you which block causes the failure Device status message (FF): No bargraph, no symbol Cause of error: Device preset Device reset is performed. C-501 Remedy: Message is only displayed during reset. Endress+Hauser...
-
Page 33: Spare Parts
(contains cover plate for front part, counter plate for cable glands (plastic housing) + ribbon cable main board -> display board LC display incl. display board RIA16X-DA Cable gland NPT 1/2 D4-8.5, IP68 51006845 Adapter M16x1.5 NPT1/2 71085029 Wall / pipe mounting kit (W08) 71089844 Endress+Hauser... -
Page 34: Return
No longer compatible. The device and Operating Instructions change. Change to functions and operation. Compatible. Operating Instructions change. Fixes and internal changes. Operating Instructions do not change. Date Software version Software modifications Documentation 12/2009 1.00.00 Original software BA284R/09/en/12.09 71092450 Endress+Hauser... -
Page 35: Technical Data
Link Master-capable (LAS) Link Master / Basic Device Yes; factory setting: Basic Device selectable Number of VCRs Number of Link Objects in VFD Virtual communication relationships (VCRs) Permanent Entries Client VCRs Server VCRs Source VCRs Sink VCRs Subscriber VCRs Publisher VCRs Endress+Hauser... - Page 36 It can be selected from six integration types. Arithmetic (ARITH): The Arithmetic function block permits standard computing operations and compensations. It supports the addition, subtraction, multiplication and division of values. Furthermore, mean values are calculated, and flow values are compensated (linear, quadratic compensation), in this block. Endress+Hauser...
- Page 37 The readability of the display is no longer guaranteed at temperatures < -30 °C (-22 °F). Storage temperature -40 to +80 °C (-40 to 176 °F) Altitude Up to 4000 m (13100 ft.) above mean sea level in accordance with IEC 61010-1, CSA 1010.1-92 Climate class According to IEC 60654-1, Class C Endress+Hauser...
- Page 38 10 V Measuring category Measuring category II as per IEC 61010-1. The measuring category is provided for measuring on power circuits that are directly connected electrically with the low-voltage network. Degree of contamination Pollution degree 2 as per IEC 61010-1. Endress+Hauser...
- Page 39 • Plastic housing: approx. 500 g (1.1 lb) • Aluminum housing: approx. 1.7 kg (3.75 lb) Material Housing Nameplate Fiber-glass reinforced plastic PBT-GF30 Laser inscription Aluminum AlSi12 (optional) Aluminum AlMgl, black anodized Terminals Screw terminals for cables up to max. 2.5 mm (14 AWG) plus ferrule Endress+Hauser...
- Page 40 The configuration of FOUNDATION Fieldbus™ functions and of device-specific parameters is performed via fieldbus communication. Special configuration systems provided by various manufacturers are available for this purpose. Distributed control systems Asset management systems Endress+Hauser ControlCare National Instruments NI-Configurator (≥ 3.1.1) Emerson DeltaV Emerson AMS und Handheld FC375 Rockwell...
- Page 41 10.0.7 Certificates and approvals CE mark The device meets the legal requirements of the EC directives. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark. Ex-approval Information about currently available Ex versions (ATEX, FM, CSA, etc.) can be supplied by your E+H Sales Center on request.
-
Page 42: Operation Via Foundation™ Fieldbus
As the Resource Block does not have any block input and block output data, it cannot be linked to other blocks. The most important functions and parameters of the Resource Block are listed below. Endress+Hauser... - Page 43 The alarm priority specifies the behavior in the event of an active write protection alarm WRITE_ALM. Note! If the option of a process alarm was not activated in the ACK_OPTION parameter, this process alarm must only be acknowledged in the BLOCK_ALM parameter. Endress+Hauser...
- Page 44 Factory default: 640000 1/32 ms Cycle Selection AUTO - OOS Displays the block execution method used by the fieldbus host system. (CYCLE_SEL) Note! The block execution method is selected by the fieldbus host system. Endress+Hauser...
- Page 45 Note! Since the function blocks of the device are preconfigured, this parameter always displays the value 0. Grant Deny AUTO - OOS Enables or restricts the access authorization of a fieldbus host system to the (GRANT_DENY) field device. Endress+Hauser...
- Page 46 Manufacturer ID Read only Displays the manufacturer's ID number. (MANUFAC_ID) Display: 0 x 452B48 = Endress+Hauser Max Notify Read only Displays the maximum number of event reports supported by the device that (MAX_NOTIFY) can exist unconfirmed at the same time.
- Page 47 Read only Displays the device serial number. (SERIAL_NUMBER) Service Locking AUTO - OOS Only for service reasons. (SERVICE_LOCKING) Set Fault State AUTO - OOS This parameter can be used to manually enable the security behavior of the (SET_FSTATE) device. Endress+Hauser...
- Page 48 Displays the status of the write protected alarm. (WRITE_ALM) Note! The alarm is triggered if the write protection is disabled. Write Lock Read only Display status of write protection (WRITE_LOCK) Display: LOCKED Device data cannot be modified NOT LOCKED Device data can be modified UNINITIALIZED Endress+Hauser...
-
Page 49: Transducer Blocks
• OOS (out of service) Note! The OOS block status is also displayed by means of the BLOCK_ERR parameter (page 51). 11.3.2 Accessing the manufacturer-specific parameters To access the manufacturer-specific parameters, the hardware write protection must be deactivated (see Section 5.5). Endress+Hauser... - Page 50 The Transducer Block supports the following operating modes: • AUTO (automatic mode): The block is executed. • OOS (out of service): The block is in the “Out of Service” mode. The process variable is updated, but the status of the process variable changes to BAD. Endress+Hauser...
- Page 51 This can be read via the Transducer Block “Advanced Diagnostic” in the “CURRENT_STATUS_CATEGORY” and "CURRENT_STATUS_NUMBER" parameters. An exact error description as well as information on rectifying faults can be found in Section 9.2. Endress+Hauser...
- Page 52 You can select the next published value by choosing "Next value". Note! When an address is written, the parameter "LISTENER_VALUE" will always be set to 1. By using "LISTENER_VALUE_SELECT" the next values can be selected. Endress+Hauser...
- Page 53 • Auto (the device automatically sets the position of the decimal point to fill all 5 digits of the display) • XXXXX • XXXX.X • XXX.XX • XX.XXX • X.XXXX DISP_VALUE_1[...8]_BGMIN: Enter the minimum (0%) value for bargraph presentation. Endress+Hauser...
- Page 54 • Source analog and source digital is switched on, switch one off • Listener mode, source analog and source digital is switched on, switch two off • Device address for listener mode is not available, change address to valid publisher Endress+Hauser...
- Page 55 Indicates the maximum appeared value on display channel 1[...8] (value 1 to 2_MAX_INDICATORCH3_ 8). This value is saved to non- volatile memory in a cycle of 10 minutes. MAX_INDICATORCH4_MA X_INDICATORCH5_MAX_I NDICATORCH6_MAX_IND ICATORCH7_MAX_INDIC ATORCH8_MAX_INDICAT RESET_ALL_INDICATORS AUTO - OOS Resets all min- and max- values to "0". Endress+Hauser...
-
Page 56: Pid Function Block (Pid Controller)
The Integrator function block supports mode control, demand reset, a reset counter, and signal status calculation. There are no standard alarms in this function block. Custom alarms are supported. A detailed description of the Integrator function block can be found in the FOUNDATION Fieldbus™ Function Blocks manual on the supplied CD-ROM (BA062S/04). Endress+Hauser... -
