Document information RIA46 Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 5
RIA46 Document information 1.2.3 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted. Preferred Procedures, processes or actions that are preferred. Forbidden Procedures, processes or actions that are forbidden. Indicates additional information. Reference to documentation...
Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. ‣ If, despite this, modifications are required, consult with Endress+Hauser. Repair To ensure continued operational safety and reliability, ‣ Carry out repairs on the device only if they are expressly permitted.
If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this can damage the housing. ‣ If you are unsure, please contact your Endress+Hauser Sales Center for clarification. ‣ If used in an approval-related area, observe the information on the nameplate.
The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
RIA46 Installation Installation Incoming acceptance, transport, storage The permitted ambient and storage conditions must be observed. The precise specifications can be found in Section "Technical data". 4.1.1 Incoming acceptance On receipt of the goods, check the following points: • Are the packaging or contents damaged? •...
Installation RIA46 Dimensions 96 (3.78) 199 (7.83) 163 (6.42) A0010574 2 Dimensions of the field indicator in mm (in) Drill-hole for direct wall mounting or on optional mounting plate with 4 screws ⌀5 mm (0.2 in) Installation procedure The device can be mounted directly to the wall with 4 screws ∅5 mm (0.2 in) or the optional mounting plate can be used for wall or pipe mounting.
RIA46 Installation Post-installation check • Is the sealing which is spray-applied to the casing undamaged? • Is the device firmly screwed to the mounting plate or the wall? • Are the housing frame screws closed tightly? Endress+Hauser...
Wiring RIA46 Wiring WARNING Danger! Electric voltage! ‣ The entire connection of the device must take place while the device is de-energized. ‣ The ground connection must be made before all other connections. Danger may arise if the protective ground is disconnected.
Page 13
RIA46 Wiring 5.1.1 Overview of possible connections on the process display unit Terminal assignment of analog inputs, channel 1 and 2 (optional) 15 16 17 18 25 26 27 28 A0010406 Loop power supply connection 2-wire 4-wire LPS 2-W LPS 4-W...
Page 14
Wiring RIA46 Analog output connection Analog output 1 Analog output 2 (optional) A0010742 A0010743 Digital output connection Digital output / open collector A0010744 Power supply connection 24 to 230 V AC/DC (-20 % / +10 %) No protective ground is connected in the case of the plastic 50/60 Hz housing.
1. Firstly, install the device driver "CDI DTMlibrary" in FieldCare. It can be found under "Endress+Hauser Device DTMs → Service / Specific → CDI" in FieldCare. 2. Then the DTM catalog must be updated. Add the new installed DTMs to the DTM catalog.
Page 17
RIA46 Operation Installing the Windows driver for the TXU10/FXA291 To install the Windows driver Administrator rights are required. Proceed as follows: 1. Connect the device to the PC using the TXU10/FXA291 interface adapter. A new device is detected and the Windows installation assistant opens.

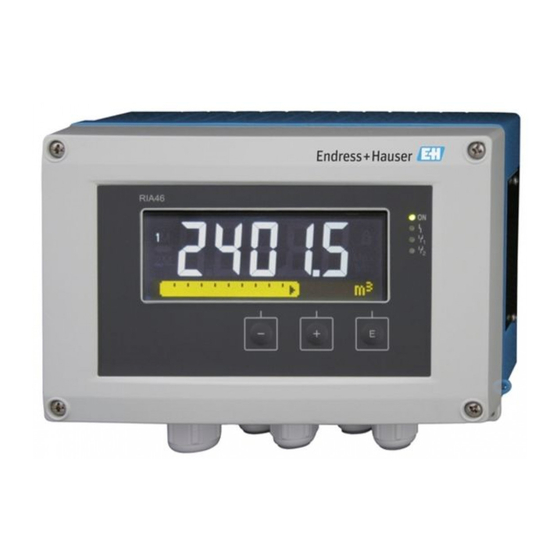

Operation RIA46 Display and device status indicator/LED The device provides an illuminated LC display which is split into two sections. The segment section displays the value of the channel and additional information and alarms. In the dot matrix section, additional channel information, such as the TAG, unit or bar graph, is displayed in the display mode.
RIA46 Operation Underrange/overrange: In the dot matrix section, the error and channel name (TAG) are specified. 6.3.2 Icons in the editing mode The following characters can be used to enter user-defined text: ‘0-9’, ‘a-z’, ‘A-Z’, ‘+’, ‘-’, ‘*’, ‘/’, ‘\’, ‘%’, ‘°’, ‘2’, ‘3’, ‘m’, ‘.’, ‘,’, ‘;’, ‘:’, ‘!’, ‘?’, ‘_’, ‘#’, ‘$’, ‘"’, ‘´’, ‘(’, ‘)’, ‘~’...
Page 20
Operation RIA46 Setup menu Description Application Application selection 1-channel 1-channel application 2-channel 2-channel application Diff-pressure Difference pressure application AI1 Lower range* Lower measuring range limit for Analog in 1 AI1 Upper range* Upper measuring range limit for Analog in 1 ...
Page 21
RIA46 Operation Setup menu Description Reset min/max Reset min/max values Calc value 2 Calculated value 2 See Calc value 1 Analog out 1 Analog output 1 Assignment Assignment for analog output Signal type Signal type of analog output Lower range...
Page 22
Operation RIA46 Expert menu Description Bar 100% Upper limit for bargraph of analog input Decimal places Decimal place for analog input Damping Damping Failure mode Failure mode Fixed fail value Fixed value in the event of an error (only, if Failure mode =...
RIA46 Commissioning Commissioning Post-installation check and switching on the device Make sure that all post-connection checks have been carried out before putting your device into operation: • "Post-installation check" checklist → 11 • "Post-connection check" checklist → 15 After the operating voltage is applied, the green LED lights up and the display indicates the device is ready for operation.
Commissioning RIA46 9. Confirm the last position of the code in order to exit the menu. The full code is displayed. Press + to scroll back to the last item of the x Back submenu and confirm this item. By confirming the point, the value is adopted and the display returns to the Setup level.
Page 25
RIA46 Commissioning Differential pressure application A concise setup is available for differential pressure applications. Once the differential pressure application setup has been completed successfully, the difference between the two inputs is automatically calculated and the signal linearized using the configured parameters of the analog inputs and the linearization points. As a result, the volume is already shown on the display (= calculated value 2).
Page 26
Commissioning RIA46 ‘Setup’ menu item Setup → Application → ‘Diff pressure’ Preconfigured by application package Submenu Setup analog inputs AI1 Lower range: start of measuring range, analog input 1 Signal: Current (corresponds to 4 mA for example) Range: 4-20 mA AI1 Upper range: end of measuring range, analog input 1 →...
Page 27
RIA46 Commissioning Current Voltage RTD (resistance TC (thermocouple) Off (deactivate the temperature input) detector) Signal range Signal range (see Technical data); start and end of measuring range defined by the type selected Lower range Connection (RTD Start of measuring range; also enter the...
Page 28
Commissioning RIA46 7.4.4 Step 4: Configuring the analog output(s) The device has one analog output (optionally two analog outputs). These outputs can be freely assigned to the inputs and channels available in the device. Setup Analog out 1 Analog out 2 Assignment: assignment of the output •...
Page 29
RIA46 Commissioning Time base: Enter the time base in seconds. Only for the Gradient Time base for calculating the gradient operating mode. Hysteresis: The hysteresis is configured as an absolute value (only Hysteresis. For every set point, the switch point can be positive values) in the unit of the channel in question controlled via a hysteresis.
Page 30
Commissioning RIA46 Measured value Setpoint Hysteresis Threshold “off” Setpoint “on” Setpoint “off” A0010187-EN 11 Max operating mode Gradient The "Gradient" operating mode is used to monitor the change of the input signal over time. The alarm is triggered if the measured value reaches or exceeds the preset value. If the user configures a positive value, the limit value is monitored for increasing gradients.
Page 31
RIA46 Commissioning Measured value Hysteresis Setpoint Setpoint Hysteresis Setpoint active Setpoint not active A0010189-EN 13 OutBand operating mode InBand The limit value is violated as soon as the measured value to be checked exceeds or drops below a preset maximum or minimum respectively. The hysteresis must be monitored on the inside of the band.
Page 32
Commissioning RIA46 Measured Delay Delay value Setpoint Hysteresis Delay time is reset Setpoint active Setpoint not active A0010193-EN 15 Hysteresis and delay active 7.4.6 Step 6: Advanced device configuration (access protection/ operating code, saving the current setup) Access protection Access protection locks all the editable parameters, i.e.
Page 33
RIA46 Commissioning 7.4.7 Step 7: Configuring the display functions The display is split into a 7-segment display section and a color section. The dot matrix section can be configured separately for each channel. Users can choose from all the active channels (analog inputs and calculated values).
Page 34
Commissioning RIA46 In addition, the configured limit values for overfill protection must be secured against unintentional modification. The following function must be activated if additional access protection should be provided for the configuration software: Select Setup / Expert → System → Overfill protect: German WHG...
Page 35
RIA46 Commissioning The damping is specified in seconds (can be configured in steps of 0.1 s , max. 999.9 s). Default values Input type Fixed value Current and voltage inputs 0.0 s Temperature inputs 1.0 s Once 5 times the filter time has elapsed, 99% of the actual measured value is reached.
Commissioning RIA46 Output → Relay 1/2 Time delay Sets the time delay for switching the relay Operating mode Operating mode of the relay. • norm opened • norm closed Failure mode • norm opened • norm closed NOTICE Setting the limit relay failure mode ‣...
Page 37
RIA46 Commissioning displayed appears in the color section of the display. The maximum and minimum value are provided for each active channel. Press the ‘+’ and ‘-’ simultaneously to exit a menu at any time. Any changes made are not saved.
Page 38
Commissioning RIA46 User interface User interface - - - - - - - - - - Measured value - - - - - - - - - - - - - - - Points to note Status Range Under range...
Page 39
RIA46 Commissioning ‘Expert’ → ‘System’ → ‘Reset’ → ‘Factory reset’: reset all the parameters to the as- delivered state; all the configured parameters are overwritten. If a user code has been defined, it is overwritten!!! When operation is locked by a user code, this is indicated by a lock symbol on the display.
Diagnostics and troubleshooting RIA46 Diagnostics and troubleshooting To help you troubleshoot, the following section is designed to provide an overview of possible causes of errors. NOTICE Device malfunction possible when retrofitting with untested hardware ‣ When retrofitting the device with additional hardware (relay, additional universal input and additional analog output), the device software must perform an internal hardware test).
Page 41
RIA46 Diagnostics and troubleshooting Error code Meaning Remedy C482 Info: simulation mode, relay/open collector For information purposes only. Device is working properly. C483 Info: simulation mode, analog output For information purposes only. Device is working properly. C561 Display overrun For information purposes only. Device is working properly.
10.2 Spare parts Accessories and spare parts currently available for your product can be found online at: www.endress.com/spareparts_consumables → access to specific device information → enter serial number. RIA46 aluminum housing RIA46 plastic housing A0011204-EN 17 Spare parts Item No.
The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
RIA46 Technical data Technical data 12.1 Input 12.1.1 Measured variable Current, voltage, resistance, resistance thermometer, thermocouples 12.1.2 Measuring ranges Current: • 0/4 to 20 mA +10% overrange • Short-circuit current: max. 150 mA • Load: 10 Ω Voltage: • 0 to 10 V, 2 to 10 V, 0 to 5 V, 0 to 1 V, 1 to 5 V, ±1 V, ±10 V, ±30 V, ±100 mV •...
Page 48
Technical data RIA46 Current/voltage output Current output: • 0/4 to 20 mA • Overrange up to 22 mA Voltage: • 0 to 10 V, 2 to 10 V, 0 to 5 V, 1 to 5 V • Overrange: up to 11 V, short-circuit proof, I <...
RIA46 Technical data 12.3 Power supply 12.3.1 Terminal assignment A0010685 19 Inside view and terminal assignment of the process display Connection socket for interface cable Connection supply voltage Connection relay 1 (optional) Connection relay 2 (optional) Connection analog and status output...
RIA46 Technical data Accuracy Input: Range: Maximum measured error of measuring range (oMR): Typ D (W3Re/W25Re), 0 to 2 495 °C (32 to 4 523 °F) ± (0.15% oMR +1.5 K (2.7 °F)) (ASTME998) from 500 °C (932 °F) Typ C (W5Re/W26Re), 0 to 2 320 °C (32 to 4 208 °F) ±...
Technical data RIA46 12.6 Environment 12.6.1 Ambient temperature range NOTICE The life-time of the display is shortened when operated in the upper temperature range. ‣ To avoid heat accumulation, always make sure the device is sufficiently cooled. Non-Ex/Ex devices: –20 to 60 °C (–4 to 140 °F) UL devices: –20 to 50 °C (–4 to 122 °F)
RIA46 Technical data 12.7 Mechanical construction 12.7.1 Design, dimensions 96 (3.78) 199 (7.83) 163 (6.42) A0010574 20 Dimensions of the field meter in mm (in) Drill-hole for direct wall mounting or on optional mounting plate with 4 screws 5 mm (2 in) 12.7.2...
Technical data RIA46 12.8 Operability 12.8.1 Local operation A0010575 21 Display of the field meter Channel display: 1: analog input 1; 2: analog input 2; 1M: calculated value 1; 2M: calculated value 2 Dot matrix display for TAG, bar graph and unit Limit value indicators in the bar graph "Operation locked"...
The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
Appendix RIA46 Appendix The following tables show all the parameters available in the configuration menu. The values configured at the factory are marked in bold. 13.1 Further explanations on the differential pressure application at level measurement At both universal inputs pressure sensors are connected. With the following calculation steps the volume in the CV channels is finally calculated: 13.1.1...
Page 57
RIA46 Appendix • 1 bar = 0,1 N/mm² = 10 N/m² = 10 • 1 mbar = 1 hPa = 100 Pa Conversion factors for various pressure engineering units Pascal Technical Physical Torr Pounds per Atmosphere Atmosphere square inch [Pa]...
Appendix RIA46 Medium Density in [kg/m³] Disulfide Diethyl ether 13.1.2 Calculation step: Calculation of the volume out of the height By means of the linearization of the calculated height value the volume can be calculated. This is done by assigning a certain volume value to every height value in dependency of the tank shape.
RIA46 Appendix Calc value 1/2 Navigation Display → Calc value 1/Calc value 1 Description Configures the display for math 1 or math 2. If the parameter is set to ‘Off’, the channel is not displayed. Options Unit Bargraph Bar + unit...
Page 60
Appendix RIA46 AI1/AI2 Lower range Navigation Setup → AI1 Lower range/AI2 Lower range Description Configures the measuring range lower limit User entry Numerical value Factory setting 0.0000 Additional information Only visible if → Diff pressure is configured as the application.
Page 61
RIA46 Appendix Factory setting 100.00 Additional information Only visible if → Diff pressure is configured as the application. Submenu "Linearization" Navigation Setup → Linearization Description Only visible if → Diff pressure is configured as the application. No lin points Navigation ...
Page 62
Appendix RIA46 Signal range Navigation Setup → Analog in 1/Analog in 2 → Signal range Description Configures the input signal. Which options are available for selection depends on the "Signal type" set. Options 4-20mA, 4-20mA squar, 0-20mA, 0-20mA squar...
Page 63
RIA46 Appendix Unit Navigation Setup → Analog in 1/Analog in 2 → Unit Description Unit of the channel Input Customized text, max. 5 digits Additional information Only displayed if "Signal type" = "Current" or "Voltage" is set. Temperature unit Navigation ...
Page 64
Appendix RIA46 Description Resets the min./max. values saved. Options Factory setting Submenu "Calc value 1"/"Calc value 2" Navigation Setup → Calc value 1/Calc value 2 Additional information Settings for math 1 or math 2 Calculation Navigation Setup → Calc value 1/Calc value 2 → Calculation Description Selects the calculation method.
Page 65
RIA46 Appendix Description Configures the 100%-value for the bar graph User entry Numerical value Factory setting Factor Navigation Setup → Calc value 1/Calc value 2 → Factor Description Setting of factor for calculated value User entry Numerical value Factory setting...
Page 66
Appendix RIA46 Description Resets the min./max. values saved. Options Factory setting Submenu "Analog Out 1"/"Analog Out 2" Navigation Setup → Analog Out 1/Analog Out 2 Additional information Settings for analog output 1 or analog output 2 Assignment Navigation Setup → Analog Out 1/Analog Out 2 → Assignment...
Page 67
RIA46 Appendix Submenu "Relay 1"/"Relay 2" Navigation Setup → Relay 1/Relay 2 Additional information Settings for relay 1 or relay 2 Source Navigation Setup → Relay 1/Relay 2 → Source Description Selects the source for the relay Options...
Appendix RIA46 Description Time base for gradient calculation in seconds User entry 0-60 Factory setting Additional information Only visible if "Function" = "Gradient" was set Hysteresis Navigation Setup → Relay 1/Relay 2 → Hysteresis Description Hysteresis for switching threshold(s)
Page 69
RIA46 Appendix Navigation Diagnostics → Current diagn Description Displays the error code currently present Last diagn Navigation Diagnostics → Last diagn Description Displays the last error code Operating time Navigation Diagnostics → Operating time Description Displays the hours operated up until now Submenu "Diagnost logbook"...
Appendix RIA46 Order identifier Navigation Diagnostics → Device information → Order identifier Description Displays the order number Firmware version Navigation Diagnostics → Device information → Firmware version Description Displays the firmware version ENP Version Navigation Diagnostics → Device information → ENP Version...
Page 71
RIA46 Appendix Submenu "Analog in 1"/"Analog in 2" Navigation Expert → Input → Analog in 1/Analog in 2 Description Settings for the analog inputs. Additional information The following parameters are available for analog input 1 and analog input Bar 0% Navigation ...
Page 72
Appendix RIA46 Description Configures the failsafe mode. Options Invalid Fixed value Factory settings Invalid Additional information Invalid: an invalid value is output in the event of an error. Fixed value: a fixed value is output in the event of an error.
Page 73
RIA46 Appendix Description Setting as to whether saved min./ max. values can be reset in the Display menu without having to enter a user code which may already have been configured. Options Factory setting Submenu "Output" Navigation Expert → Output Submenu "Analog Out 1"/"Analog Out 2"...
Page 75
RIA46 Appendix Description Configures the failsafe mode Options Invalid Fixed value Factory setting Invalid Fixed fail value Navigation Expert → Application → Calc value 1/Calc value 2 → Fixed fail value Description The value configured here is output in the event of an error.
Page 76
Appendix RIA46 Description Simulation of analog output 1 or analog output 2. The value configured in the simulation is output at analog output 1 or analog output 2. Options 3.6mA 10mA 12mA 20mA 21mA Factory setting Simu relay 1/2 Navigation ...
