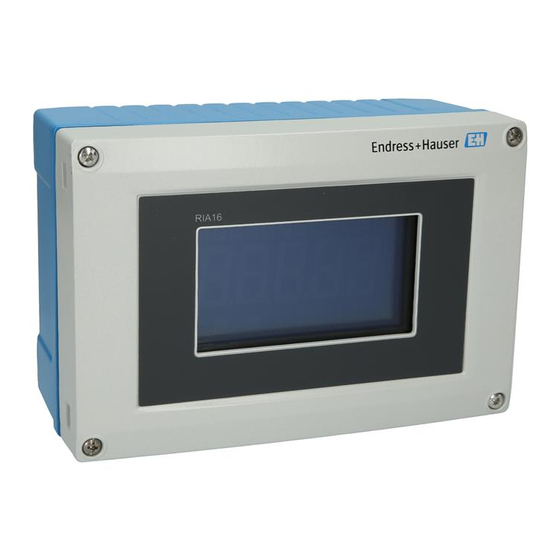

Operating Instructions
RIA16
Field Indicator
BA00280R/09/EN/02.12
71204177
SW Version:
1.00.xx

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser RIA16

Summary of Contents for Endress+Hauser RIA16

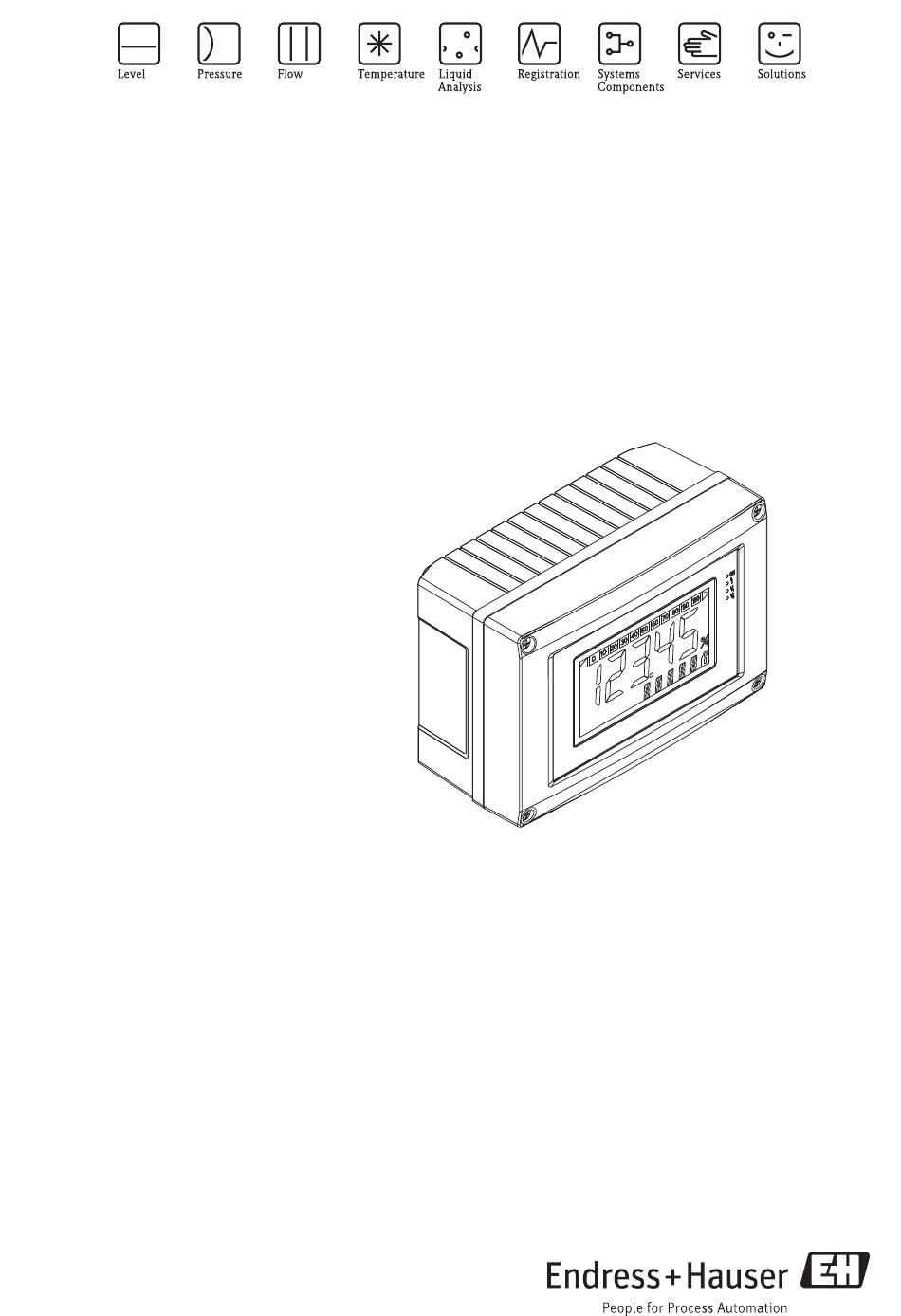

  • Page 1 Operating Instructions RIA16 Field Indicator BA00280R/09/EN/02.12 71204177 SW Version: 1.00.xx...
  • Page 2 RIA16 Brief operating instructions For quick and easy commissioning: → ä 4 Safety instructions Æ → ä 7 Installation Æ → ä 10 Wiring Æ → ä 13 Display and operating elements Æ → ä 17 Device configuration Device configuration - Explanation and application of all adjustable device functions with the related ranges of values and settings.

  • Page 3: Table Of Contents

    RIA16 Table of contents Table of contents Safety instructions ....4 11.3 Spare parts ....... 25 11.4 Return .

  • Page 4: Safety Instructions

    Safety instructions RIA16 Safety instructions Designated use • The device is a configurable field indicator with one sensor input. • The device is designed for installation in the field. • The manufacturer does not accept liability for damage caused by improper or non-designated use.

  • Page 5: Notes On Safety Conventions And Icons

    RIA16 Safety instructions Notes on safety conventions and icons The safety instructions in these Operating Instructions are labelled with the following safety icons and symbols: Warning! This symbol indicates an action or procedure which, if not performed correctly, can result in injury, a safety hazard or the destruction of the device.

  • Page 6: Identification

    Identification RIA16 Identification Device designation 2.1.1 Nameplate The right device? Compare the order code on the nameplate of the device to that on the delivery papers. RIA16 Made in Germany 2009 D-87484 Nesselwang Order code: RIA16-xxxxxxx S/N: xxxxxxxxxxx Ident: xxxxxxxxxxxxxxxxxx Loop powered 4...20mA IP67 NEMA4X...

  • Page 7: Function And System Design

    RIA16 Function and system design Function and system design The field indicator is directly looped into the 4 to 20 mA measuring circuit. The energy required is taken from the loop of the measuring circuit. The device records an analog measured value and displays it on a clearly legible LC display.

  • Page 8: Mounting Instructions

    Installation RIA16 4.2.1 Dimensions a0011162 Fig. 2: Installation dimensions; dimensions in mm (dimensions in inches in brackets) A = Bore hole for mounting to wall or optional mounting plate with 4 srews ∅5 mm (0.2 in.) 4.2.2 Installation location Information on conditions that must be present at the installation location to mount the device correctly can be found in Section 'Technical data'.

  • Page 9: Post-Installation Check

    RIA16 Installation 4.3.2 Pipe mounting The mounting bracket is suited for pipes with a diameter between 25.4…127 mm(1…5 in.). The mounting kit consists of a mounting plate (item 1), 2 clamps (item 2) and 4 screws (item 3) (→ å 3 and → å 4).

  • Page 10: Wiring

    Wiring RIA16 Wiring " Caution! When connecting Ex-approved devices, please observe the instructions and connection diagrams in the specific Ex documentation for these Operating Instructions. Your local E+H representative is available for assistance if required. Firstly, open the housing of the field indicator: a0011271 Fig.

  • Page 11: Quick Wiring Guide

    RIA16 Wiring Quick wiring guide Terminal assignment active Terminal 2 and 3 Open Collector + - 1a1b passive 1a 1b 1a 1b loop power loop power supply supply a0011165-en Fig. 7: Terminal assignment Terminal Terminal assignment Input and output Measuring signal (+) 4 to 20 mA...

  • Page 12: Degree Of Protection

    Wiring RIA16 Degree of protection The devices fulfill all the requirements for IP 67 degree of protection. Compliance with the following points is mandatory following installation or servicing in order to ensure that IP 67 protection is maintained: • The housing seal must be clean and undamaged when inserted into the seal groove. The seal may have to be cleaned, dried or replaced.

  • Page 13: Operating The Field Indicator

    RIA16 Operating the field indicator Operating the field indicator Display and operating elements 6.1.1 Display a0011163 Fig. 8: LC display of the field indicator 6.1.2 Display symbols Bargraph display Indicator for measuring range undershoot Indicator for measuring range overshoot Measured value display Digit height 26 mm (1.02")
  • Page 14 Operating the field indicator RIA16 6.2.1 Navigation The operating fields are split into 2 levels. Menu: Various menu items can be selected on the menu level. The individual menu items are an aggregation of the associated operating functions. Operating function: An operating function can be regarded as an aggregation of the operating parameters.

  • Page 15: Operating Matrix

    RIA16 Operating the field indicator Operating matrix Menu Operating function Operating function Operating function Parameter Default / Parameter Default / Parameter Default / Choice Choice Choice Analog input Curve Signal damping Dec. point of measured INPUT CURV DAMP val. DI DP...

  • Page 16: Configuration Via Interface & Fieldcare Device Setup Pc Configuration Software

    Note! Online configuration is not possible with the RIA14/RIA16. • To then configure the device itself, follow these Operating Instructions for the device. The entire Setup menu, i.e. all the parameters listed in these Operating Instructions, can also be found in the FieldCare Device Setup.

  • Page 17: Device Configuration

    RIA16 Device configuration Device configuration Description of operating functions The following table shows the menus available for the field indicator. These are explained in detail in the sections specified. Section Function As shown on the display Section 7.1 Data processing INPUT Section 7.2...

  • Page 18: Display (Displ)

    Device configuration RIA16 " Caution! Measured value 0 % and 100 % may not be identical. However, the 0 % measured value can be larger than the 100 % measured value (invert). Display (DISPL) 7.2.1 Dimension DIM É Options: NO, °C, K, °F, % or TEXT One of the units permanently stored in the display can be selected - K, °C, °F, %.

  • Page 19: Limit Values (Limit)

    RIA16 Device configuration Limit values (LIMIT) In the event of limit value violation or a fault, the OC output is switched currentless in accordance with the quiescent current principle. In the event of a limit value violation MIN (lower limit) ’LIMIN’ is displayed in the 14-segment display.
  • Page 20 Device configuration RIA16 7.4.2 Program information Name Description Program name 'PNAME' Displays the name of the software loaded in the device (7-digit) Note! Display cannot be edited Firmware version 'FWVER' Displays the version of the firmware loaded in the device (8-digit)

  • Page 21: Service Level (Serv)

    RIA16 Device configuration Service level (SERV) This level can only be selected after entering the service code (only available to service personnel). 7.5.1 Resetting the device (reset) PRSET - perform reset Service can reset the settings to the default values.

  • Page 22: Commissioning

    Commissioning RIA16 Commissioning Function check Make sure all connected wires are secure. To ensure correct functioning, the screws of the terminals must be tightened. The device is now operational. During device initialization, all the segments are shown on the display for approx. 1 second.

  • Page 23: Maintenance

    RIA16 Maintenance Maintenance No special maintenance work is required on the device. Accessories Description Order code Interface cable Commubox FXA291 incl. FieldCare Device Setup + DTM Library FXA291 TXU10 TXU10-AC Cable gland NPT 1/2, D4-8.5, IP68 51006845 2x cable gland M16...

  • Page 24: Trouble-Shooting

    Trouble-shooting RIA16 Trouble-shooting The following section provides you with an overview of possible causes of error to help you in trouble-shooting. 11.1 Trouble-shooting instructions Warning! In the case of devices approved for use in explosion hazardous areas, error diagnosis cannot be performed on the open device as the explosion protection would no longer be guaranteed.

  • Page 25: Spare Parts

    RIA16 Trouble-shooting 11.3 Spare parts a0012119 Fig. 13: Spare parts of the field indicator Pos.-Nr. Bestellnummer Bezeichnung RIA16X-GB Front aluminium incl. Front foil + glass (with seals + display fixing frame) RIA16X-GA Front plastic incl. front foil RIA16X-GD Housing bottom part alu (metric threads)

  • Page 26: Return

    Technical data RIA16 11.4 Return To reuse later or in case of repair, the device must be packed in protective packaging, preferably the original packaging. Repairs must only be carried out by your supplier's service organisation or specially trained personnel. Enclose a note describing the fault when sending the unit in for repair.
  • Page 27 RIA16 Technical data 12.0.4 Performance characteristics Reference operating T= 25 °C (77 °F) conditions Maximum measured error < 0.1% of scaled display range Influence of ambient Effect on the accuracy when ambient temperature changes by 1 K (1.8 °F): 0.01%...
  • Page 28 Technical data RIA16 12.0.7 Mechanical construction Design, dimensions Fiber-glass reinforced plastic housing for general purpose or, as an option, aluminum housing a0011162 Fig. 14: Data in mm (data in inches in brackets) Weight • Approx. 500 g (1.1 lb) (plastic housing) •...
  • Page 29 RIA16 Technical data 12.0.8 Human interface Display elements a0011163 Fig. 15: LC display of the field indicator Item 1: bargraph display in increments of 10% with indicators for measuring range undershoot (item 1a)/overshoot (item 1b) Item 2: measured value display, character height 26 mm (1.02") Item 3: 14-segment display for units and information messages Item 4: symbol "programming disabled"...
  • Page 30 12.0.9 Certificates and approvals CE mark The device complies with the legal requirements of the EC directives. Endress+Hauser confirms that the device has been successfully tested by affixing to it the CE mark. Hazardous area approvals Information about currently available Ex versions (ATEX, FM, CSA, etc.) can be supplied by your E+H Sales Center on request.

  • Page 31: Index

    RIA16 Index Index ALARM........19 Nameplate.
  • Page 32 www.endress.com/worldwide BA00280R/09/en/02.12 71204177 FM 9...
