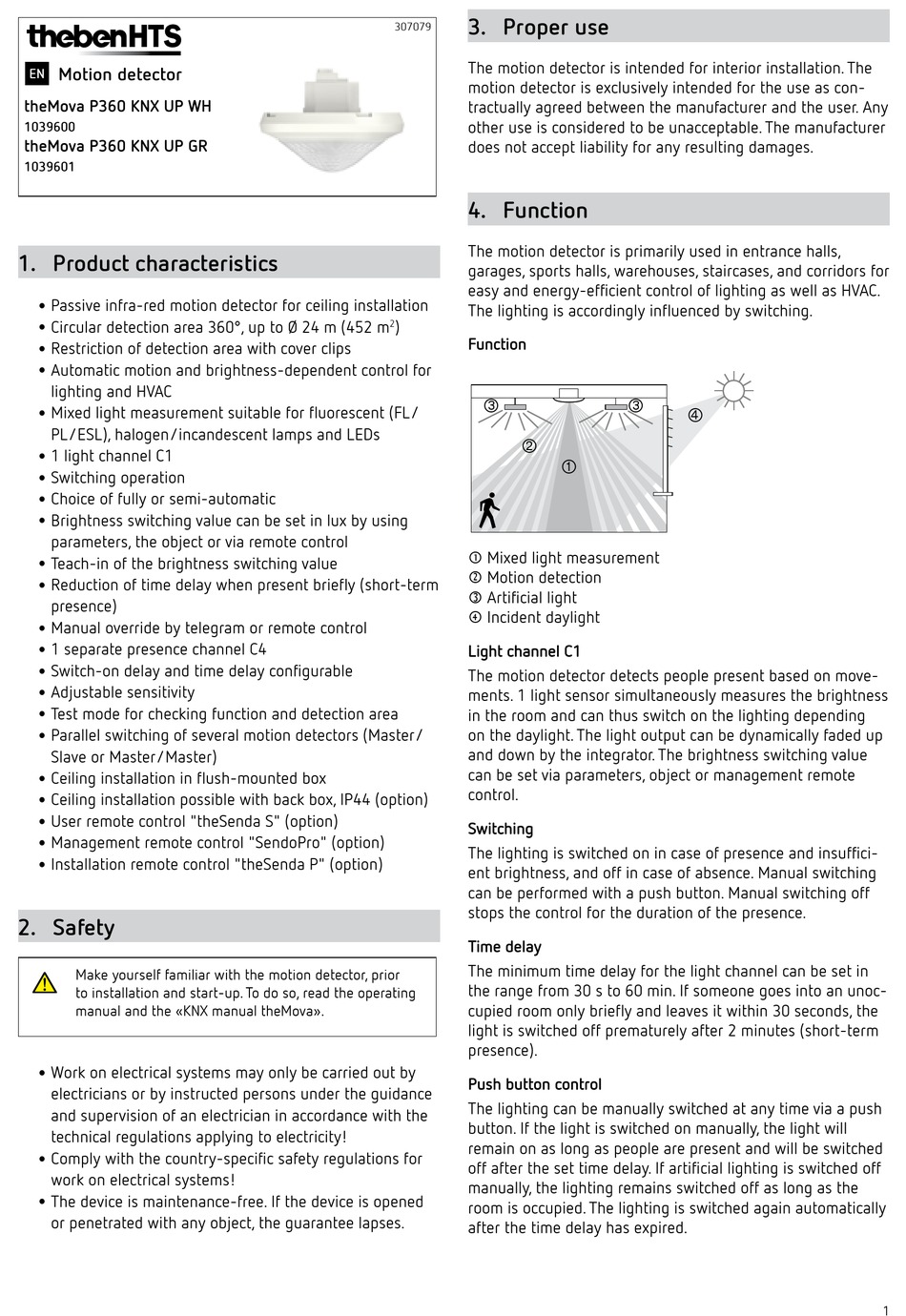

Theben theMova P360 KNX UP WH Instruction Manual

Motion detector
EN

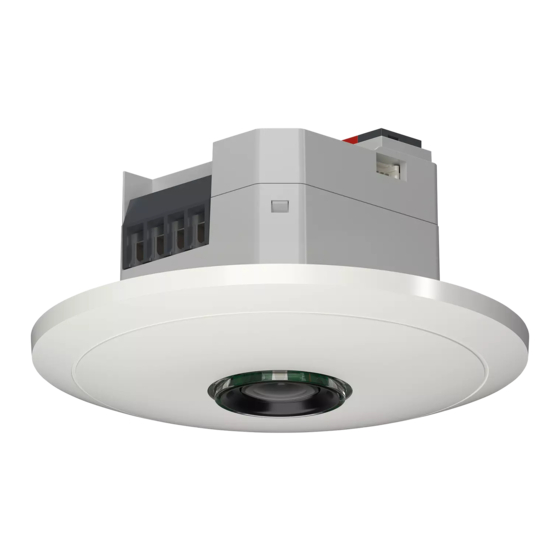

theMova P360 KNX UP WH
1039600
theMova P360 KNX UP GR
1039601
1. Product characteristics
•
Passive infra-red motion detector for ceiling installation
•
Circular detection area 360°, up to Ø 24 m (452 m
•
Restriction of detection area with cover clips
•
Automatic motion and brightness-dependent control for
lighting and HVAC
•
Mixed light measurement suitable for fluorescent (FL/
PL/ESL), halogen/incandescent lamps and LEDs
•
1 light channel C1
•
Switching operation
•
Choice of fully or semi-automatic
•
Brightness switching value can be set in lux by using
parameters, the object or via remote control
•
Teach-in of the brightness switching value
•
Reduction of time delay when present briefly (short-term
presence)
•
Manual override by telegram or remote control
•
1 separate presence channel C4
•
Switch-on delay and time delay configurable
•
Adjustable sensitivity
•
Test mode for checking function and detection area
•
Parallel switching of several motion detectors (Master/
Slave or Master/Master)
•
Ceiling installation in flush-mounted box
•
Ceiling installation possible with back box, IP44 (option)
•
User remote control "theSenda S" (option)
•
Management remote control "SendoPro" (option)
•
Installation remote control "theSenda P" (option)
2. Safety
Make yourself familiar with the motion detector, prior
to installation and start-up. To do so, read the operating
manual and the «KNX manual theMova».
•
Work on electrical systems may only be carried out by
electricians or by instructed persons under the guidance
and supervision of an electrician in accordance with the
technical regulations applying to electricity!
•
Comply with the country-specific safety regulations for
work on electrical systems!
•
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.
3. Proper use
307079
The motion detector is intended for interior installation. The
motion detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The motion detector is primarily used in entrance halls,
garages, sports halls, warehouses, staircases, and corridors for
easy and energy-efficient control of lighting as well as HVAC.
The lighting is accordingly influenced by switching.
)
2
Function


 Mixed light measurement
‚ Motion detection
 Artificial light
„ Incident daylight
Light channel C1
The motion detector detects people present based on move-
ments. 1 light sensor simultaneously measures the brightness
in the room and can thus switch on the lighting depending
on the daylight. The light output can be dynamically faded up
and down by the integrator. The brightness switching value
can be set via parameters, object or management remote
control.
Switching
The lighting is switched on in case of presence and insuffici-
ent brightness, and off in case of absence. Manual switching
can be performed with a push button. Manual switching off
stops the control for the duration of the presence.
Time delay
The minimum time delay for the light channel can be set in
the range from 30 s to 60 min. If someone goes into an unoc-
cupied room only briefly and leaves it within 30 seconds, the
light is switched off prematurely after 2 minutes (short-term
presence).
Push button control
The lighting can be manually switched at any time via a push
button. If the light is switched on manually, the light will
remain on as long as people are present and will be switched
off after the set time delay. If artificial lighting is switched off
manually, the lighting remains switched off as long as the
room is occupied. The lighting is switched again automatically
after the time delay has expired.



1
