Presence detector
EN
thePrema P360-101 E UP WH
2070105
thePrema P360-101 E UP GR
2070106
1. Product characteristics
•

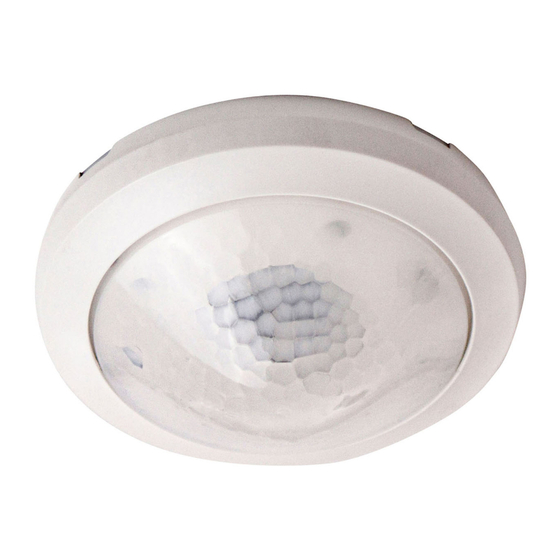

Passive infrared presence detector for ceiling installation
•
Square detection area 360° (up to 100 m
easy planning
•
Automatic presence- and brightness-dependent control for
lighting and HVAC
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Light measurement can be switched to spot or wide
measurement
•
Channel A light: relay, 230 V
•
Fully or semi-automatic operation, switchable
•
Brightness switching value configurable, teach-in function
•
Self-learning time delay
•
Reduction of time delay when present briefly (short-term
presence)
•
Connection option for push buttons or switches for manual
switching with automatic detection of «push button/
switch»
•
Pulse function for staircase light timer switch
•
Channel H, presence: relay, floating
•
e.g. for HVAC control
•
Switch-on delay and time delay configurable
•
Room monitoring with selective movement detection
•
Ready for immediate use due to factory presetting
•
Exceptionally easy configuration of the energy-saving res-
ponse with the new «eco plus» function
•
Test mode for checking function and detection area
•
Extension of detection area via master/slave or master/
master switching, a maximum of 10 detectors can be swit-
ched in parallel with each other
•
Flexible relay operating modes
•
Ceiling installation in flush-mounted box
•
Surface mounting on ceilings possible with back box
(option)
•
User remote control «theSenda S» (option)
•
Management remote control «SendoPro» (option)
•
Installation remote control «theSenda P» (option)
2. Safety
307175
1103087101
2 ) for reliable and
3. Proper use
The presence detector is intended for interior installation. The
presence detector is exclusively intended for the use as cont-
ractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Operation
The presence detector is primarily used in offices and schools,
as well as in homes, for easy and energy-efficient control of
lighting plus HVAC and shading. The switch contact "light"
switches lighting on with presence and insufficient brightness,
and off with absence or sufficient brightness. The light can
also be switched on/off manually using buttons or switches.
The "Presence" switch contact controls heating, ventila-
tion and air conditioning systems. The contact closes when
someone is present, a switch-on delay permits delayed switch
on. The contact can also be used for room monitoring. It then
responds with reduced sensitivity only to distinct movements.
Function description
 Mixed light measurement
 Presence detection
 Artificial light
 Push button for manual lighting control
 Incident daylight
WARNING
Danger of death through electric shock or fire!
 Installation should only be carried out by a
qualified electrician!
•
Work on electrical systems may only be carried out by
qualified electricians or by instructed persons under the
guidance and supervision of a qualified electrician in
accordance with the technical regulations applying to
electricity!
•
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
•
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.


 


1
