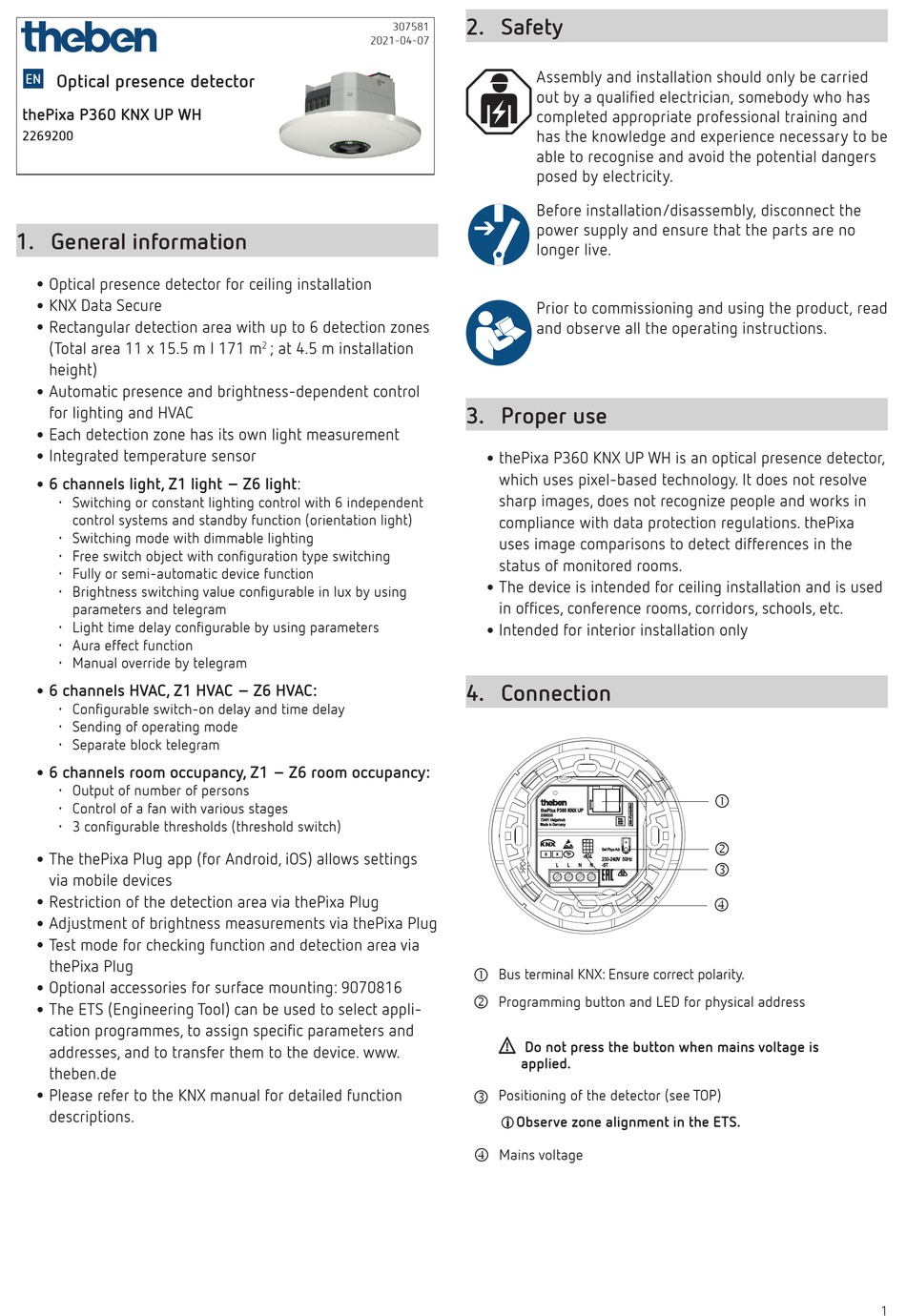

Theben thePixa P360 KNX UP WH Manual

Optical presence detector
EN
thePixa P360 KNX UP WH
2269200
1. General information
•
Optical presence detector for ceiling installation
•
KNX Data Secure
•
Rectangular detection area with up to 6 detection zones
(Total area 11 x 15.5 m I 171 m
height)
•
Automatic presence and brightness-dependent control
for lighting and HVAC
•
Each detection zone has its own light measurement
•
Integrated temperature sensor
•
6 channels light, Z1 light – Z6 light:
— Switching or constant lighting control with 6 independent
control systems and standby function (orientation light)
— Switching mode with dimmable lighting
— Free switch object with configuration type switching
— Fully or semi-automatic device function
— Brightness switching value configurable in lux by using
parameters and telegram
— Light time delay configurable by using parameters
— Aura effect function
— Manual override by telegram
•
6 channels HVAC, Z1 HVAC – Z6 HVAC:
— Configurable switch-on delay and time delay
— Sending of operating mode
— Separate block telegram
•
6 channels room occupancy, Z1 – Z6 room occupancy:
— Output of number of persons
— Control of a fan with various stages
— 3 configurable thresholds (threshold switch)
•
The thePixa Plug app (for Android, iOS) allows settings
via mobile devices
•
Restriction of the detection area via thePixa Plug
•
Adjustment of brightness measurements via thePixa Plug
•
Test mode for checking function and detection area via
thePixa Plug
•
Optional accessories for surface mounting: 9070816
•
The ETS (Engineering Tool) can be used to select appli-
cation programmes, to assign specific parameters and
addresses, and to transfer them to the device. www.
theben.de
•
Please refer to the KNX manual for detailed function
descriptions.
307581
2021-04-07
; at 4.5 m installation
2
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
and observe all the operating instructions.
3. Proper use
•

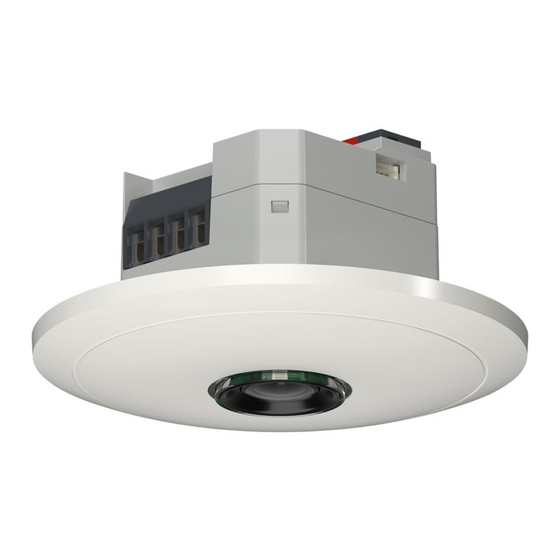

thePixa P360 KNX UP WH is an optical presence detector,
which uses pixel-based technology. It does not resolve
sharp images, does not recognize people and works in
compliance with data protection regulations. thePixa
uses image comparisons to detect differences in the
status of monitored rooms.
•
The device is intended for ceiling installation and is used
in offices, conference rooms, corridors, schools, etc.
•
Intended for interior installation only
4. Connection
Bus terminal KNX: Ensure correct polarity.

 Programming button and LED for physical address
!
Do not press the button when mains voltage is
applied.
Positioning of the detector (see TOP)

L Observe zone alignment in the ETS.
Mains voltage





1
