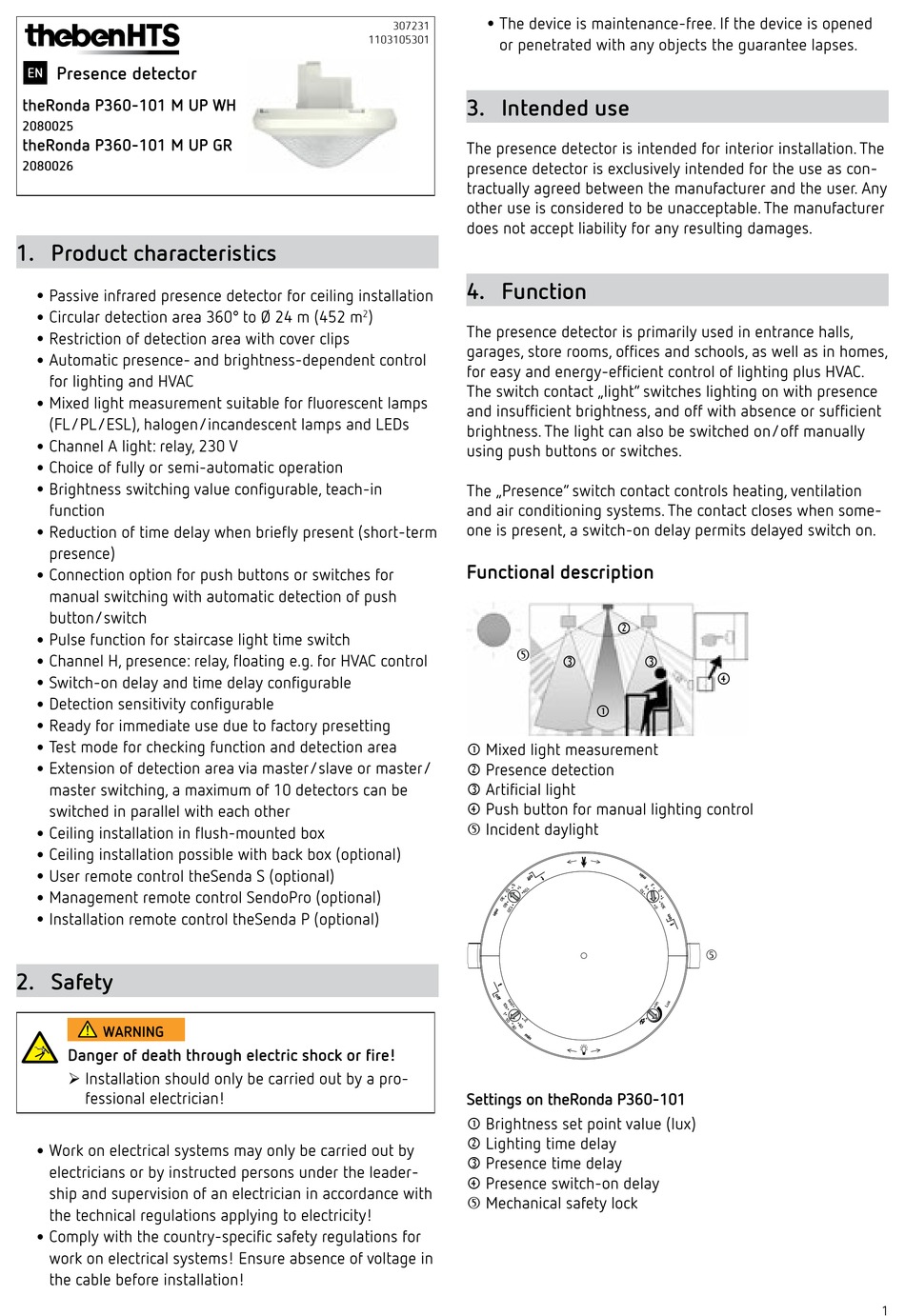

Theben 2080026 Manual

Presence detector
EN
theRonda P360-101 M UP WH
2080025
theRonda P360-101 M UP GR
2080026
1. Product characteristics
•
Passive infrared presence detector for ceiling installation
•
Circular detection area 360° to Ø 24 m (452 m
•
Restriction of detection area with cover clips
•
Automatic presence- and brightness-dependent control
for lighting and HVAC
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Channel A light: relay, 230 V
•
Choice of fully or semi-automatic operation
•
Brightness switching value configurable, teach-in
function
•
Reduction of time delay when briefly present (short-term
presence)
•
Connection option for push buttons or switches for
manual switching with automatic detection of push
button/switch
•
Pulse function for staircase light time switch
•
Channel H, presence: relay, floating e.g. for HVAC control
•
Switch-on delay and time delay configurable
•
Detection sensitivity configurable
•
Ready for immediate use due to factory presetting
•
Test mode for checking function and detection area
•
Extension of detection area via master/slave or master/
master switching, a maximum of 10 detectors can be
switched in parallel with each other
•
Ceiling installation in flush-mounted box
•
Ceiling installation possible with back box (optional)
•
User remote control theSenda S (optional)
•
Management remote control SendoPro (optional)
•
Installation remote control theSenda P (optional)
2. Safety
WARNING
Danger of death through electric shock or fire!
 Installation should only be carried out by a pro-
fessional electrician!
•
Work on electrical systems may only be carried out by
electricians or by instructed persons under the leader-
ship and supervision of an electrician in accordance with
the technical regulations applying to electricity!
•
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
•
The device is maintenance-free. If the device is opened
307231
1103105301
or penetrated with any objects the guarantee lapses.
3. Intended use
The presence detector is intended for interior installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
)
2
The presence detector is primarily used in entrance halls,
garages, store rooms, offices and schools, as well as in homes,
for easy and energy-efficient control of lighting plus HVAC.
The switch contact „light" switches lighting on with presence
and insufficient brightness, and off with absence or sufficient
brightness. The light can also be switched on/off manually
using push buttons or switches.
The „Presence" switch contact controls heating, ventilation
and air conditioning systems. The contact closes when some-
one is present, a switch-on delay permits delayed switch on.
Functional description

 Mixed light measurement
 Presence detection
 Artificial light
 Push button for manual lighting control
 Incident daylight
Settings on theRonda P360-101
 Brightness set point value (lux)
 Lighting time delay
 Presence time delay
 Presence switch-on delay
 Mechanical safety lock

 



1
