Theben theRonda P360-110 DALI UP WH Manual

Presence detectors
EN
theRonda P360-110 DALI UP WH
2080040
theRonda S360-110 DALI UP WH
2080580

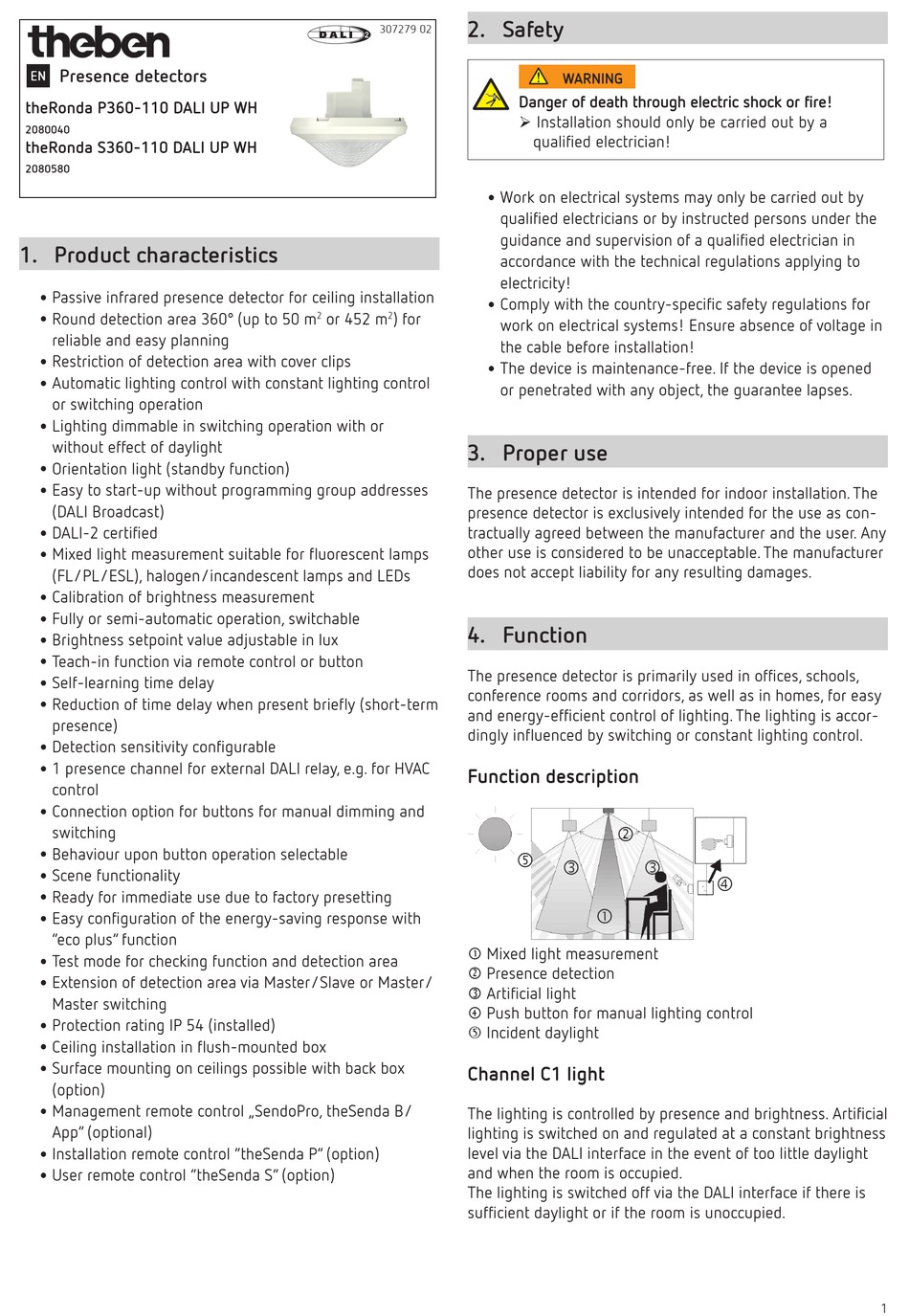

1. Product characteristics
•
Passive infrared presence detector for ceiling installation
•
Round detection area 360° (up to 50 m
reliable and easy planning
•
Restriction of detection area with cover clips
•
Automatic lighting control with constant lighting control
or switching operation
•
Lighting dimmable in switching operation with or
without effect of daylight
•
Orientation light (standby function)
•
Easy to start-up without programming group addresses
(DALI Broadcast)
•
DALI-2 certified
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Calibration of brightness measurement
•
Fully or semi-automatic operation, switchable
•
Brightness setpoint value adjustable in lux
•
Teach-in function via remote control or button
•
Self-learning time delay
•
Reduction of time delay when present briefly (short-term
presence)
•
Detection sensitivity configurable
•
1 presence channel for external DALI relay, e.g. for HVAC
control
•
Connection option for buttons for manual dimming and
switching
•
Behaviour upon button operation selectable
•
Scene functionality
•
Ready for immediate use due to factory presetting
•
Easy configuration of the energy-saving response with
"eco plus" function
•
Test mode for checking function and detection area
•
Extension of detection area via Master/Slave or Master/
Master switching
•
Protection rating IP 54 (installed)
•
Ceiling installation in flush-mounted box
•
Surface mounting on ceilings possible with back box
(option)
•
Management remote control „SendoPro, theSenda B/
App" (optional)
•
Installation remote control "theSenda P" (option)
•
User remote control "theSenda S" (option)
2. Safety
307279 02
•
•
or 452 m ) for
2 2
•
3. Proper use
The presence detector is intended for indoor installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The presence detector is primarily used in offices, schools,
conference rooms and corridors, as well as in homes, for easy
and energy-efficient control of lighting. The lighting is accor-
dingly influenced by switching or constant lighting control.
Function description
 Mixed light measurement
 Presence detection
 Artificial light
 Push button for manual lighting control
 Incident daylight
Channel C1 light
The lighting is controlled by presence and brightness. Artificial
lighting is switched on and regulated at a constant brightness
level via the DALI interface in the event of too little daylight
and when the room is occupied.
The lighting is switched off via the DALI interface if there is
sufficient daylight or if the room is unoccupied.
WARNING
Danger of death through electric shock or fire!
 Installation should only be carried out by a
qualified electrician!
Work on electrical systems may only be carried out by
qualified electricians or by instructed persons under the
guidance and supervision of a qualified electrician in
accordance with the technical regulations applying to
electricity!
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.


 


1
