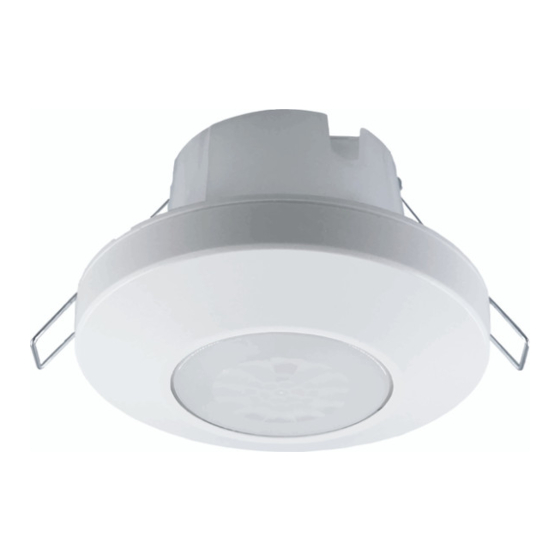

- Page 1 360º Flush Mount PIR Presence Detector With Optional Absence Detection Model: PDFM361AB (1 Channel) Model: PDFM362AB (2 Channel)
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. Timeguard reserve the right to alter these instructions Note: at any time. Up to date instructions will always be available for download at www.timeguard.com 2. - Page 3 • Time ON Adjustment: 30sec - 30min 60 Minutes with optional remote control IR10AB • (LUX) level adjustment: 10 - 2000 • Manual Override: • Load 1 for Lighting: 2200W Incandescent 2200W Halogen 1200VA/140uF Fluorescent 800VA/600W LED • Load 2 for HVAC: Voltage free contacts: Max 5A for 230V AC Note: Only PDFM362AB...
-
Page 4: Selecting A Location
4. Selecting a location • The PIR has a number of detection zones at various horizontal and vertical angles as shown below. Effective Approach Path Ineffective Approach Path (ACROSS) (TOWARDS) • A moving human body or object needs to cross one of these zones to activate the sensor. - Page 5 • During extreme weather conditions the PIR may exhibit unusual behaviour if placed in sight of a window. Once normal weather resumes, the PIR will carryout normal operations. 5. Installtion • Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off.
- Page 6 ø68mm • Unscrew the side on door entry access points on the base plate of the PIR and open it. Locate the terminal connections and terminate the cables into the terminal block ensuring that the correct polarity is observed and that all bare conductors are sleeved.
-
Page 7: Connection Diagram
6. Connection Diagram PDFM362AB PDFM361AB Channel 2 Load Volt Free Input C2 C1 L N N L N N Channel Channel Push Push 1 Load 1 Load Button Button PDFM361AB: Wiring Configuration Load 230V AC 50Hz Mains Supply Switched Live Live (Brown or Red) to L (Brown or Red) to Neutral (Blue or Black to N... - Page 8 7.Commisioning and Operation • Restore the power from the mains supply breaker or isolating switch and test for the correct operation. Walk Test Procedure • Adjust the time dial (fully anti-clockwise), and the Lux dial should be set to the sun symbol for daylight/night operation for the purpose of the walk test.
- Page 9 Switching From Presence To Absence Mode: • To switch the PIR from presence to absence mode, press the lock/unlock button and you will see 2 flashes from the LED receiver of the PIR, this indicates that the PIR is unlocked and ready to receive further instructions from the remote control.
-
Page 10: Optional Remote Control
9.Optional Remote Control • The IR10AB is an optional remote control that is sold separately. If absence detection is required the IR10AB will be needed to change modes over. • LUX control adjustment. (Auto mode only). • Time delay adjustment (up to 60 minutes Auto mode only). -
Page 11: Year Guarantee
Problem Cause/Solution False activation. Heat sources as described in section 4. (Luminaire switches Reflective surfaces described in section 4. on for no apparent Moving pedestrians, cars or animals in reason) the area. Check the detection area. Nearby electromagnetic disturbance from a neighbouring circuit (CCTV interference). - Page 12 If you experience problems, do not immediately return the unit to the store. Email the Timeguard Customer Helpline: HELPLINE helpline@timeguard.com or call the helpdesk on 020 8450 0515 Qualified Customer Support Coordinators will be online to assist in resolving your query. For a product brouchure please contact: Timeguard Limited.
