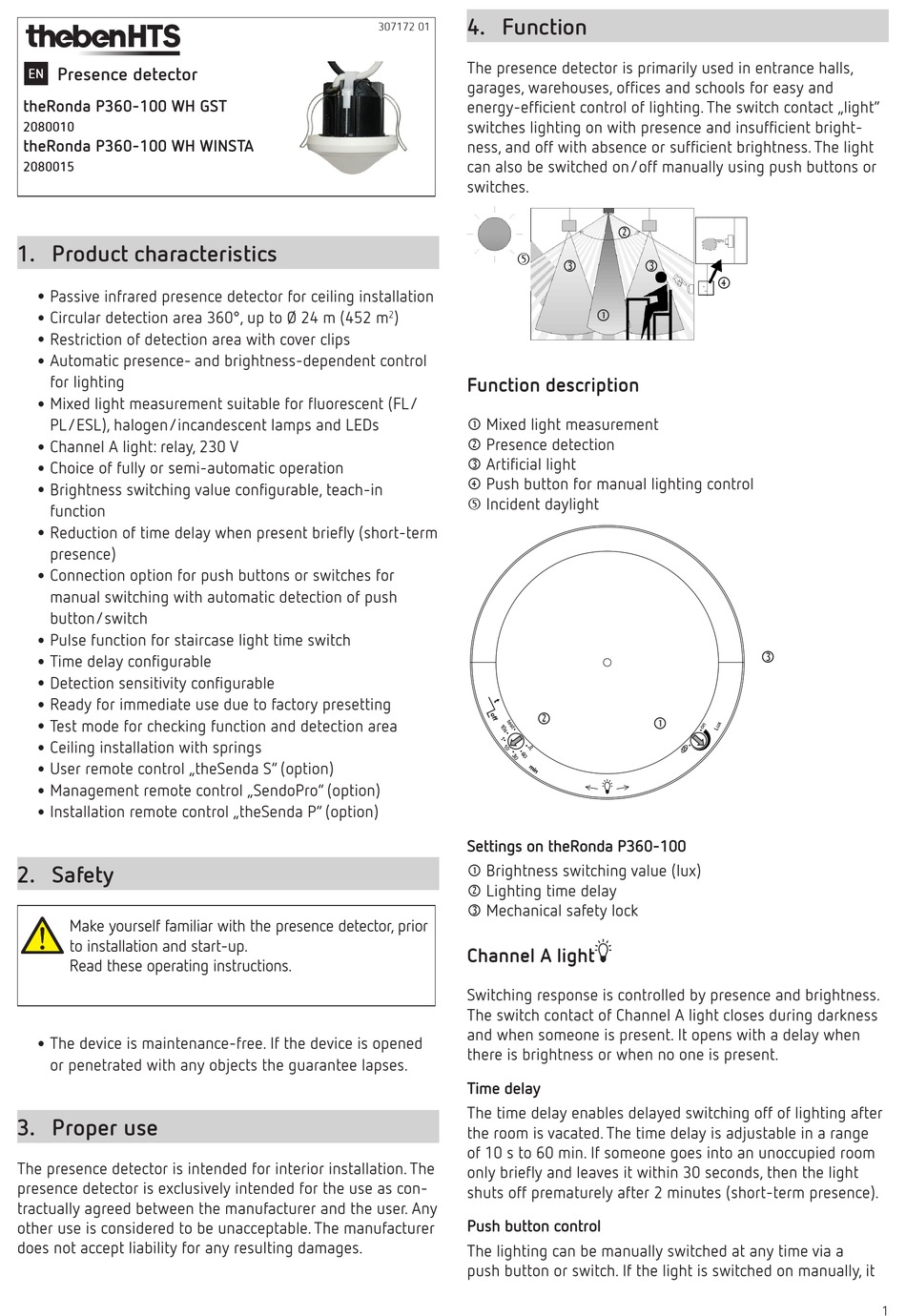

Theben theRonda P360-100 WH GST Quick Start Manual

Presence detector
EN
theRonda P360-100 WH GST
2080010
theRonda P360-100 WH WINSTA
2080015
1. Product characteristics
•

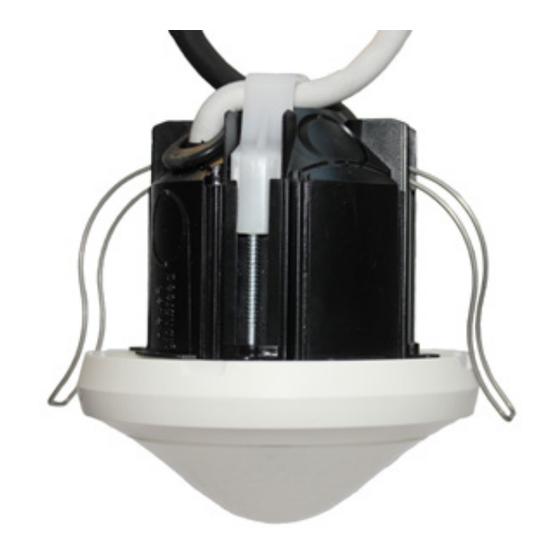

Passive infrared presence detector for ceiling installation
•
Circular detection area 360°, up to Ø 24 m (452 m
•
Restriction of detection area with cover clips
•
Automatic presence- and brightness-dependent control
for lighting
•
Mixed light measurement suitable for fluorescent (FL/
PL/ESL), halogen/incandescent lamps and LEDs
•
Channel A light: relay, 230 V
•
Choice of fully or semi-automatic operation
•
Brightness switching value configurable, teach-in
function
•
Reduction of time delay when present briefly (short-term
presence)
•
Connection option for push buttons or switches for
manual switching with automatic detection of push
button/switch
•
Pulse function for staircase light time switch
•
Time delay configurable
•
Detection sensitivity configurable
•
Ready for immediate use due to factory presetting
•
Test mode for checking function and detection area
•
Ceiling installation with springs
•
User remote control „theSenda S" (option)
•
Management remote control „SendoPro" (option)
•
Installation remote control „theSenda P" (option)
2. Safety
Make yourself familiar with the presence detector, prior
to installation and start-up.
Read these operating instructions.
•
The device is maintenance-free. If the device is opened
or penetrated with any objects the guarantee lapses.
3. Proper use
The presence detector is intended for interior installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
307172 01
The presence detector is primarily used in entrance halls,
garages, warehouses, offices and schools for easy and
energy-efficient control of lighting. The switch contact „light"
switches lighting on with presence and insufficient bright-
ness, and off with absence or sufficient brightness. The light
can also be switched on/off manually using push buttons or
switches.

)
2
Function description
 Mixed light measurement
 Presence detection
 Artificial light
 Push button for manual lighting control
 Incident daylight

Settings on theRonda P360-100
 Brightness switching value (lux)
 Lighting time delay
 Mechanical safety lock
Channel A light
Switching response is controlled by presence and brightness.
The switch contact of Channel A light closes during darkness
and when someone is present. It opens with a delay when
there is brightness or when no one is present.
Time delay
The time delay enables delayed switching off of lighting after
the room is vacated. The time delay is adjustable in a range
of 10 s to 60 min. If someone goes into an unoccupied room
only briefly and leaves it within 30 seconds, then the light
shuts off prematurely after 2 minutes (short-term presence).
Push button control
The lighting can be manually switched at any time via a
push button or switch. If the light is switched on manually, it

 




