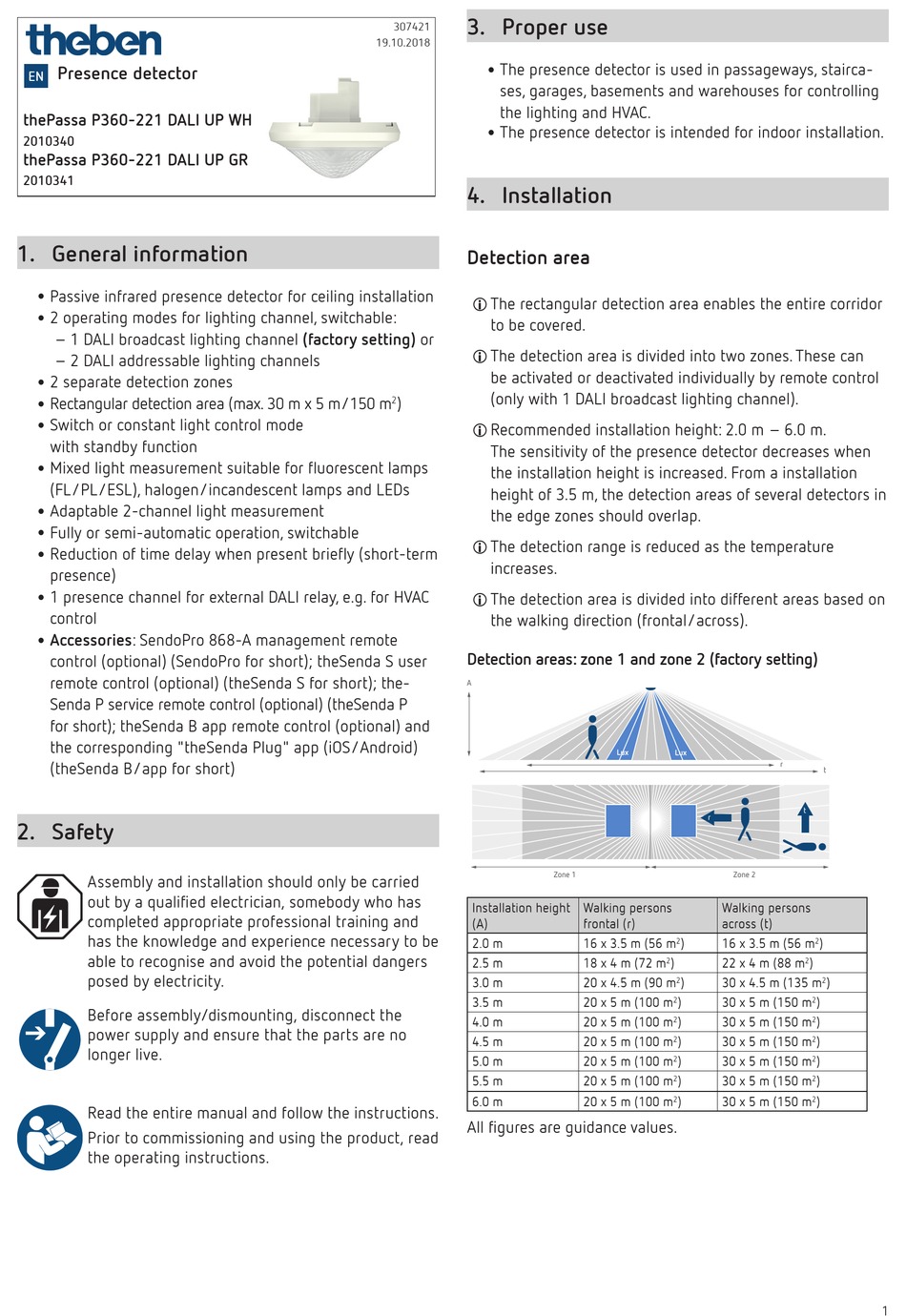

Theben thePassa P360-221 DALI UP WH Manual

Presence detector
EN
thePassa P360-221 DALI UP WH
2010340
thePassa P360-221 DALI UP GR
2010341
1. General information
•
Passive infrared presence detector for ceiling installation
•
2 operating modes for lighting channel, switchable:
– 1 DALI broadcast lighting channel (factory setting) or
– 2 DALI addressable lighting channels
•
2 separate detection zones
•
Rectangular detection area (max. 30 m x 5 m/150 m
•
Switch or constant light control mode
with standby function
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Adaptable 2-channel light measurement
•
Fully or semi-automatic operation, switchable
•
Reduction of time delay when present briefly (short-term
presence)
•
1 presence channel for external DALI relay, e.g. for HVAC
control
•
Accessories: SendoPro 868-A management remote
control (optional) (SendoPro for short); theSenda S user
remote control (optional) (theSenda S for short); the-
Senda P service remote control (optional) (theSenda P
for short); theSenda B app remote control (optional) and
the corresponding "theSenda Plug" app (iOS/Android)
(theSenda B/app for short)
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before assembly/dismounting, disconnect the
power supply and ensure that the parts are no
longer live.
Read the entire manual and follow the instructions.
Prior to commissioning and using the product, read
the operating instructions.
3. Proper use
307421
19.10.2018
•
The presence detector is used in passageways, stairca-
ses, garages, basements and warehouses for controlling
the lighting and HVAC.
•
The presence detector is intended for indoor installation.
4. Installation
Detection area
L The rectangular detection area enables the entire corridor
to be covered.
L The detection area is divided into two zones. These can
be activated or deactivated individually by remote control
(only with 1 DALI broadcast lighting channel).
)
2
L Recommended installation height: 2.0 m – 6.0 m.
The sensitivity of the presence detector decreases when
the installation height is increased. From a installation
height of 3.5 m, the detection areas of several detectors in
the edge zones should overlap.
L The detection range is reduced as the temperature
increases.
L The detection area is divided into different areas based on
the walking direction (frontal/across).
Detection areas: zone 1 and zone 2 (factory setting)
A
Installation height
(A)
2.0 m
2.5 m
3.0 m
3.5 m
4.0 m
4.5 m
5.0 m
5.5 m
6.0 m
All figures are guidance values.
r
Zone 1
Walking persons Walking persons
frontal (r) across (t)
16 x 3.5 m (56 m ) 16 x 3.5 m (56 m
2
18 x 4 m (72 m ) 22 x 4 m (88 m
2
20 x 4.5 m (90 m ) 30 x 4.5 m (135 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
r
t
t
Zone 2
)
2
)
2
)
2
)
2
)
2
)
2
)
2
)
2
)
2
1
