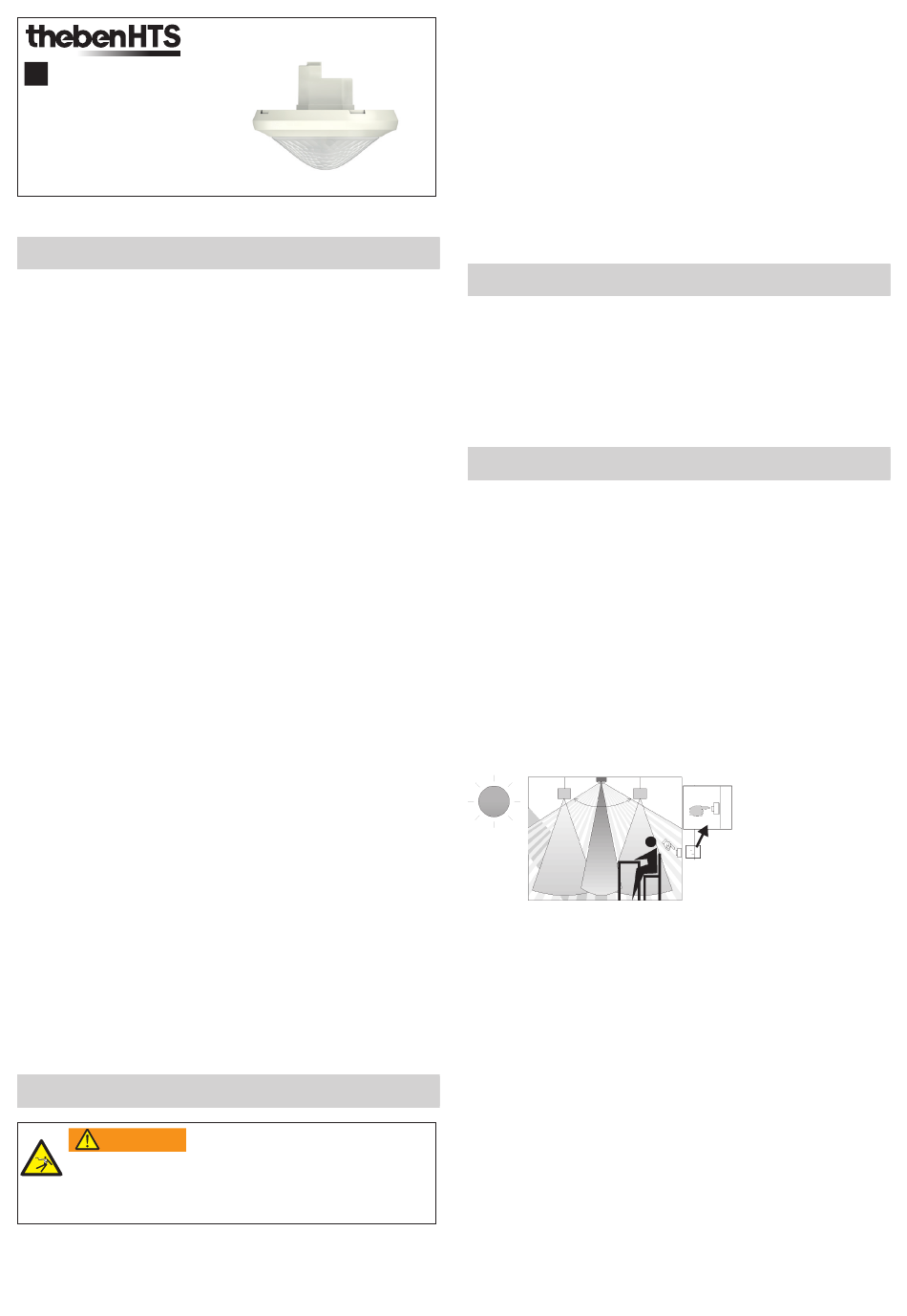

Theben thePassa P360-101 UP WH Manual

Presence detectors
EN
thePassa P360-101 UP WH
2010300
thePassa P360-101 UP GR
2010301
1. Product characteristics
•
Passive infrared presence detector for ceiling installation
•
Rectangular detection area of 360°, up to
30 m x 5 m (150 m )
2
•
2 separate detection zones
•
Restriction of detection area with cover clips
•
Automatic presence- and brightness-dependent control
for lighting and HVAC
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Channel A light: relay, 230 V
•
Fully or semi-automatic operation, switchable
•
Brightness setpoint adjustable, teach-in function
•
Reduction of time delay when present briefly (short-term
presence)
•
Connection option for push buttons or switches for
manual switching with automatic detection of push
button/switch
•
Staircase light function
•
Pulse function for staircase light timer switch
•
Channel H, presence: relay, floating e.g. for HVAC control
•
Switch-on delay and time delay configurable
•
Detection sensitivity configurable
•
Ready for immediate use due to factory presetting
•
Test mode for checking function and detection area
•
Extension of detection area via Master/Slave or Master/
Master switching, a maximum of 10 detectors can be
switched in parallel with each other
•
Ceiling installation in flush-mounted box
•
Surface mounting on ceilings possible with back box
(option)
•
User remote control "theSenda S" (option)
•
Management remote control "SendoPro" (option)
•
Installation remote control "theSenda P" (option)
•
App remote control "theSenda B" (option) and corres-
ponding app "theSenda Plug" (iOS/Android)
2. Safety
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾ ¾
qualified electrician!
•
Work on electrical systems may only be carried out by
307385
1103092701
qualified electricians or by instructed persons under the
guidance and supervision of a qualified electrician in
accordance with the technical regulations applying to
electricity!
•
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
•
The device is maintenance-free. If the device is opened
or penetrated, the guarantee lapses.
3. Proper use
The presence detector is intended for indoor installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The presence detector is primarily used in passage areas,
staircases, garages, basements and warehouses for conveni-
ent and energy-efficient control of lighting as well as HVAC.
The switch contact "light" switches lighting on with presence
and insufficient brightness, and off with absence or sufficient
brightness. The light can also be switched on/off manually
using push buttons or switches.
The "Presence" switch contact controls heating, ventilation
and air conditioning systems. The contact closes when some-
one is present, a switch-on delay permits delayed switch on.
Function description

 Mixed light measurement
 Presence detection
 Artificial light
 Push button for manual lighting control
 Incident daylight

 


1
