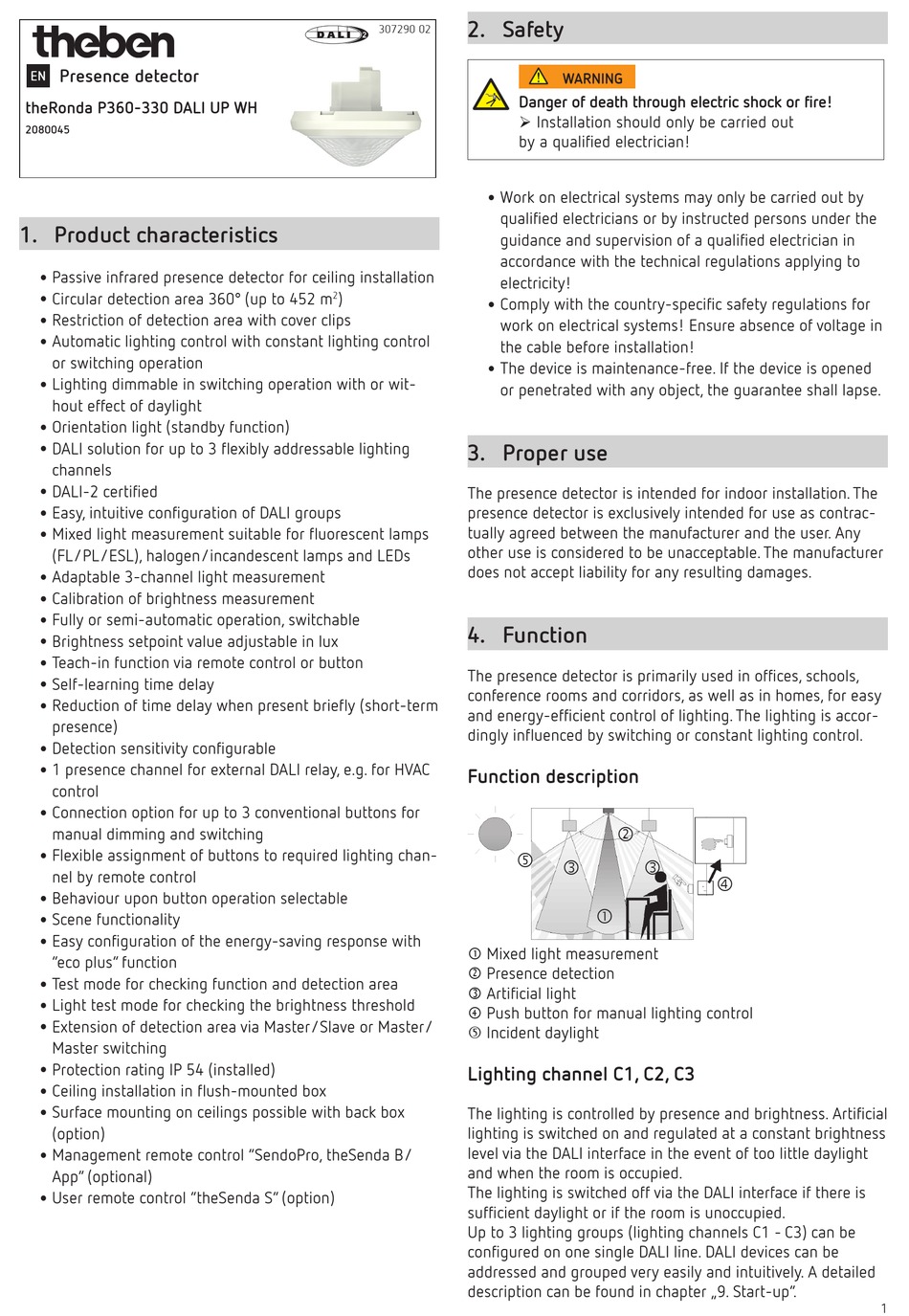

1. Product characteristics
•
Passive infrared presence detector for ceiling installation
•
Circular detection area 360° (up to 452 m
•
Restriction of detection area with cover clips
•
Automatic lighting control with constant lighting control
or switching operation
•
Lighting dimmable in switching operation with or wit-
hout effect of daylight
•
Orientation light (standby function)
•
DALI solution for up to 3 flexibly addressable lighting
channels
•
DALI-2 certified
•
Easy, intuitive configuration of DALI groups
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Adaptable 3-channel light measurement
•
Calibration of brightness measurement
•
Fully or semi-automatic operation, switchable
•
Brightness setpoint value adjustable in lux
•
Teach-in function via remote control or button
•
Self-learning time delay
•
Reduction of time delay when present briefly (short-term
presence)
•
Detection sensitivity configurable
•
1 presence channel for external DALI relay, e.g. for HVAC
control
•
Connection option for up to 3 conventional buttons for
manual dimming and switching
•
Flexible assignment of buttons to required lighting chan-
nel by remote control
•
Behaviour upon button operation selectable
•
Scene functionality
•
Easy configuration of the energy-saving response with
"eco plus" function
•
Test mode for checking function and detection area
•
Light test mode for checking the brightness threshold
•
Extension of detection area via Master/Slave or Master/
Master switching
•
Protection rating IP 54 (installed)
•
Ceiling installation in flush-mounted box
•
Surface mounting on ceilings possible with back box
(option)
•
Management remote control "SendoPro, theSenda B/
App" (optional)
•
User remote control "theSenda S" (option)
2. Safety
307290 02
•
Work on electrical systems may only be carried out by
qualified electricians or by instructed persons under the
guidance and supervision of a qualified electrician in
accordance with the technical regulations applying to
electricity!
•
)
2
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
•
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee shall lapse.
3. Proper use
The presence detector is intended for indoor installation. The
presence detector is exclusively intended for use as contrac-
tually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The presence detector is primarily used in offices, schools,
conference rooms and corridors, as well as in homes, for easy
and energy-efficient control of lighting. The lighting is accor-
dingly influenced by switching or constant lighting control.
Function description
 Mixed light measurement
 Presence detection
 Artificial light
 Push button for manual lighting control
 Incident daylight
Lighting channel C1, C2, C3
The lighting is controlled by presence and brightness. Artificial
lighting is switched on and regulated at a constant brightness
level via the DALI interface in the event of too little daylight
and when the room is occupied.
The lighting is switched off via the DALI interface if there is
sufficient daylight or if the room is unoccupied.
Up to 3 lighting groups (lighting channels C1 - C3) can be
configured on one single DALI line. DALI devices can be
addressed and grouped very easily and intuitively. A detailed
description can be found in chapter „9. Start-up".
WARNING
Danger of death through electric shock or fire!
 Installation should only be carried out
by a qualified electrician!


 


1
