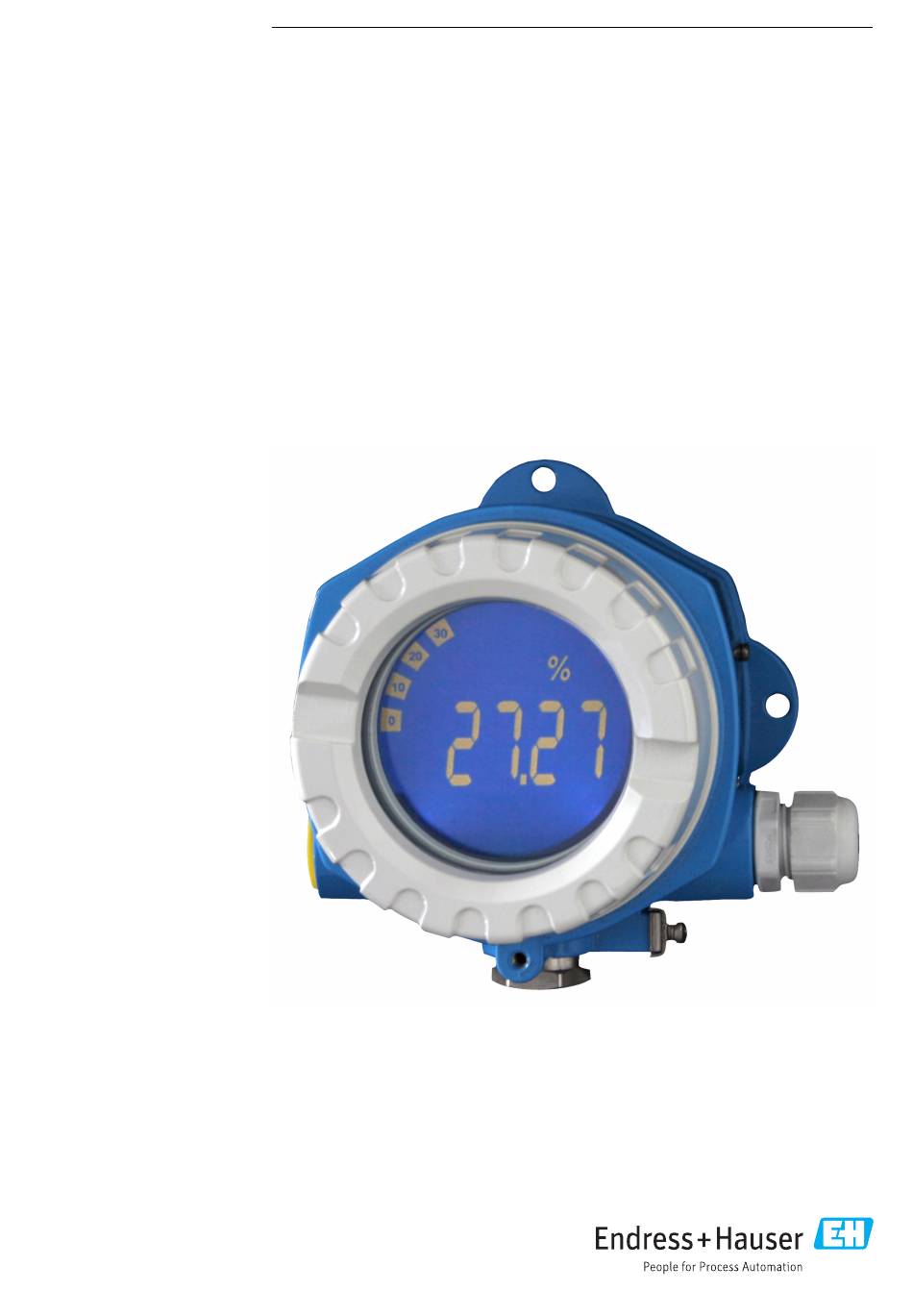

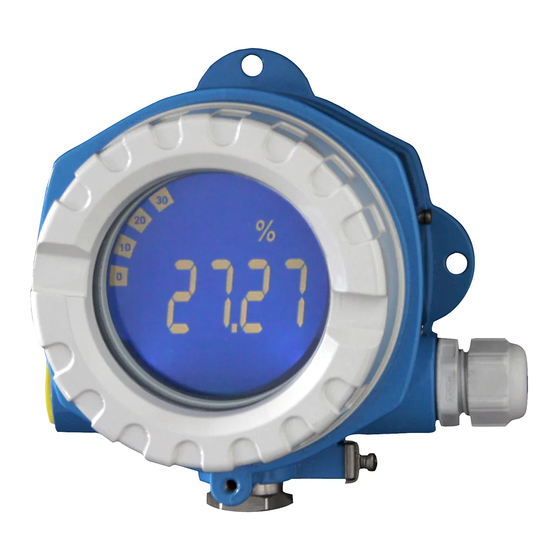

- Page 1 Products Solutions Services BA00278R/09/EN/05.22-00 71615257 2022-11-21 Operating Instructions RIA14 Loop-powered field indicator...
- Page 2 Table of contents RIA14 Table of contents About this document ....3 Maintenance ..... . 23 Symbols .
- Page 3 RIA14 About this document About this document Symbols 1.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
- Page 4 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.2.1 Document function...
- Page 5 RIA14 Basic safety instructions Document type Purpose and content of the document Safety Instructions (XA) Depending on the approval, safety instructions for electrical equipment in hazardous areas are also supplied with the device. The Safety Instructions are an integral part of the Operating Instructions.
- Page 6 Incoming acceptance and product identification RIA14 Modifications to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers! ‣ If modifications are nevertheless required, consult with the manufacturer. Repair To ensure continued operational safety and reliability: ‣...
- Page 7 (www.endress.com/deviceviewer): all the information about the device and an overview of the Technical Documentation supplied with the device are displayed. • Enter the serial number on the nameplate into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information about the device and the technical documentation pertaining to the device is displayed.
- Page 8 Mounting RIA14 3.4.1 UL approval More information under UL Product iq™, search for keyword "E225237") Mounting Mounting requirements The device is designed for use in the field. The orientation is determined by the legibility of the display. Operating temperature range: •...
- Page 9 RIA14 Mounting The backlit display can be mounted in four different positions → 8. It is essential that you clean and lubricate the thread prior to mounting. 4.2.1 Turning the display Pos. 1 Pos. 2 Pos. 3 Pos. 4 90°...
- Page 10 Electrical connection RIA14 A0011258 3 Pipe mounting of the device with mounting bracket Mounting plate Mounting bracket 2 M6 nuts 1. Applies to pipes with a diameter of 38 to 56 mm (1.5 to 2.2 in). Attach the mounting bracket to the pipe.
- Page 11 RIA14 Electrical connection NOTICE Loss of Ex approval if connected incorrectly ‣ When connecting Ex-certified devices, please take special note of the instructions and connection schematics in the Ex-specific supplement to these Operating Instructions. First open the housing of the device.
- Page 12 Electrical connection RIA14 Terminal Terminal assignment Input and output Terminal for further instruments Support terminal Digital limit switch (collector) Switch output Digital limit switch (emitter) Switch output Both the terminal assignment and the connection values of the device correspond to those of the Ex-version.
- Page 13 RIA14 Operation options Electrical connection Note Is the cable gland sealed tight? Visual inspection Is the housing cover firmly tightened? Visual inspection Operation options Overview of operation options 6.1.1 Display A0011157 7 LC display of the field indicator (backlit, fitted in steps of 90 °)
- Page 14 Operation options RIA14 1. Remove the housing cover 2. Remove the display 3. The operating keys on the device are accessible. 4. Configure the device via the operating keys. 5. Position the display at the desired angle. 6.2.1 Navigation The operating panels are divided into 2 levels.
- Page 15 RIA14 Operation options 2. Select the menu with "+" or "-" 3. Select the operating function 4. Enter parameters in editing mode (enter/select data with "+" or "-" and apply with "E") 5. Jump to the home position directly. You are first asked if the data entered until now should be saved.
- Page 16 Operation options RIA14 Menu Operating function Operating function Operating function Parameter Default/ Parameter Default/ Parameter Default/ selection selection selection Standard 0 to NAMUR 3.60 NAMUR 3.6 3.80 20.5 to NAMUR User entry Edit 20.5 NAMUR 20.5 NAMUR 21.0 Test N2050...
- Page 17 2. In the Comm-DTM settings, set the baud rate to 2400 baud and select the COM port used. 3. Add the device DTM "RIA14/16/Vx.xx.xx" to the project using the "Add device..." function. 4. Continue with device configuration in accordance with these Operating Instructions.
- Page 18 Commissioning RIA14 Switching on the device Switch on the supply voltage. During device initialization, all segments in the display are displayed for approx. 1 second. Configuring the measuring device Description of the operating functions The following table shows the menus available for the field indicator. These are explained in detail in the sections that follow.
- Page 19 RIA14 Commissioning Designation Description Measured value 100 % Indicates the display value for the 20 mA value. ' D I HI' • Value range –19 999 to 99 999 • Default: 100.0 Measured value offset Used to correct the display measured value. The offset is added to the measured value.
- Page 20 Commissioning RIA14 7.3.3 Limit values (LIMIT) In the event of a limit value violation and a fault, the OC output is de-energized in accordance with the closed circuit current principle. If a limit value violation MIN (lower limit) occurs, ’LIMIN’ is displayed in the 14-segment display.
- Page 21 RIA14 Commissioning Program information Designation Description Program name ' P NAME' Displays the name of the software loaded in the device (7-digit) Display cannot be edited. Firmware version ' F WVER' Displays the name of the firmware loaded in the device (8-digit) ...
- Page 22 Diagnosis and troubleshooting RIA14 Diagnosis and troubleshooting General troubleshooting WARNING Danger! Electric voltage ‣ Do not operate the device in an open condition for device troubleshooting. Diagnostic list Errors that occur during the self-test or during operation are immediately shown on the display.
- Page 23 RIA14 Maintenance Date Software version Software modification Documentation 04/2013 01.00.zz No change to functions and operation BA00278R/09/EN/03.13 07/2015 01.00.zz No change to functions and operation BA00278R/09/EN/04.15 Maintenance No special maintenance work is required for the device. Cleaning A clean, dry cloth can be used to clean the device.
- Page 24 3x NPT1/2 thread, w/o terminal block 3x M20x1.5, w/o terminal block 3x G1/2 thread, w/o terminal block Version: Standard RIA141G- ← Complete order code for RIA14 housing Item no. Type Order number Housing cover cpl. display, 316L, Ex d, FM XP, TMT142X-HC CSA XP, with seal Housing cover cpl.
- Page 25 RIA14 Accessories Item no. Type Order number 2x M20 cable gland RK01-AB Plug (dummy) M20x1.5 EEx-d/XP 51004489 Plug (dummy) NPT1/2" ALU 51004490 Plug (dummy) G1/2" EEx-d/XP 51004916 Plug (dummy) NPT1/2"V4A 51006888 10.3 Return The requirements for safe device return can vary depending on the device type and national legislation.
- Page 26 Technical data RIA14 Technical data 12.1 Input 12.1.1 Measured variable Current 12.1.2 Measuring range 4 to 20 mA Reverse polarity protection 12.1.3 Input signal • Voltage drop < 4 V at 3 to 22 mA • Max. voltage drop < 6 V at max. short-circuit current 200 mA 12.2...
- Page 27 RIA14 Technical data 12.3 Power supply 12.3.1 Terminal assignment active Open Collector passive loop power supply loop power supply A0051890 12 Terminal assignment of the field indicator Terminal Terminal assignment Input and output Measuring signal (+) 4 to 20 mA...
- Page 28 Technical data RIA14 12.3.5 Cable entries The following cable entries are available: • NPT 1/2 thread • M20 thread • G1/2 thread • 2x NPT1/2 gland + 1x dummy plug • 2x M20 gland + 1x dummy plug 12.4 Performance characteristics 12.4.1...
- Page 29 RIA14 Technical data 12.6.3 Electrical safety As per IEC 61010-1, UL 61010-1, CSA C22.2 No. 1010.1-92 12.6.4 Climate class As per IEC 60654-1, Class C 12.6.5 Degree of protection IP 66/IP67, Type 4X (not assessed by UL) 12.6.6 Vibration resistance 3g at 2 to 150 Hz as per IEC 60068-2-6 12.6.7...
- Page 30 Technical data RIA14 132 (5.2) 112 (4.4) 106 (4.2) 121 (4.8) 166 (6.5) A0011152 13 Dimensions in mm (in) • Aluminum housing for general applications or, optional stainless steel housing • Electronics compartment and connection compartment in single-chamber housing •...
- Page 31 RIA14 Technical data 12.8.2 Local operation A0011157 14 LC display of the field indicator (backlit, fitted in steps of 90 °) Bar graph display Mark for underranging Mark for overranging Measured value display, digit height 20.5 mm (0.8 in) 14-segment display for units and messages "Programming locked' ' symbol...
- Page 32 • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 12.10.1 Document function The following documentation may be available depending on the version ordered:...
- Page 33 RIA14 Technical data Document type Purpose and content of the document Operating Instructions (BA) Your reference document The Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product...
