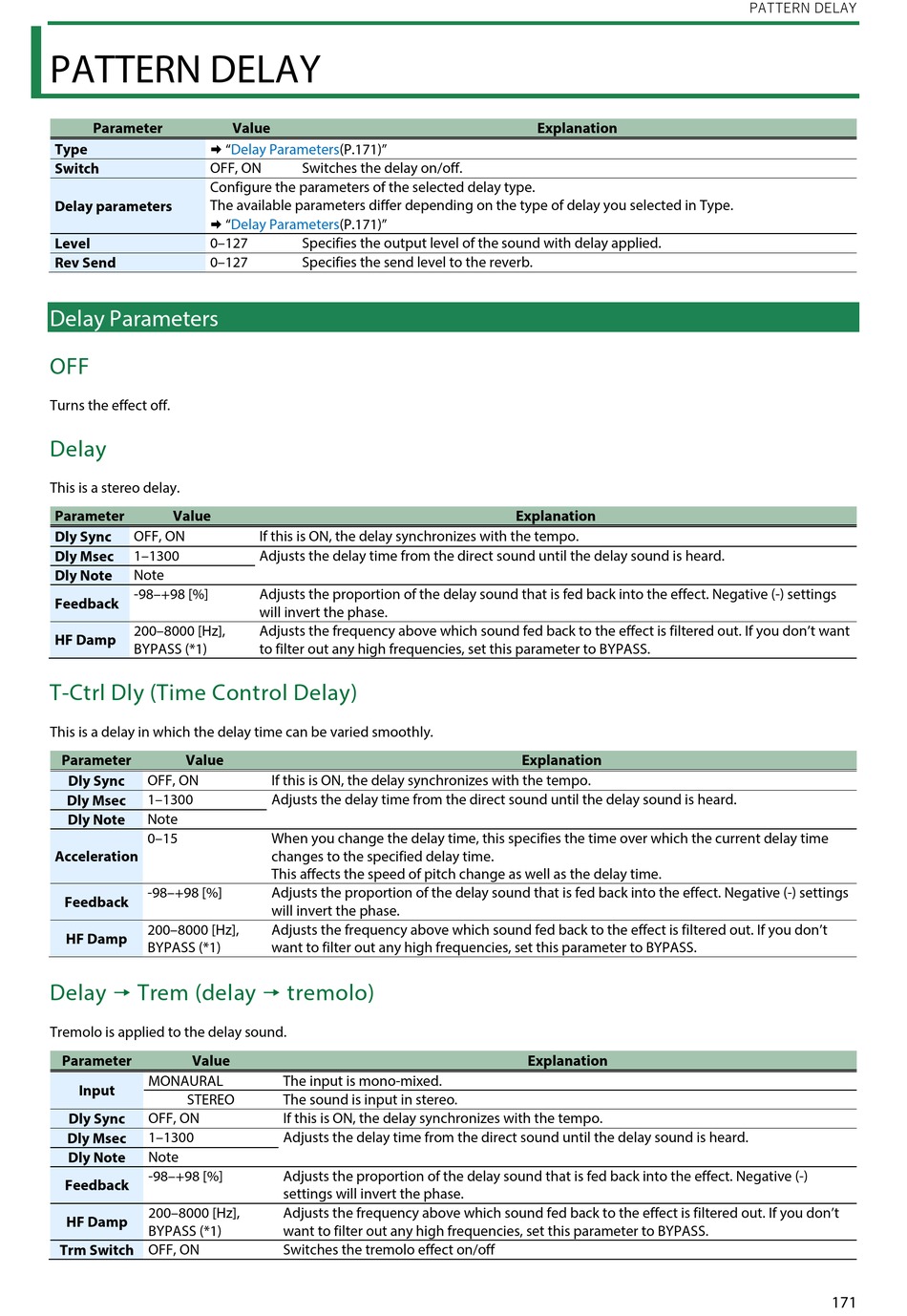

PATTERN DELAY

Parameter
Ø
Type
Switch OFF, ON
Configure the parameters of the selected delay type.

Delay parameters

The available parameters differ depending on the type of delay you selected in Type.
Ø
Level 0–127
Rev Send 0–127
Delay Parameters
OFF
Turns the effect off.
Delay
This is a stereo delay.
Parameter Value
Dly Sync OFF, ON
Dly Msec 1–1300
Dly Note Note
-98–+98 [%]
Feedback
200–8000 [Hz],
HF Damp
BYPASS (*1)
T-Ctrl Dly (Time Control Delay)
This is a delay in which the delay time can be varied smoothly.
Parameter Value
Dly Sync OFF, ON
Dly Msec 1–1300
Dly Note Note
0–15
Acceleration
-98–+98 [%]
Feedback
200–8000 [Hz],
HF Damp
BYPASS (*1)
Delay Ó Trem (delay Ó tremolo)
Tremolo is applied to the delay sound.
Parameter Value
MONAURAL
Input
STEREO
Dly Sync OFF, ON
Dly Msec 1–1300
Dly Note Note
-98–+98 [%]
Feedback
200–8000 [Hz],
HF Damp
BYPASS (*1)
Trm Switch OFF, ON
Value
"Delay Parameters(P.171)"
Switches the delay on/off.
"Delay Parameters(P.171)"
Specifies the output level of the sound with delay applied.
Specifies the send level to the reverb.
If this is ON, the delay synchronizes with the tempo.
Adjusts the delay time from the direct sound until the delay sound is heard.
Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings
will invert the phase.
Adjusts the frequency above which sound fed back to the effect is filtered out. If you don't want
to filter out any high frequencies, set this parameter to BYPASS.
If this is ON, the delay synchronizes with the tempo.
Adjusts the delay time from the direct sound until the delay sound is heard.
When you change the delay time, this specifies the time over which the current delay time
changes to the specified delay time.
This affects the speed of pitch change as well as the delay time.
Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings
will invert the phase.
Adjusts the frequency above which sound fed back to the effect is filtered out. If you don't
want to filter out any high frequencies, set this parameter to BYPASS.
The input is mono-mixed.
The sound is input in stereo.
If this is ON, the delay synchronizes with the tempo.
Adjusts the delay time from the direct sound until the delay sound is heard.
Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-)
settings will invert the phase.
Adjusts the frequency above which sound fed back to the effect is filtered out. If you don't
want to filter out any high frequencies, set this parameter to BYPASS.
Switches the tremolo effect on/off
Explanation
Explanation
Explanation
Explanation
