Oscillator Model

Oscillator model
SH-4d A virtual analog oscillator with four oscillators, featuring selectable waveforms that can be mixed.
A virtual analog oscillator with three oscillators and a secondary LFO.
SH-3D
SYNC Two synchronizable virtual analog oscillators with a pitch envelope.
SH-101 An oscillator that recreates the famed SH-101 vintage mono synth.
JUNO-106 An oscillator that recreates the widely used JUNO-106 vintage poly synth.
Cross FM An oscillator that recreates a two-operator FM synth.
RING An oscillator that features two oscillators and a ring modulator.
WAVETABLE A wavetable oscillator that lets you modulate the wave position.
CHORD A chord oscillator that lets you freely control the chord shape.
DRAWING An oscillator that lets you instantly play the waveforms you draw on the screen.
PCM A PCM oscillator that lets you mix and play four waveforms.
For some oscillator models, you can press the OSC section [1]–[4] buttons while holding down the [SHIFT] button to show the
OSC SETTINGS screen.
This lets you configure the parameters that aren't assigned to a controller.

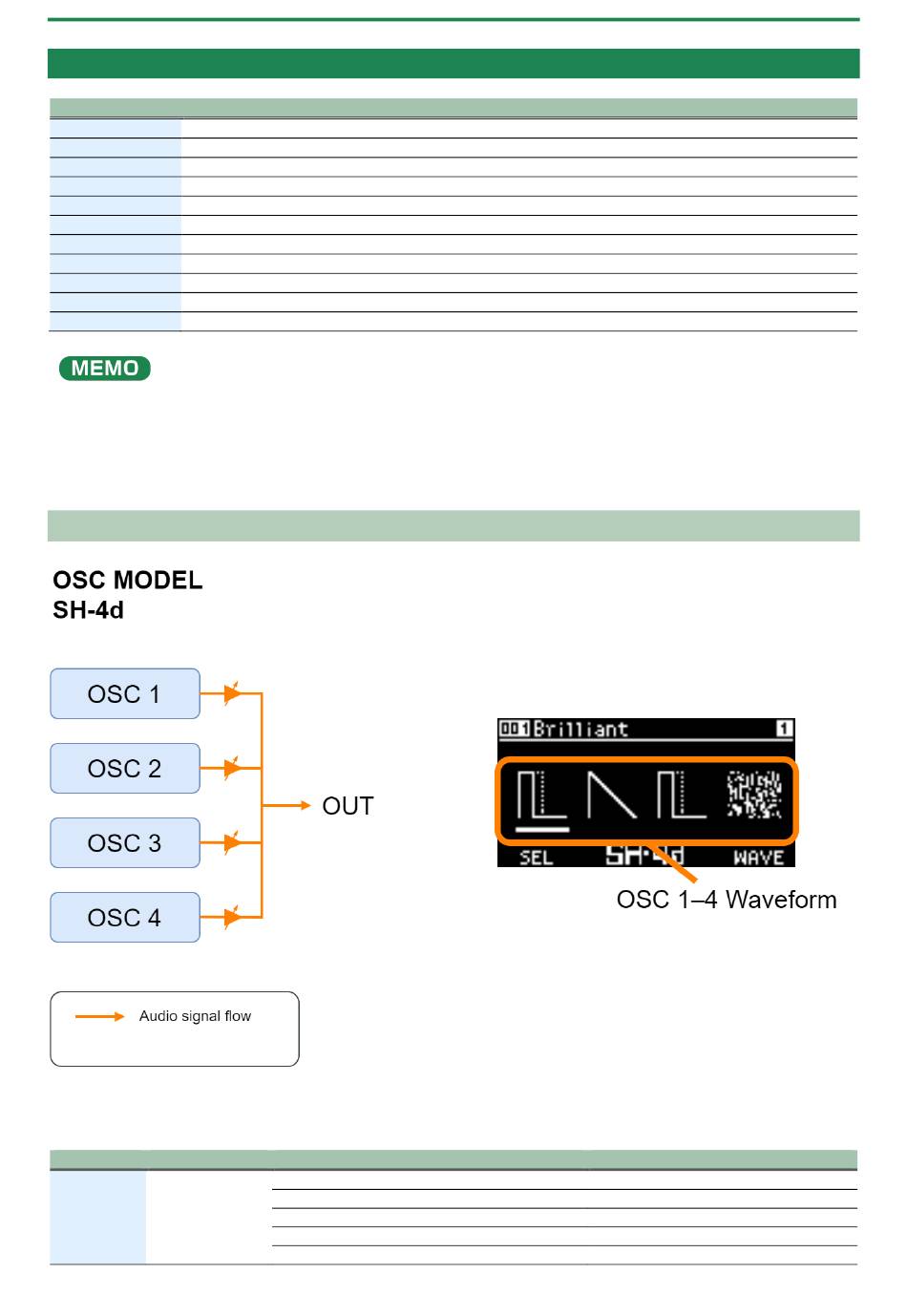

SH-4d
Turn the [1] knob or press the [OSC 1]–[OSC 4] buttons to select an oscillator, and use the [2] knob to select the oscillator
waveform.
Use the [OSC 1]–[OSC 4] sliders to set the volume for each oscillator.
Parameter Controllers
[2] knob (on the
top screen only)
Osc 1–4
Waveform
26
Value
This sets the waveform.
SAW
SQR
TRI
SINE
Explanation
Sawtooth wave
Square wave
Triangle wave
Sine wave
