Icom IC-9700 Service Manual Addendum page 135

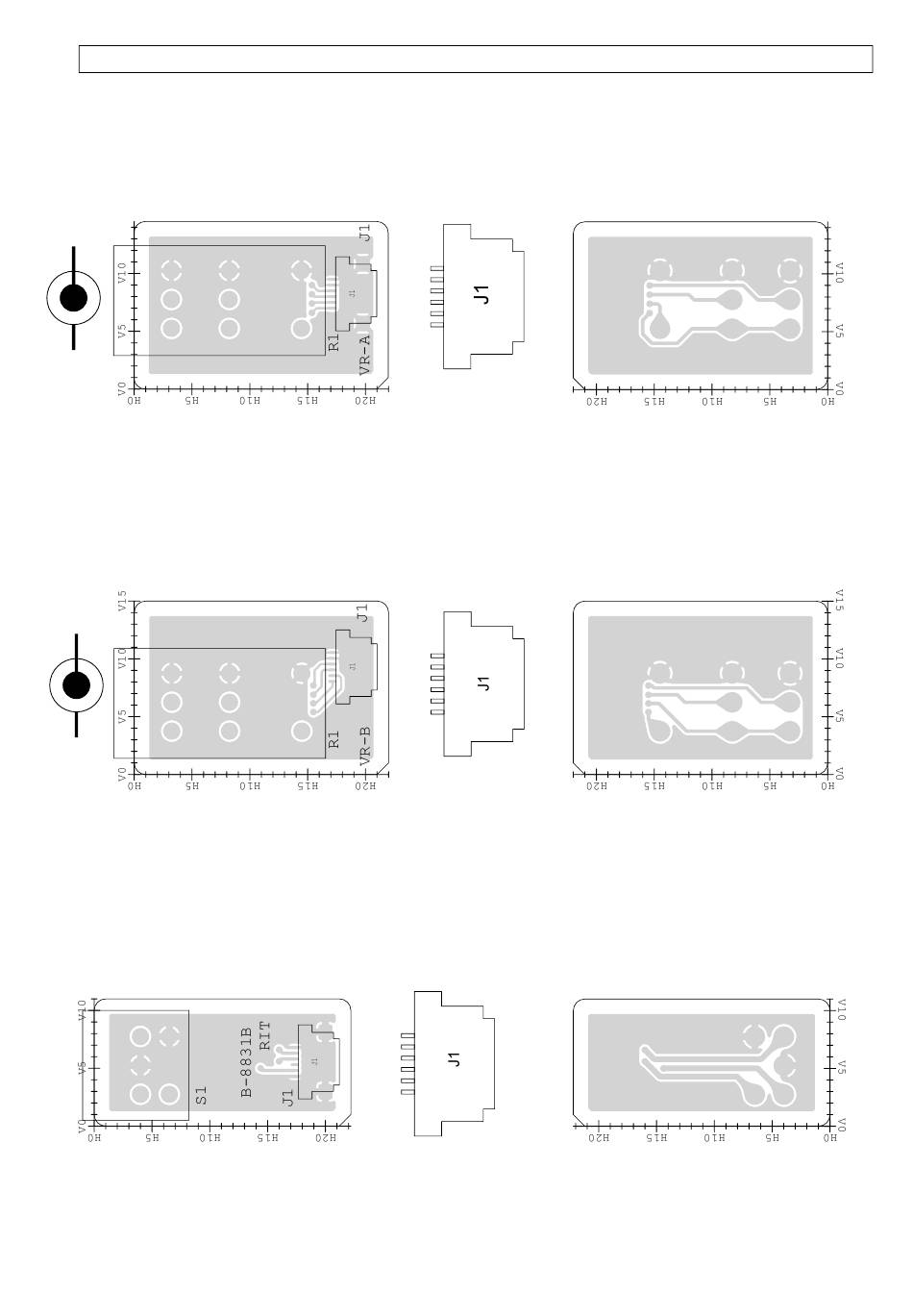

The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together.
• VR-A UNIT (B-8829C: TOP VIEW)
MAIN
AF
MAIN
RF/SQL
• VR-B UNIT (B-8830C: TOP VIEW)
SUB
AF
SUB
RF/SQL
• RIT UNIT (B-8831B: TOP VIEW)
GND
GND
MRFL
MAFL
MVRK
3R3V
B-8829C
B-8830C
GND
GND
SRFL
SAFL
SVRK
3R3V
GND
MFDAK
MFK
NC
MFDBK
GND
See the PARTS LIST H/V location on the PARTS LIST for location details.
• VR-A UNIT (B-8829C: BOTTOM VIEW)
• VR-B UNIT (B-8830C: BOTTOM VIEW)
• RIT UNIT (B-8831B: BOTTOM VIEW)
7-11
