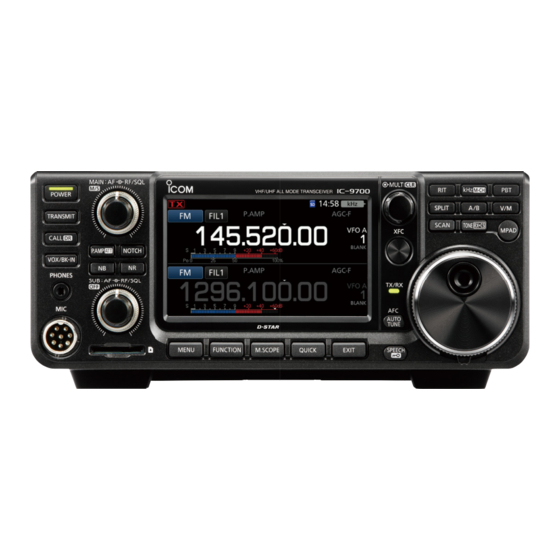

Vhf/uhf all mode transceiver. ci-v
Hide thumbs Also See for IC-9700:

Advertisement

Quick Links

See also: Advanced Manual , Service Manual
CI-V REFERENCE GUIDE
VHF/UHF ALL MODE TRANSCEIVER
|9700

Advertisement

loading

Related Manuals for Icom IC-9700

Summary of Contents for Icom IC-9700

  • Page 1 CI-V REFERENCE GUIDE VHF/UHF ALL MODE TRANSCEIVER |9700...

  • Page 2: Table Of Contents

    Table of contents Remote control ———————————————— 2 ■ Remote control (CI-V) information ……………… 2 D CI-V connection …………………………………… 2 D Preparing …………………………………………… 3 D About the data format ……………………………… 3 D Command table …………………………………… 4 D Command formats ……………………………… 13...

  • Page 3: Remote Control

    D CI-V connection The transceiver’s operating frequency, mode, VFO and memory selection, can be remotely controlled using a PC. The Icom Communications Interface V (CI-V) controls the transceiver. Select your connection method from the following: • A USB cable (A-B type, user supplied) The required USB driver and driver installation guide can •...

  • Page 4: D Preparing

    The Icom Communications Interface V (CI-V) is used for remote control. To control the transceiver, first set its address, data communication speed, and transceive function. These settings are set in the Set mode (Refer to the IC-9700 instruction manual). D About the data format The CI-V system can be written using the following data formats.

  • Page 5: D Command Table

    Remote control NOTE: Operation of some control dials overrides CI-V commands. If a control dial, such as the AF Volume dial that has a mark on it, is rotated after sending a CI-V command, the command will be overwritten by the operation. D Command table Cmd.
  • Page 6 Remote control D Command table (Continued) Cmd. Sub cmd. Data Description Cmd. Sub cmd. Data Description 0000 ~ 0255 Read SWR meter level See p. 10 Send CW messages ( 0000=SWR1.0, 0048=SWR1.5, Turn OFF the transceiver 0080=SWR2.0, 0120=SWR3.0) Turn ON the transceiver 0000 ~ 0255 Read ALC meter level Read the transceiver ID (0000=Minimum to 0120=Maximum)
  • Page 7 Remote control D Command table (Continued) Cmd. Sub cmd. Data Description Cmd. Sub cmd. Data Description 0027 0000 ~ 0255 SET > Function > Beep Level 0056 00 or 01 SET > Function > SPEECH > (0000=Minimum to 0255=Maximum) MODE SPEECH (00=OFF, 01=ON) 0028 00 or 01...
  • Page 8 Remote control D Command table (Continued) Cmd. Sub cmd. Data Description Cmd. Sub cmd. Data Description 0090 00 or 01 SET > QSO/RX Log > RX History Log 0117 00 or 01 SET > Connectors > (00=OFF, 01=ON) ACC SEND Output > 144M (00=OFF, 01=ON) 0091 00 to 02...
  • Page 9 Remote control D Command table (Continued) Cmd. Sub cmd. Data Description Cmd. Sub cmd. Data Description 0139 0000000000 SET > Network > DHCP (Valid after Restart) 0163 00 to 04 SET > Display > RX Position Display Timer 000001 ~ ( 00=5 sec, 01=10 sec, 02=15 sec, Read the IP address set by the DHCP server 0255025502...
  • Page 10 Remote control D Command table (Continued) Cmd. Sub cmd. Data Description Cmd. Sub cmd. Data Description 0198 00 to 02 SCOPE > Waterfall Speed 0239 00 or 01 RTTY DECODE SET > Log Set > Time Stamp (00=Slow, 01=Mid, 02=Fast) (00=OFF, 01=ON) 0199 00 to 02...
  • Page 11 Remote control D Command table (Continued) Cmd. Sub cmd. Data Description Cmd. Sub cmd. Data Description 0268 See p. 17 GPS > GPS TX Mode > D-PRS > TX Format > 0291 00 to 42 GPS > GPS TX Mode > D-PRS > TX Format > Position >...
  • Page 12 Remote control D Command table (Continued) Cmd. Sub cmd. Data Description Cmd. Sub cmd. Data Description 0316 See p. 17 GPS > GPS TX Mode > NMEA > Read number of available TX frequency band GPS Message (Up to 20 characters) See p.
  • Page 13 Remote control D Command table (Continued) *(Asterisk) Send/read data Cmd. Sub cmd. Data Description See p. 24 Read the Scope waveform data Read only data ( Only when “Scope ON/OFF status” Send only data (Command: 27 10) and “Scope data output” In the CW mode, if the [TRANSMIT] or an external TX (Command: 27 11) are set to “ON,”...

  • Page 14: D Command Formats

    Remote control D Command formats • Operating frequency • Duplex Offset frequency setting Command: 00, 03, 05, 1C 03 Command: 0C, 0D LOnly the 1200 MHz band can input 10 MHz digits. • Operating mode Command: 01, 04, 06 • Codes for CW message contents Command: 17 Up to 30 characters To send CW messages, use the following character codes.
  • Page 15 Remote control D Command formats (Continued) • Memory content Command: 1A 00 5 ~ 9 15 ~ 17 18 ~ 20 21 ~ 23 2, 3 10, 11 X X X ∙∙∙∙∙∙ X X X X X X X X X X X 0 X X X X X X 25 ~ 27 28 ~ 35 36 ~ 43...
  • Page 16 Remote control D Command formats (Continued) • Codes for character entries • Band stacking register Command: 1A 00, Command: 1A 01 1A 05 0144, 0151, 0182, 0259, 0279, 0281, 0293, 0316 1A 05 0262 ~ 1A 05 0265, 1A 05 0268 ~ 1A 05 0271 NOTE: - Character codes—...
  • Page 17 Remote control D Command formats (Continued) • Memory keyer content • SSB/SSB-DATA transmission passband width Command: 1A 02 settings Command: 1A 05 0017 ~ 1A 05 0020 X X X …… X X Lower edge Higher edge 0= 100 Hz 0= 2500 Hz w ~ &1 : Text data 1= 200 Hz...
  • Page 18 Remote control D Command formats (Continued) • Bandscope edge frequency settings • D-PRS Symbol setting Command: 1A 05 0202 ~ 1A 05 0210 Command: 1A 05 0262 ~ 1A 05 0265, 1A 05 0281, 0295, 0306 X 0 X X X X X 0 X X X X First digit Second digit...
  • Page 19 Remote control D Command formats (Continued) • Satellite memory content setting Command: 1A 07 3 ~ 7 13 ~ 15 16 ~ 18 19 ~ 21 23 ~ 30 1, 2 8, 9 X ∙∙∙∙∙∙ X X X X X X X X 0 X X 0 X X X X X X X X ∙∙∙∙∙∙...
  • Page 20 Remote control D Command formats (Continued) • Repeater tone/tone squelch frequency settings • DV TX call signs setting (24 characters) Command: 1B 00, 1B 01 Command: 1F 01 Set “UR,” “R1” and “R2” call signs of 8 characters (fixed). See “Character’s code of the call sign.” q ~ i o ~ !6 !7 ~ @4...
  • Page 21 Remote control D Command formats (Continued) • DV RX call sign data • DV RX message Command: 20 0001, 20 0002 Command: 20 0101, 20 0102 3 ~ 10 11 ~ 14 15 ~ 22 1, 2 ∙∙∙∙∙∙ ∙∙∙∙∙∙ X X X ∙∙∙∙∙∙...
  • Page 22 Remote control D Command formats (Continued) • GPS/D-PRS data Command: 20 03 0100, 0200, 0101, 0201, 0102, 0202, 0103, 0203 Data number and description Object Command: 20 03 0101, 0201 Data number Description 1 ~ 9 12 ~ 16 D-PRS— Position 0 1 X X X X X X X X ∙∙∙∙∙∙...
  • Page 23 Remote control D Command formats • GPS/D-PRS data (Continued) Item Weather Command: 20 03 0102, 0202 Command: 20 03 0103, 0203 1 ~ 9 12 ~ 16 1 ~ 9 12 ~ 16 X X X X 0 3 X X ∙∙∙∙∙∙...
  • Page 24 Remote control D Command formats (Continued) • RIT frequency settings • Selected or unselected VFO frequency settings Command: 21 00 Command: 25 X X X X X X X X X X 0 0 Operating frequency *00=Selected VFO See “Operating frequency.” 01=Unselected VFO (p.
  • Page 25 Remote control D Command formats (Continued) • Scope waveform data • Center/Fixed mode settings Command: 27 00 Command: 27 14 Outputs the waveform data to the controller. X X X X X X ..X X 00=MAIN 00=Center mode 01=SUB 01=Fixed mode q Main or Sub scope data •...
  • Page 26 Remote control D Command formats (Continued) • Scope Sweep speed settings Command: 27 1A X X X X 00=MAIN 00=FAST 01=SUB 01=MID 02=SLOW • Scope Fixed edge frequency settings Command: 27 1E X X X X X X X X X X X X X X X X X X X Lower edge Higher edge L Entry of 100 Hz less than digits are ignored.
  • Page 27 A7508-3EX 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan © 2019 Icom Inc. Mar. 2019...
