Icom IC-9700 Service Manual Addendum page 126

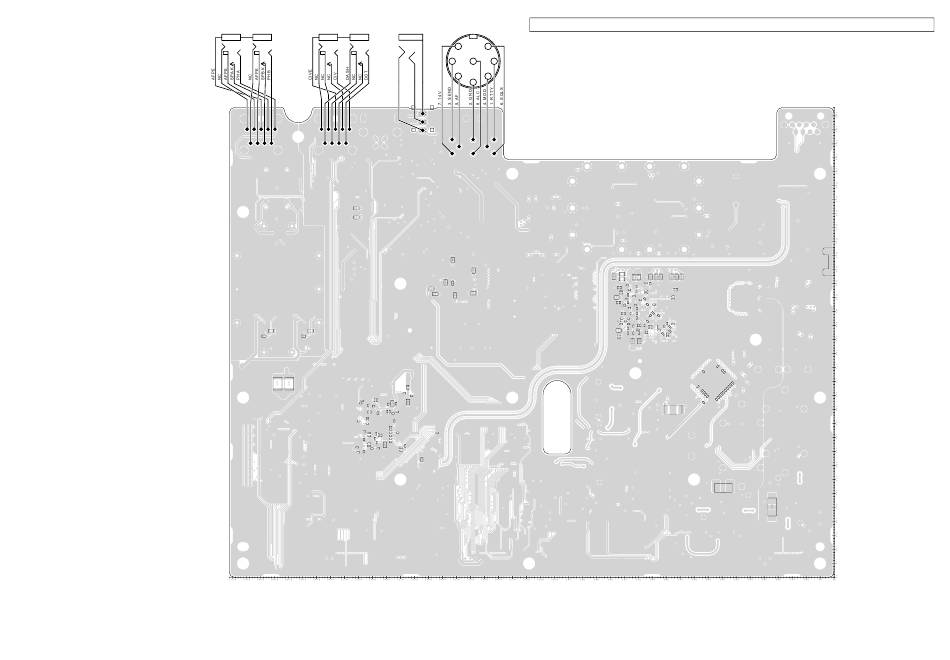

• MAIN UNIT (B-8824F: BOTTOM VIEW)
[EXT-SP MAIN] [EXT-SP SUB] [REMOTO] [KEY] [DATA]
J7402 J2891 J2901
C1535
C1537
C2224 C2204
C2226 C2206
C135
C134
C109
C108
C139
C136
C137
C140
C141
C117
C116
C118
C119
C146 C143 C144
C147 C120
C121
C122
C1
C2
C131
C129 C127
C123
C128
C130
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together.
[ACC]
J2911
7 6
3 8 1
5 4
2
C550
C533
C532
C186
MP8603
7-2
C8511
C8071
C8253
C8258
C8252
C8209 C8153
C8166
C8203
C8106 C7653
C8109
C7703
C8354 C7651
C7707
C8162
C8165 C7702
C8054
C7706
C7760
C8163
C8527 C8522
C8552
C8053 C8063
C8201 C8207 C7752
C7758
C8213 C7854 C8506
C8572 C8355
C8571 C7753
C8204
C8061
C8210
C8051
C7219
C7223
C7217
C7215
C7201
C7202
C7203
C7220 C7204
C7218 C7205
C7206
C7216
C7207
C7214
C7208
C7213
C7209
C7210
R7212
R1321
R3511
See the PARTS LIST H/V location on the PARTS LIST for location details.
MP8801
