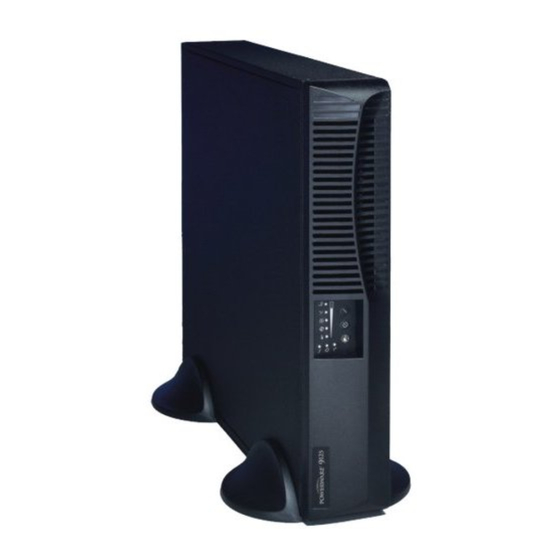

Powerware 9125 (9910-E64) UPS
®
®
Installation Guide for IBM Applications

Advertisement

Table of Contents
loading

Related Manuals for Eaton Powerware 9125

Summary of Contents for Eaton Powerware 9125

  • Page 1 Powerware 9125 (9910-E64) UPS ® ® Installation Guide for IBM Applications...
  • Page 2 Burndy is a registered trademark of Framatone Connectors International. ECopyright 2007 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton Corporation.

  • Page 3: Table Of Contents

    ..........® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications...
  • Page 4 TABLE OF CONTENTS This page intentionally left blank. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 5: Installation

    Battery Trays * If the UPS is factory-installed in an IBM rack, these items are pre-assembled. Table 2. E64 Application Matrix iSeries iSeries pSeries pSeries pSeries iSeries ® Eaton PN Description Tower Tower Tower Tower Rack Rack NEMA NEMA –...
  • Page 6 NOTE IEC: IEC Countries (e.g., UK, Italy, etc.); NEMA: NEMA Countries (e.g. U.S. and Canada); WW: Worldwide Table 4. E64 Accessory Kit (42R8074) Quantity Eaton PN Description 164201513 Powerware 9125 Two-in-One UPS (5000/6000 VA) User’s Guide 164201697 Powerware 9125 (9910-E64) Installation Guide for IBM Applications 103004870 Software Suite CD 157604790-002...
  • Page 7 Eaton PN Description 103003918-3991 FC 6571 PDM 103005205 Accessory Kit (1) Front Cover (157604790-002) (1) Powerware 9125 Two-in-One PDM (5000/6000 VA) User’s Guide (164201519) (2) Joining Bracket (157605902-003) × (4) Joining Bracket Screws (M4 10 mm) (180500153-306) ® ® EATON Powerware...

  • Page 8: Setup And Installation

    152601942-001 IEC 320-C13 to C14, 10A Equipment Power Cords (1.8m/6 ft) Setup and Installation The Powerware 9125 E64 UPS is designed for flexible configurations and can be installed in a rack, as a standalone cabinet, or in a tower configuration.

  • Page 9: Rack-Mount Setup

    Place the first rail at the bottom, using positions 1 and 6 for the front pan-head screws. If you are installing additional rails, place the next rail 4 holes above the last installed screw (see Figure 2). ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 10 Insert the screws through positions 3 and 4 of the rail (see Figure 3). NOTE Do not tighten the screws until the UPS or EBM is installed. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 11 7 holes above the last installed screw. Position 13 Second Rail Position 11 Position 4 First Rail Position 2 Figure 4. Rear Rack Screw Positions ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 12 Figure 5. Securing the Rear of the Rail Repeat Steps 3 and 4 for the other rail. Tighten the assembly wing nuts on all rail assemblies. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 13 3/8” flat-head screws (see Figure 6). If installing an optional cabinet, repeat Steps 7 and 8 for each cabinet. Mounting Bracket Figure 6. Installing the Mounting Brackets ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 14 (see Figure 7). Repeat for each cabinet. Pan-Head Screws Optional Optional Figure 7. Securing the Mounting Brackets ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 15 (see Step 3 on page 6). 14. Repeat Steps 12 and 13 for each cabinet. 15. Continue to the following section, “Installing the Internal Batteries.” ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 16: Installing The Internal Batteries

    Install the UPS front covers (see Figure 11). NOTE The upper front cover is provided in the E64 UPS carton and the lower front cover is provided in the E64 accessory kit. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 17: Tower Setup

    (see Figure 12). Align the pedestals over the holes on the end of the UPS as shown in Figure 12. Secure the pedestals with the supplied screws. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 18 Figure 12. Installing the UPS Pedestals Carefully position the cabinet upright (see Figure 13). Continue to “UPS Installation” on page 21. Figure 13. UPS Cabinet with Pedestals ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 19 Align each joining bracket (provided in the EBM accessory kit or PDM carton) with the adjacent cabinet screw holes and secure with the supplied screws (see Figure 15). ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 20 Joining Bracket Joining Bracket Figure 15. Installing the Joining Brackets (Top View) Continue to the following section, “EBM Installation” or “PDM Installation” on page 18. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 21: Ebm Installation

    Continue to the following section, “PDM Installation” or “UPS Installation” on page 21. UPS Battery Connector Battery Circuit Breaker EBM Cable Battery Circuit EBM Battery Breakers Connectors Figure 16. Typical EBM Installation ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 22: Pdm Installation

    Skip to Step 5 to continue the PDM installation. Table 9. FC 6572 PDM Models Input/Output Voltage Settings Input Voltage (from UPS) PDM Output Voltage ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 23 Plug the input and output cords of the PDM into the input and output power connectors on the UPS rear panel (see Figure 18). Continue to “UPS Installation” on page 21. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 24: Pdm Rear Panels

    Input Connector Output Receptacles (Four 6-20R) Output Receptacles (Two L6-15R) Output Receptacle (L6-30R) Neutral-to-Ground Bonding Screw Output Receptacles (Two 5-15R) Figure 19. FC 6571 PDM ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 25: Ups Installation

    E64 accessory kit. Communication Port USB Port X-Slot Communication REPO Connector Battery Connector Battery Circuit Breaker L6-30 Output Receptacle L6-30 Input Connector Figure 21. UPS Rear View ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 26: Remote Emergency Power-Off Installation

    UPS when the emergency power-off function is activated. NOTE The REPO function activates when the REPO contacts close. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 27: Power Connections And Startup

    Legend (Figure 23, Figure 24, and Figure 25) UPS to utility (mains) power cord Device to UPS power cord Device to utility (mains) power cord ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 28 (redundant) PDU power cord into a non-UPS protected output receptacle (mains) or into a second UPS. NOTE The redundant power source must be protected with Transient Voltage Surge Suppression (TVSS). ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 29 PDM. Table 12. FC 6572 PDM Plug Types Supported IBM Plug Type Description Quantity Supported – IEC 320-C14 – IEC 320-C20 IEC-309 (P+N+G) 32A ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 30 NOTE The batteries charge to 80% capacity in less than 2 hours. However, it is recommended that the batteries charge for 24 hours after installation or long-term storage. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 31 Submit your question to our FAQ database at www.powerware.com/Iibm and select General Knowledge > Frequently Asked Questions Contact the IBM office or Business Partner servicing your account ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 32: Typical Power Connections

    Burndy to KP, 4.3m/14 ft * Other power cords are supported by the PDU. Power cords shown are similar in voltage and amperage to the UPS. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 33 4200W p5/pSeries 5889, 7109, 7188, or 9188 Mains Varies IBM (8) i5/iSeries p5/pSeries 5889, 7109, 7188, or 9188 Figure 27. E64 with Dual-Redundant Power ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 34 IEC-309 (P+N+G) 32A, 4.3m/14 ft Output power (UPS to PDU) cord: IBM FC 2971 NOTE E64 does not support i5/iSeries PDU 5162, IEC-309 (3P+N+G) 16A. Mains Varies Eaton (6) 4200W i5/iSeries 5161 p5/pSeries 9177 Figure 28. E64 International (IEC) Rack with Non-Redundant Power ®...
  • Page 35 INSTALLATION Mains Varies Eaton (6) 4200W i5/iSeries 5161 p5/pSeries 9177 Mains Varies (TVSS 2nd PDU protected) i5/iSeries 5161 Dual-redundant power options: p5/pSeries 7177 1. PDU to mains (no UPS protection), then MUST have Transient Voltage Surge Suppression (TVSS) on mains.
  • Page 36 Output power (UPS to PDU) cord: IBM FC 2970 Mains Varies IBM (4) 4200W i5/iSeries 5160 p5/pSeries 9176 Figure 30. E64 NEMA Countries Rack with Non-Redundant Power ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 37 MUST have Transient Voltage Surge Suppression (TVSS) on mains. 2. Second E64 on second PDU. Figure 31. E64 NEMA Countries Rack with Dual-Redundant Power ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 38 RS 3750, 1.8m/6 ft 1423 RS 3750, 4.3m/14 ft 1425 KP, 4.3m/14 ft 1426 PDL, 4.3m/14 ft 1427 PDL-NZ, 4.3m/14 ft NEMA L6-15P — NEMA L6-15R ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 39 E64 UPS 4200W with i5/iSeries or FC 6571 p5/pSeries Device(s) 10 11 i5/iSeries or p5/pSeries Device(s) Figure 32. E64 and FC 6571 PDM NEMA Countries Tower ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 40 Output power (UPS to device) cords, located in FC 6572 Qty. Description IEC 320-C19 to C20, 2.7m (9 ft) IEC 320-C13 to C14, 1.8m (6 ft) Mains i5/iSeries or Eaton (10) IBM (9) p5/pSeries Device(s) E64 UPS 4200W with i5/iSeries or...

  • Page 41: Operation

    To turn on the UPS without using utility power, press and hold the On button for approximately three seconds. The UPS supplies power to your equipment and transfers to Battery mode. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 42: Turning The Ups Off

    The UPS cycles the bar graph indicators twice, verifies the battery converter, and schedules the battery test to occur within 24 hours. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 43: Transferring The Ups To Bypass Mode

    Press the On button again for approximately three seconds to return to Normal mode. Operating Modes The Powerware 9125’s front panel indicates the UPS status through the UPS indicators. Figure 34 shows the UPS front panel indicators and controls. Normal Mode Indicator...

  • Page 44: Normal Mode

    Figure 35. Load Level Indicators When all of the bar graph indicators are illuminated and the indicator flashes, power requirements exceed UPS capacity; refer to “Troubleshooting” in the Powerware 9125 Two-in-One UPS (5000/6000 VA) User’s Guide for more information. ® ®...

  • Page 45: Battery Mode

    When utility power is restored after the UPS shuts down, the UPS automatically restarts. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 46: Bypass Mode

    NOTE For 208–240V models, the output receptacles may remain electrically live (up to 110–120V). Unplug the UPS to ensure power is not available to the output receptacles. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 47: Communication Options

    Select the Battery tab, then select the number of EBMs you are using from the pull-down menu (you can choose up to four EBMs). Click OK and close the software. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 48: I5, Iseries, Or As/400 And Serial Server Interface Overview

    To connect the UPS to an i5, iSeries, or AS/400 and a serial server you need: An Eaton-supplied Relay-Serial Card, an AS/400 interface cable (labeled 152601976-001), and a serial interface cable (labeled 124102044-001), located in the FC 2939 carton labeled “Cable Kit for IBM iSeries and Windows or AIX/Linux Servers”...
  • Page 49 UPS Interface Cable (labeled 1827) Serial Interface Cable AS/400 Interface Cable (labeled 124102044-001) (labeled 152601976-001) Communication Port Relay-Serial Card Figure 37. i5 and Serial Server Interface ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 50 Serial (TTY) Server Serial Interface Cable (labeled 124102044-001) AS/400 Interface Cable (labeled 152601976-001) Communication Port Relay-Serial Card Figure 38. iSeries or AS/400 and Serial Server Interface ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...

  • Page 51: Serial (Tty) Interface Overview

    Serial (TTY) Interface Overview ® To serially (TTY) connect the UPS to a p5, pSeries, RS/6000 OpenPower or other system you need: An Eaton-supplied serial interface cable (labeled 116750226-001 or 124102044-001), located in the E64 accessory kit ® Powerware LanSafe...

  • Page 52: P5 Or Pseries With Logical Partitions Interface Overview

    Logical Partitions Interface Overview To connect the UPS to a p5 or pSeries with LPARs you need: An Eaton-supplied ConnectUPS-X Web/SNMP Card, located in the FC 2934 carton labeled “ConnectUPS-X Web/SNMP Card Kit” NetWatch software from the Software Suite CD, located in the E64...

  • Page 53: Service And Support

    Figure 41. Example of IBM Serial Number Labels Comments We welcome your comments about this manual. Please send your questions or suggestions for improvements to ibm.ups@powerware.com. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 54 SERVICE AND SUPPORT This page intentionally left blank. ® ® EATON Powerware 9125 (9910-E64) UPS Installation Guide for IBM Applications 164201697 Rev 1...
  • Page 55 92/31/EEC, Amending Directive 89/336/EEC relating to EMC The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC Declaration of Conformity, contact: Eaton Power Quality Oy Koskelontie 13 FIN-02920 Espoo Finland...
  • Page 56 This page intentionally left blank.
  • Page 58 *1642016971* 164201697 1...
