QUICK REFERENCE GUIDE
I Your first scanning
experience
Now that you have your IC-R5 ready, you are probably ex-
cited to start listening. We would like to take you through a
few basic operation steps to make your first "Scanning Expe-
rience" enjoyable.
D About default setting
The [DIAL] control function can be traded with [Y]/[Z] keys
function in set mode. However, in this QUICK REFERENCE
GUIDE, the factory default setting ([DIAL] sets operating fre-
quency) is used for simple instruction.
D Basic operation
1. Turning ON the receiver
➥ Push [PWR] for 1 sec. to turn
the power ON.
III
[PWR]

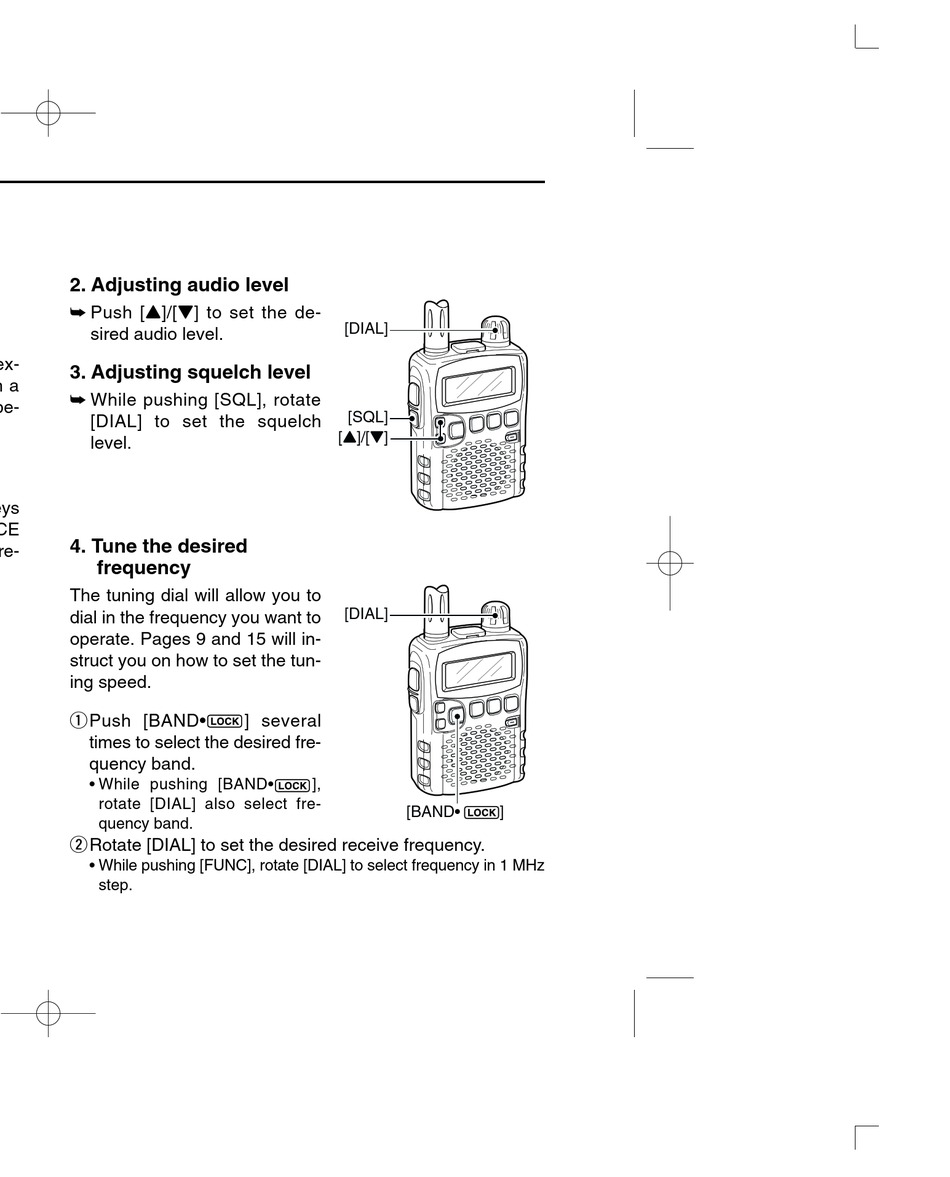

2. Adjusting audio level
➥ Push [Y]/[Z] to set the de-
sired audio level.
3. Adjusting squelch level
➥ While pushing [SQL], rotate
[DIAL] to set the squelch
level.
4. Tune the desired
frequency
The tuning dial will allow you to
dial in the frequency you want to
operate. Pages 9 and 15 will in-
struct you on how to set the tun-
ing speed.
qPush [BAND•
] several
times to select the desired fre-
quency band.
• While pushing [BAND•
rotate [DIAL] also select fre-
quency band.
w Rotate [DIAL] to set the desired receive frequency.
• While pushing [FUNC], rotate [DIAL] to select frequency in 1 MHz
step.
[DIAL]
[SQL]
[Y]/[Z]
[DIAL]
],
[BAND• ]
