QUICK REFERENCE GUIDE

I Programmed scan operation

25 pairs, 50 channels of memories are used for programmed
scan operation, that specifying a scanning ranges. The pro-
grammed scan scans between "xxA" and "xxB" (xx=00 to 24)
frequencies. Therefore, before operating the programmed
scan, different frequencies must be programmed into "A" and
"B" channels.
D D Programming scan edges
A start frequency must be programmed into a "xxA," and end
frequency must be programmed into a "xxB" memory chan-
nel.
1. Setting frequency
In VFO mode, set the desired receive frequency mode.
• When " " indicator is displayed, push [V/M•S.MW•~] to se-
lect the VFO mode.
2. Selecting a scan edge channel "A"
Push [V/M•S.MW•~] for 1 sec., then
rotate [DIAL] to select one of the de-
sired scan edge channel "A."
• " " indicator and scan edge channel number blink.
3. Writing a memory channel
Push [V/M•S.MW•~] for 1 sec. until 3 beeps sound.
• Scan edge channel "B" is automatically selected when continuing
to push [V/M•S.MW•~] after programming.
• After programming is completed, return to VFO indication.
V

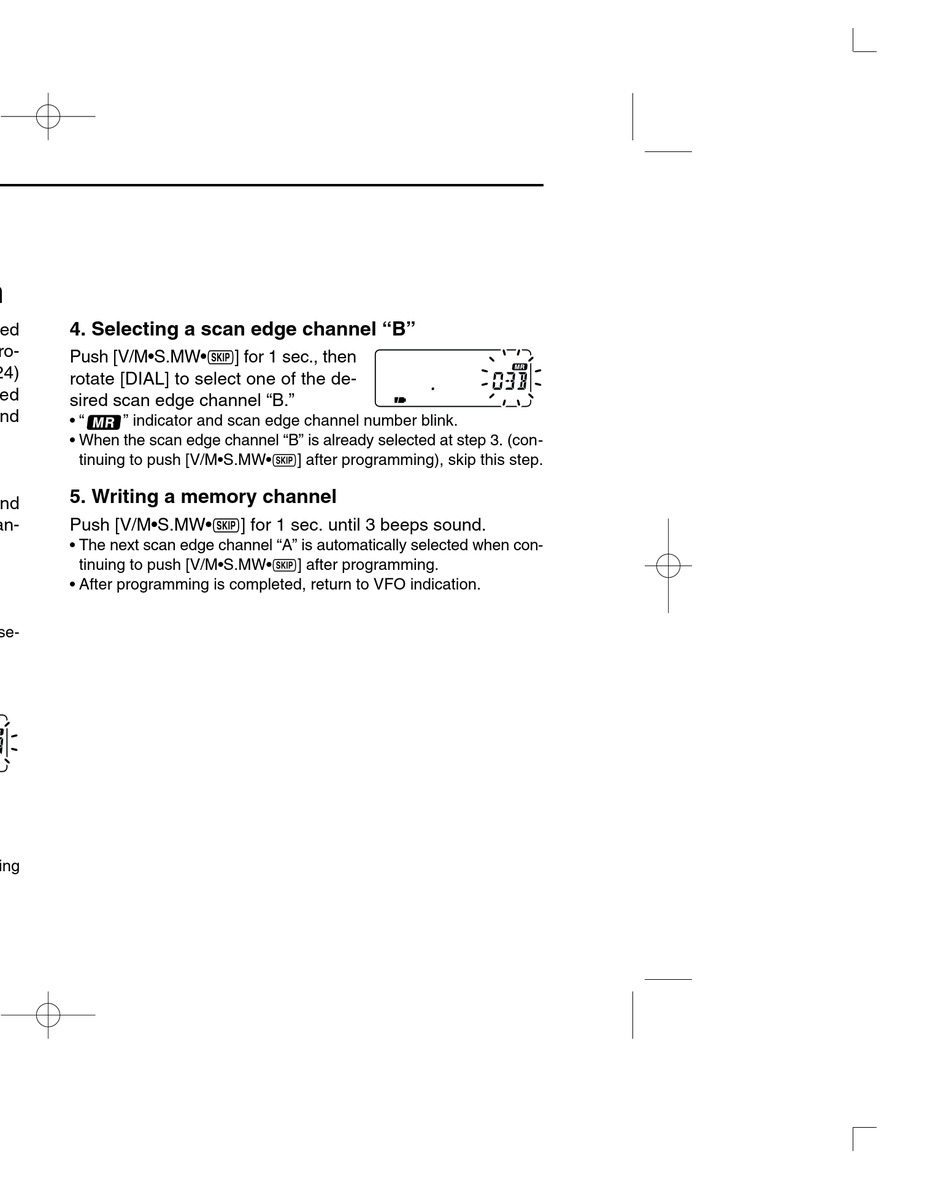

4. Selecting a scan edge channel "B"
Push [V/M•S.MW•~] for 1 sec., then
rotate [DIAL] to select one of the de-
sired scan edge channel "B."
• " " indicator and scan edge channel number blink.
• When the scan edge channel "B" is already selected at step 3. (con-
tinuing to push [V/M•S.MW•~] after programming), skip this step.
5. Writing a memory channel
Push [V/M•S.MW•~] for 1 sec. until 3 beeps sound.
• The next scan edge channel "A" is automatically selected when con-
tinuing to push [V/M•S.MW•~] after programming.
• After programming is completed, return to VFO indication.
