Icom IC-R5 Instruction Manual page 54

9
SET MODE
D D Key lock effect
While the key lock function is ON, [Y]/[Z] and [SQL] can still
be accessed. Accessible switches can be set to one of 4
groups.
[PWR] and [FUNC]+[BAND•
the lock, however, these switches are not effected by this set-
ting.
• NORMAL : [Y]/[Z] and [SQL] are accessible. (default)
• NO SQL : [SQL] is accessible.
• NO VOL : [Y]/[Z] are accessible.
• ALL : No accessible switch is available, except
[PWR] and [FUNC]+[BAND•
Normal lock condition
Audio output can be adjusted
43
] are also accessible during
].
Squelch level can be adjusted
Receiver power and lock
function only switchable

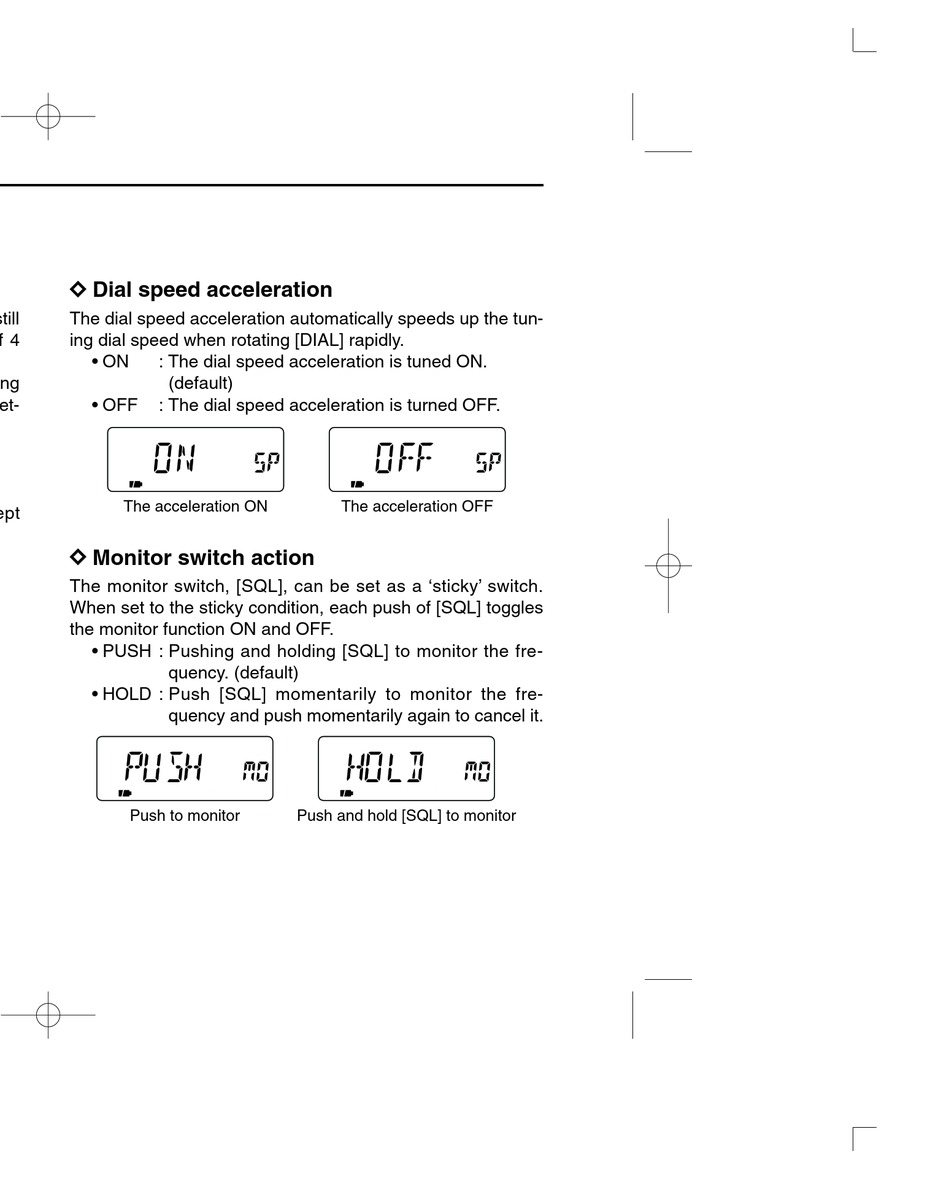

D D Dial speed acceleration
The dial speed acceleration automatically speeds up the tun-
ing dial speed when rotating [DIAL] rapidly.
• ON : The dial speed acceleration is tuned ON.
(default)
• OFF : The dial speed acceleration is turned OFF.
The acceleration ON
D D Monitor switch action
The monitor switch, [SQL], can be set as a 'sticky' switch.
When set to the sticky condition, each push of [SQL] toggles
the monitor function ON and OFF.
• PUSH : Pushing and holding [SQL] to monitor the fre-
quency. (default)
• HOLD : Push [SQL] momentarily to monitor the fre-
quency and push momentarily again to cancel it.
Push to monitor
The acceleration OFF
Push and hold [SQL] to monitor
