I Selecting A Memory Channel; I Lock Function - Icom IC-R5 Instruction Manual

I Selecting a memory channel

q Push [V/M•S.MW•~] to select the memory mode.
• " " appears when a memory channel is selected.
w Rotate [DIAL] to select the desired memory channel.
• Only programmed memory channels can be selected.
• While pushing and holding [FUNC], rotate [DIAL] to select a
memory channel in 10 channels steps.
[DIAL]
[FUNC]
[V/M•S.MW•~]
FM
[DIAL] changes the mem-
ory channel.
FREQUENCY AND CHANNEL SETTING

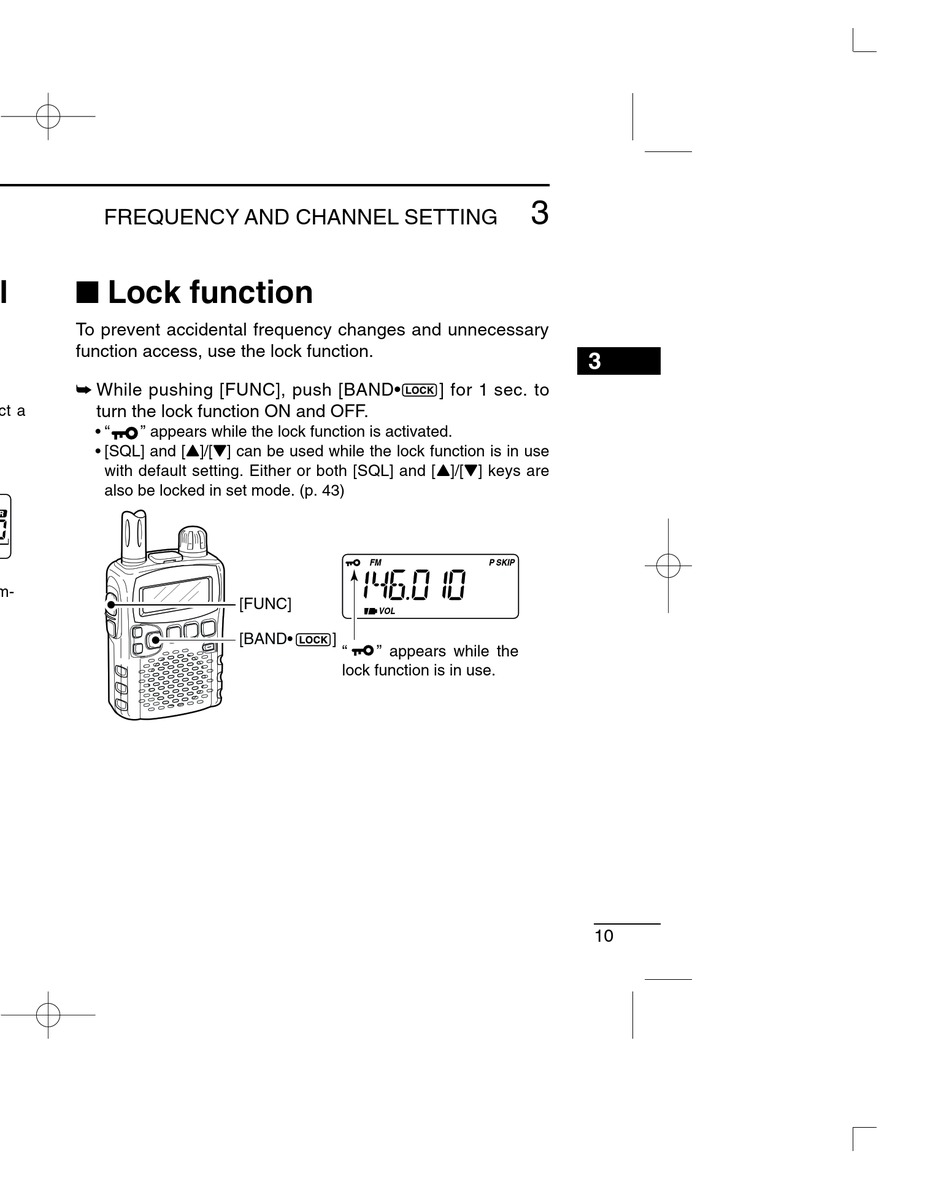

I Lock function

To prevent accidental frequency changes and unnecessary
function access, use the lock function.
➥ While pushing [FUNC], push [BAND•
turn the lock function ON and OFF.
• " " appears while the lock function is activated.
• [SQL] and [Y]/[Z] can be used while the lock function is in use
with default setting. Either or both [SQL] and [Y]/[Z] keys are
also be locked in set mode. (p. 43)
[FUNC]
[BAND•
3
] for 1 sec. to
FM P SKIP
VOL
]
" " appears while the
lock function is in use.
3
10
