5
DRIVER INSTALLATION

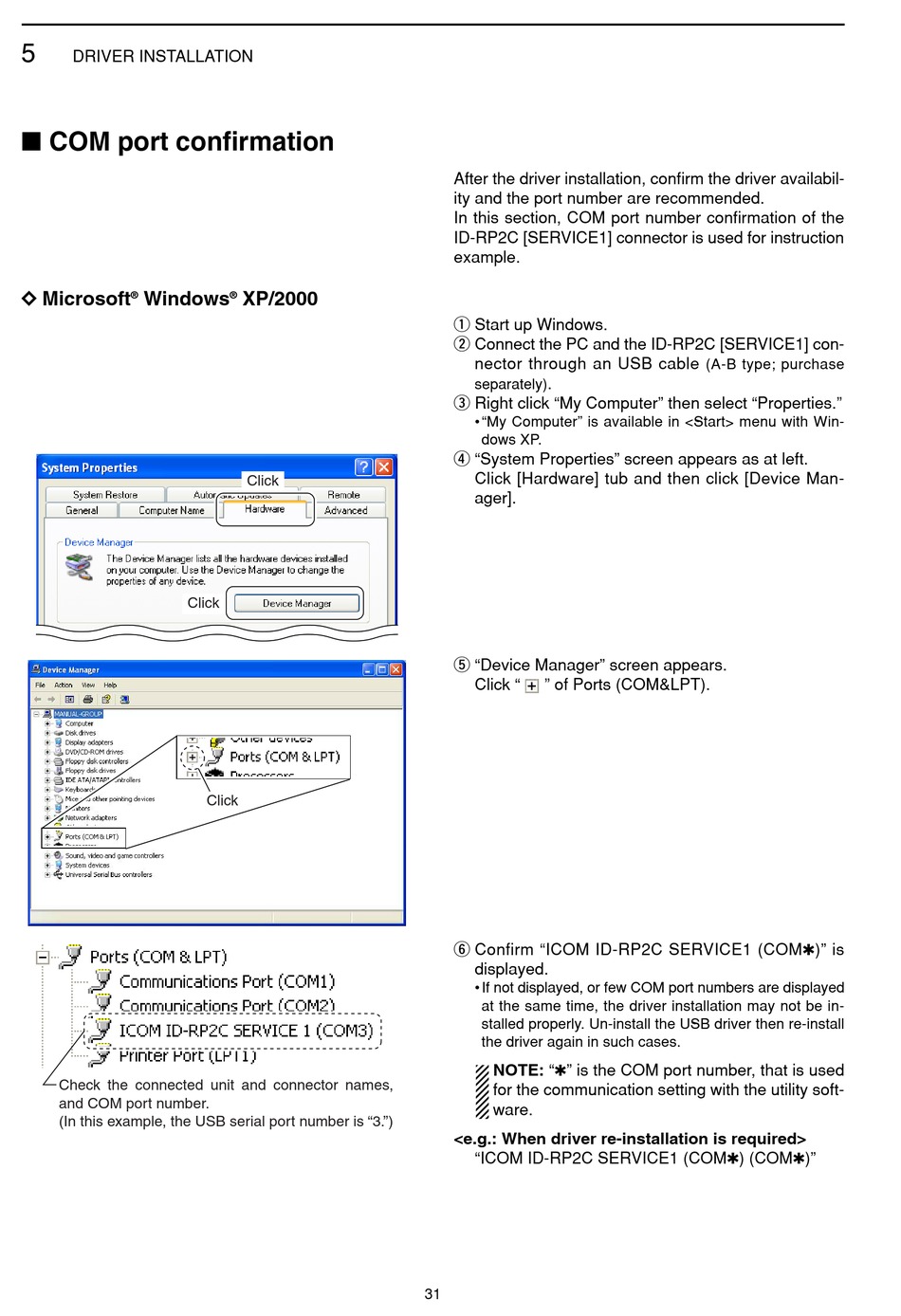

I COM port confirmation
D D Microsoft
® Windows
Check the connected unit and connector names,
and COM port number.
(In this example, the USB serial port number is "3.")
® XP/2000
Click
Click
Click
After the driver installation, confirm the driver availabil-
ity and the port number are recommended.
In this section, COM port number confirmation of the
ID-RP2C [SERVICE1] connector is used for instruction
example.
q Start up Windows.
w Connect the PC and the ID-RP2C [SERVICE1] con-
nector through an USB cable
.
separately)
e Right click "My Computer" then select "Properties."
• "My Computer" is available in <Start> menu with Win-
dows XP.
r "System Properties" screen appears as at left.
Click [Hardware] tub and then click [Device Man-
ager].
t "Device Manager" screen appears.
Click " " of Ports (COM&LPT).
y Confirm "ICOM ID-RP2C SERVICE1 (COM✱)" is
displayed.
• If not displayed, or few COM port numbers are displayed
at the same time, the driver installation may not be in-
stalled properly. Un-install the USB driver then re-install
the driver again in such cases.
NOTE: "✱" is the COM port number, that is used
for the communication setting with the utility soft-
ware.
<e.g.: When driver re-installation is required>
"ICOM ID-RP2C SERVICE1 (COM✱) (COM✱)"
31
