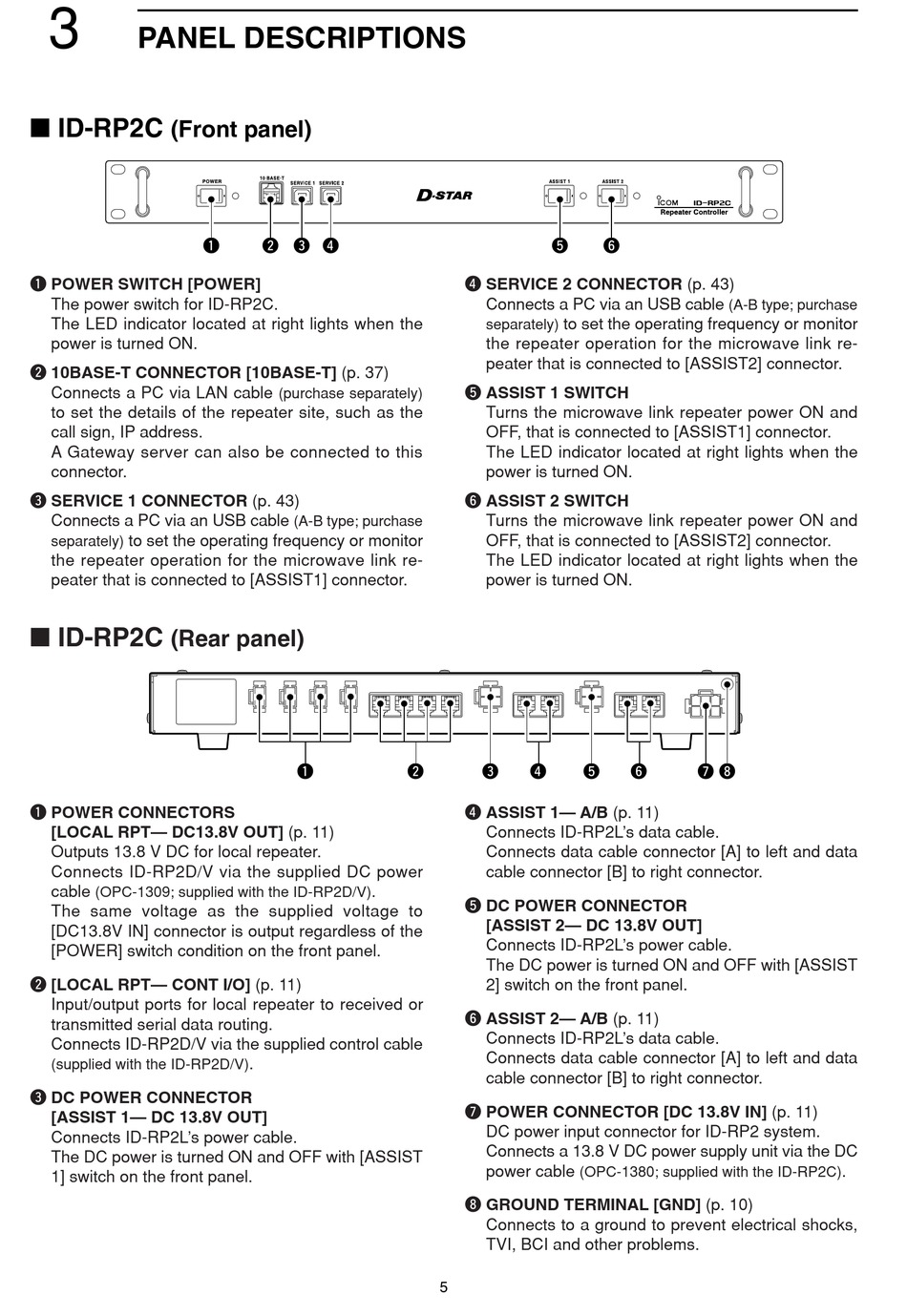

PANEL DESCRIPTIONS

I ID-RP2C
(Front panel)
q POWER SWITCH [POWER]
The power switch for ID-RP2C.
The LED indicator located at right lights when the
power is turned ON.
w 10BASE-T CONNECTOR [10BASE-T] (p. 37)
Connects a PC via LAN cable
to set the details of the repeater site, such as the
call sign, IP address.
A Gateway server can also be connected to this
connector.
e SERVICE 1 CONNECTOR (p. 43)
Connects a PC via an USB cable
to set the operating frequency or monitor
separately)
the repeater operation for the microwave link re-
peater that is connected to [ASSIST1] connector.
I ID-RP2C
(Rear panel)
q POWER CONNECTORS
[LOCAL RPT— DC13.8V OUT] (p. 11)
Outputs 13.8 V DC for local repeater.
Connects ID-RP2D/V via the supplied DC power
cable
(OPC-1309; supplied with the ID-RP2D/V)
The same voltage as the supplied voltage to
[DC13.8V IN] connector is output regardless of the
[POWER] switch condition on the front panel.
w [LOCAL RPT— CONT I/O] (p. 11)
Input/output ports for local repeater to received or
transmitted serial data routing.
Connects ID-RP2D/V via the supplied control cable
(supplied with the ID-RP2D/V)
e DC POWER CONNECTOR
[ASSIST 1— DC 13.8V OUT]
Connects ID-RP2L's power cable.
The DC power is turned ON and OFF with [ASSIST
1] switch on the front panel.
q w e r
(purchase separately)
(A-B type; purchase
q
.
.
t
r SERVICE 2 CONNECTOR (p. 43)
Connects a PC via an USB cable
to set the operating frequency or monitor
separately)
the repeater operation for the microwave link re-
peater that is connected to [ASSIST2] connector.
t ASSIST 1 SWITCH
Turns the microwave link repeater power ON and
OFF, that is connected to [ASSIST1] connector.
The LED indicator located at right lights when the
power is turned ON.
y ASSIST 2 SWITCH
Turns the microwave link repeater power ON and
OFF, that is connected to [ASSIST2] connector.
The LED indicator located at right lights when the
power is turned ON.
w e r
r ASSIST 1— A/B (p. 11)
Connects ID-RP2L's data cable.
Connects data cable connector [A] to left and data
cable connector [B] to right connector.
t DC POWER CONNECTOR
[ASSIST 2— DC 13.8V OUT]
Connects ID-RP2L's power cable.
The DC power is turned ON and OFF with [ASSIST
2] switch on the front panel.
y ASSIST 2— A/B (p. 11)
Connects ID-RP2L's data cable.
Connects data cable connector [A] to left and data
cable connector [B] to right connector.
u POWER CONNECTOR [DC 13.8V IN] (p. 11)
DC power input connector for ID-RP2 system.
Connects a 13.8 V DC power supply unit via the DC
power cable
i GROUND TERMINAL [GND] (p. 10)
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
5
y
(A-B type; purchase
t y u i
(OPC-1380; supplied with the ID-RP2C)
.
