4
CONNECTIONS AND INSTALLATIONS

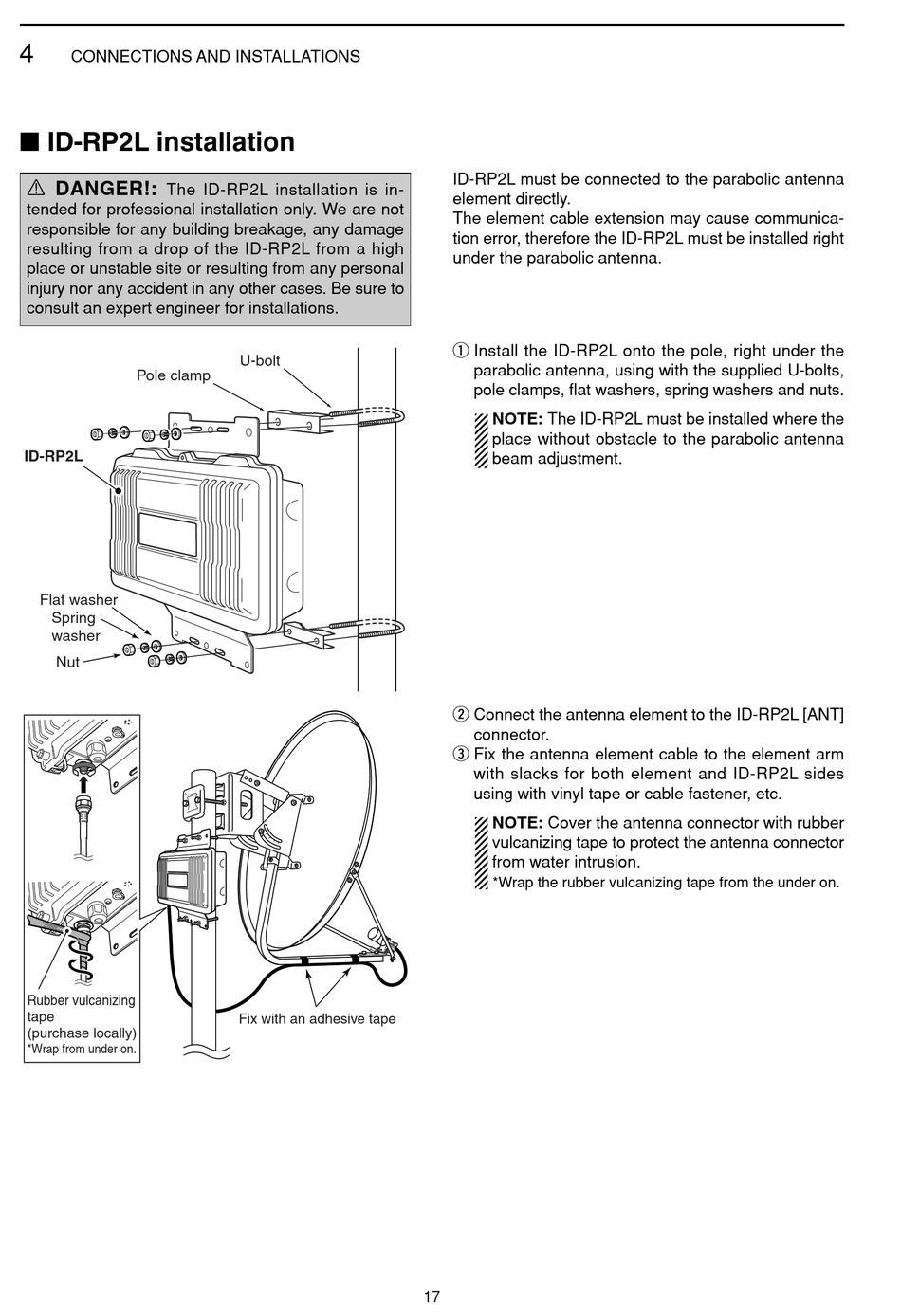

I ID-RP2L installation

R DANGER!:
The ID-RP2L installation is in-
tended for professional installation only. We are not
responsible for any building breakage, any damage
resulting from a drop of the ID-RP2L from a high
place or unstable site or resulting from any personal
injury nor any accident in any other cases. Be sure to
consult an expert engineer for installations.
Pole clamp
ID-RP2L
Flat washer
Spring
washer
Nut
Rubber vulcanizing
tape
(purchase locally)
*Wrap from under on.
U-bolt
Fix with an adhesive tape
ID-RP2L must be connected to the parabolic antenna
element directly.
The element cable extension may cause communica-
tion error, therefore the ID-RP2L must be installed right
under the parabolic antenna.
q Install the ID-RP2L onto the pole, right under the
parabolic antenna, using with the supplied U-bolts,
pole clamps, flat washers, spring washers and nuts.
NOTE: The ID-RP2L must be installed where the
place without obstacle to the parabolic antenna
beam adjustment.
w Connect the antenna element to the ID-RP2L [ANT]
connector.
e Fix the antenna element cable to the element arm
with slacks for both element and ID-RP2L sides
using with vinyl tape or cable fastener, etc.
NOTE: Cover the antenna connector with rubber
vulcanizing tape to protect the antenna connector
from water intrusion.
*Wrap the rubber vulcanizing tape from the under on.
17
