Icom ID-RP2 Instruction Manual page 47

e Click
w Click [Z], then select
"Normal."
q Enter the speci-
fied frequencies.

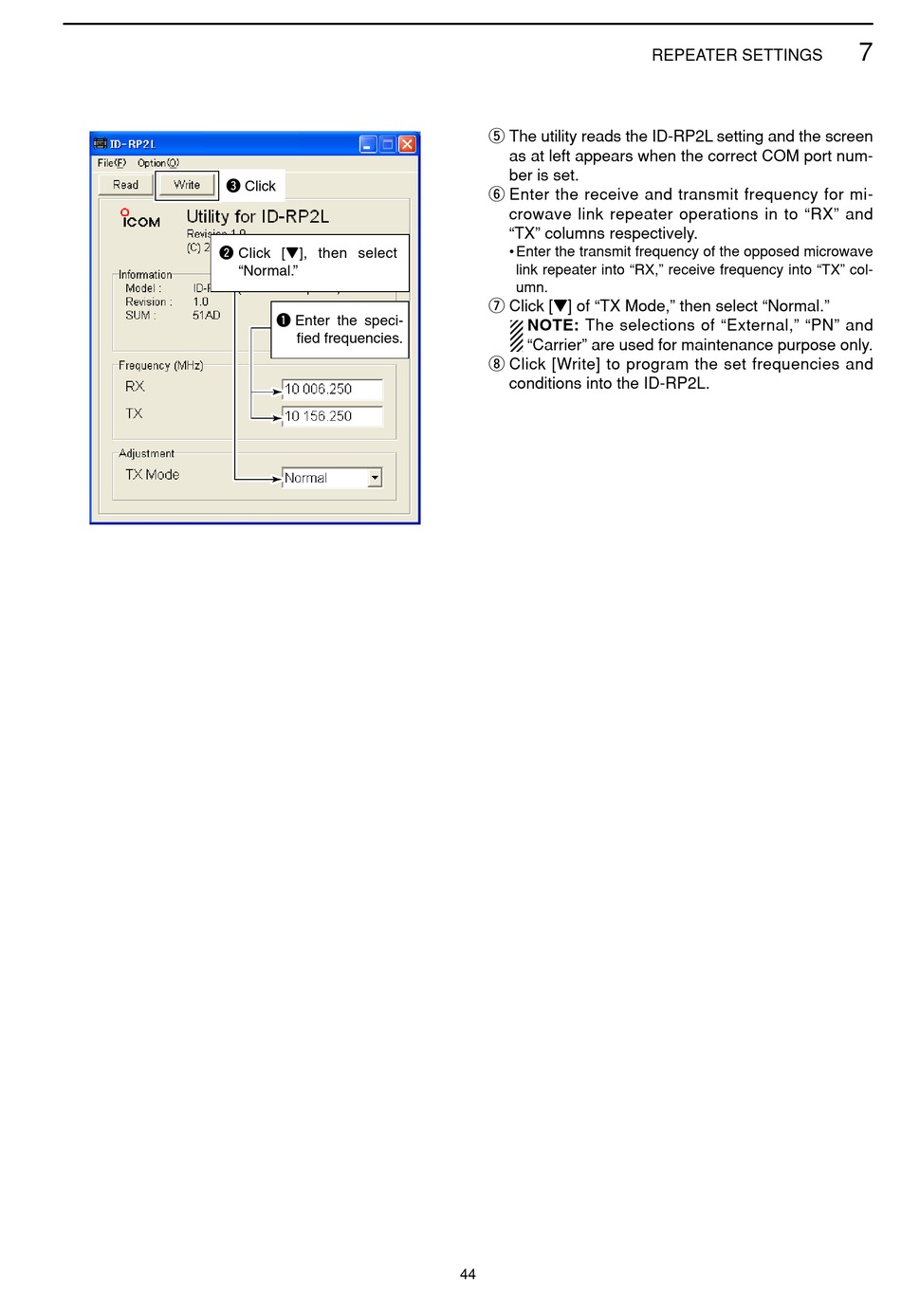

t The utility reads the ID-RP2L setting and the screen
as at left appears when the correct COM port num-
ber is set.
y Enter the receive and transmit frequency for mi-
crowave link repeater operations in to "RX" and
"TX" columns respectively.
• Enter the transmit frequency of the opposed microwave
link repeater into "RX," receive frequency into "TX" col-
umn.
u Click [Z] of "TX Mode," then select "Normal."
NOTE: The selections of "External," "PN" and
"Carrier" are used for maintenance purpose only.
i Click [Write] to program the set frequencies and
conditions into the ID-RP2L.
44
REPEATER SETTINGS
7
