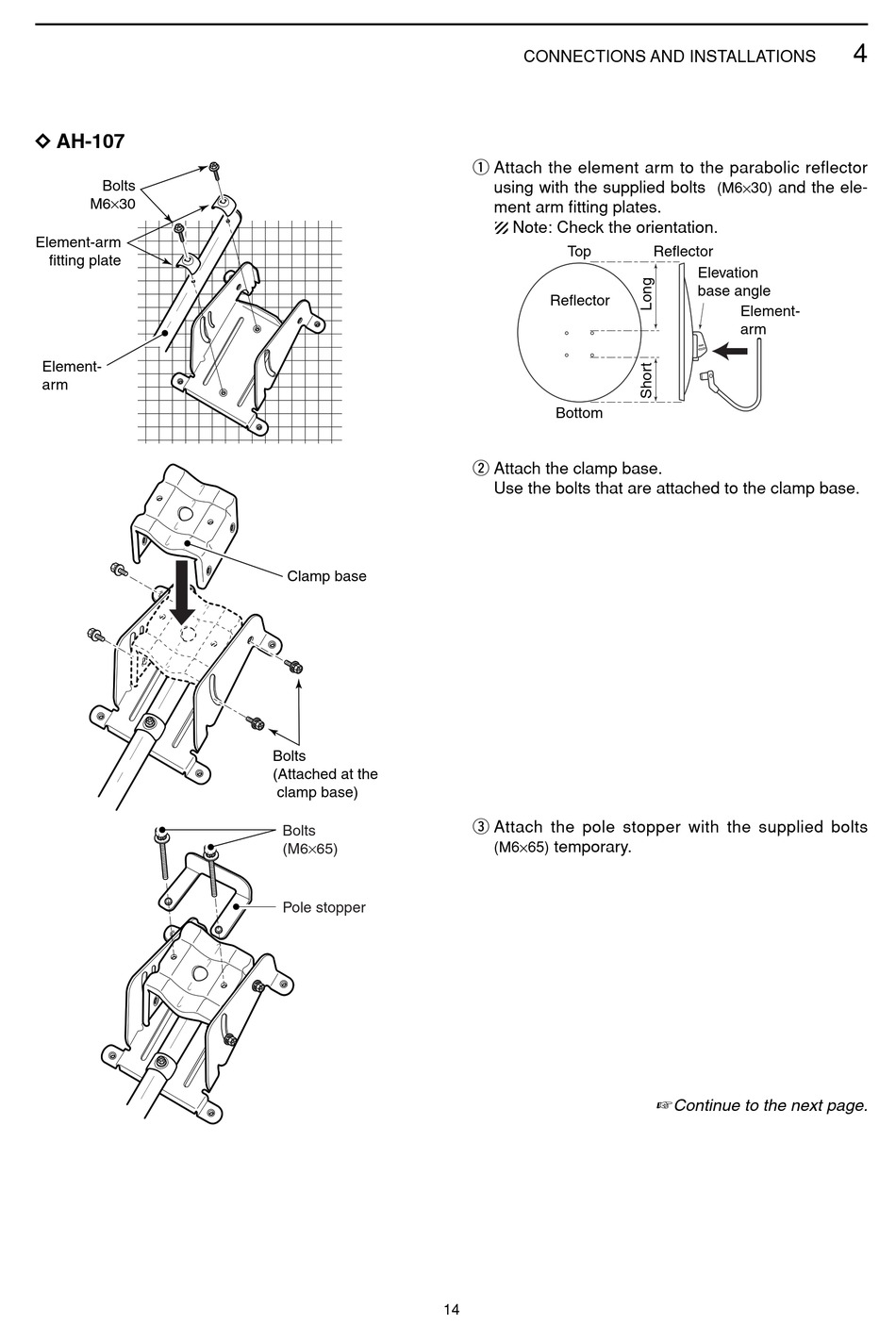

D D AH-107

Bolts

M6×30
Element-arm
fitting plate
Element-
arm
Clamp base
Bolts
(Attached at the
clamp base)
Bolts
(M6×65)

Pole stopper

CONNECTIONS AND INSTALLATIONS
q Attach the element arm to the parabolic reflector
using with the supplied bolts
ment arm fitting plates.
Note: Check the orientation.
Top
Reflector
Bottom
w Attach the clamp base.
Use the bolts that are attached to the clamp base.
e Attach the pole stopper with the supplied bolts
temporary.
(M6×65)
14
and the ele-
(M6×30)
Reflector
Elevation
base angle
Element-
arm
Continue to the next page.
