7
REPEATER SETTINGS

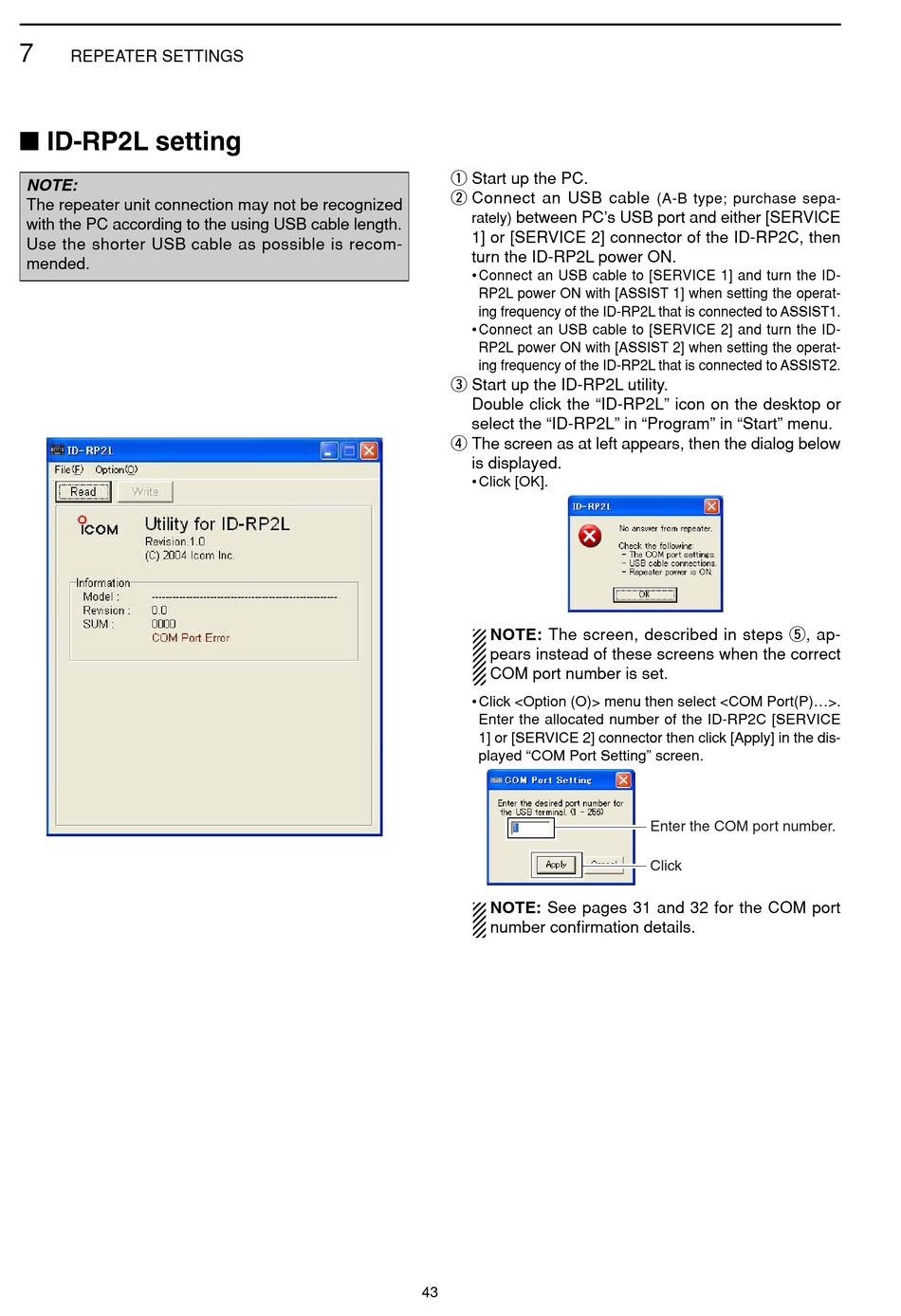

I ID-RP2L setting

NOTE:
The repeater unit connection may not be recognized
with the PC according to the using USB cable length.
Use the shorter USB cable as possible is recom-
mended.
q Start up the PC.
w Connect an USB cable
between PC's USB port and either [SERVICE
rately)
1] or [SERVICE 2] connector of the ID-RP2C, then
turn the ID-RP2L power ON.
• Connect an USB cable to [SERVICE 1] and turn the ID-
RP2L power ON with [ASSIST 1] when setting the operat-
ing frequency of the ID-RP2L that is connected to ASSIST1.
• Connect an USB cable to [SERVICE 2] and turn the ID-
RP2L power ON with [ASSIST 2] when setting the operat-
ing frequency of the ID-RP2L that is connected to ASSIST2.
e Start up the ID-RP2L utility.
Double click the "ID-RP2L" icon on the desktop or
select the "ID-RP2L" in "Program" in "Start" menu.
r The screen as at left appears, then the dialog below
is displayed.
• Click [OK].
NOTE: The screen, described in steps t, ap-
pears instead of these screens when the correct
COM port number is set.
• Click <Option (O)> menu then select <COM Port(P)...>.
Enter the allocated number of the ID-RP2C [SERVICE
1] or [SERVICE 2] connector then click [Apply] in the dis-
played "COM Port Setting" screen.
NOTE: See pages 31 and 32 for the COM port
number confirmation details.
43
(A-B type; purchase sepa-
Enter the COM port number.
Click
