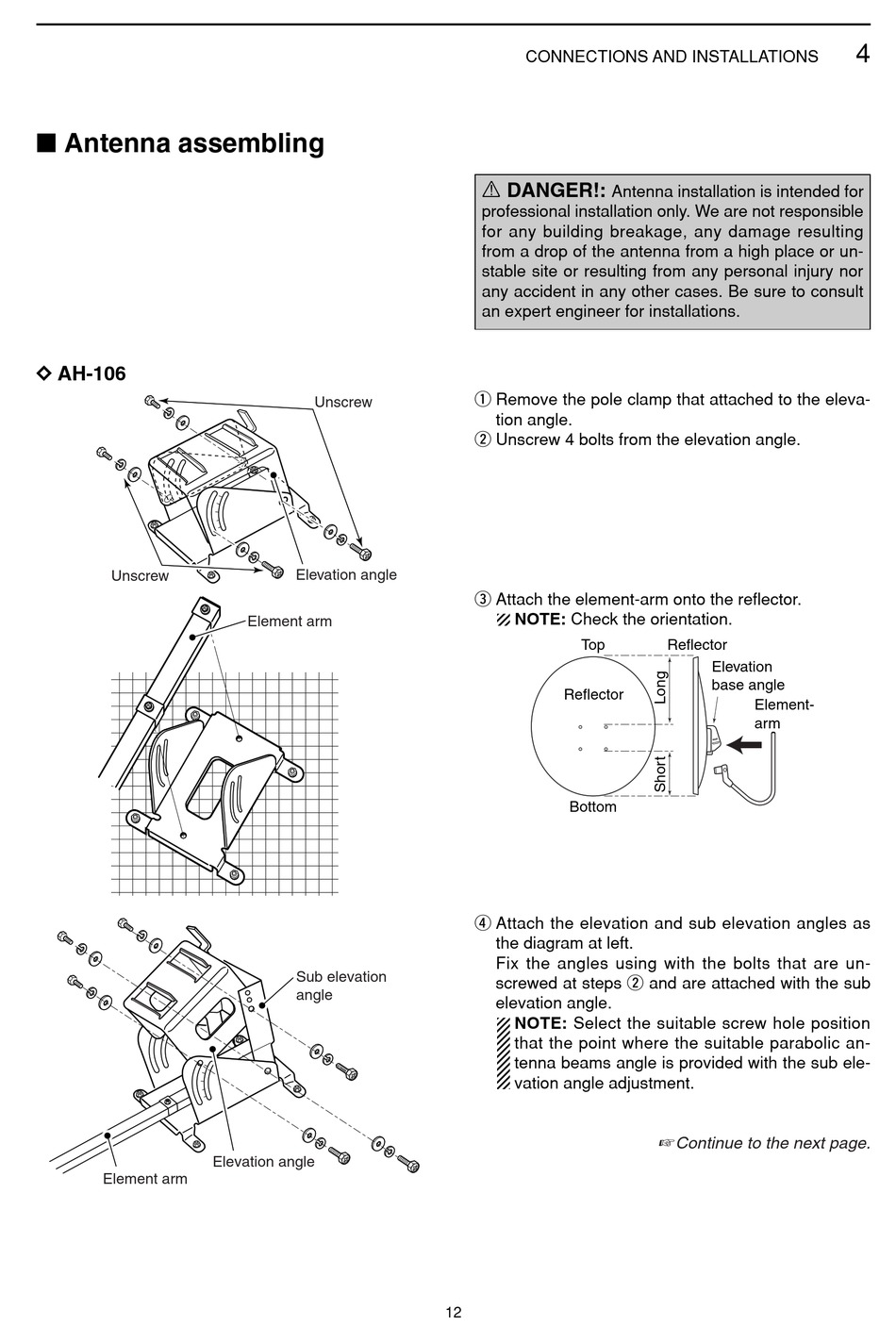

I Antenna assembling

D D AH-106
Unscrew
Element arm
Unscrew
Elevation angle
Element arm
Sub elevation
angle
Elevation angle
CONNECTIONS AND INSTALLATIONS
R DANGER!:
Antenna installation is intended for
professional installation only. We are not responsible
for any building breakage, any damage resulting
from a drop of the antenna from a high place or un-
stable site or resulting from any personal injury nor
any accident in any other cases. Be sure to consult
an expert engineer for installations.
q Remove the pole clamp that attached to the eleva-
tion angle.
w Unscrew 4 bolts from the elevation angle.
e Attach the element-arm onto the reflector.
NOTE: Check the orientation.
Top
Reflector
Bottom
r Attach the elevation and sub elevation angles as
the diagram at left.
Fix the angles using with the bolts that are un-
screwed at steps w and are attached with the sub
elevation angle.
NOTE: Select the suitable screw hole position
that the point where the suitable parabolic an-
tenna beams angle is provided with the sub ele-
vation angle adjustment.
12
Reflector
Elevation
base angle
Element-
arm
Continue to the next page.
