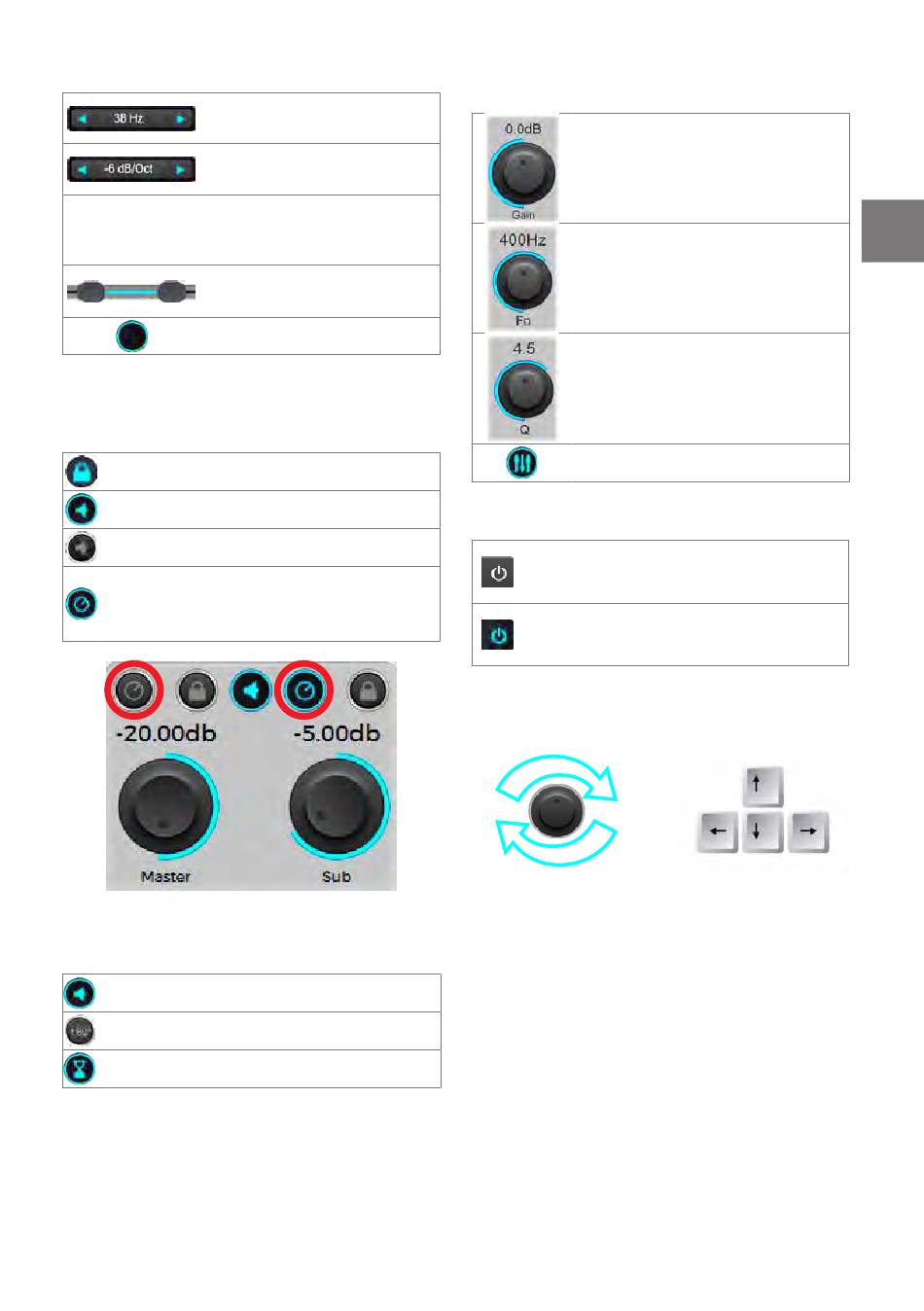

8 Crossover
Selection of crossover
frequency
Slope selection
(0 up to ‑30 dB/Oct. possible)
Filter characteristics
(Butterworth, Bessel,
Chebyshev)
Slider bar for quick crossover
selection
Crossover on/ off
9 Master/ Subwoofer Volume Setting
Master volume and level control subwoofer
channels.
Volume settings are locked.
Blue: All channels are active.
Grey: All channels are muted.
On: Remote volume knob enabled (either
Master or Sub). Optional RUX‑KNOB
required.
0 Volume/ Delay Setting
Gain, time delay and phase inversion for the
selected channel.
Select channel muting on/ off.
Select phase inversion on/ off.
Select channel time delay on/ off.
! Equalizer Settings
30 Band Parametric EQ for the selected channel.
Gain Setting
+ 10dB/ ‑30dB
Center
Frequency Setting
Q Factor Setting
1 (wide) ‑ 15 (narrow)
Select equalizer on/ off.
@ ON/OFF Switch (starts PC connection)
Off: no connection between PC and
amplifier.
On: connection between PC and amplifier
established.
Adjustment of the rotary controllers
a) by mouse
Unused Channels:
• We recommend to use all available channels, i.e.
by using the parallel mode.
• When this is not possible, set the unused channel
to maximum attenuation (‑∞dB). This will help to
avoid wrong tripping of any protection mode.
b) by cursor keys
