Alpine PDX-M6 Service Manual

Mono power amplifier
Hide thumbs Also See for PDX-M6:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

loading

Related Manuals for Alpine PDX-M6

Summary of Contents for Alpine PDX-M6

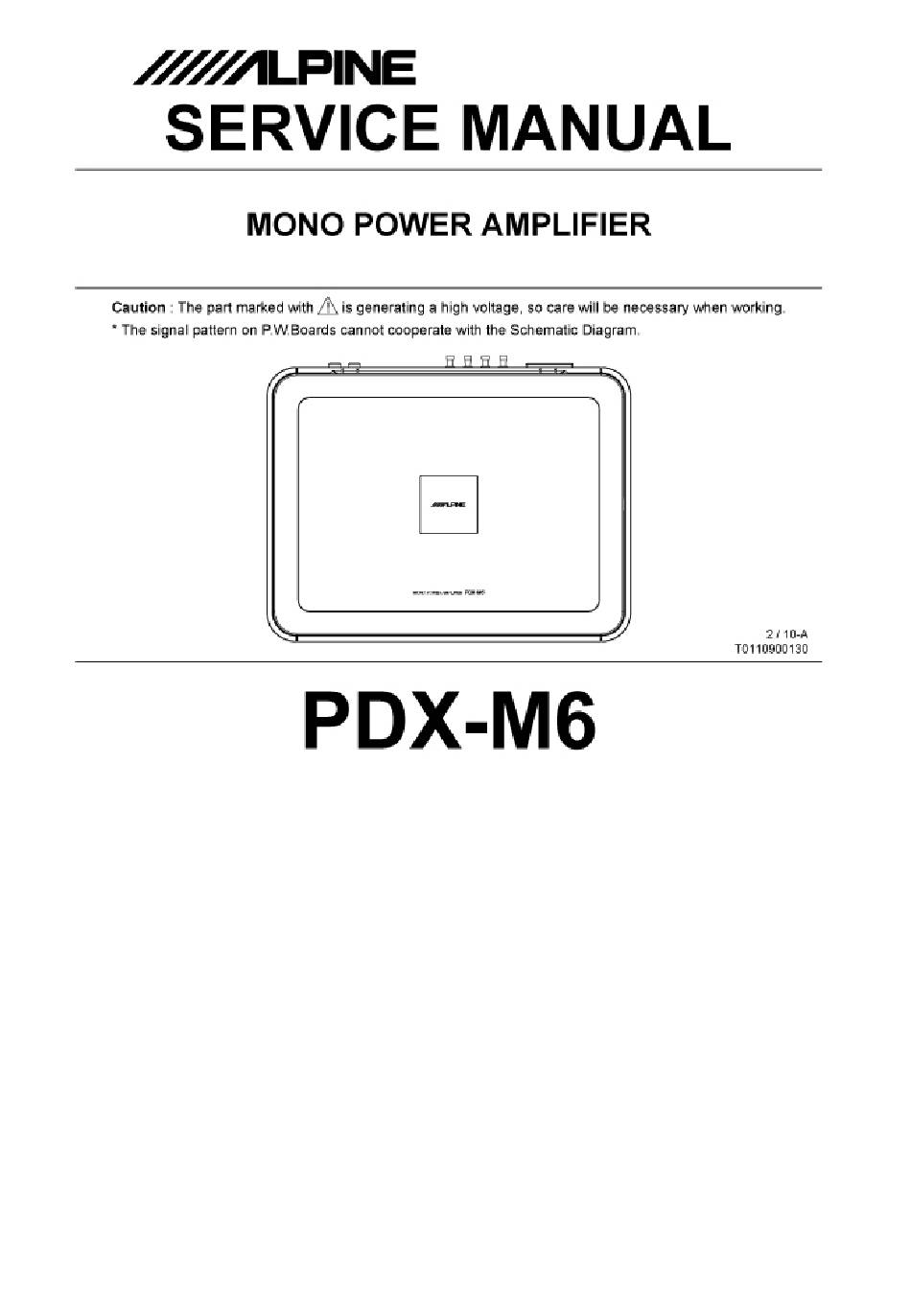

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com <Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.

  • Page 3: Packing Method View

    All manuals and user guides at all-guides.com Packing Method View...
  • Page 4 All manuals and user guides at all-guides.com 68-13530Z47 MANUAL,OWNER'S(AO),(GO) 68-13530Z47 MANUAL,OWNER'S(AO),(GO) 68-13530Z47 MANUAL,OWNER'S(AO),(GO) &1 68-16909Z18 MANUAL,OWNER'S(AOCHR) 68-13530Z48 MANUAL,OWNER'S(I,G,S) 09E41475S01 CONN,P-PLUG 09E41474S01 CONN,SPK-PLUG 43E41458S01 SPACER,STACKING 03E36691S01 WRENCH,2X2.3 47E35195S01 WRENCH,4X4.6 03E41468S01 SCR,M3X7(B)(BLK) 03E41470S01 SCR,M4X24(HW)(BLK) 03E41472S01 SCR,M4X36(HW)(BLK)
  • Page 5 All manuals and user guides at all-guides.com Mark Model Code PDX-M6(North American) Only, PDX-M6(European) Only, PDX-M6(General Foreign) Only, &1 PDX-M6(Chinese) Only, Others:Common. NOTE:The part that has not PART NUMBER will not be supplied. #####...
  • Page 6 All manuals and user guides at all-guides.com Extension Cable *Always connect the Extension Cable when making checks of voltage and repair. (1) 01E39992S01 (2) No Extension Cord needed. MAIN-P.W.Board CB8001 LED-P.W.Board CH6551 SUB-P.W.Board CH6501...

  • Page 7: Specifications

    All manuals and user guides at all-guides.com Specifications Power Output (1) 20Hz, 4ohm, 1.0% T.H.D. (14.4V) 600W 100Hz, 4ohm, 1.0% T.H.D. (14.4V) 600W (2) 20Hz, 2ohm, 1.0% T.H.D. (14.4V) 600W 100Hz, 2ohm, 1.0% T.H.D. (14.4V) 600W T.H.D. (100Hz, 200W/ 4ohm (14.4V)) 0.1% Residual Noise (Input Short, Non-Filter) 5.0mV...

  • Page 8: Block Diagram

    All manuals and user guides at all-guides.com Block Diagram Analog Block Digital Amplifier Block Anaview’s technology Subsonic Battery Detect Limiter Thermal Adjustable Limiter MOD NFB RCA Input Input Input MONO 1 Buffer Isolator PWM Control/FET Driver MOS FET Speaker Output LC Filter 98-1036TRPbF IRFB5615 1para...
  • Page 9 All manuals and user guides at all-guides.com...
  • Page 10 All manuals and user guides at all-guides.com...
  • Page 11 All manuals and user guides at all-guides.com...
  • Page 12 All manuals and user guides at all-guides.com...
  • Page 13 All manuals and user guides at all-guides.com...
  • Page 14 All manuals and user guides at all-guides.com...
  • Page 15 Caution:The part marked with is generating a high voltage, so care will be necessary when working. All manuals and user guides at all-guides.com F001 F004 F003 F002 Orange Color Pattern:Component Side Pattern...
  • Page 16 Caution:The part marked with is generating a high voltage, so care will be necessary when working. All manuals and user guides at all-guides.com Orange Color Pattern:Component Side Pattern...
  • Page 17 SUB-P.W.Board All manuals and user guides at all-guides.com...
  • Page 18 SUB-P.W.Board All manuals and user guides at all-guides.com...
  • Page 19 All manuals and user guides at all-guides.com LED-P.W.Board Orange Color Pattern:Component Side Pattern Blue Color Pattern:Foil Side Pattern...
  • Page 20 All manuals and user guides at all-guides.com LED-P.W.Board Orange Color Pattern:Component Side Pattern Blue Color Pattern:Foil Side Pattern...

  • Page 21: Terminal Voltage Of Ic/Tr

    All manuals and user guides at all-guides.com Terminal Voltage of IC/TR REF[V] IC4901 -28.51 -52.47 -40.48 IC5001 5.03 11.20 0.00 IC8901 14.67 0.00 11.91 REF[V] IC3201 5.02 0.50 0.00 5.03 5.03 IC3202 5.02 0.50 0.00 5.03 5.03 IC5002 5.04 8.00 0.00 4.05 IC5003...
  • Page 22 All manuals and user guides at all-guides.com 5.04 2.22 5.04 5.04 0.00 0.00 5.04 5.04 5.04 5.04 5.04 5.04 3.73 5.04 4.94 5.04 4.31 5.04 5.04 5.04 4.56 0.00 4.94 5.04 3.04 4.93 5.04 REF[V] REF[V] Q1701 -15.01 0.00 0.00 Q3717 -52.98 -52.98...
  • Page 23 All manuals and user guides at all-guides.com REF[V] Q9354 0.00 3.46 0.00 3.44 14.78 14.78 14.77 14.77 [Measuring Conditions] 1.Power Supply Voltage :DC14.4V 2.Measuring Meter :Digital Multi Meter 3.Measuring Point Reference :Between GND 4.Measuring Condition :No Signal...
  • Page 24 All manuals and user guides at all-guides.com Exploded View (Cabinet) VOL1501 NOTE : ※ General Foreign Model, Chinese Model Only. SW1601 VOL1301 SW1301 CB2301 JK1001 ※ TML9001 F001 F002 F003 CB4201 F004 HL9002 HL9001...
  • Page 25 All manuals and user guides at all-guides.com MAIN-P.W.Board C2101 08E41028S01 CAP,CER. 22pF/50V MAIN-P.W.Board C3001 08E37267S01 CAP,CER. 0.047uF/25V MAIN-P.W.Board C3002 08E37267S01 CAP,CER. 0.047uF/25V MAIN-P.W.Board C3003 08E41029S01 CAP,CER. 330pF/50V MAIN-P.W.Board C3004 08E41029S01 CAP,CER. 330pF/50V MAIN-P.W.Board C3005 08E41029S01 CAP,CER. 330pF/50V MAIN-P.W.Board C3006 08E41029S01 CAP,CER.
  • Page 26 All manuals and user guides at all-guides.com MAIN-P.W.Board C4703 08E35412S01 CAP,CER. 1500pF/50V MAIN-P.W.Board C4705 08E37267S01 CAP,CER. 0.047uF/25V MAIN-P.W.Board C4706 08E37122S01 CAP,CER. 0.1uF/25V MAIN-P.W.Board C4707 08E37122S01 CAP,CER. 0.1uF/25V MAIN-P.W.Board C4708 08E37122S01 CAP,CER. 0.1uF/25V MAIN-P.W.Board C4709 08E41389S01 CAP,CER. 3300pF/50V MAIN-P.W.Board C4901 08E37122S01 CAP,CER.
  • Page 27 All manuals and user guides at all-guides.com MAIN-P.W.Board C9914 08E39105S01 CAP,CER.1500pF/500V MAIN-P.W.Board CB4201 09E41445S01 CONN,SPK-CON 2P MAIN-P.W.Board CB8001 09E41441S01 CONN,WTB 2P MAIN-P.W.Board CH6551 09E41444S01 CONN,20P MAIN-P.W.Board CL5001 91E40781S01 RESONATOR,7.7MHz MAIN-P.W.Board D3001 48E41411S01 DIODE,DAP202U MAIN-P.W.Board D3002 48E41411S01 DIODE,DAP202U MAIN-P.W.Board D3608 48E41409S01 DIODE,1SR159 MAIN-P.W.Board D3609...
  • Page 28 All manuals and user guides at all-guides.com MAIN-P.W.Board IC3201 51E38067S01 IC,KIC7S00FU MAIN-P.W.Board IC3202 51E38067S01 IC,KIC7S00FU MAIN-P.W.Board IC3605 51E41426S01 IC,98-1036TR MAIN-P.W.Board IC3606 51E41426S01 IC,98-1036TR MAIN-P.W.Board IC3851 51E39597S01 IC,BA2903FVM MAIN-P.W.Board IC4701 51E39596S01 IC,BA2901FV MAIN-P.W.Board IC4702 51E40343S01 IC,74VHC74MTCX MAIN-P.W.Board IC4901 51E41428S01 IC,BAJ2CC0FP MAIN-P.W.Board IC5001 51E36635S01 IC,NJU7222U50...
  • Page 29 All manuals and user guides at all-guides.com MAIN-P.W.Board Q9353 48E41421S01 TR,IMT17 MAIN-P.W.Board Q9354 48E41415S01 FET,SP8K31 MAIN-P.W.Board Q9355 48E41412S01 DIODE,RF051UA1D MAIN-P.W.Board Q9356 48E41412S01 DIODE,RF051UA1D MAIN-P.W.Board Q9501 48E37188S01 TR,DTC144EE MAIN-P.W.Board Q9502 48E39883S01 TR,2SC4102 MAIN-P.W.Board Q9503 48E39883S01 TR,2SC4102 MAIN-P.W.Board Q9706 48E40769S01 TR,DTA124EE MAIN-P.W.Board Q9803 48E41418S01 TR,2SC5866...
  • Page 30 All manuals and user guides at all-guides.com MAIN-P.W.Board R3107 06E40737S01 RES,CF. 820-1/16W MAIN-P.W.Board R3108 06E40737S01 RES,CF. 820-1/16W MAIN-P.W.Board R3109 06E40315S01 RES,CF. 1.2K-1/16W MAIN-P.W.Board R3110 06E40315S01 RES,CF. 1.2K-1/16W MAIN-P.W.Board R3111 06E40315S01 RES,CF. 1.2K-1/16W MAIN-P.W.Board R3112 06E40315S01 RES,CF. 1.2K-1/16W MAIN-P.W.Board R3113 06E41386S01 RES,CF.
  • Page 31 All manuals and user guides at all-guides.com MAIN-P.W.Board R4701 06E36600S01 RES,CEMENT 0.01-5W MAIN-P.W.Board R4702 06E36600S01 RES,CEMENT 0.01-5W MAIN-P.W.Board R4704 06E40315S01 RES,CF. 1.2K-1/16W MAIN-P.W.Board R4705 06E40976S01 RES,CF. 10K-1/4W MAIN-P.W.Board R4706 06E40976S01 RES,CF. 10K-1/4W MAIN-P.W.Board R4707 06E40976S01 RES,CF. 10K-1/4W MAIN-P.W.Board R4709 06E36586S01 RES,CF.
  • Page 32 All manuals and user guides at all-guides.com MAIN-P.W.Board R9371 06E36622S01 RES,CF. 100K-1/16W MAIN-P.W.Board R9372 06E36622S01 RES,CF. 100K-1/16W MAIN-P.W.Board R9373 06E31807S01 RES,CF. 330K-1/16W MAIN-P.W.Board R9374 06E31807S01 RES,CF. 330K-1/16W MAIN-P.W.Board R9501 06E36462S01 RES,CF. 4.7K-1/16W MAIN-P.W.Board R9502 06E36463S01 RES,CF. 10K-1/16W MAIN-P.W.Board R9503 06E36559S01 RES,CF.
  • Page 33 All manuals and user guides at all-guides.com MAIN-P.W.Board TH3851 48E40530S01 THERMISTOR,100K MAIN-P.W.Board TH5001 48E40530S01 THERMISTOR,100K MAIN-P.W.Board TH9602 48E40530S01 THERMISTOR,100K MAIN-P.W.Board TML9001 09E41446S01 CONN,P-CON MAIN-P.W.Board ZD3101 48E41408S01 DIO,ZENER MMSZ4684T1 MAIN-P.W.Board ZD3102 48E41408S01 DIO,ZENER MMSZ4684T1 MAIN-P.W.Board ZD3601 48E41407S01 DIODE,ZENER VDZ15B MAIN-P.W.Board ZD3602 48E41407S01 DIODE,ZENER VDZ15B MAIN-P.W.Board...
  • Page 34 All manuals and user guides at all-guides.com SUB-P.W.Board C2105 08E37267S01 CAP,CER. 0.047uF/25V SUB-P.W.Board C2201 08E37122S01 CAP,CER. 0.1uF/25V SUB-P.W.Board C2202 08E37122S01 CAP,CER. 0.1uF/25V SUB-P.W.Board C9301 08E41031S01 CAP,CER. 0.01uF/50V SUB-P.W.Board C9302 08E41031S01 CAP,CER. 0.01uF/50V SUB-P.W.Board C9303 08E41031S01 CAP,CER. 0.01uF/50V SUB-P.W.Board C9304 08E41031S01 CAP,CER.
  • Page 35 All manuals and user guides at all-guides.com SUB-P.W.Board R1205 06E40322S01 RES,CF. 18K-1/16W SUB-P.W.Board R1206 06E40322S01 RES,CF. 18K-1/16W SUB-P.W.Board R1207 06E40322S01 RES,CF. 18K-1/16W SUB-P.W.Board R1208 06E40322S01 RES,CF. 18K-1/16W SUB-P.W.Board R1301 06E41378S01 RES,CF. 3.6K-1/16W SUB-P.W.Board R1302 06E41378S01 RES,CF. 3.6K-1/16W SUB-P.W.Board R1303 06E41381S01 RES,CF.
  • Page 36 All manuals and user guides at all-guides.com SUB-P.W.Board VOL1301 18E41439S01 VOL,ROTARY 50KX1 SUB-P.W.Board VOL1501 18E41440S01 VOL,ROTARY 20KX4 SUB-P.W.Board ZD2101 48E39101S01 DIODE,ZENER HZK6A1L LED-P.W.Board C8021 08E38707S01 CAP,CER. 220pF/50V LED-P.W.Board C8022 08E38707S01 CAP,CER. 220pF/50V LED-P.W.Board C8023 08E38707S01 CAP,CER. 220pF/50V LED-P.W.Board C8024 08E38707S01 CAP,CER.
  • Page 37 All manuals and user guides at all-guides.com Mark Model Code PDX-M6(North American) Only, PDX-M6(European) Only, PDX-M6(General Foreign) Only, &1 PDX-M6(Chinese) Only, Others:Common. NOTE:The part that has not PART NUMBER will not be supplied. #####...
  • Page 38 All manuals and user guides at all-guides.com - - - - - - - - - HEAT,SINK MAIN 13E41484S01 PANEL,SIDE-R 13E41483S01 PANEL,SIDE-L - - - - - - - - - CHAS,REAR - - - - - - - - - COVER,REAR 03E37973S01 SCR,M3X12(WS)
  • Page 39 All manuals and user guides at all-guides.com Mark Model Code PDX-M6(North American) Only, PDX-M6(European) Only, PDX-M6(General Foreign) Only, &1 PDX-M6(Chinese) Only, Others:Common. NOTE:The part that has not PART NUMBER will not be supplied. #####...
