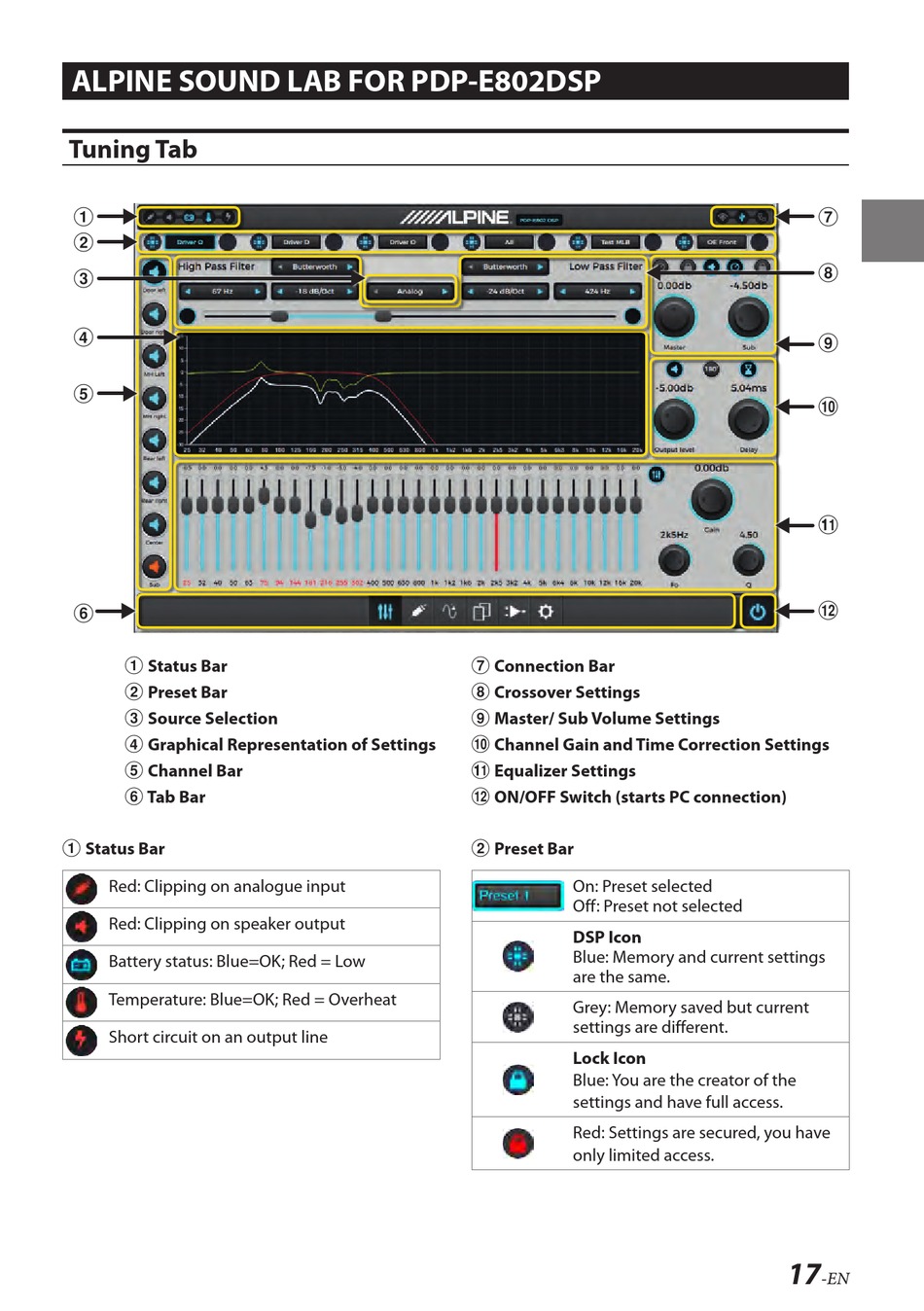

ALPINE SOUND LAB FOR PDP-E802DSP

Tuning Tab
1
2
3
4
5
6
1 Status Bar
2 Preset Bar
3 Source Selection
4 Graphical Representation of Settings
5 Channel Bar
6 Tab Bar
1 Status Bar
Red: Clipping on analogue input
Red: Clipping on speaker output
Battery status: Blue=OK; Red = Low
Temperature: Blue=OK; Red = Overheat
Short circuit on an output line
7 Connection Bar
8 Crossover Settings
9 Master/ Sub Volume Settings
0 Channel Gain and Time Correction Settings
! Equalizer Settings
@ ON/OFF Switch (starts PC connection)
2 Preset Bar
On: Preset selected
Off: Preset not selected
DSP Icon
Blue: Memory and current settings
are the same.
Grey: Memory saved but current
settings are different.
Lock Icon
Blue: You are the creator of the
settings and have full access.
Red: Settings are secured, you have
only limited access.
7
8
9
0
!
@
17
