Alpine PDP-E802DSP Manual page 18

3 Source Selection
RCA (Analogue)
Optical (Digital)
USB

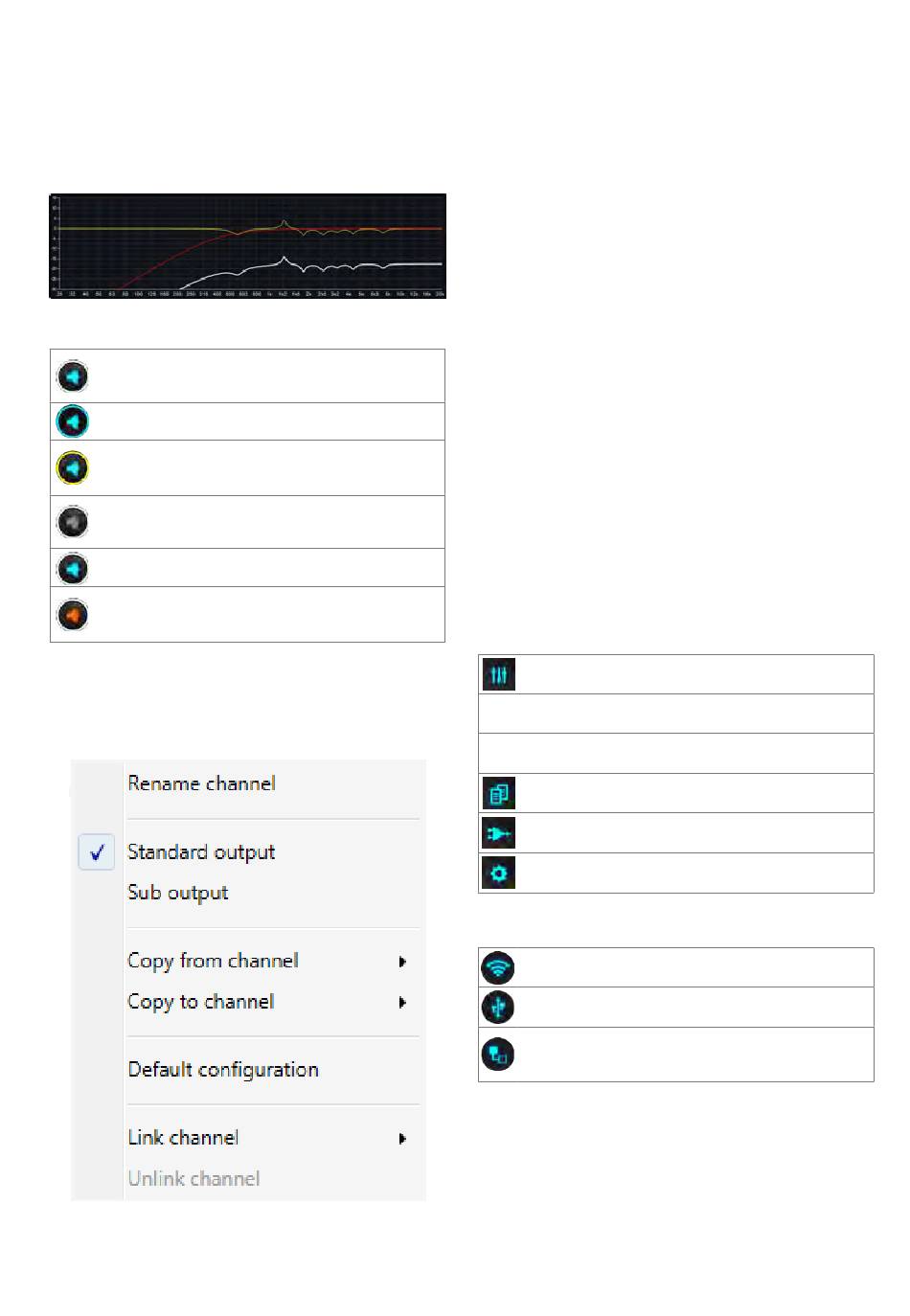

4 Graphical Representation of Settings
5 Channel Bar
LED Ring
Off: Channel not selected
Blue: Channel selected
Yellow: This channel is linked to the
selected channel.
Speaker Icon
Grey: Channel muted
Blue: Channel active
Orange: Channel configured as subwoofer,
subwoofer level control is active.
Channel Settings:
A right click on a speaker icon will show a
context menu with the options described
below:
Rename channel:
All channels can be renamed, like FL Mid‑High,
Sub 1 etc. Be aware that the labels of the
18
-EN
channels will only be valid during the
current session.
Standard output:
The channel is linked to the master volume
controller.
Sub output:
The channel is linked to the subwoofer volume
controller.
Copy from channel:
You can copy the settings to the selected
channel.
Copy to channel:
Allows to transfer the settings to the selected
channel.
Default configuration:
Reset the channel to default. All settings are
deleted.
Link channel:
You can link 2 channels. All settings will be
copied to the linked channel. This is a common
way for dual subwoofers.
6 Tab Bar
Tuning tab
Input tab
Time correction tab
Overview tab
Amplifier setting tab
App setting tab
7 Connection Bar
On when wireless connection is established.
On when PC is connected via USB.
On when data is being transferred to the
PDP‑E802DSP.
