i Battery Cable (+)
Be sure to add an External Fuse (e.g. Fuse Block,
Circuit Breaker) to the battery lead no further
than 30cm from the battery's positive (+)
terminal. This fuse will protect your vehicle's
electrical system in case of a short circuit.
Appropriate fuse value requirement: 60 A fuse.
o Ground Cable (-)
The ground cable should be connected to a
common ground reference point (this is located
where the negative terminal of the battery is
grounded to the metal body of the vehicle) or to
a prepared metal location on the vehicle chassis
i. e. an area which has been cleaned of all paint
residues.

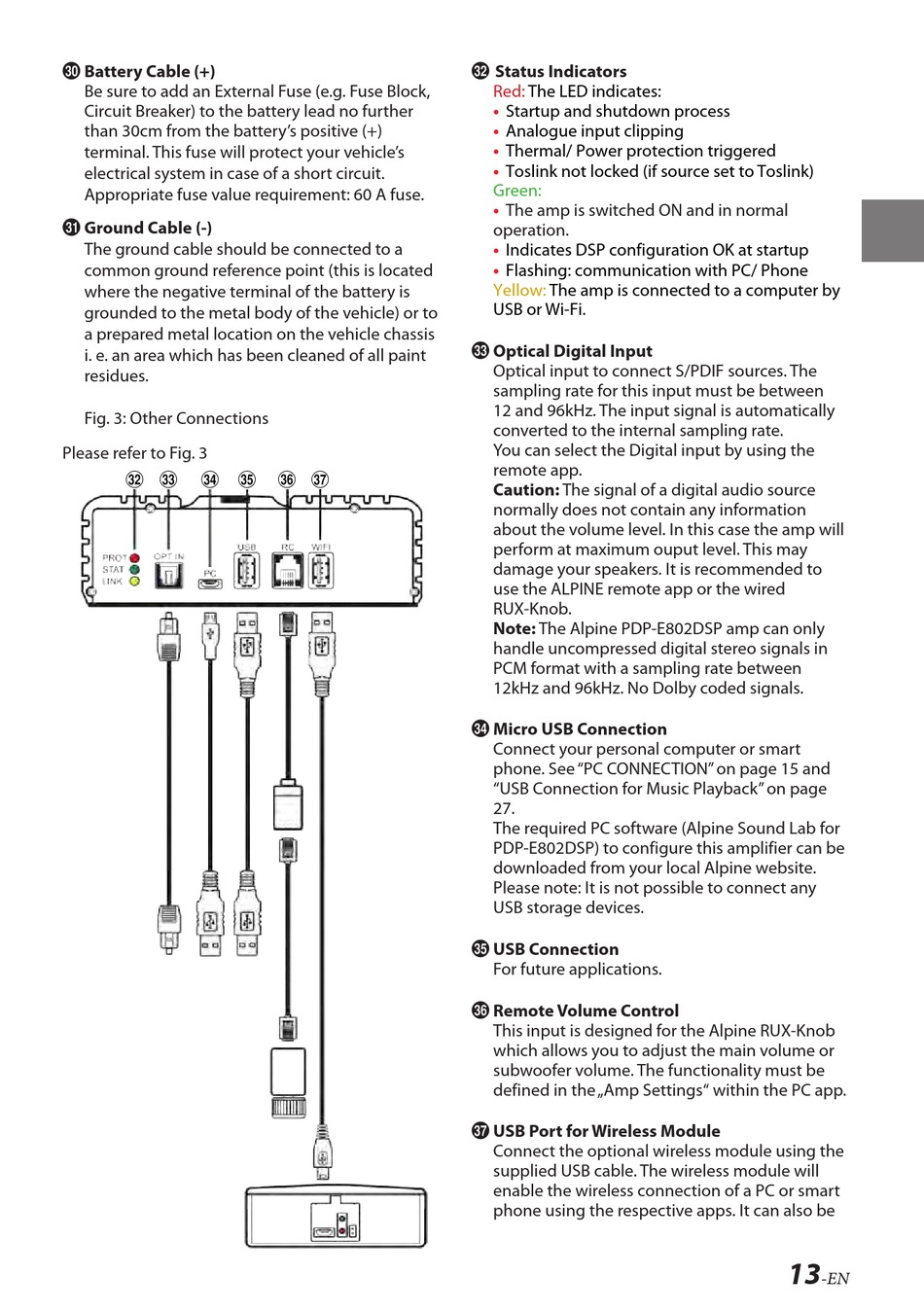

Fig. 3: Other Connections
Please refer to Fig. 3
p [
]
\
a s
p Status Indicators
Red:
The LED indicates:
•
Startup and shutdown process
•
Analogue input clipping
•
Thermal/ Power protection triggered
•
Toslink not locked (if source set to Toslink)
Green:
•
The amp is switched ON and in normal
operation.
•
Indicates DSP configuration OK at startup
•
Flashing: communication with PC/ Phone
Yellow:
The amp is connected to a computer by
USB or Wi‑Fi.
[ Optical Digital Input
Optical input to connect S/PDIF sources. The
sampling rate for this input must be between
12 and 96kHz. The input signal is automatically
converted to the internal sampling rate.
You can select the Digital input by using the
remote app.
Caution: The signal of a digital audio source
normally does not contain any information
about the volume level. In this case the amp will
perform at maximum ouput level. This may
damage your speakers. It is recommended to
use the ALPINE remote app or the wired
RUX‑Knob.
Note: The Alpine PDP‑E802DSP amp can only
handle uncompressed digital stereo signals in
PCM format with a sampling rate between
12kHz and 96kHz. No Dolby coded signals.
] Micro USB Connection
Connect your personal computer or smart
phone. See "PC CONNECTION" on page 15 and
"USB Connection for Music Playback" on page
27.
The required PC software (Alpine Sound Lab for
PDP‑E802DSP) to configure this amplifier can be
downloaded from your local Alpine website.
Please note: It is not possible to connect any
USB storage devices.
\ USB Connection
For future applications.
a Remote Volume Control
This input is designed for the Alpine RUX‑Knob
which allows you to adjust the main volume or
subwoofer volume. The functionality must be
defined in the „Amp Settings" within the PC app.
s USB Port for Wireless Module
Connect the optional wireless module using the
supplied USB cable. The wireless module will
enable the wireless connection of a PC or smart
phone using the respective apps. It can also be
13
-EN
