Operating Instructions

Micropilot FMR56, FMR57

FOUNDATION Fieldbus

Free space radar

Solutions

Services

Table of Contents

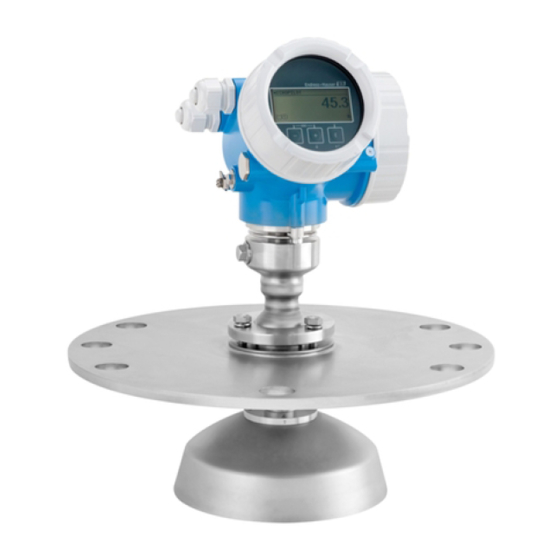

Summary of Contents for Endress+Hauser Micropilot FMR56

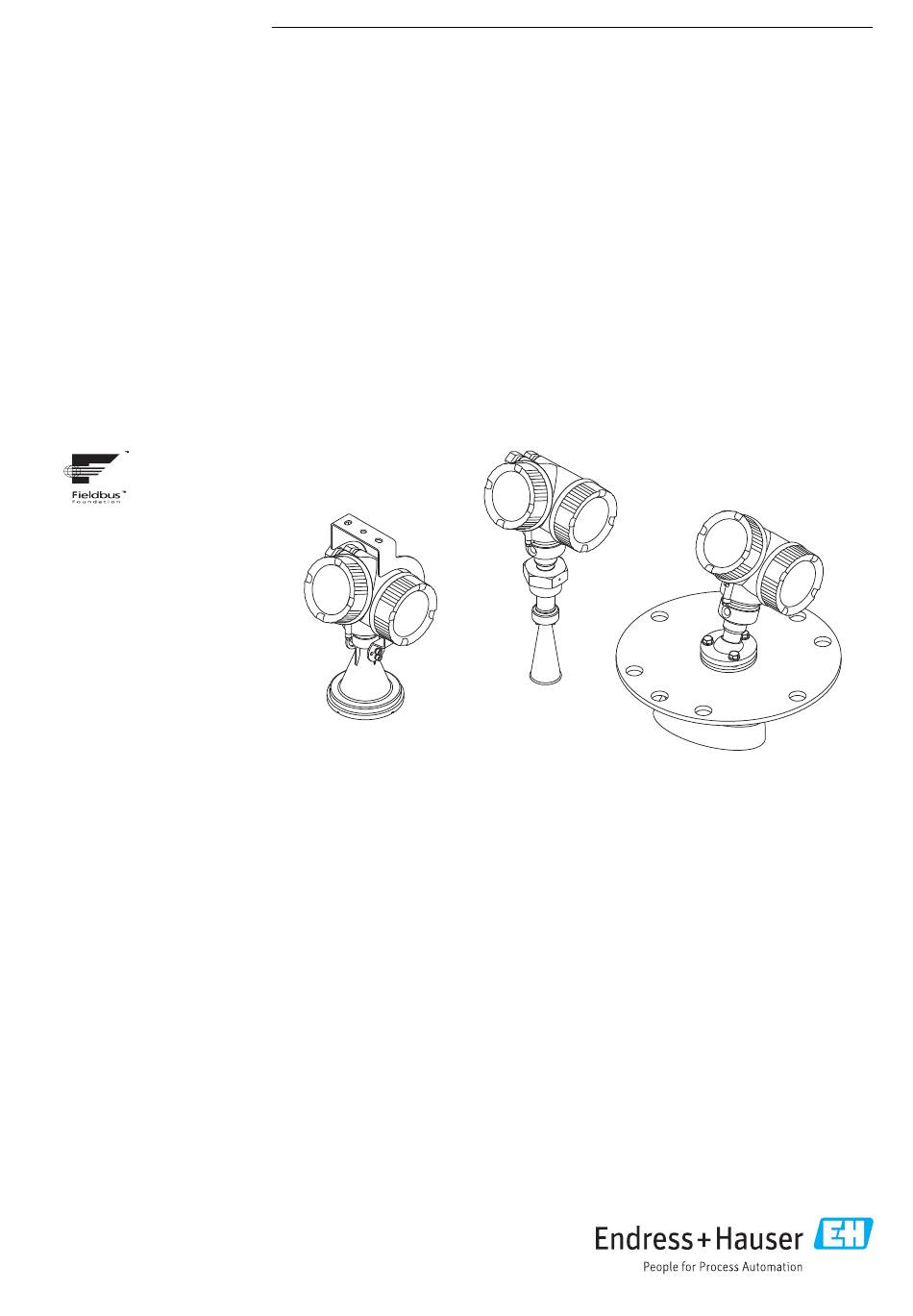

Page 1 BA01123F/00/EN/03.16 71344036 01.01.zz (Device firmware) Operating Instructions Micropilot FMR56, FMR57 FOUNDATION Fieldbus Free space radar A U T H O R I Z E D D I S T R I B U T O R : I n s t r u m e n t s A n d C o n t r o l . c o m H o u s t o n , T e x a s U S A s a l e s @ I n s t r u m e n t s A n d C o n t r o l .
Page 2 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
Page 3: Table Of Contents
Overview ......43 3.1.1 Micropilot FMR56 ....14 8.1.1 Local operation .
Page 4: Decimal Places 1 To
(CHANNEL) in an AI Block ....64 12.8.4 Transmission of the event meassages Index tables of Endress+Hauser parameters . . 64 to the bus ..... 94 9.6.1...
Page 5: Analog Input 1 To
17.4.9 "Heartbeat" submenu ... . 193 Index ....... . . 194 Endress+Hauser...
Page 6: Important Document Information
Important document information Micropilot FMR56, FMR57 FOUNDATION Fieldbus Important document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 7: Tool Symbols
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Important document information 1.2.3 Tool symbols Symbol Meaning Torx screwdriver A0013442 Flat blade screwdriver A0011220 Cross-head screwdriver A0011219 Allen key A0011221 Hexagon wrench A0011222 1.2.4 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted.
Page 8: Symbols At The Device
For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Endress+Hauser...
Page 9: Safety Instructions (Xa)
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Important document information 1.3.1 Safety Instructions (XA) Depending on the approval, the following Safety Instructions (XA) are supplied with the device. They are an integral part of the Operating Instructions. Feature Approval Available for Feature 020 "Power Supply; Output"...
Page 10 Important document information Micropilot FMR56, FMR57 FOUNDATION Fieldbus Feature Approval Available for Feature 020 "Power Supply; Output" IECEx: Ex nA IIC T6-T1 Gc • FMR56 XA00679F XA00679F XA00679F XA00687F XA00679F • FMR57 IECEx: Ex ic IIC T6-T1 Gc • FMR56...
Page 11 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Important document information If the device is prepared for the remote display FHX50 (product structure: feature 030: Display, Operation", option L or M), the Ex marking of some certificates changes according to the following table Feature 010 Feature 030 ("Display,...
Page 12: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.
Page 13: Workplace Safety
The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines.
Page 14: Product Description
Product description Micropilot FMR56, FMR57 FOUNDATION Fieldbus Product description Product design 3.1.1 Micropilot FMR56 A0016791  1 Design of the Micropilot FMR56 (26 GHz) Electronics housing Horn 80mm/100 mm (3in/4in), PP cladded Flange Mounting bracket 3.1.2 Micropilot FMR57 A0016807  2...
Page 15: Electronics Housing
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Product description 3.1.3 Electronics housing A0012422  3 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module Terminals (pluggable spring terminals)
Page 16: Registered Trademarks
Product description Micropilot FMR56, FMR57 FOUNDATION Fieldbus Registered trademarks FOUNDATION Fieldbus Registered trademark of the FieldComm Group, Austin, Texas, USA KALREZ ® , VITON ® Registered trademark of DuPont Performance Elastomers L.L.C., Wilmington, USA TEFLON ® Registered trademark of E.I. DuPont de Nemours & Co., Wilmington, USA TRI CLAMP ®...
Page 17: Incoming Acceptance And Product
• Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed. Endress+Hauser...
Page 18: Nameplate
For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer: Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1 Nameplate 92 (3.62)
Page 19: Storage, Transport
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Storage, Transport Storage, Transport Storage conditions • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use the original packaging. Transport product to the measuring point NOTICE Housing or antenna horn may be damaged or break away.
Page 20: Installation
Installation Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation Installation conditions 6.1.1 Mounting position • Recommended distance A from wall to outer edge of nozzle: ~ 1/6 of vessel diameter. Nevertheless the device should not be installed closer than 20 cm (7.87 in) to the vessel wall.
Page 21: Vessel Installations
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation 6.1.2 Vessel installations Avoid any installations (limit switches, temperature sensors, braces etc.) inside the signal beam. Take into account the beam angle →  24. A0018946 Endress+Hauser...
Page 22: Reduction Of Interference Echoes
If the outer wall of the vessel is made of a non-conductive material (e.g. GRP), microwaves can also be reflected off interfering installations outside the vessel (e.g. metallic pipes (1), ladders (2), grates (3), ...). Therefore, there should be no such interfering installations in the signal beam. Please contact Endress+Hauser for further information. Endress+Hauser...
Page 23: Optimization Options
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation A0017125 6.1.5 Optimization options • Antenna size The bigger the antenna, the smaller the beam angle α and the fewer interference echoes →  24. • Mapping The measurement can be optimized by means of electronic suppression of interference echoes.
Page 24: Beam Angle
Installation Micropilot FMR56, FMR57 FOUNDATION Fieldbus 6.1.6 Beam angle A0016891  5 Relationship between beam angle α, distance D and beamwidth diameter W The beam angle is defined as the angle α where the energy density of the radar waves reaches half the value of the maximum energy density (3-dB-width).
Page 25: Measuring Conditions
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation FMR57 - Parabolic antenna Antenna size 200 mm (8 in) 250 mm (10 in) Beam angle α 4° 3,5° Measuring distance (D) Beamwidth diameter W 5 m (16 ft) 0.35 m (1.1 ft) 0.30 m (1 ft) 10 m (33 ft) 0.70 m (2.3 ft)
Page 26: Installation In Vessel (Free Space)
Installation Micropilot FMR56, FMR57 FOUNDATION Fieldbus 100% A0016916 Device A [mm (in)] C [mm (in)] FMR56 400(15.7) 50 to 150(1.97 to 5.91) FMR57 Installation in vessel (free space) 6.3.1 Horn antenna with slip-on flange (FMR56) Alignment When using the Micropilot with a slip-on flange in explosion-hazardous areas, strictly observe all specifications in the relevant Safety Instructions (XA).
Page 27 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation ° ° ° A0019434 Depending on the device version the marking may be a circle or two short parallel lines. Nozzle mounting øD A0016868  6 Nozzle height and diameter for horn antenna with slip-on flange...
Page 28: Horn Antenna With Mounting Bracket (Fmr56)
Installation Micropilot FMR56, FMR57 FOUNDATION Fieldbus 6.3.2 Horn antenna with mounting bracket (FMR56) A0016865  7 Installation of the horn antenna with mounting bracket Align the antenna vertically to the product surface using the mounting bracket. NOTICE The mounting bracket has no conductive connection to the transmitter housing.
Page 29: Parabolic Antenna (Fmr57)
480 mm (18.9 in) Feature 070 of the product structure valid for antennas without antenna extension Please contact Endress+Hauser for applications with higher nozzle. Threaded connection For devices with a threaded connection it may be necessary - depending on the antenna size - to unmount the horn before fastening the device and to mount it again afterwards.
Page 30 Installation Micropilot FMR56, FMR57 FOUNDATION Fieldbus øD A0016827  9 Nozzle mounting of Micropilot FMR57 with parabolic antenna Antenna protrudes from the nozzle Antenna completely within the nozzle Antenn Antenna diameter D Nozzle height H for case 1 Maximum nozzle height H for case 2 FA: Parabol 200mm/8"...
Page 31 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation Antenna size D 200 mm (8 in) 173 mm (6.81 in) < 50 mm (1.96 in) 250 mm (10 in) 236 mm (9.29 in) < 50 mm (1.96 in) without antenna extension Installation with hinged flange At hinged flanges, the length of the antenna must be taken into account.
Page 32: Alignment Device For Fmr57
Installation Micropilot FMR56, FMR57 FOUNDATION Fieldbus A0018877 Parabolic reflector 4 bolts; torque: 3 Nm (2,2 lbf ft) 6.3.5 Alignment device for FMR57 Using the alignment device it is possible to tilt the antenna axis by up to 15° in all directions.
Page 33: Integrated Air Purge Connection For Fmr57
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation 6.3.6 Integrated air purge connection for FMR57 In extremely dusty applications, the integrated air purge connection can prevent clogging of the antenna. Pulsed operation is recommended. A0016932  11 Micropilot FMR57 with air purge connection Air purge connection NPT¼...
Page 34: Turning The Transmitter Housing
Installation Micropilot FMR56, FMR57 FOUNDATION Fieldbus If process temperatures are high, the device must be included in normal tank insulation to prevent the electronics heating up as a result of heat radiation or convection. The insulation may not exceed beyond the neck of the housing.
Page 35: Post-Installation Check
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Installation Post-installation check  Is the device undamaged (visual inspection)? Does the device conform to the measuring point specifications? For example: • Process temperature  • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...
Page 36: Electrical Connection
Electrical connection Micropilot FMR56, FMR57 FOUNDATION Fieldbus Electrical connection Connection conditions 7.1.1 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0011341  12 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Cable screen: Observe cable specifications...
Page 37: Cable Specification
≥60 °C (140 °F): use cable for temperature T +20 K. FOUNDATION Fieldbus Endress+Hauser recommends using twisted, shielded two-wire cables. For further information on the cable specifications, see Operating Instructions BA00013S "FOUNDATION Fieldbus Overview", FOUNDATION Fieldbus Guideline and IEC 61158-2 (MBP).
Page 38: Device Plug Connectors
Electrical connection Micropilot FMR56, FMR57 FOUNDATION Fieldbus 7.1.3 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal +...
Page 39: Supply Voltage
< 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...
Page 40: Connecting The Device
Electrical connection Micropilot FMR56, FMR57 FOUNDATION Fieldbus Connecting the device WARNING Explosion hazard! ‣ Comply with the relevant national standards. ‣ Observe the specifications in the Safety Instructions (XA). ‣ Only use the specified cable glands. ‣ Check whether the supply voltage matches the specifications on the nameplate.
Page 41: Pluggable Spring-Force Terminals
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Electrical connection A0013837 Connect the cable in accordance with the terminal assignment →  36. 8. When using screened cable: Connect the cable screen to the ground terminal. 9. Screw the cover onto the connection compartment.
Page 42 Electrical connection Micropilot FMR56, FMR57 FOUNDATION Fieldbus If required: Is the protective earth connected correctly ? If supply voltage is present: Is the device ready for operation and do values appear on the display module? Are all housing covers installed and firmly tightened?
Page 43: Operation Options
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options Operation options Overview 8.1.1 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD "Display; Operation" A0032219 A0032221 Display 4-line display 4-line display elements white background lighting; switches to red in...
Page 44: Operation With Remote Display And Operating Module Fhx50
Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus 8.1.2 Operation with remote display and operating module FHX50 A0013137  15 FHX50 operating options Housing of the remote display and operating module FHX50 Display and operating module SD02, push buttons; cover must be removed Display and operating module SD03, optical keys;...
Page 45 High Speed Ethernet FF-H1 FOUNDATION Fieldbus-H1 Linking Device FF-HSE/FF-H1 Bus Power Supply Safety Barrier Bus Terminator Via service interface (CDI) A0014019 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with "FieldCare" operating tool Endress+Hauser...
Page 46: Structure And Function Of The Operating Menu
Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus Structure and function of the operating menu 8.2.1 Structure of the operating menu Menu Submenu / Meaning parameter Language Defines the operating language of the on-site display. Setup Parameter 1 When all these parameters have been...
Page 47: User Roles And Related Access Authorization
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options 8.2.2 User roles and related access authorization The two user roles Operator and Maintenance have different write access to the parameters if a device-specific access code has been defined. This protects the device configuration via the local display from unauthorized access →...
Page 48: Write Protection Via Access Code
Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus 8.2.3 Write protection via access code Using the device-specific access code, the parameters for the measuring device configuration are write-protected and their values can no longer be changed via local operation. Define access code via local display 1.
Page 49: Disabling Write Protection Via Access Code
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options 8.2.4 Disabling write protection via access code If the -symbol appears on the local display in front of a parameter, the parameter is write-protected by a device-specific access code and its value cannot be changed at the moment using the local display →...
Page 50: Write Protection Via Write Protection Switch
Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus 8.2.6 Write protection via write protection switch Unlike parameter write protection via a user-specific access code, this allows write access to the entire operating menu - except for the "Contrast display" parameter - to be locked.
Page 51 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options 4. Installing the lock switch (WP) on the main electronics module in the ON position enables the hardware write protection. Installing the lock switch (WP) on the main electronics module in the OFF position (factory setting) disables the hardware write protection.
Page 52: Enabling And Disabling The Keypad Lock
Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus 8.2.7 Enabling and disabling the keypad lock The keypad lock allows to disable access to the entire operating menu via local operation. Thus navigating through the operating menu or modifying the values of individual parameters is no longer possible.
Page 53: Display And Operating Module
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options Display and operating module 8.3.1 Display appearance User ABC_ DEFG HIJK PQRS TUVW LMNO A0012635  17 Appearance of the display and operation module for on-site operation Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active)
Page 54 Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus Display symbols for the submenus Symbol Meaning Display/operation Is displayed: • in the main menu next to the selection "Display/operation" A0011975 • in the header, if you are in the "Display/operation" menu Setup Is displayed: •...
Page 55 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options Measured value symbols Symbol Meaning Measured values Level A0011995 Distance A0011996 Current output A0011998 Measured current A0011999 Terminal voltage A0012106 Temperature of the electronics or the sensor A0012104 Measuring channels Measuring channel 1...
Page 56: Operating Elements
Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus 8.3.2 Operating elements Meaning Minus key For menu, submenu Moves the selection bar upwards in a picklist. A0013969 For text and numeric editor In the input mask, moves the selection bar to the left (backwards).
Page 57: Entering Numbers And Text
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options 8.3.3 Entering numbers and text Numeric editor Text editor User ABC_ DEFG HIJK LMNO PQRS TUVW A0013999 A0013941 Editing view Display area of the entered values Input mask Operating elements Input mask The following input symbols are available in the input mask of the numeric and text editor:...
Page 58 Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus Confirms selection. A0013985 Switches to the selection of the correction tools. A0013987 Exits the input without applying the changes. A0013986 Clears all entered characters. A0014040 Correction symbols under Clears all entered characters. A0013989 Moves the input position one position to the right.
Page 59: Opening The Context Menu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operation options 8.3.4 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Conf. backup disp. • Simulation Calling up and closing the context menu The user is in the operational display.
Page 60: Envelope Curve On The Display And Operating Module
Operation options Micropilot FMR56, FMR57 FOUNDATION Fieldbus 8.3.5 Envelope curve on the display and operating module In order to assess the measuring signal, the envelope curve and - if a mapping has been recorded - the mapping curve can be displayed:...
Page 61: Integration Into A Foundation
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Integration into a FOUNDATION Fieldbus network Device Description (DD) You require the following to configure a device and integrate it into an FF network: • An FF configuration program •...
Page 62 Integration into a FOUNDATION Fieldbus network Micropilot FMR56, FMR57 FOUNDATION Fieldbus – EH_Micropilot_xxxxxxxxxx – RESOURCE_xxxxxxxxxxx (RB2) SETUP_ xxxxxxxxxxx (TRDSUP) ADV_SETUP_ xxxxxxxxxxx (TRDASUP) DISPLAY_ xxxxxxxxxxx (TRDDISP) DIAGNOSTIC_ xxxxxxxxxxx (TRDDIAG) EXPERT_CONFIG_ xxxxxxxxxxx (TRDEXP) EXPERT_INFO_ xxxxxxxxxxx (TRDEXPIN) SERVICE_SENSOR_ xxxxxxxxxxx (TRDSRVSB) SERVICE_INFO_ xxxxxxxxxxx (TRDSRVIF)
Page 63: Block Model
Endress+Hauser Guideline BA00062S. The guideline provides an overview of the standard function blocks that are described in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators use the blocks implemented in the Endress+Hauser field devices. Endress+Hauser...
Page 64: Block Configuration When Device Is Delivered
Integration into a FOUNDATION Fieldbus network Micropilot FMR56, FMR57 FOUNDATION Fieldbus 9.4.2 Block configuration when device is delivered Device_01 4841.000 DIAGNOSTIC RESOURCE DISPLAY DATA_TRANSFER SETUP ANALOG_INPUT_1 ADV_SETUP ANALOG_INPUT_2 EXPERT_CONFIG EXPERT_INFO SERVICE_SENSOR SERVICE_INFO ARITHMETIC SIGNAL_CHAR INPUT_SELECTOR INTEGRATOR ANALOG_ALARM A0017217  19...
Page 65: Setup Transducer Block
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network 9.6.1 Setup Transducer Block Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK operating_mode Operating mode ENUM16 Static Maintenance distance_unit Distance unit ENUM16 Static Maintenance tank_type...
Page 66: Display Transducer Block
Integration into a FOUNDATION Fieldbus network Micropilot FMR56, FMR57 FOUNDATION Fieldbus Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK calculated_dc_value_ee Calculated DC value FLOAT Dynamic Production AUTO liquid_filling_speed_range Max. filling speed liquid ENUM16 Static Maintenance liquid_draining_speed_ran Max.
Page 67: Diagnostic Transducer Block
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK access_code_for_display Enter access code UINT16 Static Operator AUTO define_access_code Freigabecode definieren UINT16 Static Maintenance AUTO language Language...
Page 68: Expert Configuration Transducer
Integration into a FOUNDATION Fieldbus network Micropilot FMR56, FMR57 FOUNDATION Fieldbus Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK diag_4_timestamp Timestamp STRING Dynamic diagnostics_5 Diagnostics 5 UINT32 Dynamic diag_5_timestamp Timestamp STRING Dynamic filter_options Filter options ENUM8...
Page 69 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK level_limit_mode Level limit mode ENUM16 Static Maintenance OOS level_high_limit High limit FLOAT Static Maintenance OOS level_low_limit Low limit...
Page 70: Expert Information Transducer
Integration into a FOUNDATION Fieldbus network Micropilot FMR56, FMR57 FOUNDATION Fieldbus 9.6.6 Expert Information Transducer Block The parameters of the Expert Information Transducer Block are described in GP01017F: "Micropilot FMR5x - Description of Device Parameters - FOUNDATION Fieldbus" Name Label...
Page 71: Service Information Transducer
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network 9.6.8 Service Information Transducer Block The parameters of the Service Information Transducer Block can only be operated by authorized Endress+Hauser service personnel. 9.6.9 Advanced Diagnostics Transducer Block The parameters of the Advanced Diagnostics Transducer Block are described in GP01017F: "Micropilot FMR5x - Description of Device Parameters - FOUNDATION...
Page 72: Methods
Integration into a FOUNDATION Fieldbus network Micropilot FMR56, FMR57 FOUNDATION Fieldbus Methods The FOUNDATION Fieldbus Specification includes the use of methods to make device operation easier. A method is a sequence of interactive steps to be carried out in the specified order so as to configure certain device functions.
Page 73: Commissioning Via Wizard
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning via wizard Commissioning via wizard A wizard guiding the user through the initial setup is available in FieldCare and DeviceCare. 1. Connect the device to FieldCare or DeviceCare →  44. 2. Open the device in FieldCare or DeviceCare.
Page 74: Commissioning Via Operating
Commissioning via operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning via operating menu 11.1 Installation and function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist "Post-installation check" →  35 •...
Page 75: Configuration Of A Level Measurement
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning via operating menu 11.3 Configuration of a level measurement 100% A0016934  21 Configuration parameters for level measurements in bulk solids Reference point of the measurement Distance Level Empty calibration (= zero) Full calibration (= span) 1.
Page 76 Commissioning via operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 11. When operating via local display: Navigate to: Setup → Mapping → Confirm distance  Compare distance indicated on the display to real distance in order to start the recording of an interference echo map.
Page 77: Recording The Reference Curve
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning via operating menu 11.4 Recording the reference curve After the configuration of the measurement it is recommended to record the current envelope curve as a reference curve. The reference curve can be used later on in the process for diagnostic purposes.
Page 78: Configuration Of The On-Site Display
Commissioning via operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 11.5 Configuration of the on-site display 11.5.1 Factory settings of the on-site display Parameter Factory setting Format display 1 value, max. size Value 1 display Level linearized Value 2 display None...
Page 79: Configuration Management
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning via operating menu 11.6 Configuration management After commissioning, you can save the current device configuration, copy it to another measuring point or restore the previous device configuration. You can do so using the Configuration management parameter and its options.
Page 80: Protection Of The Settings Against Unauthorized Changes
Commissioning via operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 11.7 Protection of the settings against unauthorized changes There are two ways to protect the settings against unauthorized changes: • Via parameter settings (software locking) →  48 • Via locking switch (hardware locking) →  50...
Page 81: Commissioning
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning (block-based operation) Commissioning (block-based operation) 12.1 Function check Carry out a post-installation and a post-connection check as per the checklist before commissioning the device: • "Post-installation check" checklist →  35 • "Post-connection check" checklist →  41 12.2...
Page 82: Additional Configuration
Commissioning (block-based operation) Micropilot FMR56, FMR57 FOUNDATION Fieldbus 12.2.4 Configuring the Analog Input Blocks The device has 2 permanently instanced Analog Input Blocks that can be assigned as required to the various process variables. If required, up to 5 Analog Input Blocks can be instanced through the FOUNDATION Fieldbus configuration tool.
Page 83: Language Selection
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning (block-based operation) XD_SCALE OUT_SCALE EU_100 EU_0 EU_100 EU_0 OUT_VALUE A0017338  23 Scaling of the measured value in an AI Block • If you have selected the Direct mode for the L_TYPE parameter, you cannot change the values and units for XD_SCALE and OUT_SCALE.
Page 84: Configuration Of A Level Measurement
Commissioning (block-based operation) Micropilot FMR56, FMR57 FOUNDATION Fieldbus 12.5 Configuration of a level measurement The Setup method can also be used to configure the measurement. It is called up via the SETUP (TRDSUP) Transducer Block. 100% A0016934 R = Reference point of the measurement E = Empty calibration (= Zero point)
Page 85: Configuration Of The On-Site Display
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning (block-based operation) Step Block Parameter Action SETUP (TRDSUP) Empty calibration Enter the distance E between the (empty_calibration) reference point R and the minimum level (0%). SETUP (TRDSUP) Full calibration (full_calibration) Enter distance F between the minimum (0%) and maximum (100%) level.
Page 86 Commissioning (block-based operation) Micropilot FMR56, FMR57 FOUNDATION Fieldbus Functions of the parameter options Options Description 33097: Execute backup A backup copy of the current device configuration in the HistoROM is saved to the display module of the device. The backup copy comprises the transmitter data of the device.
Page 87: Configuration Of The Event Behavior According To The Foundation Fieldbus Specification Ff912
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning (block-based operation) 12.8 Configuration of the event behavior according to the FOUNDATION Fieldbus specification FF912 The device complies with the FOUNDATION Fieldbus specification FF912. This has - among other things - the following consequences: •...
Page 88: Groups Of Events
Commissioning (block-based operation) Micropilot FMR56, FMR57 FOUNDATION Fieldbus 12.8.1 Groups of events The diagnostic messages are classified into 16 groups according to the source and severity of the respective event. A default diagnostic category is allocated to each group. Each group is also represented by one bit of the allocation parameters.
Page 89 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning (block-based operation) Severity of the Default diagnostic category Source of the Events within the group event event Configuration • S442: Frequency output • S443: Pulse output Process • S801: Energy too low • S825: Operating temperature •...
Page 90: Allocation Parameters
Commissioning (block-based operation) Micropilot FMR56, FMR57 FOUNDATION Fieldbus 12.8.2 Allocation parameters The allocation of event categories to the event groups is controlled by the allocation parameters. They reside in the RESOURCE (RB2) block: • FD_FAIL_MAP: for the Failure (F) event category •...
Page 91 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning (block-based operation) Example The Highest severity / Configuration group contains the messages 410: Data transfer, 411: Up-/Download, 435: Linearization and 437: Configuration incompatible. These messages are no longer to be classified as Failure (F) but as Funcktion check (C).
Page 92 Commissioning (block-based operation) Micropilot FMR56, FMR57 FOUNDATION Fieldbus  25 Changed state of the "Fail Map" and "Check Map" columns Make sure that for each group the corresponding bit is set to 1 in at least one of the allocation parameters. Otherwise no event category is transmitted with the event message.
Page 93: Configurable Area
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Commissioning (block-based operation) 12.8.3 Configurable area An event category can be individually defined for the following parameters - irrespective of the group of events they belong to by default. • F941: Echo lost • S942: In safety distance •...
Page 94: Transmission Of The Event Meassages
Commissioning (block-based operation) Micropilot FMR56, FMR57 FOUNDATION Fieldbus Got to the Offspec Map column and activate the checkbox of the respective bit (in the example: Configurable Area Bit 1). Confirm the selection by pressing the Enter key. A change of the error category of In safety distance does not affect an error which is already present.
Page 95: Diagnostics And Troubleshooting
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostics and troubleshooting 13.1 General trouble shooting 13.1.1 General errors Error Possible cause Remedial action Device does not respond. Supply voltage not connected. Connect the correct voltage. The cables do not contact the Ensure electrical contact between the terminals properly.
Page 96 Diagnostics and troubleshooting Micropilot FMR56, FMR57 FOUNDATION Fieldbus Error Possible cause Remedy During filling/emptying or Signal is weakened (e.g. by • Carry out tank mapping (Confirm measurement, the measured fluidisation of the surface, extreme distance parameter (→  131)). value jumps sporadically to a dust formation) - the interference •...
Page 97: Diagnostic Information On Local Display
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.2 Diagnostic information on local display 13.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the measured value display.
Page 98 Diagnostics and troubleshooting Micropilot FMR56, FMR57 FOUNDATION Fieldbus Diagnostics event and event text The fault can be identified using the diagnostics event. The event text helps you by providing information about the fault. In addition, the corresponding symbol is displayed before the diagnostics event.
Page 99: Calling Up Remedial Measures
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...
Page 100: Diagnostic Event In The Operating Tool
Diagnostics and troubleshooting Micropilot FMR56, FMR57 FOUNDATION Fieldbus 13.3 Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status in the operating tool along with the corresponding symbol for event level in accordance with NAMUR NE 107: •...
Page 101: Overview Of Diagnostic Events
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.6 Overview of diagnostic events Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of electronic Software incompatible 1. Check software Alarm 2. Flash or change main electronics...
Page 102: Event Logbook
Diagnostics and troubleshooting Micropilot FMR56, FMR57 FOUNDATION Fieldbus Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Simulation measured Deactivate simulation Warning value Switch output Deactivate simulation switch Warning simulation output Simulation diagnostic...
Page 103: Filtering The Event Logbook
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Diagnostics and troubleshooting In addition to the operation time of its occurrence, each event is also assigned a symbol that indicates whether the event has occurred or is ended: • Diagnostic event – : Event has occurred –...
Page 104: Firmware History
Diagnostics and troubleshooting Micropilot FMR56, FMR57 FOUNDATION Fieldbus Info number Info name I1256 Display: access status changed I1264 Safety sequence aborted I1335 Firmware changed I1397 Fieldbus: access status changed I1398 CDI: access status changed I1512 Download started I1513 Download finished...
Page 105: Maintenance
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Maintenance Maintenance The measuring device requires no special maintenance. 14.1 Exterior cleaning When exterior-cleaning the device, always use cleaning agents that do not attack the surface of the hosuing and the seals. 14.2 Replacing seals The process seals of the sensors (at the process connection) must be replaced periodically, particularly if molded seals (aseptic construction) are used.
Page 106: Repairs
15.1.1 Repair concept The Endress+Hauser repair concept assumes that the devices have a modular design and that repairs can be done by the Endress+Hauser service or specially trained customers. Spare parts are contained in suitable kits. They contain the related replacement instructions.
Page 107: Spare Parts
The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.
Page 108: Accessories
Accessories Micropilot FMR56, FMR57 FOUNDATION Fieldbus Accessories 16.1 Device-specific accessories 16.1.1 Weather protection cover Accessory Description Weather protection cover A0015466 298.5 (11.8) 273.7 (10.8) 255.1 (10) 164 (6.46) A0015472  28 Weather protection cover; Dimensions: mm (in) 37,8 mm (1,5 in) 54 mm (2,1 in) ...
Page 109: Variable Flange Seal For Fmr50
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Accessories 16.1.2 Variable flange seal for FMR50/FMR56 Accessory Description Variable flange seal for FMR50/FMR56 ød øD A0018871 UNI slip-on flange Variable flange seal Nozzle  The material and process conditions of the adjustable flange seal must fit the process properties (temperature, pressure, resistance).
Page 110: Fmr56
Accessories Micropilot FMR56, FMR57 FOUNDATION Fieldbus Accessory Description Technical data: ASME/JIS version Order code 71249070 71249072 71249073 Compatible with • ASME 3" 150lbs ASME 4" 150lbs ASME 6" 150lbs • JIS 80A 10K Length of screws 100 mm (3.9 in) 100 mm (3.9 in)
Page 111: Remote Display Fhx50
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Accessories 16.1.4 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: – Plastic PBT – 316L/1.4404 • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: –...
Page 112: Horn Protection For Horn Antenna
Accessories Micropilot FMR56, FMR57 FOUNDATION Fieldbus 16.1.5 Horn protection for horn antenna Accessory Description Horn protection for 80 mm (3 in) or 100 mm (4 in) horn antenna ød øD A0019143 Horn antenna of the Micropilot (not supplied with the horn protection) Horn protection ⌀d Diameter of horn protection (see table below)
Page 113: Overvoltage Protection
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Accessories 16.1.6 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V •...
Page 114: Communication-Specific Accessories
Micropilot FMR56, FMR57 FOUNDATION Fieldbus 16.2 Communication-specific accessories Accessory Description Commubox FXA291 Connects Endress+Hauser field devices with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a computer. Order code: 51516983  For details refer to Technical Information TI00405C Accessory...
Page 115: Operating Menu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Operating menu 17.1 Overview of the operating menu (display module) Navigation  Operating menu Language →  162  Setup →  127 Distance unit →  127 Bin type →  127 Max.
Page 116 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Channel →  135 Process Value Filter Time →  136 ‣ Advanced setup →  137 Locking status →  137 Access status display →  138 →  138 Enter access code ‣...
Page 117 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu ‣ Edit table Level →  151 Customer value →  152 Activate table →  152 ‣ Safety settings →  153 Output echo lost →  153 Value echo lost →  153 Ramp at echo lost →...
Page 118 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Decimal places 1 to 4 →  164 Display interval →  164 Display damping →  165 Header →  165 Header text →  166 →  166 Separator Number format →...
Page 119 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu ‣ Diagnostic list →  176 Diagnostics 1 to 5 →  176 ‣ Event logbook →  177 Filter options →  177 ‣ Event list →  177 ‣ Device information →...
Page 120 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus ‣ Data logging →  183 Assign channel 1 to 4 →  183 Logging interval →  183 Clear logging data →  184 ‣ Display channel 1 to 4 →  185 ‣...
Page 121: Overview Of The Operating Menu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 17.2 Overview of the operating menu (operating tool) Navigation  Operating menu  Setup →  127 Distance unit →  127 Bin type →  127 Max. filling speed solid →  127 Max.
Page 122 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus ‣ Level →  139 Medium type →  139 Medium property →  139 Advanced process conditions →  140 Level unit →  140 →  141 Blocking distance Level correction →...
Page 123 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Ramp at echo lost →  154 Blocking distance →  141 ‣ Switch output →  156 Switch output function →  156 Assign status →  156 Assign limit →  157 Assign diagnostic behavior →...
Page 124 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Decimal places menu →  166 Backlight →  167 Contrast display →  167 ‣ Configuration backup display →  168 Operating time →  168 →  168 Last backup Configuration management →...
Page 125 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Firmware version →  178 Device name →  178 Order code →  179 Extended order code 1 to 3 →  179 ‣ Measured values →  180 Distance →  130 Level linearized →...
Page 126 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Simulation device alarm →  190 Simulation diagnostic event ‣ Device check →  191 Start device check →  191 Result device check →  191 →  191 Last check time Level signal →...
Page 127: Setup" Menu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 17.3 "Setup" menu • : Marks the navigation path to the parameter via the display and operating module. • : Marks the navigation path to the parameter via an operating tool (e.g. FieldCare).
Page 128 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Selection • Very slow < 0,5m (1,6ft) /h • Slow < 1m (3,3ft) /h • Standard < 2m (6,5ft) /h • Medium < 4m (13ft) /h • Fast < 8m (26ft) /h • Very fast > 8m (26ft) /h •...
Page 129 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Additional information A0019488  30 Empty calibration (E) for level measurements in bulk solids. The measuring range starts at the point at which the radar beam hits the tank or silo bottom. In the case of dished boiler ends or conical outlets levels below this point can not be measured.
Page 130: Distance
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Level Navigation  Setup → Level Description Displays measured level L (before linearization). Additional information A0019484  32 Level in case of bulk solid measurements The unit is defined in the Level unit parameter (→  140).
Page 131 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Signal quality Navigation  Setup → Signal quality Description Displays the signal quality of the level echo. Additional information Meaning of the display options • Strong The evaluated echo exceeds the threshold by at least 10 dB.
Page 132 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus • Distance too small To be selected if the measured distance is smaller than the actual distance. The device searches for the next echo and returns to the Confirm distance parameter. The distance is recalculated and displayed.
Page 133 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Additional information This parameter defines up to which distance the new mapping is to be recorded. The distance is measured from the reference point, i.e. from the lower edge of the mounting flange or the threaded connection.
Page 134: Mapping" Wizard
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 17.3.1 "Mapping" wizard The Mapping wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the mapping are located directly in the Setup menu (→  127).
Page 135: Analog Input 1 To 5" Submenu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu User interface • Init. recording • In progress • Finished 17.3.2 "Analog input 1 to 5" submenu There is an Analog inputs submenu for every AI block of the device. The AI block is used to configure the measured value transmission to the bus.
Page 136: Process Value Filter Time
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Process Value Filter Time Navigation  Setup → Analog inputs → Analog input 1 to 5 → PV Filter Time Description Use this function to enter the filter time specification for the filtering of the unconverted input value (PV).
Page 137: Advanced Setup" Submenu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 17.3.3 "Advanced setup" submenu Navigation  Setup → Advanced setup Locking status Navigation  Setup → Advanced setup → Locking status Description Indicates the write protection with the highest priority that is currently active.
Page 138: Access Status Display
• If no key is pressed for 10 min, or the user switches from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...
Page 139: Level
Water based (DC >= 4) DC 4 ... 7 Others Unknown For dielectric constants (DC values) of many media commonly used in various industries refer to: • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) Endress+Hauser...
Page 140: Advanced Process Conditions
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Advanced process conditions  Navigation  Setup → Advanced setup → Level → Adv. conditions Description Specify additional process conditions (if required). Selection • Many obstacles • Weak signal Factory setting None Additional information "Many obstacles"...
Page 141: Blocking Distance
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Blocking distance  Navigation  Setup → Advanced setup → Level → Blocking dist. Description Specify blocking distance BD. User entry 0 to 200 m Factory setting FMR56, FMR57: antenna length + 400 mm (15.7 in)
Page 142: Tank/Silo Height
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Additional information The value specified in this parameter is added to the measured level (before linearization). Tank/silo height  Navigation  Setup → Advanced setup → Level → Tank/silo height Description Specify total height of the tank or silo as measured from the process connection.
Page 143 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu "Linearization" submenu 100% L‘ L‘ 100% L‘1L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0019648  36 Linearization: Transformation of the level and (if relevant) the interface height into a volume or weight;...
Page 144: Linearization
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Structure of the submenu on the display module Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type →  146 Unit after linearization →  147 Free text →  148 Maximum value →...
Page 145 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Structure of the submenu in an operating tool (e.g. FieldCare) Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type →  146 Unit after linearization →  147 Free text →...
Page 146: Linearization Type
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Description of parameters Navigation  Setup → Advanced setup → Linearization Linearization type  Navigation  Setup → Advanced setup → Linearization → Lineariz. type Description Select linearization type. Selection • None • Linear •...
Page 147: Unit After Linearization
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Meaning of the options • None The level is transmitted in the level unit without linearization. • Linear The output value (volume/weight) is directly proportional to the level L. This is valid, for example, for vertical cylinders.
Page 148: Free Text
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Selection SI units US units Imperial units • STon • lb impGal • t • UsGal • kg • ft³ • cm³ • dm³ • m³ • hl • l • % Custom-specific units...
Page 149: Maximum Value
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Maximum value  Navigation  Setup → Advanced setup → Linearization → Maximum value Prerequisite Linearization type (→  146) has one of the following values: • Linear • Pyramid bottom • Conical bottom •...
Page 150 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Additional information A0013264 Intermediate height The unit is defined in the Distance unit parameter (→  127). Table mode  Navigation  Setup → Advanced setup → Linearization → Table mode Prerequisite Linearization type (→  146) = Table Description Select editing mode of the linearization table.
Page 151: Level
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Conditions the linearization table must meet: • The table may consist of up to 32 pairs of values "Level - Linearized Value". • The table must be monotonic (monotonically increasing or decreasing). • The first linearization point must refer to the minimum level.
Page 152: Customer Value
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Factory setting Level (Semiautomatic) Navigation  Setup → Advanced setup → Linearization → Level Prerequisite • Linearization type (→  146) = Table • Table mode (→  150) = Semiautomatic Description Displays measured level (value before linearization). This value is transmitted to the table.
Page 153: Safety Settings
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu "Safety settings" submenu Navigation  Setup → Advanced setup → Safety sett. Output echo lost  Navigation  Setup → Advanced setup → Safety sett. → Output echo lost Description Define the behavior of the output signal in case of a lost echo.
Page 154: Ramp At Echo Lost
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Ramp at echo lost  Navigation  Setup → Advanced setup → Safety sett. → Ramp echo lost Prerequisite Output echo lost (→  153) = Ramp at echo lost Description Define the slope of the ramp in the case of a lost echo.
Page 155 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu level change during operation. Signals which are already in the blocking distance when the device is switched on, are ignored. This behavior is only valid if the following two conditions are met: • Expert → Sensor → Echo tracking → Evaluation mode = Short time history or Long time history) •...
Page 156: Switch Output
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus "Switch output" submenu Navigation  Setup → Advanced setup → Switch output Switch output function  Navigation  Setup → Advanced setup → Switch output → Switch out funct Description Select function for switch output.
Page 157: Assign Limit
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu • Digital output 2 • Digital output 3 • Digital output 4 • Digital output 5 • Digital output 6 • Digital output 7 • Digital output 8 Factory setting Additional information The Digital output AD 1 and Digital output AD 2 options refer to the Advanced Diagnostic Blocks.
Page 158: Switch-On Value
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Switch-on value  Navigation  Setup → Advanced setup → Switch output → Switch-on value Prerequisite Switch output function (→  156) = Limit Description Enter measured value for the switch-on point. User entry...
Page 159: Switch-On Delay
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu A0015586 Switch-on value Switch-off value Output closed (conductive) Output opened (non-conductive) Switch-on delay  Navigation  Setup → Advanced setup → Switch output → Switch-on delay Prerequisite • Switch output function (→  156) = Limit •...
Page 160: Switch-Off Delay
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Switch-off delay  Navigation  Setup → Advanced setup → Switch output → Switch-off delay Prerequisite • Switch output function (→  156) = Limit • Assign limit (→  157) ≠ Off Description Define switch-off delay.
Page 161 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Additional information Meaning of the options • No The behavior of the switch output is as described above. • Yes The states Open and Closed are inverted as compared to the description above.
Page 162: Display
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus "Display" submenu The Display submenu is only visible if a display module is connected to the device. Navigation  Setup → Advanced setup → Display Language Navigation  Setup → Advanced setup → Display → Language Description Set display language.
Page 163 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Additional information 4841.000 Â A0019963  39 "Format display" = "1 value, max. size" Â 93.5 % Â 159.0 A0019964  40 "Format display" = "1 bargraph + 1 value" Â 93.5 Â...
Page 164: Value 1 To 4 Display
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Value 1 to 4 display  Navigation  Setup → Advanced setup → Display → Value 1 display Description Select the measured value that is shown on the local display. Selection • None •...
Page 165: Display Damping
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu User entry 1 to 10 s Factory setting Additional information This parameter is only relevant if the number of selected measuring values exceeds the number of values the selected display format can display simultaneously.
Page 166: Header Text
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Header text  Navigation  Setup → Advanced setup → Display → Header text Prerequisite Header (→  165) = Free text Description Enter display header text. Factory setting ------------ Additional information The number of characters which can be displayed depends on the characters used.
Page 167: Backlight
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Selection • x • x.x • x.xx • x.xxx • x.xxxx Factory setting x.xxxx Additional information • Is only valid for numbers in the operating menu (e.g. Empty calibration, Full calibration), but not for the measured value display. The number of decimal places for the measured value display is defined in the Decimal places 1 to 4 →...
Page 168: Configuration Backup Display
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus "Configuration backup display" submenu This submenu is only visible if a display module is connected to the device. The configuration of the device can be saved to the display module at a certain point of time (backup).
Page 169: Backup State
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Additional information Meaning of the options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device.
Page 170 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Additional information Meaning of the display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module. • Settings not identical The current device configuration of the HistoROM is not identical to the backup copy in the display module.
Page 171: Administration
Enter access code parameter (→  138). Please contact your Endress+Hauser Sales Center if you lose your access code. For display operation: The new access code is only valid after it has been confirmed in the Confirm access code parameter (→...
Page 172 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Additional information Meaning of the options • Cancel No action • To factory defaults All parameters are reset to the order-code specific factory setting. • To delivery settings All parameters are reset to the delivery setting. The delivery setting may differ from the factory default if customer specific settings have been ordered.
Page 173: Define Access Code
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu "Define access code" wizard The Define access code wizard is only available when operating via the local display. When operating via an operating tool, the Define access code parameter is located directly in the Administration submenu. The Confirm access code parameter is not available for operation via operating tool.
Page 174: Diagnostics" Menu
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 17.4 "Diagnostics" menu Navigation  Diagnostics Actual diagnostics Navigation  Diagnostics → Actual diagnos. Description Displays current diagnostic message. Additional information The display consists of: • Symbol for event behavior • Code for diagnostic behavior •...
Page 175: Timestamp
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Timestamp Navigation  Diagnostics → Timestamp Description Displays timestamp for the Previous diagnostics parameter (→  174). User interface Days (d), hours (h), minutes (m), seconds (s) Operating time from restart Navigation  Diagnostics → Time fr. restart Description Displays the time the device has been in operation since the last device restart.
Page 176: Diagnostic List" Submenu
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 17.4.1 "Diagnostic list" submenu Navigation  Diagnostics → Diagnostic list Diagnostics 1 to 5 Navigation  Diagnostics → Diagnostic list → Diagnostics 1 to 5 Description Display the current diagnostics messages with the highest to fifth-highest priority.
Page 177: Event Logbook" Submenu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 17.4.2 "Event logbook" submenu The Event logbook submenu is only available when operating via the local display. When operating via FieldCare, the event list can be displayed in the FieldCare function "Event List / HistoROM".
Page 178: Device Information" Submenu
Displays serial number of the device. Additional information Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer The serial number is also indicated on the nameplate.
Page 179: Order Code
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Order code  Navigation  Diagnostics → Device info → Order code Description Displays order code of the device. Additional information The order code is generated from the extended roder code, which defines all device features of the product structure.
Page 180: Measured Values" Submenu
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 17.4.4 "Measured values" submenu Navigation  Diagnostics → Measured val. Distance Navigation  Diagnostics → Measured val. → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.
Page 181: Analog Input 1 To 5" Submenu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Electronic temperature Navigation  Diagnostics → Measured val. → Electronic temp. Description Displays the current temperature of the electronics. Additional information The unit is defined in the Temperature unit parameter. 17.4.5 "Analog input 1 to 5" submenu There is an Analog inputs submenu for every AI block of the device.
Page 182: Status
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Status Navigation  Diagnostics → Analog inputs → Analog input 1 to 5 → Status Description Indicates the status of the output of the AI block according to the FOUNDATION Fieldbus specification. Value Navigation ...
Page 183: Data Logging" Submenu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 17.4.6 "Data logging" submenu Navigation  Diagnostics → Data logging Assign channel 1 to 4  Navigation  Diagnostics → Data logging → Assign chan. 1 to 4 Description Allocate a process variable to the respective data logging channel.
Page 184: Clear Logging Data
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Once this time elapses, the oldest data points in the data log are cyclically overwritten such that a time of T always remains in the memory (ring memory principle). The logged data are deleted if this parameter is changed.
Page 185 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu "Display channel 1 to 4" submenu The Display channel 1 to 4 submenus are only available for operation via the local display. When operating via FieldCare, the logging diagram can be displayed in the FieldCare function "Event List / HistoROM"...
Page 186: Simulation" Submenu
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus 17.4.7 "Simulation" submenu The Simulation submenu is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. Conditions which can be simulated...
Page 187 Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 3. Pull out the display module with a gentle rotation movement. To make it easier to access the SIM switch, attach the display module to the edge of the electronics compartment.  Display module is attached to the edge of the electronics compartment.
Page 188: Simulation
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Structure of the submenu Navigation  Expert → Diagnostics → Simulation ‣ Simulation Assign measurement variable →  189 Value process variable →  189 Switch output simulation →  189 Switch status →...
Page 189: Assign Measurement Variable
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu Description of parameters Navigation  Expert → Diagnostics → Simulation Assign measurement variable  Navigation  Expert → Diagnostics → Simulation → Assign meas.var. Description Selct process variable to be simulated. Selection • Off •...
Page 190: Switch Status
Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Switch status  Navigation  Expert → Diagnostics → Simulation → Switch status Prerequisite Switch output simulation (→  189) = On Description Define the switch state to be simulated. Selection • Open •...
Page 191: Device Check" Submenu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 17.4.8 "Device check" submenu Navigation  Diagnostics → Device check Start device check  Navigation  Diagnostics → Device check → Start dev. check Description Start a device check. Selection • No • Yes...
Page 192 Operating menu Micropilot FMR56, FMR57 FOUNDATION Fieldbus Level signal Navigation  Diagnostics → Device check → Level signal Prerequisite Device check has been performed. Description Displays result of the device check for the level signal. User interface • Check not done •...
Page 193: Heartbeat" Submenu
Micropilot FMR56, FMR57 FOUNDATION Fieldbus Operating menu 17.4.9 "Heartbeat" submenu The Heartbeat submenu is only available via FieldCare or DeviceCare. It contains the wizards which are part of the Heartbeat Verification and Heartbeat Monitoring application packages. Detailed description SD01871F Navigation ...
Page 194: Index
Define access code (Wizard) ....173 Event list (Submenu) ......177 Endress+Hauser...
Page 195 Mapping end point (Parameter) ... . 132, 134 Operating language ..... . . 74 Endress+Hauser...
Page 196 Trouble shooting ......95 Turning the display module ....34 Endress+Hauser...
Page 198 *71344036* 71344036 www.addresses.endress.com...

This manual is also suitable for:

Micropilot fmr57

Endress+Hauser Micropilot FMR56 Operating Instructions Manual

Quick Links

Related Manuals for Endress+Hauser Micropilot FMR56

Summary of Contents for Endress+Hauser Micropilot FMR56
