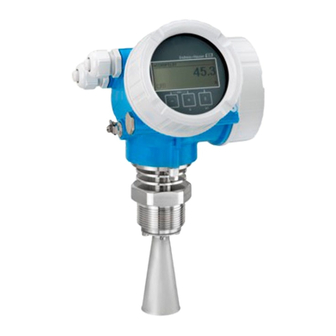

Endress+Hauser Micropilot FMR51 Brief Operating Instructions
Free space radar
Hide thumbs
Also See for Micropilot FMR51:
- Operating instructions manual (198 pages) ,
- Technical information (114 pages) ,
- Brief operating instructions (48 pages)
Table of Contents
Advertisement
Quick Links
KA01129F/00/EN/04.22-00
71575729
2022-08-01
Products

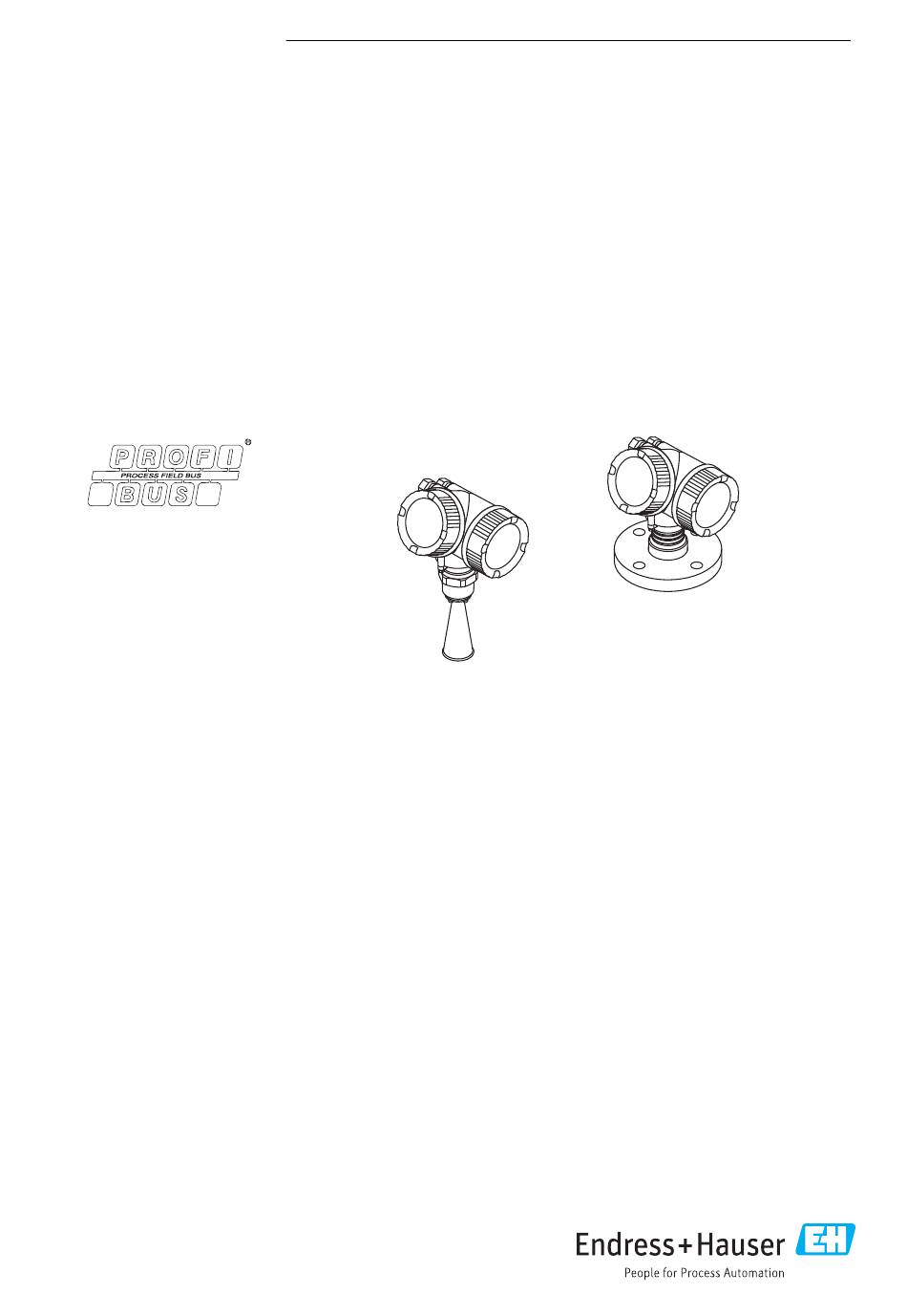

Brief Operating Instructions
Micropilot FMR51, FMR52
PROFIBUS PA
Free space radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Micropilot FMR51
Summary of Contents for Endress+Hauser Micropilot FMR51
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
-
Page 2: Associated Documentation
