GP01017F/00/EN/01.13
71219978
Valid as of version
01.00.zz
Products
Description of device parameters

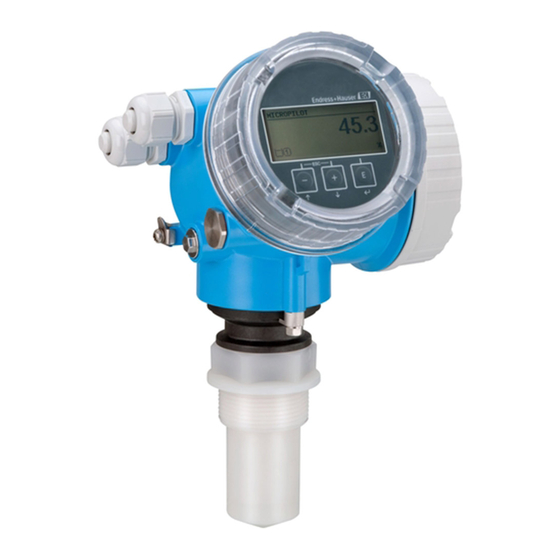

Micropilot FMR50/FMR51/
FMR52/FMR53/FMR54/FMR56/
FMR57
FOUNDATION Fieldbus
Level radar
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR50

Summary of Contents for Endress+Hauser Micropilot FMR50

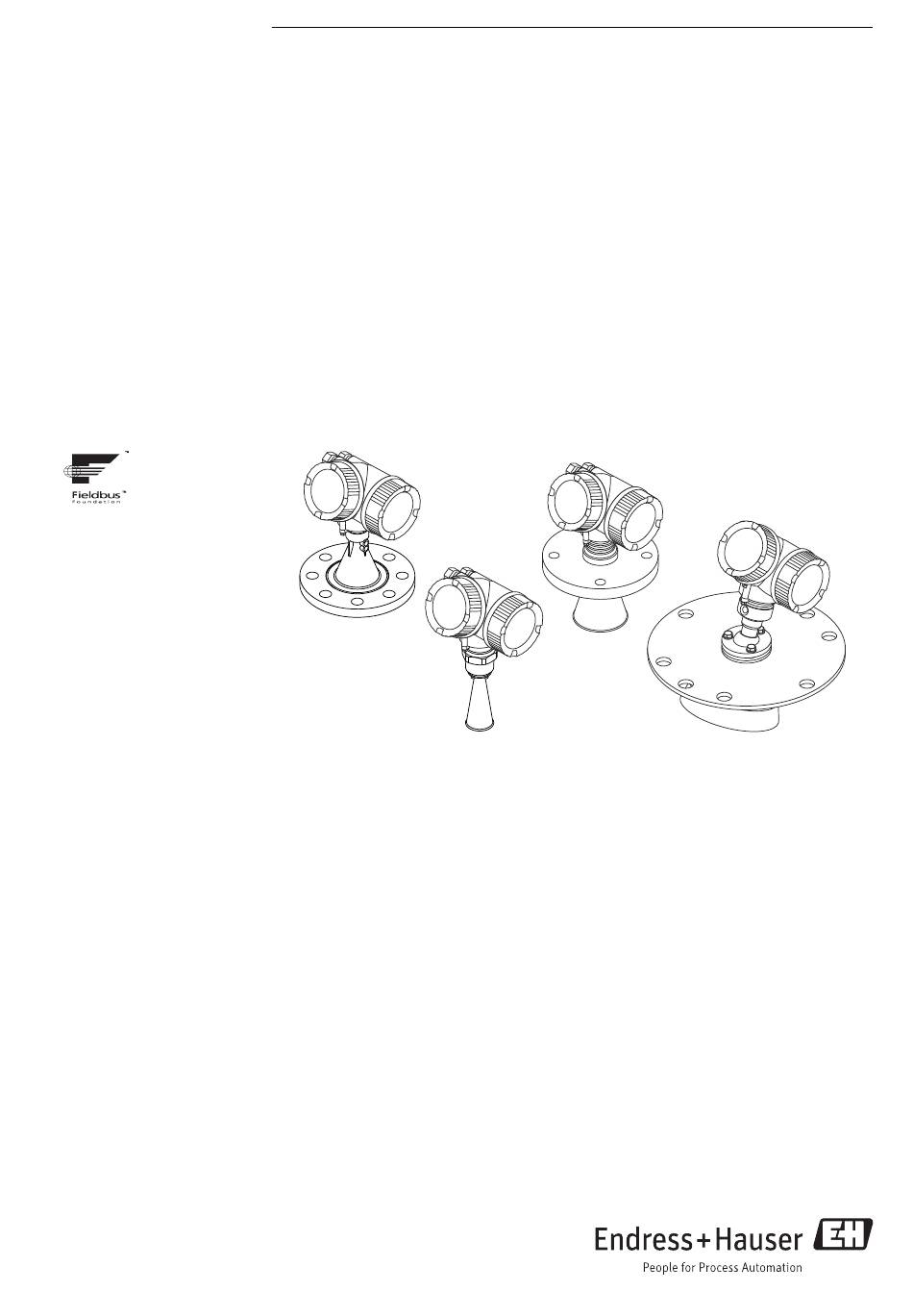

  • Page 1 Products Solutions Services GP01017F/00/EN/01.13 71219978 Valid as of version 01.00.zz Description of device parameters Micropilot FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/ FMR57 FOUNDATION Fieldbus Level radar...

  • Page 3: Table Of Contents

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Table of contents Table of contents 3.9.4 Expert → Diagnostics → Data Important document information ..4 logging ..... . 134 Document function .

  • Page 4: Important Document Information

    A-A, B-B, C-C, ... Sections 1.2.3 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables. Endress+Hauser...

  • Page 5: Overview Of The Operating Menu

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION FieldbusOverview of the operating menu Overview of the operating menu The following table lists all parameters the "Expert" menu may contain. The page number refers to where a description of the parameter can be found. Depending on the device version and parametrization some parameters will not be available in a given situation.
  • Page 6 Overview of the operating menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Navigation Direct access Description Expert → System → Administration → Activate SW option 0029 (→  36) Device reset 1013 (→  36) Define access code (→  35) Confirm access code (→...
  • Page 7 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION FieldbusOverview of the operating menu Navigation Direct access Description Free text 2341 (→  59) Level linearized 2318 (→  53) Maximum value 2315 (→  60) Diameter 2342 (→  60) Intermediate height 2310 (→  60)
  • Page 8 Overview of the operating menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Navigation Direct access Description Reference echo threshold 1168 (→  85) Const. GPC factor 1217 (→  85) Navigation Direct access Description Expert → Sensor → Sensor diagnostics → Start self check 1133 (→...
  • Page 9 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION FieldbusOverview of the operating menu Navigation Direct access Description Fixed value input 1 2332 (→  114) Level external input 2 2306 (→  114) Function input 2 Level 2331 (→  114) Fixed value input 2 2333 (→...
  • Page 10 Overview of the operating menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Navigation Direct access Description Feature selection 10714 Cycle type 10707 Cycle selection 10706 Minimum cycle time 10724 Memory size 10723 Nonvolatile cycle time 10729 Free space 10715 Free time 10716 Clear fault state...
  • Page 11 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION FieldbusOverview of the operating menu Navigation Direct access Description Expert → Analog intputs → Analog input N → Block tag 6901 Static revision 6973 Tag description 6974 Strategy 6972 Alert key 6916 Target mode 6960 Actual mode...
  • Page 12 Overview of the operating menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Navigation Direct access Description Unacknowledged 6920 Alarm state 6917 Time stamp 6919 Subcode 6918 Value 6921 Current 6912 Unacknowledged 6914 Unreported 6915 Disabled 6913 Acknowledge option 6910 Alarm hysteresis 6911 High high priority...
  • Page 13 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION FieldbusOverview of the operating menu Navigation Direct access Description Expert → Discrete inputs → Discrete input N → Block tag 6851 Static revision 6884 Tag description 6885 Strategy 6883 Alert key 6846 Target mode 6873 Actual mode...
  • Page 14 Overview of the operating menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Navigation Direct access Description Value 6856 Alarm state 6858 Subcode 6859 Time stamp 6860 Unacknowledged 6861 Discrete value 6862 Discrete limit 6863 Discrete priority 6864 Block parameter according to the FOUNDATION Fieldbus specification...
  • Page 15 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION FieldbusOverview of the operating menu Navigation Direct access Description Actual mode 11264 Permitted mode 11266 Normal mode 11265 Block error 11272 Channel 11253 Status options 11268 Fault state time 11255 Fault state value discrete 1 11256 Fault state value discrete 2...
  • Page 16 Overview of the operating menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Navigation Direct access Description Extended order code 1 10796 (→  132) Extended order code 2 10797 (→  132) ENP version 0012 (→  132) Hardware revision 10793 (→  132)
  • Page 17 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION FieldbusOverview of the operating menu Navigation Direct access Description Switch output simulation 0462 (→  140) Switch status 0463 (→  141) Simulation device alarm 0654 (→  141) Navigation Direct access Description Expert → Diagnostics →...

  • Page 18: The "Expert" Menu

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Direct access (0106) Navigation Expert → Direct access Write access Maintenance Prerequisite Only visible for operation via display module, not for operation via software tool (e.g. FieldCare). Description Enter the direct access code to access a parameter directly.
  • Page 19 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Display options • Operator • Maintenance • Service Additional information • The access authorization can be changed via the Enter access code parameter (→  19). • If additional write protection is active, this restricts the current access authorization even further.
  • Page 20 If no key is pressed for 10 minutes, or the user goes from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...

  • Page 21: Expert → System

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Expert → System The System submenu contains all general parameters which affect neither the measurement nor the measured value communication. Submenus Submenu Meaning Description Display Parametrization of the local display module (allocation of measured (→...

  • Page 22: Expert → System → Display

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.1.1 Expert → System → Display For operating tools: The Display submenu is only visible if a display module is connected to the device. Overview The Display submenu is used to parametrize the representation of measured values on the local display module.
  • Page 23 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description of parameters Language (0104) Navigation Expert → System → Display → Language Write access Operator Description Set display language Options • English • One additional operating language (see product structuture, feature 500, "Additional Operation Language")
  • Page 24 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information 1 value, max. size 4841.000  A0019963 1 bargraph + 1 value  93.5 %  159.0 A0019964 2 values  93.5  159.0 A0019965 1 value large + 2 values Â...
  • Page 25 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Value 1 display (0107) Value 2 display (0108) Value 3 display (0110) Value 4 display (0109) Navigation Expert → System → Display → Value 1/2/3/4 display Write access Maintenance Description Select the measured value that is shown on the local display.
  • Page 26 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information This setting does not affect the measuring or computational accuracy of the device. Display interval (0096) Navigation Expert → System → Display → Display interval Write access Operator Description Set time measured values are shown on display if display alternates between values.
  • Page 27 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Additional information XXXXXXXXX A0013375 Position of the header text on the display Device tag Is defined in the Setup → Device tag parameter. Free text Is defined in the Header text parameter (→  27).
  • Page 28 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Factory setting . (point) Number format (0099) Navigation Expert → System → Display → Number format Write access Maintenance Description Choose number format for the display Options • Decimal • ft-in-1/16" (Only valid for distance units)
  • Page 29 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Input range 20 to 80 % Factory setting 30 % Additional information Set the contrast via push-buttons: • Brighter: press the buttons simultaneously • Darker: press the buttons simultaneously Backlight (0111) Navigation Expert → System → Display → Backlight...

  • Page 30: Expert → System → Configuration Backup Display

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.1.2 Expert → System → Configuration backup display The Configuration backup display submenu is only visible if a display module is connected to the device. Overview All software configurations are initially stored in a memory module (HistoROM) in the housing and are thus permanently connected with the device.
  • Page 31 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description of parameters Operating time (0652) Navigation Expert → System → Configuration backup display → Operating time Expert → Diagnostics → Operating time Write acces Read-only parameter Description Indicates how long the device has been in operation.
  • Page 32 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device. The backup copy comprises the transmitter and sensor data of the device.
  • Page 33 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Write access Read-only parameter Description Comparison between present device data and display backup Display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module.

  • Page 34: Expert → System → Administration

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.1.3 Expert → System → Administration Overview The Administration submenu contains all parameters for the management of the device. Its structure depends on the user interface: The "Administration" submenu on the display module...
  • Page 35 Expert → Enter access code parameter. Please contact your Endress+Hauser Sales Center if you lose your access code. For display operation: The new access code is only valid after it has been confirmed in the Confirm access code parameter and after the user has returned to the main screen (measured value display).
  • Page 36 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Further parameters Activate SW option (0029) Navigation Expert → System → Administration → Activate SW option Write access Maintenance Description Enter a code to activate specific software options. Device reset (1013) Navigation Expert → System → Administration → Device reset...

  • Page 37: Expert → Sensor

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Expert → Sensor 3.2.1 Overview The Sensor submenu contains all parameters related to the measurement and the sensor settings. Parameters Parameter Meaning Description Distance unit Measuring unit for basic distances (e.g empty and full calibration) (→...

  • Page 38: Description Of Parameters

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.2.2 Description of parameters Distance unit (0551) Navigation Expert → Sensor → Distance unit Write access Maintenance Description Length unit for distance calculation Options • mm • m • ft • in Factory setting...
  • Page 39 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Options • Process vessel with agitator • Process vessel standard • Storage vessel • Bypass / pipe • Open channel • Wave guide antenna • Stilling well • Sphere • Workbench test The antenna type of the device determines which of these options are available.
  • Page 40 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Factory setting Silo Additional information Depending on the Bin type parameter, the parameters Max. filling speed solid and Max. draining speed solid are preset, among others. Max. filling speed liquid (1212) Navigation Expert → Sensor → Max. filling speed liquid...
  • Page 41 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Write access Maintenance Prerequisite Medium type = Solid Description Select maximum expected filling speed. Options • Very slow < 0.5m (1.6ft) /h • Slow < 1 m (3.3ft) /h • Standard < 2m (6,5ft) /h •...
  • Page 42 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Options • None • Weak signal • Many obstacles • Small tanks (< 1m/3ft) • Changing DC values • Foam (> 5cm/0.16ft) Factory setting None Additional information • Weak signal Increases the sensitivity of the device in case of weak signals.

  • Page 43: Expert → Sensor → Medium

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.3 Expert → Sensor → Medium Overview The Medium submenu is used to specify the relevant properties of the measured medium, especially the dielectric constant (DC). Parameter Meaning Description Medium type Options: "Liquid" or "Solid"...
  • Page 44 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Factory setting Others (DC > 1.9) Additional information If required, smaller DC values can be entered into Expert → Sensor → Medium → Medium property. This, however, may reduce the measuring range. Refer to the Technical Information (TI) of the respective device.

  • Page 45: Expert → Sensor → Level

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.4 Expert → Sensor → Level Overview The Level submenu is used to parametrize the calculation of the level from the measured distance. 100% 100% 100% A0016141  1 Calculation of the level from the measured distance...
  • Page 46 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Description of parameters Distance offset (2309) Navigation Expert → Sensor → Level → Distance offset Write access Maintenance Description Definition of the distance offset Input range -200.000,0 ... +200.000,0 mm (-60 ... +60 ft) Factory setting 0.0 mm...
  • Page 47 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description Displays the measured distance D from the reference point (lower edge of the flange or threaded connection) to the level. A0019483 A0019485 Additional information The value is displayed in the selected "Level unit" (→  49).
  • Page 48 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information The empty calibration E is the distance between the reference point (lower edge of the flange or threaded connection) and the minimum level (0%). A0019486 A0019488 Full calibration (2308) Navigation Expert → Sensor → Level → Full calibration...
  • Page 49 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Additional information The full calibration F is the distance between the minimum level (0%) and the maximum level (100%). 100% A0019487 100% A0019489 Level unit (0576) Navigation Expert → Sensor → Level → Level unit...
  • Page 50 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Level limit mode (2314) Navigation Expert → Sensor → Level → Level limit mode Write access Maintenance Description Defines the typ of level limitation Options • Off • Low limit • High limit •...
  • Page 51 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Input range Depending on the selected distance unit: • 0.0 to 100.0 % • 0.0 to +200.0 m • 0.2 to +656.2 ft • 0.0 to +7874.0 inch • 00.0 to +200,000.0 mm...
  • Page 52 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Factory setting Additional information The value specified in this parameter is added to the measured level (before linearization). Output mode (2317) Navigation Expert → Sensor → Level → Output mode Write access Maintenance...
  • Page 53 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description Displays the measured level L (before linearization) A0019482 A0019484 Additional information The value is displayed in the selected "Level unit" (→  49). Level linearized (2318) Navigation Expert → Sensor → Level → Level linearized Expert →...
  • Page 54 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Write access Maintenance Description Total height of the tank or silo as measured from the process connection. Input range –999.999 to +999.999 m (–3 280 to +3 280 ft) Factory setting 4 m (13.1 ft)

  • Page 55: Expert → Sensor → Linearization

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.5 Expert → Sensor → Linearization Overview 100% L‘ L‘ 100% L‘1L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0019648  5 Linearization: Transformation of the level into a volume or weight; the transformation is dependent on the shape of the vessel.
  • Page 56 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Parameters of the "Linearization" submenu Task Required parameters Parameter description Selection of linearization type and unit after Linearization type (→  57) linearization Unit after linearization (→  58) Free text (→  59)
  • Page 57 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description of parameters Linearization type (2339) Navigation Expert → Sensor → Linearization → Linearization type Write access Maintenance Description Defines the type of linearization Options • None The level is transmitted to the output 100% without linearization.
  • Page 58 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information • None The level is transmitted in the level unit without linearization. • Linear The output value (volume/weight) is directly proportional to the level L. This is valid, for example, for vertical cylinders. Additionally, the following parameters have to be specified: –...
  • Page 59 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Prerequisite Only visible if a linearization has been selected (i.e. Linearization type ≠ None) Description Defines the unit of the linearized value. Options • Free text • t • lb • ton • kg •...
  • Page 60 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Maximum value (2315) Navigation Expert → Sensor → Linearization → Maximum value Write access Maintenance Prerequisites Only visible if one of the following linearization types has been selected: • Linear • Pyramid bottom •...
  • Page 61 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Prerequisites Only visible if one of the following linearization types has been selected: • Pyramid bottom • Conical bottom • Angled bottom Description Definition of the intermediate height H A0013264 Input range 0 to 200 m (0 to 656 ft)
  • Page 62 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information Conditions the linearization table must meet: • The table may consist of up to 32 pairs of values "Level - Linearized Value". • The table must be monotonic (monotonically increasing or decreasing).
  • Page 63 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Additional information For Table mode = Manual: Level is a writable parameter. For Table mode = Semi-automatic: Level is a read-only parameter. Customer value (2384) Navigation Expert → Sensor → Linearization → Customer value...

  • Page 64: Expert → Sensor → Information

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.2.6 Expert → Sensor → Information Overview The Information submenu comprises all display parameters which give information about the current state of the measurement: Parameter ParameterDescription Signal quality (1047) (→  65) Absolute echo amplitude (1127) (→...
  • Page 65 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description of parameters Signal quality (1047) Navigation Expert → Sensor→ Information → Signal quality Write access Read-only parameter Description Indicates the signal quality. Display options • Strong The evaluated echo exceeds the threshold by at least 10 dB •...
  • Page 66 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information A0019961 Absolute echo amplitude in the envelope curve, measured in dB Relative echo amplitude (1089) Navigation Expert → Sensor→ Information → Relative echo amplitude Write access Read-only parameter Description Indicates the relative amplitude of the level echo, i.e. the difference between the level echo and the echo threshold.
  • Page 67 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Tank bottom echo amplitude (1128) Navigation Expert → Sensor→ Information → Tank bottom echo amplitude Write access Read-only parameter Description Indicates the amplitude of the tank bottom echo Additional information The tank bottom echo amplitude is only evaluated for media with a small DC value.
  • Page 68 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Write access Read-only parameter Description Indicates the current state of the tank trace. Display options • Not active A valid tank trace is not available. • EOP (TT) A valid EOP tank trace is available.

  • Page 69: Expert → Sensor → Sensor Properties

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.7 Expert → Sensor → Sensor properties Overview The Sensor properties submenu comprises all parameters which describe the measurement-related properties of the probe and the envelope curve. Overview of the parameters Eigenschaft Zugehörige Parameter Parameterbeschreibung Basic properties of the probe (→...
  • Page 70 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Options • No • Yes Factory setting Endress+Hauser...

  • Page 71: Expert → Sensor → Distance

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.8 Expert → Sensor → Distance Overview The Distance submenu contains all parameters by which the filtering of the raw distance D1 is controlled. The resulting distance D0 is used for the subsequent level calculation (→...
  • Page 72 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Parameters of the "Distance" submenu Task Required parameters Description Display of the distances (→  73) Distance (→  73) Definition of the dead time (→  74) Dead time (→  74) Configuration of the low pass filter (→...
  • Page 73 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Display of the distances Distance (1124) Navigation Expert → Sensor → Distance → Distance Write access Read-only parameter Description Displays the measured distance D from the reference point (lower edge of the flange or threaded connection) to the level.
  • Page 74 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Definition of the dead time Dead time (1199) Navigation Expert → Sensor → Distance → Dead time Write access Maintenance Description Defines the dead time (in seconds). Input range 0 to 60 s...
  • Page 75 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Dependencies of the "Dead time" parameter for "Medium type" = "Solid" Max. filling Max. draining speed solid speed solid Very slow Slow Standard Medium Fast Very fast No filter / test < 0,5m <...
  • Page 76 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Parametrization of the low pass filter The low pass filter dampens the distance signal with a user defined integration time τ. After a sudden change of the level, it lasts about 5 x τ until the new measured value is obtained.
  • Page 77 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Dependencies of the "Integration time" parameter for "Medium type" = "Liquid" Max. filling speed liquid Max. draining speed liquid Slow Medium Standard Fast Very fast No filter / test < 1cm (0,4in)/min < 10cm (4in)/min <...
  • Page 78 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Definition of the blocking distance Blocking distance (1144) Navigation Expert → Sensor → Distance → Blocking distance Write access Maintenance Description Defines the distance below the process connection in which no measurement is performed.

  • Page 79: Expert → Sensor → Gas Phase Compensation

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.9 Expert → Sensor → Gas phase compensation Overview High pressures reduce the propagation velocity of the measuring signals in the gas/vapor above the fluid. This effect depends on the kind of gas/vapor and of its temperature. This results in a systematic measuring error that gets bigger as the distance increases between the reference point of the measurement (flange) and the product surface.
  • Page 80 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Gas phase compensation with reference signal This type of gas phase compensation needs an artificaial reference echo at a definite distance from the process connection. The reference signal must always be above the maximum level.
  • Page 81 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Constant gas phase compensation factor If the properties of the gas phase (pressure, temperature, composition) do not change over the time and are known, a gas phase compensation can also be performed without a reference signal.
  • Page 82 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Compensation with external pressure measurement (PROFIBUS PA and FOUNDATION Fieldbus) The compensation with external pressure measurement is only available for devices with PROFIBUS PA or FOUNDATION Fieldbus. In many cases the dielectric constant is proportional to the pressure of the gas phase. If the proprotionality factor is known, a gas phase compensation can be performed by measuring the pressure externally.
  • Page 83 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description of the parameters GPC mode (1034) Navigation Expert → Sensor → Gas phase compensation → GPC mode Write access Maintenance Description Selection of the GPC mode Options • Off The gas phase compensation is deactivated.
  • Page 84 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Factory setting None External pressure (1220) Navigation Expert → Sensor → Gas phase sompensation → External pressure Write access Read-only parameter Prerequisite Only available for PROFIBUS PA or FOUNDATION Fieldbus and if GPC mode = External...
  • Page 85 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Navigation Expert → Sensor → Gas phase compensation → Reference distance Write access Maintenance Prerequisite GPC mode = On oder Without correction Description Input parameter for the actual distance of the reference echo.

  • Page 86: Expert → Sensor → Sensor Diagnostics

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.2.10 Expert → Sensor → Sensor diagnostics Start self check (1133) Navigation Expert → Sensor → Sensor diagnostics → Start self check Write access Maintenance Description Starts a self check of the device.

  • Page 87: Expert → Sensor → Safety Settings

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.11 Expert → Sensor → Safety settings Overview The Safety settings submenu contains all parameters which determnine the behavior of the device in critical situations such as an echo loss or an undershooting of a user defined safety distance.
  • Page 88 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus A0016207  12 "Output echo lost" = "Ramp at echo lost" Echo loss "Delay time echo lost" For a positive ramp: The measured value is increased with a constant rate until it reaches the maximum value (100%).
  • Page 89 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Safety distance In order to get a warning message if the level rises into the proximity of the upper blocking distance, a safety distance can be defined in the Safety distance parameter. A0016210 ...
  • Page 90 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus S942 A0016212  16 "In safety distance" = "Warning": If the safety distance is undershot, the device continues measuring but nevertheless generates a warning. Safety distance S942 A0016213  17 "In safety distance" = "Self holding": If the safety distance is undershot, the device generates an alarm. The measurement is not resumed until this alarm has been acknowledged by the user.
  • Page 91 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description of parameters Output echo lost (2307) Navigation Expert → Sensor → Safety settings → Output echo lost Write access Maintenance Description Defines the output signal in the case of a lost echo.
  • Page 92 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Description Defines the status in case of a lost echo Options • Good • Uncertain • Bad Factory setting Ramp at echo lost (2323) Navigation Expert → Sensor → Safety settings → Ramp at echo lost...
  • Page 93 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Write access Maintenance Description Defines the delay in the case of a lost echo. Input range 0 ... 99999.9 s Factory setting 60 s Additional information After an echo loss, the device waits for the time specified in this parameter before reacting as specified in the Output echo lost parameter.
  • Page 94 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Factory setting Warning Status in safety distance (11672) Navigation Expert → Sensor → Safety settings → Status in safety distance Write access Operator Description Defines the status in case the safety distance is undershot.

  • Page 95: Expert → Sensor → Envelope Curve

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.12 Expert → Sensor → Envelope curve The Envelope curve submenu is only available on the display module (not in FieldCare). It is used to display the envelope curve on the display module. When operating via FieldCare, the envelope curve can be displayed in the envelope curve editor (Device Operation →...
  • Page 96 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Description of parameters Envelope curve (1207) Navigation Expert → Sensor → Envelope curve → Envelope curve Write access Maintenance Preerequisite Only visible for operation via display module; not visible for FieldCare operation. Description Defines which curves are included in the envelope curve display on the display module.

  • Page 97: Expert → Sensor → Mapping

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.13 Expert → Sensor → Mapping Overview The mapping is used to suppress interference signals which may be generated by internal tank or silo fittings. A mapping curve, representing the envelope curve of an empty tank or silo as precisely as possible, is used for the mapping.
  • Page 98 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Recording the mapping curve There are different methods of recording the mapping curve: • Factory map • Overlay map • Record new map Factory map The factory map is adapted to the individual antenna and is therefore permanently stored in the device and not recorded by the user.
  • Page 99 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 2. Go to the Record map parameter and select the Record map option. Endress+Hauser...
  • Page 100 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Partial mapping / Deleting a map partially The overlaying or new recording of the map does not necessarily cover the complete measuring range. Instead a partial mapping can be performed. • The mapping starts at –0.25 m (–0.8 ft), i.e. above the reference point.
  • Page 101 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Mapping in the tank bottom area Irrespective of the definded mapping range, no mapping is recorded near the end of the measuring range (defined in Expert → Sensor → Level → Tank/silo height). The range for which this is the case, is defined in the Map gap parameter.
  • Page 102 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Parameters of the "Mapping" submenu On the local display In the first part of the Mapping submenu two parameters are displayed on the local display at the same time. The upper parameter can be edited. The lower parameter is displayed for reference purposes only.
  • Page 103 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu In the operating tool (e.g. FieldCare) Parameter Meaning Description Distance Displays the currently measured distance (→  104) Confirm distance Confirm whether the displayed distance (→  104) matches the actual distance. Present mapping Indicates the distance up to which a mapping (→...
  • Page 104 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Description of parameters Confirm distance (1045) Navigation Expert → Sensor → Mapping → Confirm distance Write access Maintenance Description Confirmation whether the measured distance matches the actual distance. Depending on the selection the device automatically determines the range over which the mapping will be recorded.
  • Page 105 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Navigation Expert → Sensor → Mapping → Distance Write access Read-only parameter Description Displays the currently measured distance. Mapping end point (1022) Navigation Expert → Sensor → Mapping → Mapping end point Write access...
  • Page 106 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Selection • No The map is not recorded. The device quits the sequence ("End of sequence" is displayed). • Record map The map is recorded. When the recording is completed, the new measured distance and the new mapping range appear on the display.

  • Page 107: Expert → Sensor → Tank Bottom Evaluation

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.14 Expert → Sensor → Tank bottom evaluation Overview The tank bottom evaluation is intended to prevent an echo loss if the tank is empty. A [dB] D [m (ft)] A0020631 Tank/silo height Tank bottom range Min.
  • Page 108 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Description of parameters Tank bottom range (1149) Navigation Expert → Sensor → Tank bottom evaluation → Tank bottom range Write access Maintenance Description Defines the range (starting from Tank/silo height) in which the tank bottom echo is searched for.

  • Page 109: Expert → Sensor → Echo Tracking

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.2.15 Expert → Sensor → Echo tracking Basic principles of the echo tracking Three types of echo evaluation can be selected in the Evaluation mode parameter: Evaluation mode "History off" The envelope curve is evaluated statically. First echo criteria are taken into consideration (see the Expert →...
  • Page 110 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Schematic exmaples [mV] A0020671  19 Example 1: Tank history with interference echo and tank-bottom echo D0 Actual level distance D1 Distance of the signal in the envelope curve Level echo Interference echo Tank-bottom echo Track "Tank-bottom echo"...
  • Page 111 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu The parameters of the "Echo tracking" submenu Parameter Bedeutung Beschreibung Evaluation mode Selection of the type of signal evaluation: (→  112) • History off • Short time history • Long time history History reset Reset of the echo tracking;...
  • Page 112 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Description of the parameters Evaluation mode (1112) Navigation Expert → Sensor → Echo tracking → Evaluation mode Write access Maintenance Description Selection of the evaluation mode for echo tracking. Options • History off The envelope curve is evaluated only statically.
  • Page 113 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description Defines, which DO block is used to start and stop the recording of the tank track. Options • Manual • Digital output 1 • Digital output 2 • Digital output 3 • Digital output 4...

  • Page 114: Expert → Sensor → External Input

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.2.16 Expert → Sensor → External input The External input submenu is only available on devices with PROFIBUS PA or FOUNDATION Fieldbus. Overview The behavior of the sensor can be controlled via two external switch inputs: measurement can be switched on and off.
  • Page 115 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Write permission Maintenance Prerequisite Only visible if Function input 1/2 level = Fixed value Description Defines the level value in the event of a switch signal at external input 1 or 2. User entry...

  • Page 116: Expert → Output

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Expert → Output 3.3.1 Expert → Output → Switch output Switch output function (0481) Navigation Expert → Output → Switch output → Switch output function Description Defines the function of the switch output (open collector).
  • Page 117 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Prerequisite Only visible for Switch output function = Limit. Description Defines the variable to be checked for limit transgression and allocates it to the switch output. Options • Off No measured variable is allocated.
  • Page 118 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information The switching behavior depends on the relative position of the two switch points. Switch-on point > Switch-off point: The output is closed if the measured value exceeds the switch-on point. The output is opened if the measured value falls below the switch-off point.
  • Page 119 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Prerequisite Only visible for Switch output function = Digital output. Description Allocates a DI block or the DI output of the advanced diagnostics to the switch output. Options • Off No digital block is allocated.
  • Page 120 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Options • Actual status The switch output remains in the state it was in when the error occurred • Open • Closed Factory setting Open Switch status (0461) Navigation Expert → Output → Switch output → Switch status Diagnostics →...

  • Page 121: Expert → Communication

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Expert → Communication 3.4.1 Expert → Communication → Resource block This submenu contains the parameters of the Resource Block according to the FOUNDATION Fieldbus specification. Endress+Hauser...

  • Page 122: The "Analog Inputs" Submenu

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Analog inputs" submenu There is an Analog input N submenu for each Analog Input Block of the device. This submenu contains all parameters of the Analog Input Block according to the FOUNDATION Fieldbus specification.

  • Page 123: The "Discrete Inputs" Submenu

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu The "Discrete inputs" submenu There is a Discrete input N submenu for each Discrete Input Block of the device. This submenu contains all parameters of the Discrete Input Block according to the FOUNDATION Fieldbus specification.

  • Page 124: The "Analog Outputs" Submenu

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Analog outputs" submenu The Multiple analog output submenu contains the parameters of the Multiple Analog Output Block according to the FOUNDATION Fieldbus specification. Endress+Hauser...

  • Page 125: The "Discrete Outputs" Submenu

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu The "Discrete outputs" submenu The Multiple discrete output submenu contains the parameters of the Multiple Discrete Output Block according to the FOUNDATION Fieldbus specification. Endress+Hauser...

  • Page 126: Expert → Diagnostics

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Expert → Diagnostics Actual diagnostics (0691) Write access Read-only parameter Navigation Expert → Diagnostics → Actual diagnostics Description Use this function to display the current diagnostics message. If two or more messages occur simultaneously, the message with the highest priority is shown on the display.
  • Page 127 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description Use this function to display the time the device has been in operation since the last device restart. User interface Days (d), hours (h), minutes (m) and seconds (s) Operating time (0652) (→...

  • Page 128: Expert → Diagnostics → Diagnostics List

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.9.1 Expert → Diagnostics → Diagnostics list Diagnostics 1 - 5 (0692 - 0696) Write access Read-only parameters Navigation Expert → Diagnostics → Diagnostics list → Diagnostics 1 Expert → Diagnostics → Diagnostics list → Diagnostics 2 Expert →...

  • Page 129: Expert → Diagnostics → Event Logbook

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.9.2 Expert → Diagnostics → Event logbook Filter options (0705) Write access Maintenance Navigation Expert → Diagnostics → Event logbook → Filter options Description Use this function to select the category whose event messages are displayed in the events list.
  • Page 130 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Additional information User interface Example 1 for display format: I 1091 24d12h13m00s Configuration modified Example 2 for display format: S441 01d4h12min30s Current output 1 HistoROM A HistoROM is a "non-volatile" device memory in the form of an EEPROM.

  • Page 131: Expert → Diagnostics → Device Information

    Use this function to view the serial number of the device. It can also be found on the nameplate. Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer User interface Max.
  • Page 132 Use this function to view the order code of the device. It can also be found on the nameplate. Uses of the order code • To order an identical spare device. • To identify the device quickly and easily, e.g. when contacting Endress+Hauser. Extended order code 1/2 (10796/10797) Write access Read-only parameter Navigation Expert →...
  • Page 133 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Navigation Expert → Diagnostics → Device information → Hardware revision Description Displays the hardware revision of the device. ITK Version (10794) Write access Read-only parameter Navigation Expert → Diagnostics → Device information → ITK Version Description Displays the ITK Version of the device.

  • Page 134: Expert → Diagnostics → Data Logging

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.9.4 Expert → Diagnostics → Data logging The menu is only displayed if the extended function of the HistoROM is enabled in the device. Assign channel 1 -4 (0851 - 0854) Write access...
  • Page 135 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Description Definition of the logging interval t for data logging. This defines the interval between the individual data points in the data log, and thus the maximum loggable process time • If 1 logging channel is used: T = 500 ⋅...
  • Page 136 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Description Use this function to view the measured value trend for the logging channel in the form of a chart. A0013859 • x-axis: depending on the number of channels selected displays 250 to 1000 measured values of a process variable.

  • Page 137: Expert → Diagnostics → Min/Max Values

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu 3.9.5 Expert → Diagnostics → Min/Max values Max. level value (2357) Write access Display-only parameter Navigation Expert → Diagnostics → Min/max values → Max. level value Description Use this parameter to view the maximum level measured until now (drag indicator).
  • Page 138 Expert → Diagnostics → Min/max values → Reset min./max. Description Resets the drag indicator of the selected process variable. Access to this parameter is reserved to the Endress+Hauser service staff. It can only be accessed after entering the service code. Max. electronics temperature (1031)
  • Page 139 Expert → Diagnostics → Min/max values → Reset min./max. temperature Description Resets the drag indicator of the electronics temperature. Access to this parameter is reserved to the Endress+Hauser service staff. It can only be accessed after entering the service code. Endress+Hauser...

  • Page 140: Expert → Diagnostics → Simulation

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.9.6 Expert → Diagnostics → Simulation Assign simulation process variable (2328) Write access Maintenance Navigation Expert → Diagnostics → Simulation → Assign proc. var. Description Use this function to select a process variable for the simulation process that is activated.

  • Page 141: Expert → Diagnostics → Device Check

    Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Auswahl • Off • On Werkseinstellung Off (i.e. no simulation) Switch status (0463) Navigation Expert → Diagnostics → Simulation → Switch status Prerequisite Only visible for Switch output simulation = On. Description Use this parameter to define the switch status for the simulation.
  • Page 142 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Selection • No No device check is performed. • Yes A device check is performed. If the error S941 "Echo lost" is present, a device check is not possible. First you have to eliminte the cause of this error.
  • Page 143 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Display • Check not done • Check not ok Check the mounting position of the device and the dielectric constant of the medium. • Check ok Area of incoupling (1186) Write access Read-only parameter Navigation Expert →...

  • Page 144: Expert → Diagnostics → Advanced Diagnostics 1/2

    The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus 3.9.8 Expert → Diagnostics → Advanced diagnostics 1/2 Basic principles The Advanced Diagnostics offers additional options to monitor the process. The device contains two Advanced Diagnostics Blocks which can be used separately or in combination.
  • Page 145 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Application example: Foam detection Preconditions • The process runs at a fixed level (in the example: 80 %) • If foam occurs during the operation, the vessel should automatically be sprinkled with water from the top or an antifoam agent should be added to dissolve the foam.
  • Page 146 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Step 3: Configuration of the foam detection. Configure Advanced Diagnostics 2 as follows: • Assign diagnostic signal 2 = Relative echo amplitude • Calculation type 2 = Mean • Sample time 2 = 60 s •...
  • Page 147 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu A0019641  22 Configuration of the Advanced Diagnostics for foam detection Level Amplitude Advanced diagnostics 1: Monitoring the level 1.1 "Assign diagnostic signal 1" = "Level linearized" 1.2 "Check mode 1" = "In range"...
  • Page 148 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Overview of the parameters Parameter Description Assign diagnotic signal 1/2 (→  149) Link AD 1/2 to (→  149) Linking logic AD 1/2 (→  149) Sample time 1/2 (→  150) Calculation type 1/2 (→...
  • Page 149 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu The parameters Assign diagnostic signal 1/2 (11179) Navigation Expert → Diagnostics → Advanced diagnostics → Assign diagnostic signal 1/2 Write access Maintenance Descriptions Assigns a measuring variable, which is needed for diagnostic purposes, to the Advanced Diagnostics Block.
  • Page 150 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Options • AND • OR Factory setting Sample time 1/2 (11187) Navigation Expert → Diagnostics → Advanced diagnostics → Sample time 1/2 Write access Maintenance Prerequisite Only visible if a measuring variable has been assigned to the Advanced Diagnostics Block via the Assign diagnostic signal 1/2 parameter.
  • Page 151 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Navigation Expert → Diagnostics → Advanced diagnostics → Check mode 1/2 Write access Maintenance Prerequisite Only visible if a measuring variable has been assigned to the Advanced Diagnostics Block via the Assign diagnostic signal 1/2 parameter.
  • Page 152 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Descriptions Defines the upper limit for the selected check mode. Options Depending on the selected Calculation type and the measuring variable selected in Assign diagnostic signal. Factory setting Depending on the selected Calculation type and the measuring variable selected in Assign diagnostic signal.
  • Page 153 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Maximum value 1/2 (11183) Navigation Expert → Diagnostics → Advanced diagnostics → Maximum value 1/2 Write access Read-only parameter Prerequisite Only visible if a measuring variable has been assigned to the Advanced Diagnostics Block via the Assign diagnostic signal 1/2 parameter.
  • Page 154 The "Expert" menu Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus Navigation Expert → Diagnostics → Advanced diagnostics → Assign status signal to AD event Write access Maintenance Prerequisite Only visible if a measuring variable has been assigned to the Advanced Diagnostics Block via the Assign diagnostic signal 1/2 parameter.
  • Page 155 Micropilot FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/FMR57 FOUNDATION Fieldbus The "Expert" menu Factory setting 10 s Endress+Hauser...
