Summary of Contents for Endress+Hauser FMR54

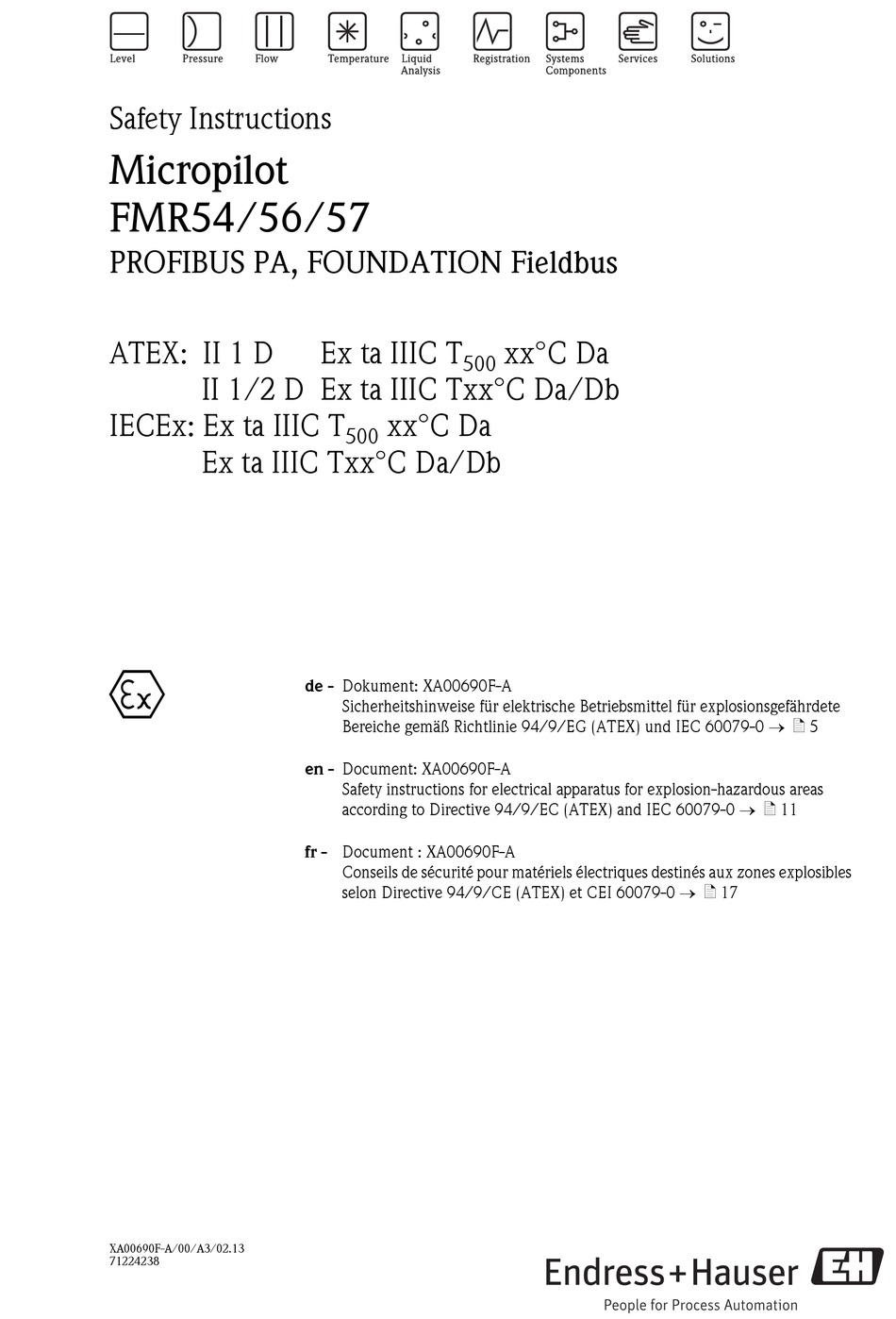

Page 1
Safety Instructions Micropilot FMR54/56/57 PROFIBUS PA, FOUNDATION Fieldbus ATEX: II 1 D Ex ta IIIC T xx°C Da II 1/2 D Ex ta IIIC Txx°C Da/Db IECEx: Ex ta IIIC T xx°C Da Ex ta IIIC Txx°C Da/Db de - Dokument: XA00690F-A Sicherheitshinweise für elektrische Betriebsmittel für explosionsgefährdete...
Page 2
Amennyiben nem tudja elolvasni ezt az útmutatót, akkor Pojasnilo glede potrdila o skladnosti EU megrendelheti az Ön anyanyelvére lefordítva is. Proizvajalec Endress+Hauser s to izjavo o skladnosti in navedbo oznake CE izjavlja, da je ta izdelek skladen s predpisanimi evropskimi smernicami. EK-megfelelőségi nyilatkozat Upoštevane smernice, standardi in dokumenti so navedeni v izjavi o skladnosti.
Es gelten die zum Gerät gehörigen Betriebsanleitungen. Ergänzende Dokumentation Explosionsschutz-Broschüre: CP00021Z/11 Die Explosionsschutz-Broschüre ist verfügbar: • Im Download-Bereich der Endress+Hauser Internetseite: www.endress.com Download Erweitert Dokumentationscode: CP00021Z • Bei Geräten mit Dokumentation auf CD: Auf der CD Herstellerbescheinigungen EG-Konformitätserklärung ...
Page 7
Micropilot FMR54/56/57 XA00690F-A Gerätetyp: FMR54, FMR56, FMR57 Grundspezifikationen Position Gewählte Option Beschreibung 1, 2 Zulassung FMR5x BE * II 1 D Ex ta IIIC T xx°C Da BF * II 1/2 D Ex ta IIIC Txx°C Da/Db IE * Ex ta IIIC T xx°C Da...
Messumformer in Abhängigkeit des Einsatzbereiches und der Temperaturklasse den Temperaturtabellen entnehmen. • Veränderungen am Gerät können den Explosionsschutz beeinträchtigen und müssen von Endress+Hauser autorisiertem Personal durchgeführt werden. • Nach Montage und Anschluss der Antenne: Gehäuse muss mindestens die Schutzart IP65 nach EN 60529 aufweisen.
1,88 W 760 Innenwiderstand R 205 177 150 122 95 67 39 12 0 Hinweis! Für eine höhere oder niedrigere innere Leistungsaufnahme können die Werte bei Endress+Hauser erfragt werden. Endress+Hauser...
Page 10
= 250 V AC = 250 V AC Elektronikraum Ex i Service Interface (CDI) Unter Berücksichtigung der folgenden Werte ist das Gerät an das zugelassene Endress+Hauser Servicetool FXA291 oder an ein vergleichbares Interface anschließbar: Service-Schnittstelle = 7,3 V wirksame innere Induktivität L = vernachlässigbar...
Page 11
Micropilot FMR54/56/57 XA00690F-A Micropilot FMR54/56/57 PROFIBUS PA, FOUNDATION Fieldbus Table of Contents Associated documentation ..........
Explosion-protection brochure: documentation CP00021Z/11 The Explosion-protection brochure is available: • In the download area of the Endress+Hauser website: www.endress.com Download Advanced Documentation Code: CP00021Z • On the CD for devices with CD-based documentation Manufacturer's certificates EC Declaration of Conformity ...
Page 13
Micropilot FMR54/56/57 XA00690F-A Device type: FMR54, FMR56, FMR57 Basic specifications Position Selected option Description 1, 2 Approval FMR5x BE * II 1 D Ex ta IIIC T xx°C Da BF * II 1/2 D Ex ta IIIC Txx°C Da/Db IE * Ex ta IIIC T xx°C Da...
• Modifications to the device can affect the explosion protection and must be carried out by staff authorized to perform such work by Endress+Hauser. • After mounting and connecting the antenna, ingress protection of the housing must be at least IP65 in accordance with EN 60529.
– Screw in the cover all the way. – Tighten the securing clamp on the cover. Intrinsic safety • The device can be connected to the Endress+Hauser FXA291 service tool: refer to the Operating Instructions. ä 23 Temperature tables...
Page 16
= 250 V AC = 250 V AC Electronics compartment Ex i Service interface (CDI) Taking the following values into consideration, the device can be connected to the certified Endress+Hauser FXA291 service tool or a similar interface: Service interface = 7.3 V...
CP00021Z/11 La brochure sur la protection contre les explosions est disponible : • Dans la zone de téléchargement sur le site Internet Endress+Hauser : www.endress.com Documentations Avancée Référence de la documentation : CP00021Z • Pour les appareils avec documentation sur CD : Sur le CD Certificats constructeur Déclaration CE de conformité...
Page 19
Micropilot FMR54/56/57 XA00690F-A Type d'appareil : FMR54, FMR56, FMR57 Spécifications de base Position Option sélectionnée Description 1, 2 Agrément FMR5x BE * II 1 D Ex ta IIIC T xx°C Da BF * II 1/2 D Ex ta IIIC Txx°C Da/Db...
• La modification de l'appareil peut altérer la protection contre les risques d'explosion et ne peut, par conséquent, être réalisée que par du personnel Endress+Hauser habilité. • Après le montage et le raccordement de l’antenne : Le boîtier doit avoir la protection minimum IP65 selon EN 60529.
– Visser le couvercle jusqu'à la butée. – Serrer la griffe de sécurité du couvercle. Sécurité intrinsèque • L'appareil peut être raccordé au service tool FXA291 Endress+Hauser ; tenir compte des instructions du manuel de mise en service. ä 23 Tableaux des températures...
Page 22
= 250 V AC Compartiment de l'électronique Ex i Interface service (CDI) En tenant compte des valeurs suivantes, l'appareil peut être raccordé au service tool FXA291 Endress+Hauser agréé ou à une interface comparable : Interface de service = 7,3 V inductance interne L = négligeable...
Page 23
Micropilot FMR54/56/57 XA00690F-A Temperaturtabellen / Temperature tables / Tableaux des températures Inhaltsverzeichnis / Table of Contents / Sommaire Allgemeine Hinweise / General notes / Généralités ........
Page 24
XA00690F-A Micropilot FMR54/56/57 Allgemeine Hinweise Auswahltabelle Position 1, 2 (Zulassung) Position 5 (Gehäuse) ATEX: II 1 D Ex ta IIIC T xx°C Da GT18 Zweikammer, 316L ATEX: II 1/2 D Ex ta IIIC Txx°C Da/Db GT20 Zweikammer, Alu beschichtet IECEx: Ex ta IIIC T xx°C Da...
Page 25
Micropilot FMR54/56/57 XA00690F-A Tabellen / Tables / Tableaux Antenne und Elektronikgehäuse / Antenna and electronics housing / Antenne et boîtier de l'électronique: Zone 20, Zone 21 Position 5 (Gehäuse / Housing / Boîtier) = B, C FMR5x Position 3 (Hilfsenergie; Ausgang / Power Supply; Output / Alimentation; Sortie) = E, G (TRC [27]) 1 Kanal benutzt / 1 channel used / 1 voie utilisée...
