Endress+Hauser Micropilot FMR51 Special Documentation
Horn protection for 80 mm 3" and 100 mm 4" horn antenna
Hide thumbs
Also See for Micropilot FMR51:
- Operating instructions manual (198 pages) ,
- Technical information (114 pages) ,
- Brief operating instructions (48 pages)
Related Manuals for Endress+Hauser Micropilot FMR51
Summary of Contents for Endress+Hauser Micropilot FMR51

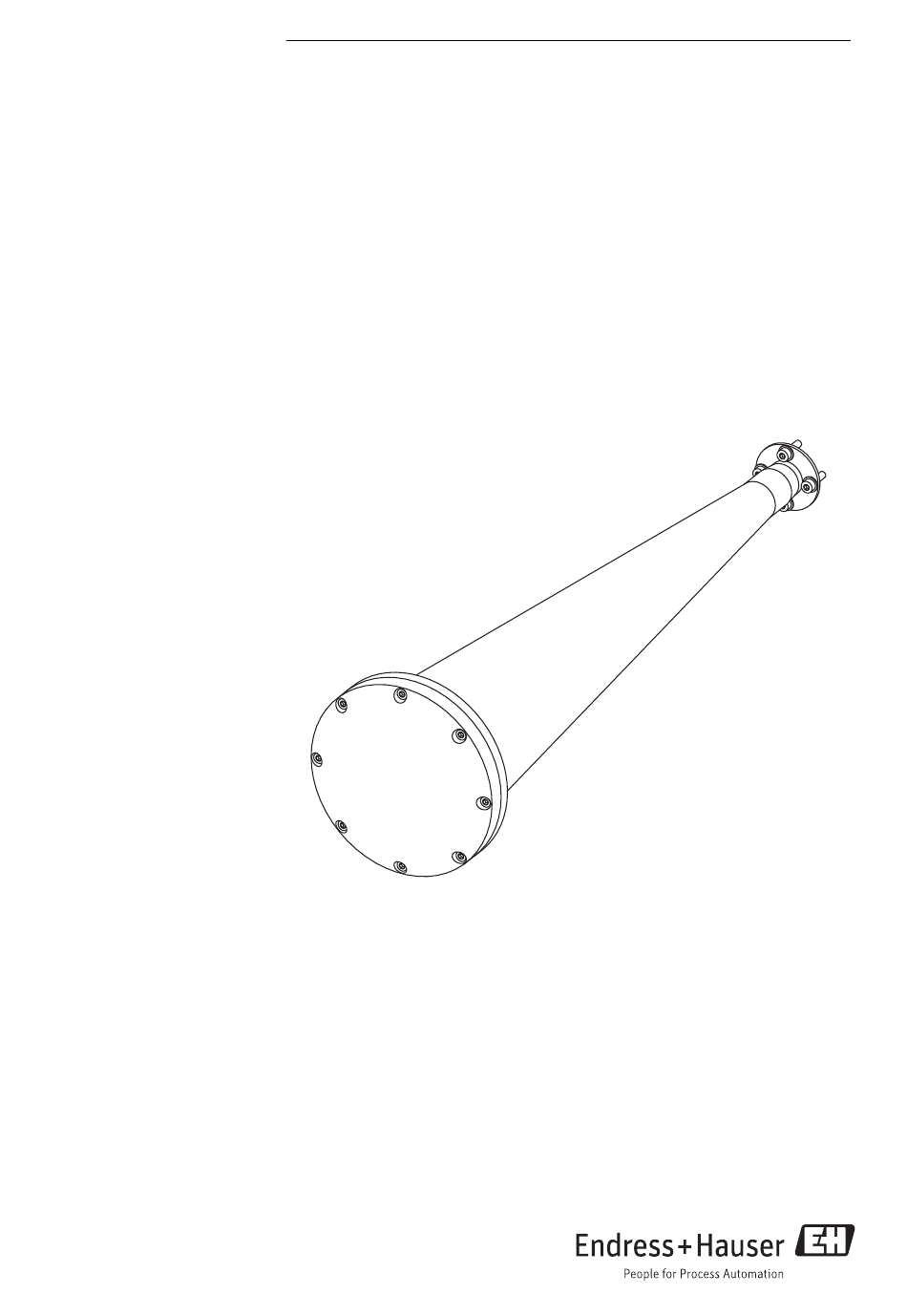

- Page 1 Products Solutions Services SD01084F/00/EN/01.12 71212877 Special documentation Micropilot FMR51, FMR57 Horn protection For 80 mm (3") and 100 mm (4") horn antenna...
-
Page 2: Safety Instructions
Safety instructions Micropilot FMR51, FMR57 Safety instructions Designated use The horn protection is a retrofitting part for Micropilot FMR51 and FMR57 level measurement devices. Installation and commissioning 1.2.1 Authorised personnel All operations described in this mounting instructions manual must be carried out only by trained specialist personnel authorised by the operator. -
Page 3: Product Description
• Documentation: this mounting instructions Principle of operation The horn protection is suitable for Micropilot FMR51/FMR57 level measurement devices in applications with strong buildup and condensation inside the horn antenna. Thanks to seals on the horn protection and antenna socket, moisture penetration can be prevented. -
Page 4: Mounting Preparations
Mounting Micropilot FMR51, FMR57 Mounting Mounting preparations The following tools are necessary for mounting: Hexagon spanner size 3 Mounting steps A0019145 1 Mounting horn protection Flat seal Lock washer Screws, antenna socket Holding ring Contact ring O-ring seal Horn protection Screws, horn protection 1. - Page 5 Micropilot FMR51, FMR57 Appendix Appendix Technical data 4.1.1 Materials Horn protection PTFE Screws 316L Holding ring 316L Contact ring 316L O-ring seal Silicone Flat seal PTFE 4.1.2 Process conditions Vessel pressure max. 0.5 bar (7.252 psi) Process temperature max. 130 °C (266 °F) Dimensions 4.2.1...
-
Page 6: Ordering Information
Appendix Micropilot FMR51, FMR57 4.2.2 Horn protection for horn antenna 100 mm (4 in) ³ DN150 450 (17.72) mm (in) A0019144 3 Horn protection for horn antenna 100 mm (4") Ordering information Antenna size Order code of horn protection 80mm / 3"... - Page 8 *71212877* 71212877 www.addresses.endress.com...
