Service Menu - Honeywell ESSER Fire Alarm Control Panel Compact Commissioning Instruction

main menu
1 information
2 overview
3 operate
4 service
5 revision
3

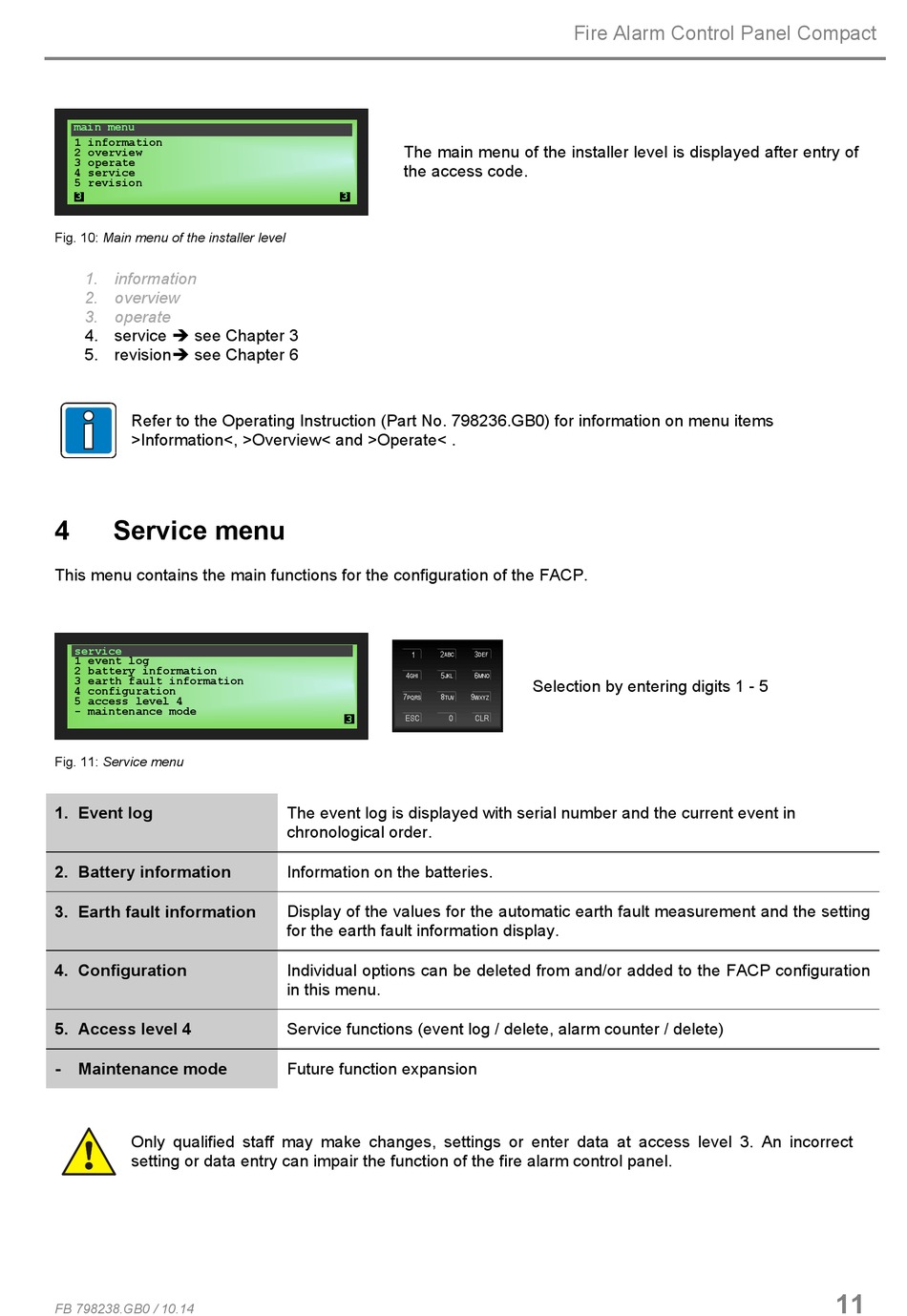

Fig. 10: Main menu of the installer level
1. information
2. overview
3. operate
4. service  see Chapter 3
5. revision  see Chapter 6
Refer to the Operating Instruction (Part No. 798236.GB0) for information on menu items
>Information<, >Overview< and >Operate< .
4

Service menu

This menu contains the main functions for the configuration of the FACP.
service
1 event log
2 battery information
3 earth fault information
4 configuration
5 access level 4
- maintenance mode
Fig. 11: Service menu
1. Event log
2. Battery information
3. Earth fault information
4. Configuration
5. Access level 4
- Maintenance mode
Only qualified staff may make changes, settings or enter data at access level 3. An incorrect
setting or data entry can impair the function of the fire alarm control panel.
FB 798238.GB0 / 10.14
The main menu of the installer level is displayed after entry of
the access code.
3
1 2
ABC
4 5
GHI JKL
7 8
PQRS TUV
3 ESC 0
The event log is displayed with serial number and the current event in
chronological order.
Information on the batteries.
Display of the values for the automatic earth fault measurement and the setting
for the earth fault information display.
Individual options can be deleted from and/or added to the FACP configuration
in this menu.
Service functions (event log / delete, alarm counter / delete)
Future function expansion
Fire Alarm Control Panel Compact
3
DEF
6
MNO
Selection by entering digits 1 - 5
