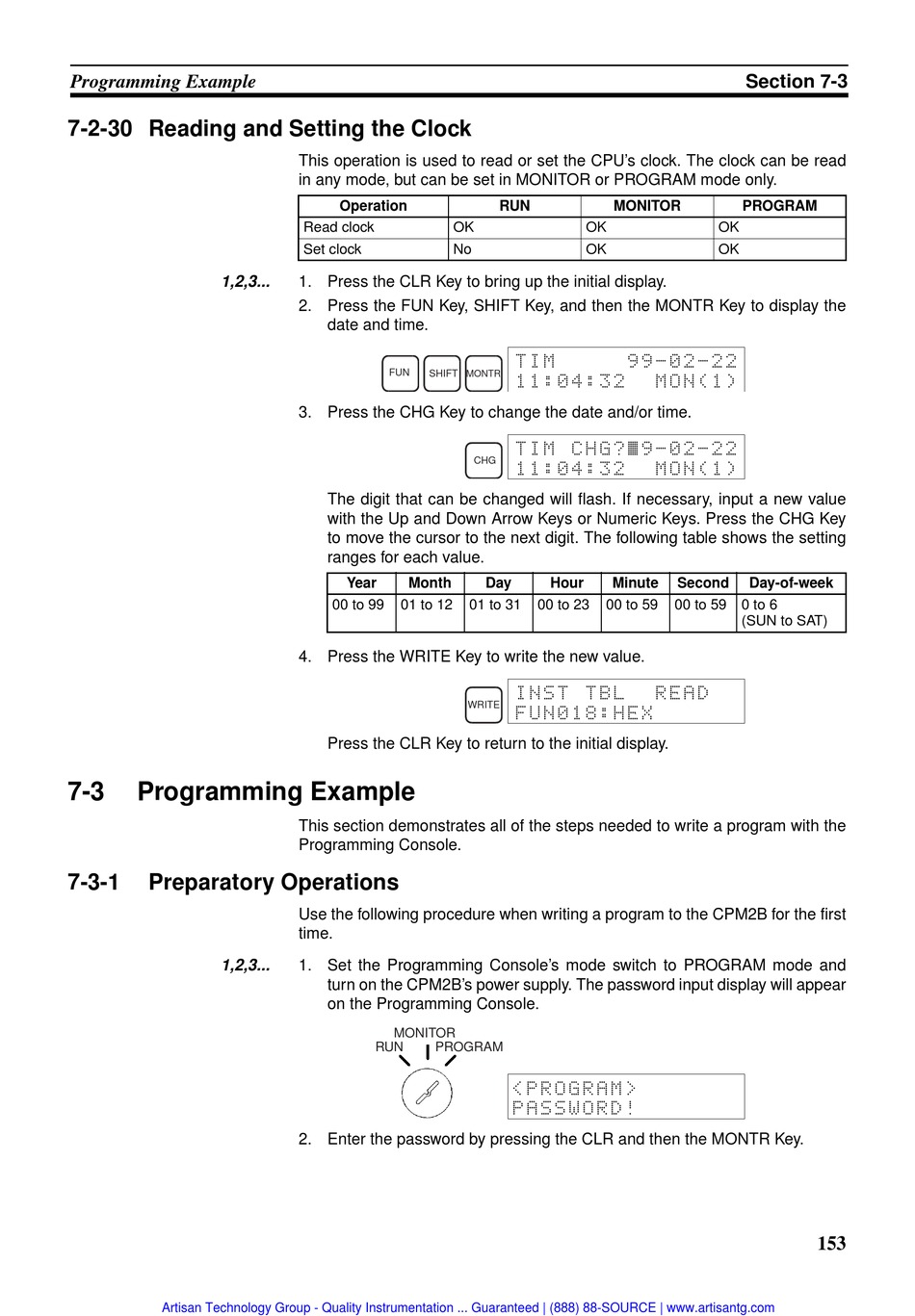

7-2-30 Reading and Setting the Clock

1,2,3...
7-3

Programming Example

7-3-1

Preparatory Operations

1,2,3...
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
This operation is used to read or set the CPU's clock. The clock can be read
in any mode, but can be set in MONITOR or PROGRAM mode only.
Operation
Read clock OK
Set clock No
1. Press the CLR Key to bring up the initial display.
2. Press the FUN Key, SHIFT Key, and then the MONTR Key to display the
date and time.
FUN
SHIFT MONTR
3. Press the CHG Key to change the date and/or time.
The digit that can be changed will flash. If necessary, input a new value
with the Up and Down Arrow Keys or Numeric Keys. Press the CHG Key
to move the cursor to the next digit. The following table shows the setting
ranges for each value.
Year Month
00 to 99 01 to 12 01 to 31
4. Press the WRITE Key to write the new value.
WRITE
Press the CLR Key to return to the initial display.
This section demonstrates all of the steps needed to write a program with the
Programming Console.
Use the following procedure when writing a program to the CPM2B for the first
time.
1. Set the Programming Console's mode switch to PROGRAM mode and
turn on the CPM2B's power supply. The password input display will appear
on the Programming Console.
MONITOR
RUN PROGRAM
2. Enter the password by pressing the CLR and then the MONTR Key.
RUN MONITOR
OK
OK
TIM 99-02-22
11:04:32
TIM CHG?~9-02-22
CHG
11:04:32
Day Hour Minute
00 to 23 00 to 59
INST TBL
FUN018:HEX
<PROGRAM>
PASSWORD!
Section 7-3
PROGRAM
OK
OK
MON(1)
MON(1)
Second Day-of-week
00 to 59 0 to 6
(SUN to SAT)
READ
