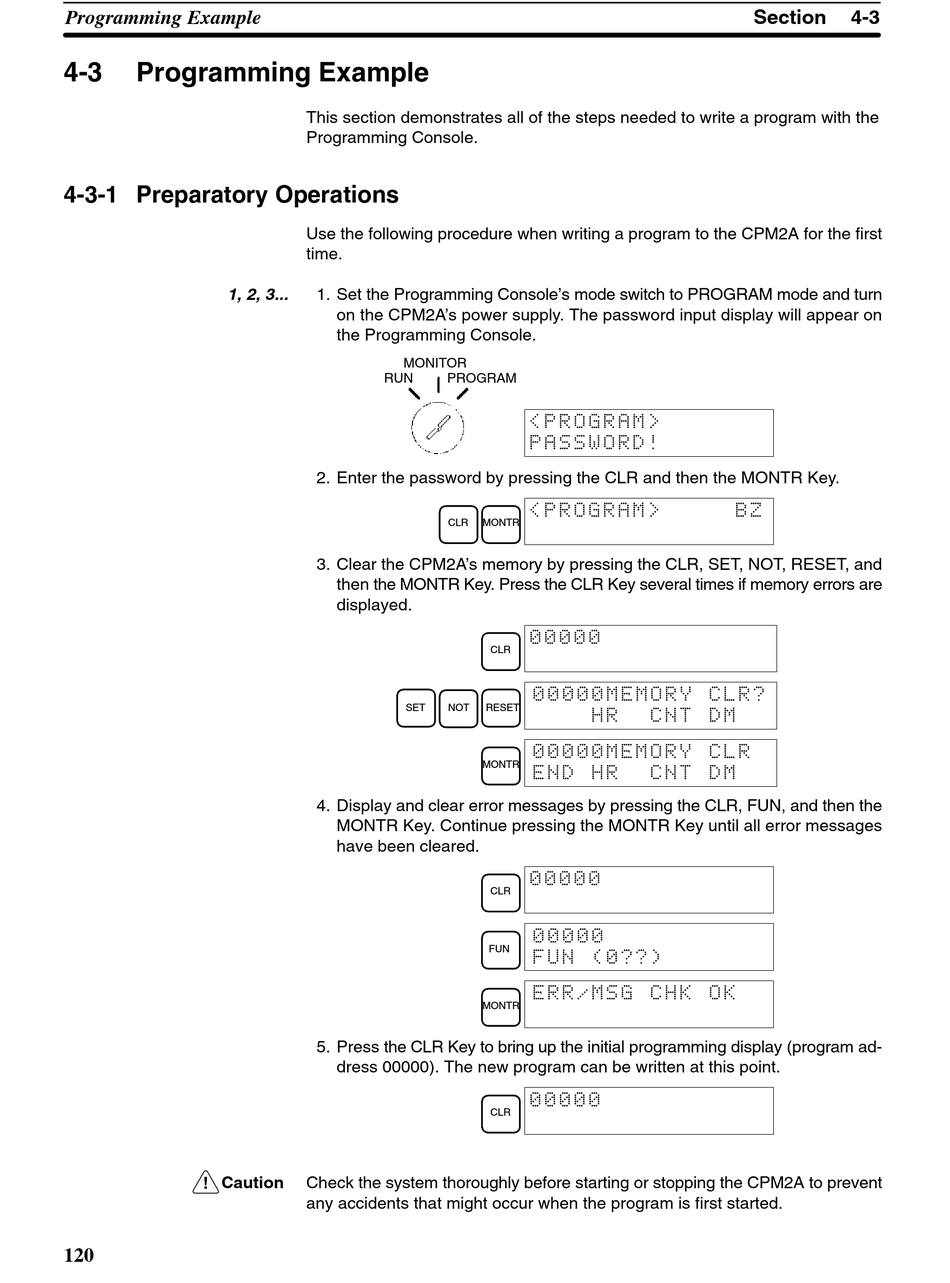

Programming Example

4-3

Programming Example

4-3-1 Preparatory Operations

1, 2, 3...
Caution
!
120
This section demonstrates all of the steps needed to write a program with the
Programming Console.
Use the following procedure when writing a program to the CPM2A for the first
time.
1. Set the Programming Console's mode switch to PROGRAM mode and turn
on the CPM2A's power supply. The password input display will appear on
the Programming Console.
MONITOR
RUN PROGRAM
2. Enter the password by pressing the CLR and then the MONTR Key.
CLR MONTR
3. Clear the CPM2A's memory by pressing the CLR, SET, NOT, RESET, and
then the MONTR Key. Press the CLR Key several times if memory errors are
displayed.
SET NOT
MONTR
4. Display and clear error messages by pressing the CLR, FUN, and then the
MONTR Key. Continue pressing the MONTR Key until all error messages
have been cleared.
MONTR
5. Press the CLR Key to bring up the initial programming display (program ad-
dress 00000). The new program can be written at this point.
Check the system thoroughly before starting or stopping the CPM2A to prevent
any accidents that might occur when the program is first started.
CLR
RESET
CLR
FUN
CLR
Section 4-3
