WPC System
USER GUIDE

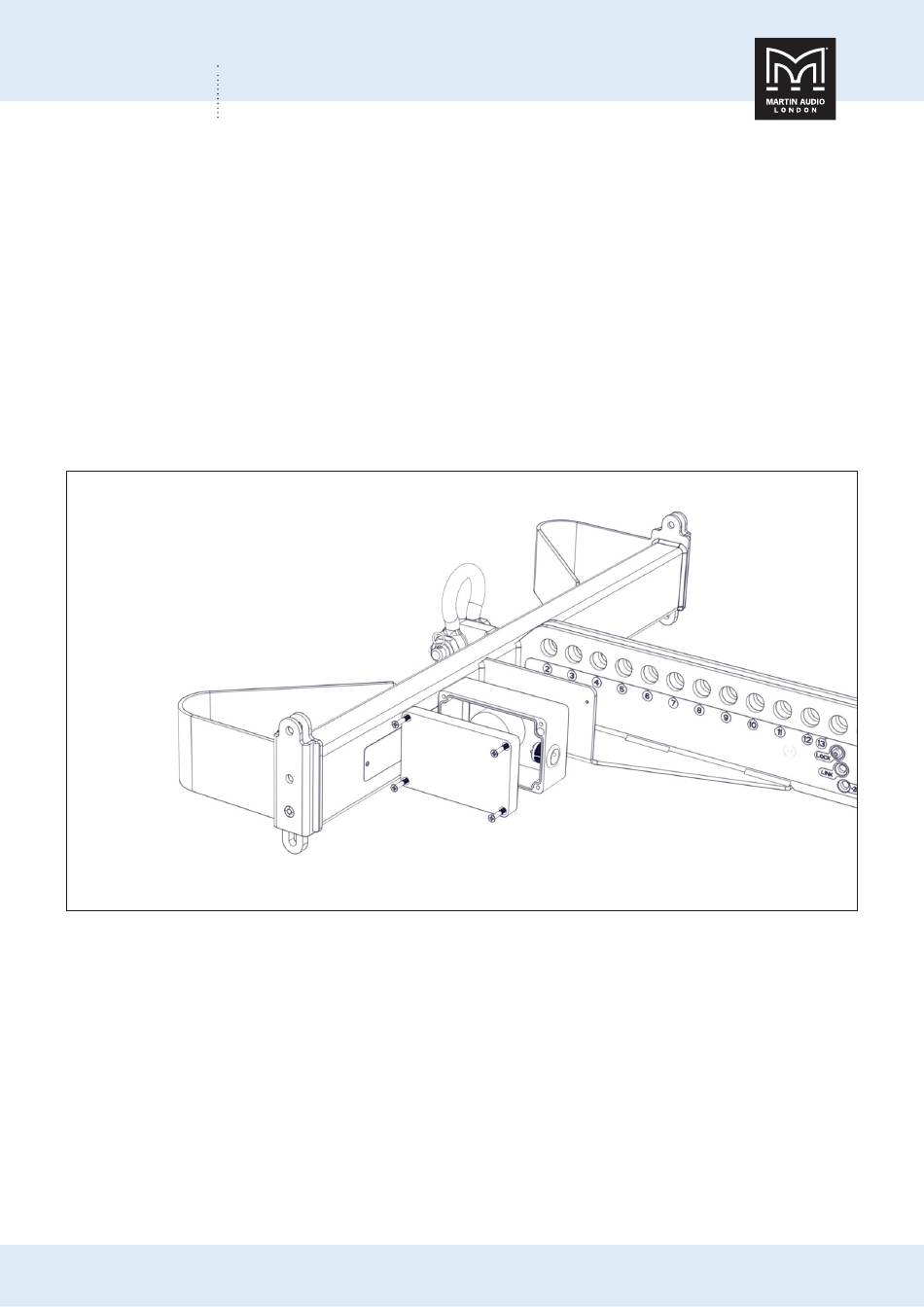

Fitting the inclinometer sensor to the Flying Grid
The WPC touring flying grid may be fitted with an inclinometer sensor which is available as an optional accessory part number
ASM20017. Once coupled with the ASM20019 inclinometer read-out display via a standard 3-pin XLR mic cable, precise
measurements of the angle of the array can be taken to ensure that the DISPLAY optimisation is as accurate as possible.
The touring frame part number WPCGRIDT has a mounting bracket with M4 threaded holes ready to accept the sensor which is
housed in a rugged weatherproof diecast aluminium enclosure. Fitting the sensor is a very quick and easy job requiring just two
tools, a 3mm Allen Key (wrench) and a PZ2 Pozidrive screwdriver.
Remove the Lid
The sensor is attached to the grid with two M4 Cap Head screws which have to be inserted through pre-drilled holes in the box.
To access these it is necessary to remove the lid of the box.
Using the PZ2 Pozidrive screwdriver, unscrew all four lid screws until the lid can be removed from the base of the box. Note that
the screws do not have to be completely removed from the lid, they can remain captive in the lid to prevent them getting lost.
WPC User Guide v1.0
Page 30
