WPC System
USER GUIDE
DISPLAY 2.3 Overview
DISPLAY 2.3 is a unique software application for Wavefront Precision systems which calculates both inter-cabinet splay angles
and the DSP parameters for optimum system performance in any given space. Unlike competitors systems which generally
use a basic geometric calculation to aim their arrays, DISPLAY uses a completely revolutionary approach using an extremely
accurate computer model of the array to analyse the system performance in a drawing of the venue to precisely calculate the
parameters for the system to get exactly the coverage you have specified. As a system designer you get to determine exactly
how you would like the system to perform in the space; the spl contour from the front to the back of your audience region, how
much spill into non-audience areas is acceptable and even specify designated "hard-avoid" areas that the system will actively
process to reduce spill to a minimum - great for producing a quiet stage or for reducing noise pollution off-site at outdoor events.
The application is very straightforward to use taking you through a series of steps in a logical order. In fact it won't allow you to
attempt to design a system in the wrong order; steps need to be completed one after the other in the correct order making it very
straightforward to design an array that will perform to its maximum potential.

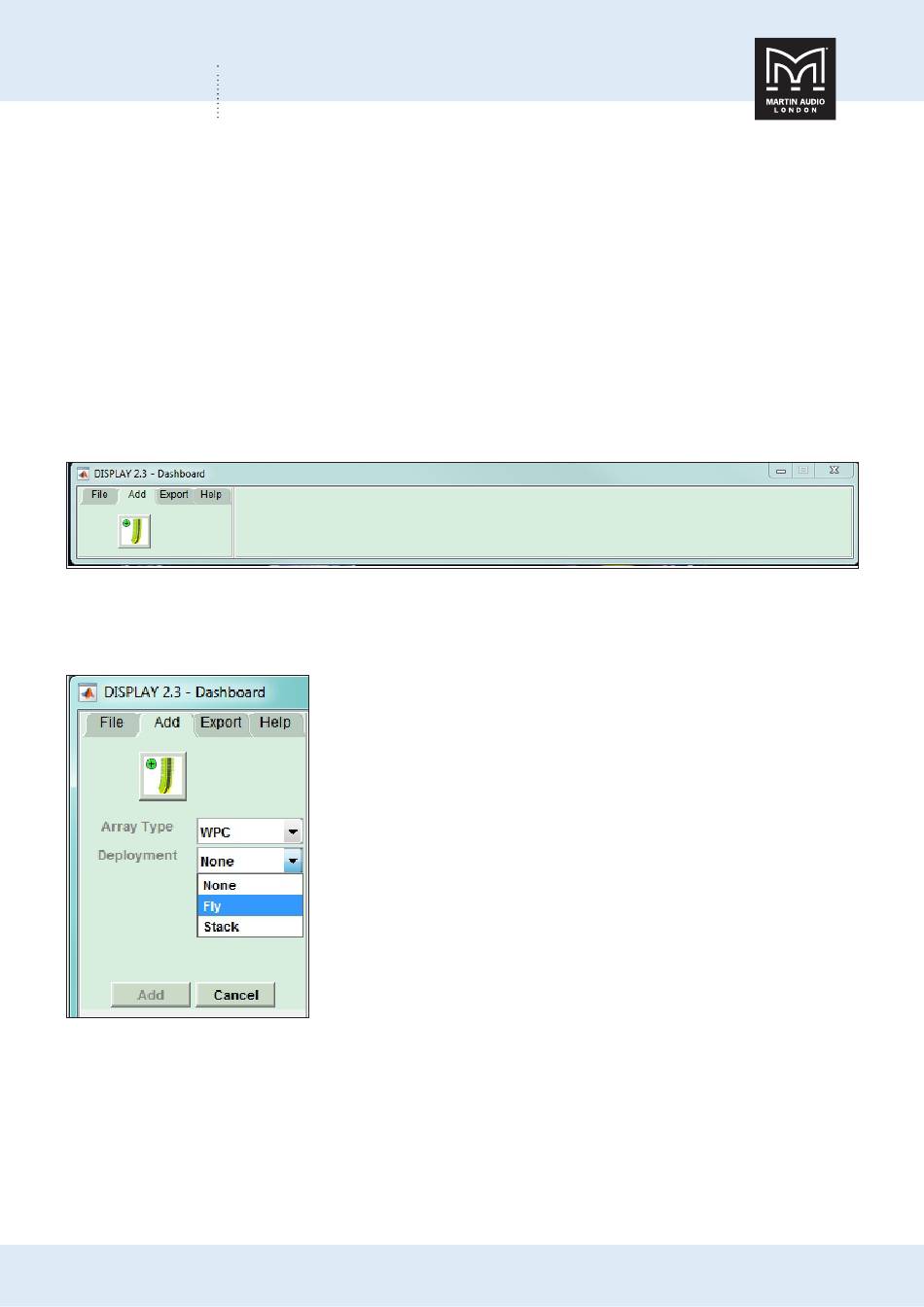

DISPLAY opens with a Dashboard at the top of the screen the initial view prompting you to specify your array which is the first
step of the design process. WPC or WPM are available along with the Multicellular family of products. You next specify how your
array will be deployed: flown, or ground stacked; specify the number of cabinets and give the array a name.
WPC User Guide v1.0
Page 11
