TI01266F/00/EN/07.20
71472453
2020-03-31
Products
Technical Information

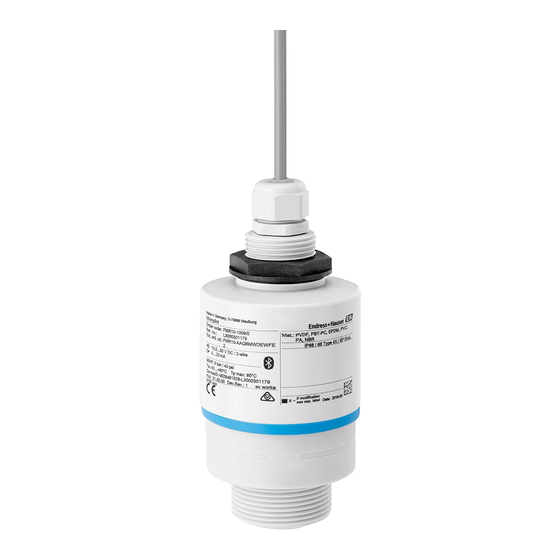

Micropilot FMR10
Free space radar
Level measurement for liquids
Application
• Ingress protection: IP66/68 / NEMA 4X/6P
• Measuring range: up to 12 m (39.37 ft)
• Process temperature: –40 to 60 °C (–40 to 140 °F)
• Process pressure: –1 to 3 bar (–14 to 43 psi)
• Accuracy: up to ± 5 mm (0.2 in)
Your benefits
• Level measurement for liquids in storage tanks, open basins, pump shafts and
canal systems
• Radar measuring device with Bluetooth® wireless technology
• Simple, safe and secure wireless remote access – ideal for installation in places
difficult to reach
• Commissioning, operation and maintenance via free iOS / Android app SmartBlue
– saves time and reduces costs
• Full PVDF body - for a long sensor lifetime
• Hermetically sealed wiring and fully potted electronics – eliminates water ingress
and allows operation under harsh environmental conditions
• Most compact radar due to unique radar chip design – fits in limited space
installations
• Best price-performance-ratio radar
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR10

Summary of Contents for Endress+Hauser Micropilot FMR10

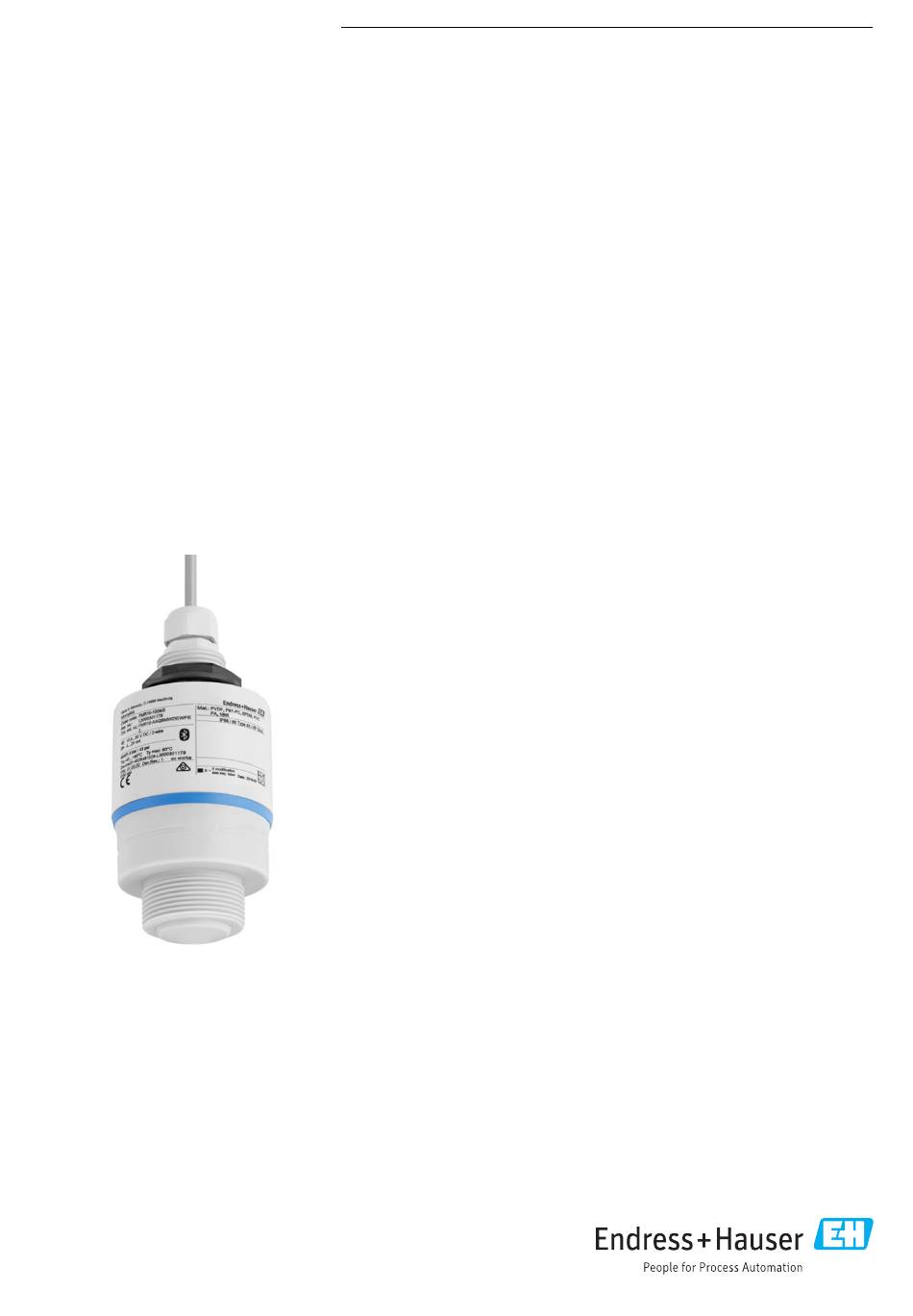

  • Page 1 Solutions Services TI01266F/00/EN/07.20 71472453 2020-03-31 Technical Information Micropilot FMR10 Free space radar Level measurement for liquids Application • Ingress protection: IP66/68 / NEMA 4X/6P • Measuring range: up to 12 m (39.37 ft) • Process temperature: –40 to 60 °C (–40 to 140 °F) •...

  • Page 2: Table Of Contents

    Micropilot FMR10 Table of contents Important document information ....3 Degree of protection ......

  • Page 3: Important Document Information

    Micropilot FMR10 Important document information Symbols used Symbols for certain types of information and graphics  Permitted Procedures, processes or actions that are permitted  Forbidden Procedures, processes or actions that are forbidden  Tip Indicates additional information Reference to documentation Reference to graphic...

  • Page 4: Terms And Abbreviations

    Micropilot FMR10 Terms and abbreviations Document type "Operating Instructions" Document type "Brief Operating Instructions" Document type "Technical Information" Document type "Safety Instructions" Nominal pressure MWP (Maximum working pressure/max. process pressure) The MWP can also be found on the nameplate. Time of Flight ε...

  • Page 5: Product Life Cycle

    Micropilot FMR10 Product life cycle Engineering • Proven radar measuring technology • Flooding detection • 2D/3D drawings • Spec Sheet Producer • Applicator Selection tool for selecting the perfect measurement solution Device not compatible with transmitters and sensors that use ultrasonic measurement technology (e.g.

  • Page 6: Measuring Principle

    Micropilot FMR10 Measuring principle The Micropilot is a "downward-looking" measuring system, which functions according to the time-of- flight (ToF) method. It measures the distance from the reference point R to the product surface. Radar pulses are emitted by an antenna, reflected off the product surface and received again by the radar system.

  • Page 7: Output

    • No agitators • No buildup • Relative dielectric constant ε > 4 Contact Endress+Hauser for lower ε values Usable measuring range The usable measuring range depends on the antenna size, the medium' s reflective properties, the installation position and any possible interference reflections.

  • Page 8: Signal On Alarm

    Micropilot FMR10 Signal on alarm Depending on the interface, failure information is displayed as follows: • Current output Alarm current: 22.5 mA (in accordance with NAMUR recommendation NE 43) • SmartBlue (app) • Status signal (as per NAMUR Recommendation NE 107) •...

  • Page 9: Electrical Connection

    The sensor' s Bluetooth® wireless technology communication can be disabled to increase the operating life of the battery. Potential equalization No special measures for potential equalization are required. Various power supply units can be ordered as an accessory from Endress+Hauser. Power consumption Maximum input power: 675 mW Current consumption •...

  • Page 10: Power Supply Failure

    The configuration remains stored in the sensor. Connecting the device A0028907  4 FMR10 block diagram Micropilot FMR10, 4 to 20 mA Power supply Cable specification Unshielded cable, wire cross-section 0.75 mm • Resistant to UV and weather conditions as per ISO 4892-2 •...

  • Page 11: Measured Value Resolution

    Micropilot FMR10 Differing values in near-range applications 20 (0.79) 10 (0.39) 5 (0.2) -5 (-0.2) -10 (-0.39) -20 (-0.79) 0.1 (0.33) 0.5 (1.67) (ft) A0033273  5 Maximum measured error in near-range applications ∆ Maximum measured error Reference point of the distance measurement...

  • Page 12: Installation

    Micropilot FMR10 Installation Installation conditions Installation types A0028892  6 Wall, ceiling or nozzle installation Wall or ceiling mount, adjustable Mounted at front thread Mounted at rear thread Ceiling installation with counter nut (included in delivery) Horizontal installation in confined spaces (sewer shaft)
  • Page 13 Micropilot FMR10 Mounting outside the nozzle • D: min. 40 mm (1.5 in) • L: max. D × 1.5 Mounting inside the nozzle • D: min. 80 mm (3 in) • L: max. 140 mm (5.5 in) + D × 1.5...
  • Page 14 Micropilot FMR10 ° ° ° A0028927  9 Device alignment for installation on a vessel Beam angle α W = 2 × D × tan α A0033201  10 Relationship between beam angle α, distance D and beamwidth diameter W The beam angle is defined as the angle α...
  • Page 15 Micropilot FMR10 Measurement in plastic vessels A0029540  11 Measurement in a plastic vessel with a metallic, interfering installation outside of the vessel Pipe, tubing Ladder Grate, railing If the outer wall of the vessel is made of a non-conductive material (e.g. GFR), microwaves can also be reflected by interfering installations outside of the vessel.
  • Page 16 Micropilot FMR10 Use of flooding protection tube The flooding protection tube ensures the sensor measures the maximum level even if it is completely flooded. In free-field installations and/or in applications where there is a risk of flooding, the flooding protection tube must be used.
  • Page 17 Micropilot FMR10 NOTICE There is no conductive connection between the mounting bracket and transmitter housing. Electrostatic charging possible. ‣ Integrate the mounting bracket in the local potential equalization system. Cantilever installation, with pivot The cantilever, wall bracket and mounting frame are available as accessories.

  • Page 18: Environment

    Micropilot FMR10 Environment Ambient temperature range Measuring device: –40 to +60 °C (–40 to +140 °F) For outdoor operation in strong sunlight: • Mount the device in the shade. • Avoid direct sunlight, particularly in warm climatic regions. • Use a weather protection cover.

  • Page 19: Process

    For dielectric constants (DC values) of many media commonly used in various industries refer • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) Mechanical construction Dimensions 40 mm (1.5 in) antenna ø75 (2.95)

  • Page 20: Weight

    Micropilot FMR10 40 mm (1.5 in) antenna with flooding protection tube 75 (2.95) 89 (3.5) A0030266  20 Dimensions of 40 mm (1.5 in) antenna mounted with flooding protection tube, engineering unit: mm (in) The flooding protection tube, metalized PBT-PC, can be ordered together with the device via the product structure "Accessory enclosed".

  • Page 21: Materials

    Micropilot FMR10 Materials A0028415  22 Overview of materials Sensor housing; PVDF Seal; EPDM Process connection, rear side; PVDF Cable gland; PA Conduit adapter; CuZn nickel-plated O-ring; EPDM Counter nut; PA6.6 Design ring; PBT-PC Process connection, front side; PVDF Connecting cable Standard length: 10 m (33 ft) If longer cable lengths are required, an extension cable must be used.

  • Page 22: Certificates And Approvals

    CE mark in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system complies with the substance restrictions of the Restriction on Hazardous RoHS Substances Directive 2011/65/EU (RoHS 2).

  • Page 23: Fcc / Industry Canada

    Micropilot FMR10 Astronomy stations Country Name of the station Latitude Longitude Germany Effelsberg 50°31' 3 2" North 06°53' 0 0" East Finland Metsähovi 60°13' 0 4" North 24°23' 3 7" East Tuorla 60°24' 5 6" North 24°26' 3 1" East...

  • Page 24: Japanese Radio Law And Japanese Telecommunications Business Law Compliance

    Micropilot FMR10 [Any] Changes or modifications made to this equipment not expressly approved by Endress+Hauser may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 25: Other Standards And Guidelines

    • Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser...

  • Page 26: Accessories

    Micropilot FMR10 Accessories Device-specific accessories Protective cover Ø 98 (3.86) A0028181  24 Dimensions of protective cover, engineering unit: mm (in) Material PVDF Order number 52025686 The sensor is not completely covered. Securing nut G 1-1/2" Suitable for devices with G 1-1/2" and MNPT 1-1/2" process connection.
  • Page 27 Micropilot FMR10 Flooding protection tube 40 mm (1.5 in) Suitable for use with devices with a 40 mm (1.5 in) antenna and G 1-1/2" process connection on front. The flooding protection tube can be ordered together with the device via the product structure "Accessory enclosed".
  • Page 28 Micropilot FMR10 Mounting bracket, adjustable 92.5 (3.64) 70 (2.76) 12 (0.47) 9 (0.35) A0028861  27 Dimensions of mounting bracket, engineering unit: mm (in) Consists of: • 1 × mounting bracket, 316L (1.4404) • 1 × angle bracket, 316L (1.4404) •...

  • Page 29: Fax50 Screw-In Flange

    Micropilot FMR10 FAX50 screw-in flange The FAX50 screw-in flange is a universal flange which can be used for three standards (DIN - ASME - JIS) owing to its min./max. dimensions. A0029185  28 Dimensions of the UNI flange FAX50 Bore diameter...

  • Page 30: Angle Bracket For Wall Mounting

    Micropilot FMR10 Angle bracket for wall 400 (15.7) mounting 120 (4.72) ø16 (0.6) 3 (0.12) A0019346  29 Dimensions of angle bracket. Unit of measurement mm (in) Sensor connection in accordance with product structure "Process connection on front" Weight 3.4 kg (7.5 lb) Material 316L (1.4404)

  • Page 31: Cantilever With Pivot

    Micropilot FMR10 Cantilever with pivot Installation type sensor process connection rear side A0028885  30 Installation type sensor process connection rear side Installation with cantilever and wall bracket Installation with cantilever and mounting frame Cantilever Wall bracket Mounting frame Cantilever (short) with pivot, sensor process connection on rear 585 (23) 35 (1.4)
  • Page 32 Micropilot FMR10 Cantilever (long) with pivot, sensor process connection on rear 1085 (42.7) 35 (1.4) 300 (11.8) 75 (2.9) 75 (2.9) 100 (3.9) 750 (29.5) 35 (1.4) A0037807  32 Dimensions of cantilever (long) with pivot for sensor process connection on rear. Unit of...
  • Page 33 Micropilot FMR10 Cantilever (short) with pivot, G 1-½" sensor process connection on front 585 (23) 35 (1.4) 200 (7.87) 75 (2.9) 75 (2.9) 100 (3.9) 250 (9.84) 35 (1.4) A0037802  34 Dimensions of cantilever (short) with pivot for G 1-½" sensor process connection on front. Unit of...
  • Page 34 Micropilot FMR10 Weight: 4.4 kg (9.7 lb) Material 316L (1.4404) Order number 571452319 • 50 mm (2.17 in) openings for all G 1-½" (MNPT 1-½") connections on front • 22 mm (0.87 in) opening can be used for an additional sensor •...
  • Page 35 Micropilot FMR10 Mounting frame (long) for cantilever with pivot 3.2 (0.13) 60 (2.36) ø33.7 (1.3) 4 (0.16) 20 (0.8) 55 (2.17) 109 (4.29) (3.94) 130 (5.12) 150 (5.91) A0037800  37 Dimensions of mounting frame (long). Unit of measurement mm (in) Weight: 4.9 kg (10.08 lb)

  • Page 36: Ceiling Mounting Bracket

    Micropilot FMR10 Ceiling mounting bracket ø5.6 ø35 A0028891  39 Dimensions of ceiling mounting bracket. Unit of measurement mm (in) Material 316L (1.4404) Order number 71093130 Endress+Hauser...
  • Page 37 Micropilot FMR10 Pivoted mounting bracket for The pivotable mounting bracket is used to install the device in a manhole over a sewer channel. sewer channel 100 (3.94) 6.8 (0.27) 177 (6.97) 358 (14.1) A0038143  40 Dimensions of pivotable mounting bracket. Unit of measurement mm (in) Material 316L (1.4404)

  • Page 38: Horizontal Mounting Bracket For Sewer Shafts

    Micropilot FMR10 Horizontal mounting bracket The horizontal mounting bracket for sewer shafts is used to install the device in confined spaces. for sewer shafts 280 (11) Ø34 (1.34) 9 (0.35) A0038142  41 Dimensions of horizontal mounting bracket for sewer shafts. Unit of measurement mm (in) Material 316L (1.4404)

  • Page 39: Service-Specific Accessories

    All the relevant device information, such as the device status, spare parts and device-specific documentation, is available for every device over the entire life cycle. The application already contains the data of your Endress+Hauser device. Endress+Hauser also takes care of maintaining and updating the data records.

  • Page 40: Documentation

    Android, Google Play and the Google Play logo are trademarks of Google Inc. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Endress+Hauser...
  • Page 44 *71472453* 71472453 www.addresses.endress.com...
