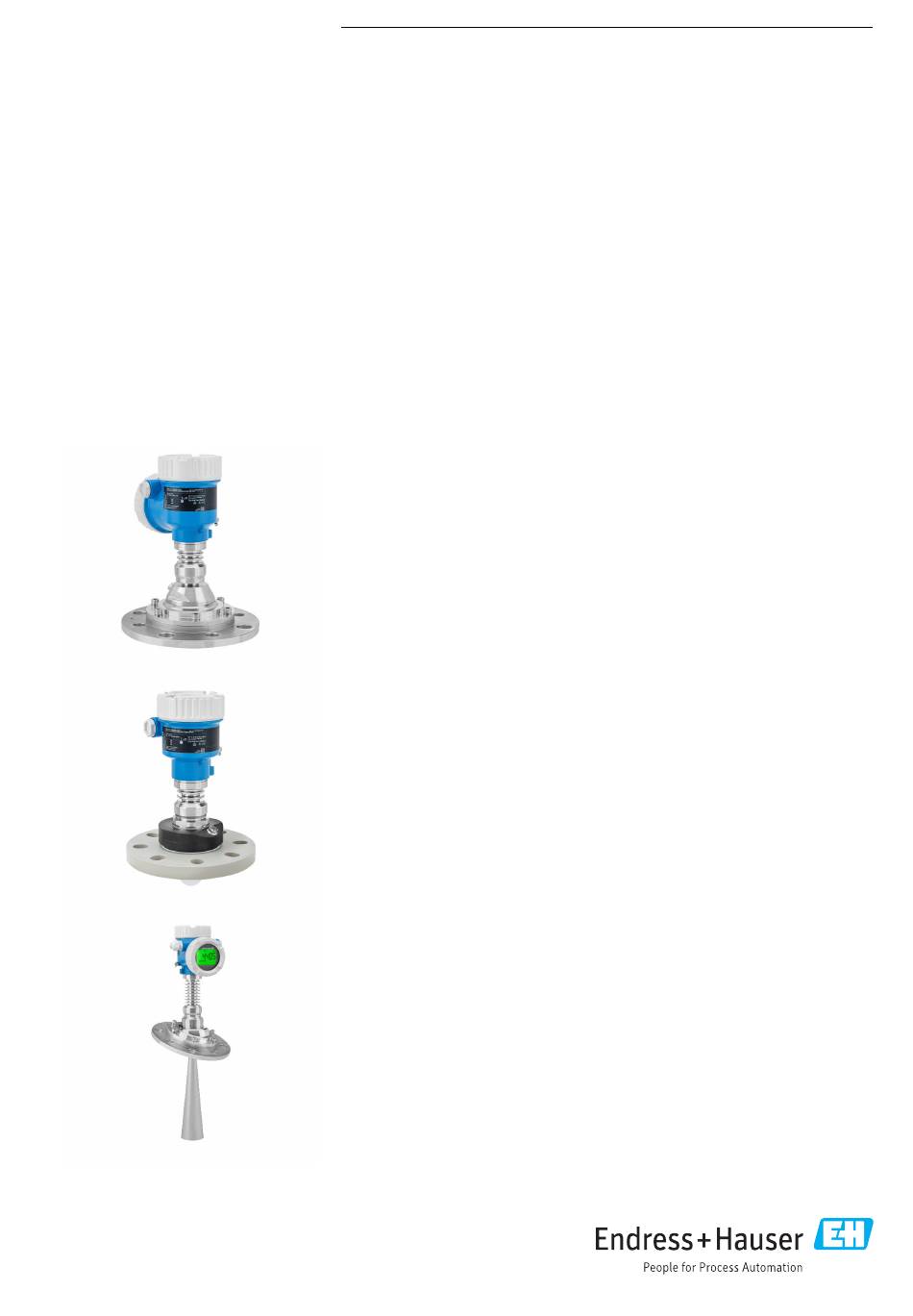

TI01702F/00/EN/01.23-00
71610085
2023-01-02
Products
Technical Information

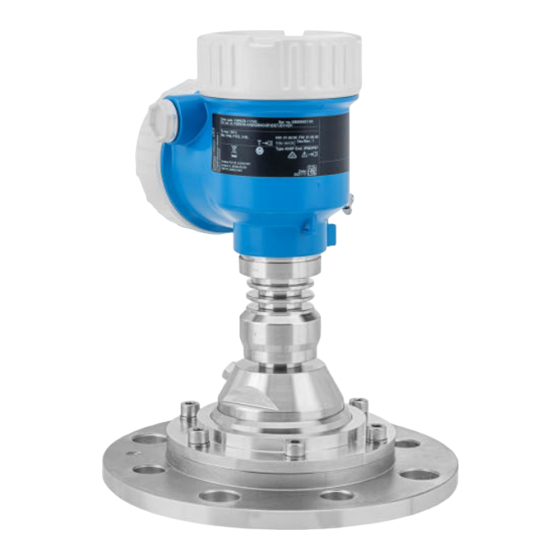

Micropilot FMR67B
PROFINET with Ethernet-APL
Free space radar
Level measurement in bulk solids
Application
• Continuous, non-contact level measurement of powdered to granular bulk solids
• Process connections: Flanges with purge air and alignment unit
• Maximum measuring range: 125 m (410 ft)
• Temperature: –40 to +450 °C (–40 to +842 °F)
• Pressure: –1 to +160 bar (–14.5 to +2 321 psi)
• Accuracy: ±3 mm (±0.12 in)
Your benefits
• PTFE lens antenna or ceramic sealed high-temperature horn antenna
• Reliable measurement thanks to strong signal focusing, even with multiple
internal fixtures
• Easy, guided commissioning with intuitive user interface
• Bluetooth®wireless technology for commissioning, operation and maintenance
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR67B

Summary of Contents for Endress+Hauser Micropilot FMR67B

  • Page 1 Solutions Services TI01702F/00/EN/01.23-00 71610085 2023-01-02 Technical Information Micropilot FMR67B PROFINET with Ethernet-APL Free space radar Level measurement in bulk solids Application • Continuous, non-contact level measurement of powdered to granular bulk solids • Process connections: Flanges with purge air and alignment unit •...

  • Page 2: Table Of Contents

    Micropilot FMR67B PROFINET with Ethernet-APL Table of contents Important document information ....3 Dielectric constant ......33 Symbols .

  • Page 3: Important Document Information

    Micropilot FMR67B PROFINET with Ethernet-APL Important document information Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 4: Graphic Conventions

    Micropilot FMR67B PROFINET with Ethernet-APL Graphic conventions • Installation, explosion and electrical connection drawings are presented in simplified format • Devices, assemblies, components and dimensional drawings are presented in reduced-line format • Dimensional drawings are not to-scale representations; the dimensions indicated are rounded off to 2 decimal places •...

  • Page 5: Input

    Micropilot FMR67B PROFINET with Ethernet-APL D = (c ∆t) / 2 where c is the speed of propagation of the wave. In summary, D can be calculated from the measured difference frequency Δf. D is then used to determine the content of the tank or silo.

  • Page 6: Operating Frequency

    Mechanical construction. For the dielectric constants (DC values) of many media commonly used in industry, please refer • Dielectric constant (DC value) Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) Operating frequency Approx. 80 GHz Up to 8 devices can be installed in a tank without the devices mutually influencing one another.

  • Page 7: Profinet With Ethernet-Apl

    Micropilot FMR67B PROFINET with Ethernet-APL Pre-programmed linearization curves Linearization tables for calculating the volume in the following vessels are preprogrammed into the device: • Pyramid bottom • Conical bottom • Angled bottom • Horizontal cylinder • Sphere Other linearization tables of up to 32 value pairs can be entered manually.

  • Page 8: Power Supply

    Micropilot FMR67B PROFINET with Ethernet-APL Power supply Terminal assignment Single compartment housing A0042594  3 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Dual compartment housing A0042803  4 Connection terminals and ground terminal in the connection compartment...

  • Page 9: Available Device Plugs

    Micropilot FMR67B PROFINET with Ethernet-APL Dual compartment housing, L-form A0045842  5 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Terminals • Supply voltage and internal ground terminal: 0.5 to 2.5 mm (20 to 14 AWG) •...

  • Page 10: Electrical Connection

    Micropilot FMR67B PROFINET with Ethernet-APL Electrical connection Connection examples PROFINET with Ethernet-APL A0045802  7 Connection example for PROFINET with Ethernet-APL Automation system APL field switch Observe cable specifications Transmitter Potential equalization The protective ground on the device must not be connected. If necessary, the potential matching line can be connected to the outer ground terminal of the transmitter before the device is connected.

  • Page 11: Cable Entries

    Micropilot FMR67B PROFINET with Ethernet-APL Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum Single compartment housing, 316L hygiene Dual compartment housing Dual compartment housing, L-form Cable entry Dummy plug The type of cable entry depends on the device version ordered.

  • Page 12: Performance Characteristics

    Micropilot FMR67B PROFINET with Ethernet-APL Depending on the type of port (DC power supply, input/output port) different testing levels according to IEC / DIN EN 61326-1 against transient overvoltages (Surge) are applied (IEC / DIN EN 61000-4-5 Surge): Test level on DC power ports and input/output ports is 1 000 V line to earth Devices with optional overvoltage protection •...

  • Page 13: Measured Value Resolution

    Micropilot FMR67B PROFINET with Ethernet-APL Differing values in near-range applications ∆ [mm (in)] 20 (0.79) 3 (0.12) -3 (-0.12) -20 (-0.79) D [m ( )] 1.5 (4.92) A0032637  8 Maximum measured error in near-range applications Δ Maximum measured error...

  • Page 14: Mounting

    Micropilot FMR67B PROFINET with Ethernet-APL Mounting Mounting location A0016883 Recommended distance from wall to nozzle outer edge ~ 1/6 of the vessel diameter. The device should never be mounted closer than 20 cm (7.87 in) to the vessel wall. Use of a weather protection cover; protection from direct sunlight or rain...
  • Page 15 Micropilot FMR67B PROFINET with Ethernet-APL Orientation Internal vessel fittings A0031814 Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. Avoiding interference echoes A0031817...

  • Page 16: Installation Instructions

    Micropilot FMR67B PROFINET with Ethernet-APL Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes. Vertical alignment of antenna axis Align the antenna so that it is perpendicular to the product surface. The maximum reach of the antenna can be reduced, or additional interference signals can occur, if the antenna is not installed perpendicular to the product.
  • Page 17 Micropilot FMR67B PROFINET with Ethernet-APL Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D. The maximum nozzle length H depends on the nozzle diameter D D 80 to 100 mm (3.2 to 4 in)
  • Page 18 Micropilot FMR67B PROFINET with Ethernet-APL Antenna nozzle mounting, flush mount 80 mm (3 in) ØD 80 to 100 mm (3.2 to 4 in) 1 750 mm (70 in) 100 to 150 mm (4 to 6 in) 2 200 mm (88 in) ≥...

  • Page 19: Beam Angle

    Micropilot FMR67B PROFINET with Ethernet-APL The maximum length of the nozzle H depends on the nozzle diameter D D min. 80 to 100 mm (3 to 4 in) 1 450 mm (57 in) 100 to 150 mm (4 to 6 in) 1 800 mm (71 in) ≥...
  • Page 20 Micropilot FMR67B PROFINET with Ethernet-APL α α A0031824  12 Relationship between beam angle α, distance D and beamwidth diameter W The beamwidth diameter W depends on the beam angle α and the distance D. Horn antenna 65 mm (2.56 in), α 4 °...

  • Page 21: Special Mounting Instructions

    Micropilot FMR67B PROFINET with Ethernet-APL PTFE, flush mount 80 mm (3 in) antenna, α 3 ° W = D × 0.05 5 m (16 ft) 0.25 m (0.82 ft) 10 m (33 ft) 0.50 m (1.64 ft) 15 m (49 ft) 0.75 m (2.46 ft) 20 m (66 ft) 1.00 m (3.28 ft)

  • Page 22: Environment

    Micropilot FMR67B PROFINET with Ethernet-APL Container with heat insulation A0046566 If process temperatures are high, the device should be included in the usual container insulation system (2) to prevent the electronics from heating as a result of thermal radiation or convection. The rib structure (1) must not be insulated.
  • Page 23 Micropilot FMR67B PROFINET with Ethernet-APL Plastic housing Plastic housing; process temperature –40 to +80 °C (–40 to +176 °F) A0032024  13 Plastic housing; process temperature –40 to +80 °C (–40 to +176 °F) = T : –40 °C (–40 °F) |  T : +76 °C (+169 °F)
  • Page 24 Micropilot FMR67B PROFINET with Ethernet-APL Restriction to a process temperature of 0 to +150 °C (+32 to +302 °F) with CSA C/US approval and plastic housing A0048826  16 Plastic housing; process temperature 0 to +150 °C (+32 to +302 °F) with CSA C/US approval = T...
  • Page 25 Micropilot FMR67B PROFINET with Ethernet-APL Plastic housing; process temperature –40 to +280 °C (–40 to +536 °F) A0032024  19 Plastic housing; process temperature –40 to +280 °C (–40 to +536 °F) = T : –40 °C (–40 °F) |  T : +76 °C (+169 °F) = T...
  • Page 26 Micropilot FMR67B PROFINET with Ethernet-APL Restriction to a process temperature of 0 to +450 °C (+32 to +842 °F) with CSA C/US approval and plastic housing A0048826  22 Plastic housing; process temperature 0 to +450 °C (+32 to +842 °F) with CSA C/US approval = T...
  • Page 27 Micropilot FMR67B PROFINET with Ethernet-APL Aluminum housing; process temperature –40 to +200 °C (–40 to +392 °F) A0032024  25 Aluminum housing, coated; process temperature –40 to +200 °C (–40 to +392 °F) = T : –40 °C (–40 °F) |  T : +79 °C (+174 °F) = T...
  • Page 28 Micropilot FMR67B PROFINET with Ethernet-APL 316L housing 316L housing; process temperature –40 to +80 °C (–40 to +176 °F) A0032024  28 316L housing; process temperature –40 to +80 °C (–40 to +176 °F) = T : –40 °C (–40 °F) |  T : +77 °C (+171 °F)
  • Page 29 Micropilot FMR67B PROFINET with Ethernet-APL 316L housing; process temperature –40 to +280 °C (–40 to +536 °F) A0032024  31 316L housing; process temperature –40 to +280 °C (–40 to +536 °F) = T : –40 °C (–40 °F) |  T : +77 °C (+171 °F) = T...

  • Page 30: Storage Temperature

    Micropilot FMR67B PROFINET with Ethernet-APL 316L housing, hygiene; process temperature –40 to +150 °C (–40 to +302 °F) A0032024  34 316L housing, hygiene; process temperature range: –40 to +150 °C (–40 to +302 °F) = T : –40 °C (–40 °F) |  T : +76 °C (+169 °F)

  • Page 31: Vibration Resistance

    Micropilot FMR67B PROFINET with Ethernet-APL • Thread G1/2, IP66/68 NEMA TYPE 4X/6P If the G1/2 thread is selected, the device is delivered with an M20 thread as standard and a G1/2 adapter is included with the delivery, along with the corresponding documentation •...
  • Page 32 Micropilot FMR67B PROFINET with Ethernet-APL Horn antenna 65 mm (2.6 in) Process connection standard flange Seal Process pressure range Graphite –40 to +280 °C (–40 to +536 °F) –1 to 160 bar (–14.5 to 2 320.6 psi) Graphite –40 to +450 °C (–40 to +842 °F) –1 to 160 bar (–14.5 to 2 320.6 psi)

  • Page 33: Dielectric Constant

    The pressure range may be further restricted in the event of a CRN approval. Dielectric constant For bulk solids ε ≥ 1.6 Contact Endress+Hauser for applications with lower dielectric constants than indicated. Mechanical construction Dimensions The dimensions of the individual components must be added together for the total dimensions. Single compartment housing, plastic 94 (3.7)
  • Page 34 Micropilot FMR67B PROFINET with Ethernet-APL Aluminum single compartment housing 101 (3.98) 45 (1.77) 125 (4.92) A0038380  37 Dimensions of aluminum single compartment housing. Unit of measurement mm (in) Height with cover with glass viewing window (devices for Ex d/XP, Dust-Ex)
  • Page 35 Micropilot FMR67B PROFINET with Ethernet-APL 316L single compartment housing, hygiene 92 (3.62) 123 (4.84) A0050364  38 Dimensions of 316L single compartment housing, hygiene. Unit of measurement mm (in) Height with cover with glass viewing window (dust Ex) Height with cover with plastic viewing window...
  • Page 36 Micropilot FMR67B PROFINET with Ethernet-APL Aluminum dual compartment housing 132 (5.2) 121 (4.76) 115 (4.53) 118 (4.65) 64 (2.52) 54 (2.13) 78 (3.07) 143 (5.63) A0038377  39 Dimensions of dual compartment housing. Unit of measurement mm (in) Height with cover with glass viewing window (devices for Ex d/XP, Dust-Ex)
  • Page 37 Micropilot FMR67B PROFINET with Ethernet-APL Aluminum or 316L dual compartment housing, L-form 110 (4.33) 101 (3.98) 140 (5.51) 138 (5.43) A0038381  40 Dimensions of dual compartment housing, L-form. Unit of measurement mm (in) Height with cover with glass viewing window (devices for Ex d/XP, Dust-Ex)
  • Page 38 Micropilot FMR67B PROFINET with Ethernet-APL DN65 horn antenna, with UNI flange and alignment unit 65 (2.56) A0048883  42 Dimensions of DN65 horn antenna, with UNI flange and alignment unit. Unit of measurement mm (in) Reference point of measurement Bottom edge of housing 466 mm (18.35 in);...
  • Page 39 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange UNI 4"/DN100/100A Suitable for ASME B16.5, 4" 150lbs / EN1092-1; DN100 PN16 / JIS B2220; 10K 100A • Material: Aluminum • Process pressure: ≤1 bar (14.5 psi) • Weight: 1.4 kg (3.09 lb) The number of bolts is reduced in some cases.
  • Page 40 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange 8"/DN200/200A for antennas with alignment unit 95.2 (3.75) 26 (1.02) A0048840  45 Dimensions of UNI flange 8"/DN200/200A for antennas with alignment unit. Unit of measurement mm (in) UNI flange 8"/DN200/200A Suitable for ASME B16.5, 8" 150lbs / EN1092-1; DN200 PN16 / JIS B2220; 10K 200A •...
  • Page 41 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange 10"/DN250/250A for antennas with alignment unit 95.2 (3.75) 26 (1.02) 358 (14.1) 405 (15.9) A0048841  46 Dimensions of UNI flange 10"/DN250/250A for antennas with alignment unit. Unit of measurement mm (in) UNI flange 10"/DN250/250A Suitable for ASME B16.5, 10"...
  • Page 42 Micropilot FMR67B PROFINET with Ethernet-APL Drip-off antenna, PTFE, 50 mm (2 in), with UNI flange and purge air connection 42.5 (1.67) A0046488  47 Dimensions of Drip-off antenna, PTFE, 50 mm (2 in), with UNI flange and purge air connection. Unit of...
  • Page 43 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange 4"/DN100/100A for Drip-off antenna, PTFE, 50 mm (2 in) with purge air connection 20 (0.79) A0048876  49 UNI flange 4"/DN100/100A for Drip-off antenna, PTFE, 50 mm (2 in) with purge air connection. Unit of measurement mm (in) UNI flange 4"/DN100/100A...
  • Page 44 Micropilot FMR67B PROFINET with Ethernet-APL Antenna flush mount, PTFE, 80 mm (3 in), with standard flange and purge air connection 62.5 (2.46) A0046489  51 Dimensions of antenna flush mount, PTFE, 80 mm (3 in), with standard flange and purge air connection .
  • Page 45 Micropilot FMR67B PROFINET with Ethernet-APL Antenna flush mount, PTFE, 80 mm (3 in), with UNI flange and purge air connection 50 (1.97) A0046490  52 Dimensions of antenna flush mount, PTFE, 80 mm (3 in), with UNI flange and purge air connection. Unit of measurement mm (in) Process temperature version ≤150 °C (302 °F)
  • Page 46 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange 8"/DN200/200A Suitable for ASME B16.5, 8" 150lbs / EN1092-1; DN200 PN16 / JIS B2220; 10K 200A • Material 316L • Process pressure: ≤1 bar (14.5 psi) • Weight: 5.1 kg (11.24 lb) UNI flange 10"/DN250/250A for antenna flush mount, PTFE, 80 mm (3 in), purge air connection 29 (1.14)
  • Page 47 Micropilot FMR67B PROFINET with Ethernet-APL Antenna flush mount, 80 mm (3 in), with UNI flange, alignment unit and purge air connection 47 (1.85) A0046491  55 Dimensions of antenna flush mount, 80 mm (3 in), with UNI flange, alignment unit and purge air connection.
  • Page 48 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange UNI 4"/DN100/100A for antennas with alignment unit 95.2 (3.75) 90° 185 (7.28) 225 (8.86) A0048838  56 Dimensions of UNI flange UNI 4"/DN100/100A for antennas with alignment unit. Unit of measurement mm (in) UNI flange UNI 4"/DN100/100A...
  • Page 49 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange 6"/DN150/150A for antennas with alignment unit 95.2 (3.75) 26 (1.02) 90° 12 (0.47) 240 (9.45) 280 (11) A0048839  57 Dimensions of UNI flange 6"/DN150/150A for antennas with alignment unit. Unit of measurement mm (in) UNI flange 6"/DN150/150A...
  • Page 50 Micropilot FMR67B PROFINET with Ethernet-APL UNI flange 8"/DN200/200A for antennas with alignment unit 95.2 (3.75) 26 (1.02) A0048840  58 Dimensions of UNI flange 8"/DN200/200A for antennas with alignment unit. Unit of measurement mm (in) UNI flange 8"/DN200/200A Suitable for ASME B16.5, 8" 150lbs / EN1092-1; DN200 PN16 / JIS B2220; 10K 200A •...

  • Page 51: Weight

    Micropilot FMR67B PROFINET with Ethernet-APL UNI flange 10"/DN250/250A for antennas with alignment unit 95.2 (3.75) 26 (1.02) 358 (14.1) 405 (15.9) A0048841  59 Dimensions of UNI flange 10"/DN250/250A for antennas with alignment unit. Unit of measurement mm (in) UNI flange 10"/DN250/250A Suitable for ASME B16.5, 10"...

  • Page 52: Materials

    Micropilot FMR67B PROFINET with Ethernet-APL Antenna and process connection adapter The flange weight (316/316L) depends on the selected standard and sealing surface. Details -> TI00426F or in the relevant standard The heaviest version is indicated for the antenna weights DN65 horn antenna 4.40 kg (9.70 lb) + flange weight...
  • Page 53 Micropilot FMR67B PROFINET with Ethernet-APL • Nameplate: stainless steel housing, labeled directly • TAG plate: plastic foil, stainless steel or provided by the customer • M20 cable glands: select material (stainless steel, nickel-plated brass, polyamide) Materials in contact with the medium...
  • Page 54 Micropilot FMR67B PROFINET with Ethernet-APL Drip-off antenna, purge air connection A0046611  62 Material; Drip-off antenna, purge air connection . Unit of measurement mm (in) Antenna: PTFE, seal material FKM Viton GLT Process connection: PP Housing sensor adapter: 316L / 1.4404 Synthetic/organic fiber elastomer seal (asbestos-free), FA material Threaded adapter, plug screw fitting: 316L / 1.4404...
  • Page 55 Micropilot FMR67B PROFINET with Ethernet-APL Antenna flush mount, 80 mm (3 in), with UNI flange and purge air connection A0046613  64 Material; antenna flush mount, 80 mm (3 in), with UNI flange and purge air connection. Unit of measurement mm (in) Antenna: PTFE, seal material FKM Viton GLT Process connection: 316L / 1.4404...

  • Page 56: Display And User Interface

    Micropilot FMR67B PROFINET with Ethernet-APL Display and user interface Operating concept Operator-oriented menu structure for user-specific tasks • Guidance • Diagnostics • Application • System Fast and safe commissioning • Interactive wizard with graphical user interface for guided commissioning in FieldCare, DeviceCare or DTM, AMS and PDM-based third-party tools or SmartBlue •...

  • Page 57: Local Display

    Micropilot FMR67B PROFINET with Ethernet-APL Local display Device display (optional) Functions: • Display of measured values and fault and notice messages • Background lighting, which switches from green to red in the event of an error • The device display can be removed for easier operation A0039284 ...

  • Page 58: System Integration

    A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Via Web browser Function scope Thanks to the integrated Web server the device can be operated and configured via a Web browser.

  • Page 59: Ce Mark

    Micropilot FMR67B PROFINET with Ethernet-APL CE mark The measuring system meets the legal requirements of the applicable EU directives. These are listed in the corresponding EU Declaration of Conformity together with the standards applied. The manufacturer confirms successful testing of the device by affixing to it the CE mark.

  • Page 60: En 302372 Radio Standard

    Micropilot FMR67B PROFINET with Ethernet-APL Astronomy stations Country Name of the station Latitude Longitude Germany Effelsberg 50° 31'   32" North 06° 53'   00" East Finland Metsähovi 60° 13'   04" North 24° 23'   37" East Tuorla 60° 24'   56" North 24° 26'   31" East France Plateau de Bure 44° 38'  ...

  • Page 61: Certification Profinet With Ethernet-Apl

    Micropilot FMR67B PROFINET with Ethernet-APL This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 62: Calibration

    • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Calibration Factory calibration certificate The calibration points are spread evenly over the measuring range (0 to 100 %).

  • Page 63: Test, Certificate, Declaration

    Condition Monitoring system and the in-situ verification of devices in the application. The application package can be ordered together with the device or can be activated subsequently with an activation code. Detailed information on the order code is available via the Endress+Hauser website www.endress.com...

  • Page 64: Accessories

    Micropilot FMR67B PROFINET with Ethernet-APL Heartbeat Monitoring Foam detection wizard and Build-up detection wizard are available, process windows can be configured. Furthermore, additional monitoring parameters can be displayed and used for predictive maintenance or application optimization. "Foam detection" wizard This wizard configures the automatic foam detection.

  • Page 65: Plastic Weather Protection Cover

    Micropilot FMR67B PROFINET with Ethernet-APL 228.9 (9.01) 136.4 (5.37) 92.5 (3.64) 170.5 (6.71) 81 (3.19) 103 (4.06) A0039231  69 Dimensions. Unit of measurement mm (in) Material • Weather protection cover: 316L • Clamping screw: A4 • Holder: 316L Order number for accessories:...
  • Page 66 Micropilot FMR67B PROFINET with Ethernet-APL ø89 (3.5) ø142 (5.59) A0046695 Technical data • Material: EPDM • Recommended screw size: M14 • Recommended screw length: 100 mm (3.9 in) • Process pressure: –0.1 to 0.1 bar (–1.45 to 1.45 psi) • Process temperature: –40 to +80 °C (–40 to +176 °F) Ordering information •...
  • Page 67 Micropilot FMR67B PROFINET with Ethernet-APL Technical data • Material: EPDM • Recommended screw size: M18 • Recommended screw length: 110 mm (4.3 in) • Process pressure: –0.1 to 0.1 bar (–1.45 to 1.45 psi) • Process temperature: –40 to +80 °C (–40 to +176 °F) Ordering information •...

  • Page 68: M12 Socket

    Micropilot FMR67B PROFINET with Ethernet-APL Ordering information • The flange seal can be ordered together with the device via the "Accessory enclosed" product structure. • Order number: 71249072 Seal, adjustable, ASME 6"/ JIS 150A The seal, adjustable, ASME 6"/ JIS 150A is compatible with flanges ASME 6" 150 lbs and JIS 150A 10K ø168 (6.6)

  • Page 69: Remote Display Fhx50B

    Micropilot FMR67B PROFINET with Ethernet-APL M12 socket, angled • Material: Body: PBT; union nut: nickel-plated die-cast zinc; seal: NBR • Degree of protection (fully locked): IP67 • Pg coupling: Pg7 • Order number: 71114212 A0051233  73 M12 socket, angled, cable M12 socket, angled, 5 m (16 ft) cable •...

  • Page 70: Gas-Tight Feedthrough

    Micropilot FMR67B PROFINET with Ethernet-APL A0046692 Plastic single compartment housing, remote display Aluminum single compartment housing, remote display Single compartment housing, 316L hygiene, remote display Device side, plastic single compartment housing prepared for display FHX50B Device side, aluminum single compartment housing prepared for display FHX50B...

  • Page 71: Field Xpert Smt70

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Document function...
  • Page 72 Micropilot FMR67B PROFINET with Ethernet-APL Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...
