TI01303F/00/EN/04.18
71394729
Products
Technical Information

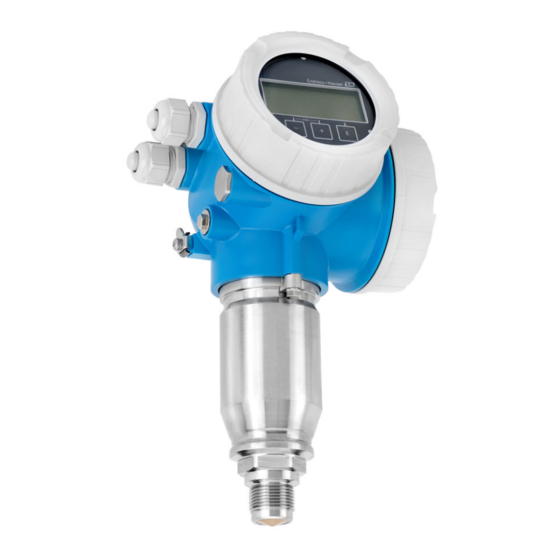

Micropilot FMR62
Free space radar
Level measurement in liquids
Application
• Continuous, non-contact level measurement of liquids,
pastes and sludges
• Integrated PEEK antenna or PTFE-plated, flush-mounted antenna
• Maximum measuring range: 80 m (262 ft)
• Temperature: –40 to +200 °C (–40 to +392 °F)
• Pressure: –1 to +25 bar (–14.5 to +362.6 psi)
• Accuracy: ± 1 mm (0.04 in)
• Linearity protocol (3-point, 5-point)
Your benefits
• Reliable measurement thanks to improved focusing and small beam angle,
particularly in vessels with many internal fittings
• Compact design enables installation in the case of small vessels and small process
connections
• Safety by design - ensures highest safety
• Easy, guided commissioning with intuitive user interface
• Bluetooth® wireless technology for commissioning, operation and maintenance via
free iOS / Android app SmartBlue
• Maximum reliability thanks to multi-echo tracking
• HistoROM configuration memory makes for easier commissioning,
maintenance and diagnostics
• SIL2 as per IEC 61508, SIL3 for homogeneous or diverse redundancy
• Easy proof testing for SIL and WHG
• RFID TAG - easy identification of measuring points for improved data access
• Heartbeat Technology
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR62

Summary of Contents for Endress+Hauser Micropilot FMR62

  • Page 1 Products Solutions Services TI01303F/00/EN/04.18 71394729 Technical Information Micropilot FMR62 Free space radar Level measurement in liquids Application • Continuous, non-contact level measurement of liquids, pastes and sludges • Integrated PEEK antenna or PTFE-plated, flush-mounted antenna • Maximum measuring range: 80 m (262 ft) •...

  • Page 2: Table Of Contents

    Micropilot FMR62 Table of contents Important document information ....4 Storage temperature ......
  • Page 3 Micropilot FMR62 Customer-specific configuration ....74 Tagging (TAG) ......

  • Page 4: Important Document Information

    Micropilot FMR62 Important document information Safety symbols Symbol Meaning DANGER! This symbol alerts you to a dangerous situation. Failure to avoid this situation will DANGER result in serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can WARNING result in serious or fatal injury.

  • Page 5: Symbols At The Device

    Micropilot FMR62 Symbol Meaning A-A, B-B, C-C, ... Sections Hazardous area Indicates a hazardous area. Safe area (non-hazardous area) Indicates the non-hazardous area. Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions.

  • Page 6: Terms And Abbreviations

    FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol Relative dielectric constant ε...

  • Page 7: Registered Trademarks

    Registered trademark of the HART Communication Foundation, Austin, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 8: Function And System Design

    Micropilot FMR62 Function and system design Measuring principle The Micropilot is a "downward-looking" measuring system, operating based on the frequency modulated continuous wave method (FMCW). The antenna emits an electromagnetic wave at a continuously varying frequency. This wave is reflected by the product and received again by the antenna.

  • Page 9: Input

    A. For dielectric constants (DC values) of many media commonly used in various industries refer • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) Endress+Hauser V. 4, Rev. 2, 19-03-2018...
  • Page 10 Micropilot FMR62 FMR62 Antenna: Integrated, PEEK, 20mm/ 3/4" Storage tank Buffer tank Process tank with agitator A0034565 A0034567 A0034566 Calm product surface (e.g. intermittent Turbulent surface (e.g. filling from above, agitators, baffles) Moving surfaces (e.g. continuous filling, filling, filling from bottom, immersion...
  • Page 11 Micropilot FMR62 FMR62 Antenna: Integrated, PEEK, 40mm/ 1-1/2" Storage tank Buffer tank Process tank with agitator A0034565 A0034567 A0034566 Calm product surface (e.g. intermittent Turbulent surface (e.g. filling from above, agitators, baffles) Moving surfaces (e.g. continuous filling, filling, filling from bottom, immersion...
  • Page 12 Micropilot FMR62 FMR62 Antenna: PTFE cladded flush mount 50mm/2" Storage tank Buffer tank Process tank with agitator A0034565 A0034567 A0034566 Calm product surface (e.g. intermittent Turbulent surface (e.g. filling from above, agitators, baffles) Moving surfaces (e.g. continuous filling, filling, filling from bottom, immersion...

  • Page 13: Operating Frequency

    Micropilot FMR62 FMR62 Antenna: PTFE cladded flush mount 80mm/3" Storage tank Buffer tank Process tank with agitator A0034565 A0034567 A0034566 Calm product surface (e.g. intermittent Turbulent surface (e.g. filling from above, agitators, baffles) Moving surfaces (e.g. continuous filling, filling, filling from bottom, immersion...

  • Page 14: Transmission Power

    Micropilot FMR62 Transmission power • Peak power: 6.3 mW • Average output power: 63 µW V. 4, Rev. 2, 19-03-2018 Endress+Hauser...

  • Page 15: Output

    Micropilot FMR62 Output Output signal HART Signal coding FSK ±0.5 mA over current signal Data transmission rate 1 200 Bit/s Galvanic isolation Bluetooth® wireless technology Device version Ordering feature 610 "Accessory mounted", option NF "Bluetooth" Operation / configuration By the SmartBlue app.

  • Page 16: Signal On Alarm

    Micropilot FMR62 Signal on alarm Depending on the interface, failure information is displayed as follows: • Current output (for HART devices) – Failsafe mode selectable (in accordance with NAMUR Recommendation NE 43): Minimum alarm: 3.6 mA Maximum alarm (= factory setting): 22 mA –...
  • Page 17 Micropilot FMR62 Multidrop current 4.0 mA Set-up time 15 s Endress+Hauser V. 4, Rev. 2, 19-03-2018...

  • Page 18: Power Supply

    Micropilot FMR62 Power supply Terminal assignment 2-wire: 4-20mA HART – – 4...20 mA – – 4...20 mA A0011294  3 Terminal assignment 2-wire; 4-20mA HART Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥...
  • Page 19 Micropilot FMR62 2-wire: 4-20mA HART, switch output – ≥250 Ω 4...20 mA – ≥250 Ω 4...20 mA A0013759  4 Terminal assignment 2-wire; 4-20mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥...
  • Page 20 Micropilot FMR62 2-wire: 4-20mA HART, 4-20mA – 4...20 mA – 4...20 mA – 4...20 mA – 4...20 mA A0013923  5 Terminal assignment 2-wire, 4-20 mA HART, 4...20mA Without integrated overvoltage protection With integrated overvoltage protection Connection current output 2 Connection current output 1 Supply voltage for current output 1 (e.g.
  • Page 21 Micropilot FMR62 Connection examples for the switch output For HART devices, the switch output is available as an option. See product structure, feature 20: "Power Supply, Output", option B: "2-wire; 4-20mA HART, switch output" A0015909  6 Connection of a relay A0015910 ...

  • Page 22: Device Plug Connectors

    Micropilot FMR62 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal + not connected Signal - Ground A0011175 Pin assignment of the 7/8"...

  • Page 23: Supply Voltage

    Micropilot FMR62 Supply voltage An external power supply is necessary. Various power supply units can be ordered as an accessory from Endress+Hauser. 2-wire, 4-20mA HART, passive "Power "Approval" Terminal Maximum load R, supply, voltage U at depending on the supply voltage output"...

  • Page 24: Power Consumption

    Micropilot FMR62 "Power "Approval" Terminal Maximum load R, supply, voltage U at depending on the supply voltage output" device of the power supply unit 16 to 30 V R [ ] W 2-wire; 4-20mA HART, 4-20mA U 0 [V] A0031746...

  • Page 25: Cable Entries

    10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. The material of the gland is dependent on the housing type; GT18 (stainless steel housing): 316L (1.4404); GT19 (plastic housing) and GT20 (aluminum housing): nickel-coated brass (CuZn).

  • Page 26: Performance Characteristics

    Micropilot FMR62 Performance characteristics Reference operating • Temperature = +24 °C (+75 °F) ±5 °C (±9 °F) conditions • Pressure = 960 mbar abs. (14 psia) ±100 mbar (±1.45 psi) • Humidity = 60 % ±15 % • Reflector: metal plate with diameter ≥ 1 m (40 in) •...

  • Page 27: Influence Of Ambient Temperature

    Micropilot FMR62 Sampling rate ≥1.3 s –1 at U ≥ 24 V Response time < 3.6 s The measurements are performed according to DIN EN IEC 61298-3 / DIN EN IEC 60770-1 Influence of ambient temperature • Digital (HART): average T = 3 mm/10 K •...

  • Page 28: Installation

    Micropilot FMR62 Installation Installation conditions Mounting position A0016882 • Recommended distance A wall - nozzle outer edge: ~1/6 of the container diameter. However, the device must not under any circumstances be mounted closer than 15 cm (5.91 in) to the tank wall.
  • Page 29 Micropilot FMR62 Internal container fittings α A0031777 Avoid the location of internal fittings (limit switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Take into account the beam angle →  30. Endress+Hauser V. 4, Rev. 2, 19-03-2018...
  • Page 30 Micropilot FMR62 Avoiding interference echoes α A0031813 Metal deflection plates installed at an angle to scatter the radar signals help prevent interference echoes. Optimization options • Antenna size The larger the antenna the smaller the beam angle α,resulting in fewer interference echoes →...
  • Page 31 Micropilot FMR62 FMR62 A0032082 A0032081 Antenna integrated integrated, PTFE cladded PTFE cladded PEEK, 40 mm / 1-1/2" flush mount flush mount 80 mm / 3" PEEK, 20 50 mm / 2" mm / 3/4" Beam angle α 14 ° 8 °...

  • Page 32: Installation: Integrated Antenna

    Micropilot FMR62 Measurement through a ball valve A0034564 • Measurements can be performed through an open full bore ball valve without any problems. • At the transitions, no gap may be left exceeding 1 mm (0.04 in). • Diameter of opening of ball valve must always be equivalent to pipe diameter; avoid edges and constrictions.

  • Page 33: Installation: Flush Mount Antenna

    • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Information concerning threaded connections •...
  • Page 34 • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Mounting cladded flanges Note the following for cladded flanges: •...

  • Page 35: Container With Heat Insulation

    Micropilot FMR62 Container with heat insulation A0032207 If process temperatures are high, the device should be included in the usual container insulation system (2) to prevent the electronics from heating as a result of thermal radiation or convection. The insulation should not be higher than the neck of the device (1).

  • Page 36: Environment

    Micropilot FMR62 Environment Ambient temperature range Measuring device –40 to +80 °C (–40 to +176 °F) Local display –20 to +70 °C (–4 to +158 °F), the readability of the display may be impaired at temperatures outside the temperature range.

  • Page 37: Storage Temperature

    Micropilot FMR62 FMR62 Antenna • GE: Integrated, PEEK, 3/4" • GF: Integrated, PEEK, 1-1/2" • GM: PTFE cladded flush mount DN50 • GN: PTFE cladded flush mount DN80 Seal • A5: FKM Viton GLT, –40 to 150 °C (–40 to 302 °F) •...

  • Page 38: Vibration Resistance

    Micropilot FMR62 Vibration resistance DIN EN 60068-2-64 IEC 60068-2-64 at 5 to 2 000 Hz: 1.5 (m/s A limited vibration resistance applies according DIN EN 60068-2-64/IEC 60068-2-64 at 5 to 2 000 Hz of 0.39 (m/s /Hz, if the following order features are selected in the product structure at the same time: •...

  • Page 39: Process

    Micropilot FMR62 Process Process temperature, process The pressure ranges indicated can be reduced by the choice of process connection. The nominal pressure pressure (PN) indicated on the nameplate refers to a reference temperature of 20 °C, and of 100 °F for ASME flanges. Observe pressure-temperature dependency.
  • Page 40 Micropilot FMR62 FMR62, integrated antenna, PEEK, 200 °C (392 °F) [bar] ([psi]) 20 (290) 0 (0) -1 (-14.5) [°C] +200 ([°F]) (-40) (-4) (+32) (+392) A0032183  11 FMR62: Permitted range for process temperature and process pressure, integrated antenna, PEEK (feature 070: GE, GF), 200 °C (392 °F)
  • Page 41 Micropilot FMR62 FMR62, Tri-Clamp 2" process connection Feature 100 "Process Feature 90 Process temperature Process pressure range connection" "Seal" range TDK: –40 to +150 °C Tri-Clamp ISO2852 PTFE cladded (–40 to +302 °F) DN40-51 (2") –1 to 16 bar (–14.5 to 232 psi) –40 to +200 °C...

  • Page 42: Dielectric Constant

    For liquids ε ≥ 1.9 Please contact Endress+Hauser for applications with lower dielectric constants than indicated. For dielectric constants (DC values) of many media commonly used in various industries refer • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) V.

  • Page 43: Mechanical Construction

    Micropilot FMR62 Mechanical construction Dimensions Dimensions of the electronics housing 98 (3.86)* 78 (3.07) 90 (3.54) A0011666  15 Housing GT18 (316L); Dimensions in mm (in) *for devices with integrated overvoltage protection. 99 (3.9)* 78 (3.07) 90 (3.54) A0011346  16 Housing GT19 (Plastics PBT);...
  • Page 44 Micropilot FMR62 FMR62: integrated antenna, PEEK, 20mm / 3/4" Relevant ordering features Ordering feature Options 070: Antenna GE: Integrated, PEEK, 20mm/3/4" 090: Seal • A5: FKM Viton GLT, -40...150°C / -40...302°F • A6: FKM Viton GLT, -40...200°C / -40...392°F, incl. gas-tight feed through •...
  • Page 45 Micropilot FMR62 FMR62: integrated antenna, PEEK, 40mm / 1-1/2" Relevant ordering features Ordering feature Options 070: Antenna GF: Integrated, PEEK, 40mm/1-1/2" 090: Seal • A5: FKM Viton GLT, -40...150°C / -40...302°F • A6: FKM Viton GLT, -40...200°C / -40...392°F, incl. gas-tight feed through •...
  • Page 46 Micropilot FMR62 FMR62: flush mount antenna with sanitary adapter DIN11851, PTFE cladded Relevant ordering features Ordering feature Options 070: Antenna • GM: PTFE cladded flush mount 50mm/2" • GN: PTFE cladded flush mount 80mm/3" 090: Seal • F5: PTFE cladded, -40...150°C / -40...302°F •...
  • Page 47 Micropilot FMR62 FMR62: flush-mount antenna with Tri-Clamp ISO2852, PTFE cladded Relevant ordering features Ordering feature Options 070: Antenna • GM: PTFE cladded flush mount 50mm/2" • GN: PTFE cladded flush mount 80mm/3" 090: Seal • F5: PTFE cladded, -40...150°C / -40...302°F •...
  • Page 48 Micropilot FMR62 FMR62: flush mount antenna with flange EN1092-1, ASME B16.5 or JIS B2220; PTFE cladded Relevant ordering features Ordering feature Options 070: Antenna • GM: PTFE cladded flush mount 50mm/2" • GN: PTFE cladded flush mount 80mm/3" 090: Seal •...
  • Page 49 Micropilot FMR62 Feature 100 "Process connection" øD2 øD3 AFK: 92 mm (3.62 in) 150 mm (5.91 in) 17.5 mm (0.69 in) NPS 2" Cl.150, PTFE>316/316L AGK: 127 mm (5.00 in) 190 mm (7.48 in) 22.3 mm (0.88 in) NPS 3" Cl.150, PTFE>316/316L AHK: 158 mm (6.22 in)

  • Page 50: Weight

    Micropilot FMR62 Weight Housing Part Weight GT18 housing - stainless steel Approx. 4.5 kg (9.9 lb) GT19 housing - plastic Approx. 1.2 kg (2.7 lb) GT20 housing - aluminum Approx. 1.9 kg (4.2 lb) Antenna and process connection Device Antenna...

  • Page 51: Materials: Gt18 Housing (Stainless Steel, Corrosion- Resistant)

    Micropilot FMR62 Materials: GT18 housing (stainless steel, corrosion- resistant) A0036037 No. Part Material Housing CF3M similar to 316L/1.4404 2.1 Cover of the electronics compartment • Cover: CF3M (similar to 316L/1.4404) • Window: glass • Cover seal: NBR • Seal of the window: NBR •...

  • Page 52: Materials: Gt19 Housing (Plastic)

    Micropilot FMR62 Materials: GT19 housing (plastic) A0013788 No. Part Material Housing 2.1 Cover of the electronics compartment • Cover glass: PC • Cover frame: PBT-PC • Cover seal: EPDM • Thread-coating: Graphite-based lubricant varnish 2.2 Cover of the terminal compartment •...

  • Page 53: Materials: Gt20 Housing

    Micropilot FMR62 Materials: GT20 housing (die-cast aluminum, powder- coated) A0036037 Nr. Part Material Housing, RAL 5012 (blue) • Housing: AlSi10Mg(<0,1% Cu) • Coating: Polyester 2.1 Cover of the electronics compartment; RAL 7035 • Cover: AlSi10Mg(<0,1% Cu) (gray) • Window: Glass •...
  • Page 54 Micropilot FMR62 Nr. Part Material Ground terminal • Screw: A2 • Spring washer: A2 • Clamp: 304 (1.4301) • Holder: 304 (1.4301) Adhesive nameplate Plastic For the version with M12 plug the sealing material is Viton. For the version with 7/8" plug, the sealing material is NBR.
  • Page 55 Micropilot FMR62 Component part Material Process connection 316L / 1.4404 , PTFE cladded DIN11851 slotted nut 304L / 1.4307 Endress+Hauser V. 4, Rev. 2, 19-03-2018...

  • Page 56: Materials: Weather Protection Cover

    Micropilot FMR62 Materials: Weather protection cover A0015473 Part: Material Protection cover: 316L (1.4404) Molded rubber part (4x): EPDM Clamping screw: 316L (1.4404) + carbon fibre Bracket: 316L (1.4404) Ground terminal • Screw: A4 • Spring washer: A4 • Clamp: 316L (1.4404) •...

  • Page 57: Operability

    Micropilot FMR62 Operability Operating concept Operator-oriented menu structure for user-specific tasks • Commissioning • Operation • Diagnostics • Expert level Operating languages • English • Deutsch • Français • Español • Italiano • Nederlands • Portuguesa • Polski • русский язык (Russian) •...

  • Page 58: Local Operation

    Micropilot FMR62 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in event of device error Format for displaying measured variables and status variables can be individually configured Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F)

  • Page 59: Operation Via Bluetooth® Wireless Technology

    Micropilot FMR62 Operation via Bluetooth® wireless technology A0034939  24 Possibilities for remote operation via Bluetooth® wireless technology Transmitter power supply unit Smartphone / tablet with SmartBlue (app) Transmitter with Bluetooth® wireless technology Remote operation Via HART protocol A0036169  25...
  • Page 60 Micropilot FMR62 DeviceCare/FieldCare via service interface (CDI) A0032466  26 DeviceCare/FieldCare via service interface (CDI) Service interface (CDI) of the instrument (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with DeviceCare/FieldCare operating tool V. 4, Rev. 2, 19-03-2018 Endress+Hauser...

  • Page 61: Supplycare Inventory Management Software

    Micropilot FMR62 SupplyCare inventory SupplyCare is a web-based operating program for coordinating the flow of material and information along the supply chain. SupplyCare provides a comprehensive overview of the levels of management software geographically distributed tanks and silos, for instance, providing complete transparency over the current inventory situation, regardless of time and location.
  • Page 62 Micropilot FMR62 A0034288  27 Example of inventory management platform with SupplyCare Enterprise SCE30B SupplyCare Enterprise (via Web browser) SupplyCare Enterprise installation SupplyCare Enterprise on mobile devices (via Web browser) Ethernet/WLAN/UMTS Fieldgate FXA42 Power supply 24 V DC Modbus TCP via Ethernet as server/client...
  • Page 63 Micropilot FMR62 Cloud-based application: SupplyCare Hosting SupplyCare Hosting is offered as a hosting service (software as a service). Here, the software is installed within the Endress+Hauser IT infrastructure and made available to the user in the Endress +Hauser portal. A0034289 ...

  • Page 64: Certificates And Approvals

    CE mark in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system complies with the substance restrictions of the Restriction on Hazardous RoHS Substances Directive 2011/65/EU (RoHS 2).

  • Page 65: Nace Mr 0175 / Iso 15156

    Micropilot FMR62 3A and EHEDG approval for versions with Tri-Clamp and DIN11851 process connections. To avoid any risk of contamination, install the device according to the “Hygienic Equipment Design Criteria (HDC)” which was published by the Subgroup "Design Principles" of the EHEDG on April 8 2004.

  • Page 66: Radio Standard En 302372-1/2

    Micropilot FMR62 The installation site must be located at a distance of 4 km from the astronomy stations listed below or otherwise approval must be provided by the relevant authority. If the device is installed at a distance of 4 to 40 km from one of the listed stations, it must not be installed at a height of more than 15 m (49 ft) above the ground.

  • Page 67: Industry Canada

    Micropilot FMR62 Industry Canada Canada CNR-Gen Section 7.1.3 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 68 Micropilot FMR62 Feature 100 in the product structure Process connection Tri-Clamp ISO2852 DN70-76.1 (3"), PTFE>316L Tri-Clamp ISO2852 DN101.6 (4"), PTFE>316L The CRN certificate applies in a limited pressure range; see the following table. • Process connections that do not have CRN approval are not listed in this table.

  • Page 69: Test, Certificate

    Micropilot FMR62 Test, certificate Feature 580 "Test, Description certificate" 3.1 Material certificate, wetted metal parts, EN10204-3.1 inspection certificate Declaration of Conformity NACE MR0175, wetted metal parts 3.1 Material certificate, pressurized parts, EN10204-3.1 inspection certificate Declaration of Conformity NACE MR0103, wetted metal parts...

  • Page 70: Other Standards And Guidelines

    Micropilot FMR62 Other standards and • EN 60529 Degrees of protection provided by enclosures (IP code) guidelines • EN 61010-1 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use • IEC/EN 61326 "Emission in accordance with Class A requirements". Electromagnetic compatibility (EMC requirements).

  • Page 71: Ordering Information

    • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser V. 4, Rev. 2, 19-03-2018...

  • Page 72: 3-Point Linearity Protocol

    Micropilot FMR62 3-point linearity protocol The following points must be considered if option F3 (3-point linearity protocol) was selected in feature 550 ("Calibration"). The 3 points of the linearity protocol are defined as follows: A0032285  29 Points of the 3-point linearity protocol; engineering unit: mm (in)

  • Page 73: 5-Point Linearity Protocol

    Micropilot FMR62 5-point linearity protocol The following points must be considered if option F4 (5-point linearity protocol) was selected in feature 550 ("Calibration"). The 5 points of the linearity protocol are evenly distributed over the measuring range (0% - 100%).

  • Page 74: Customer-Specific Configuration

    Micropilot FMR62 Customer-specific If the option IJ: "Customized parameterization HART", IK "Customized parameterization PA" or IL "Customized parameterization FF" has been selected in feature 570 "Service", presettings that differ configuration from the default settings can be selected for the following parameters:...

  • Page 75: Application Packages

    Micropilot FMR62 Application Packages Heartbeat Diagnostics Availability Available in all device versions. Function • Continuous self-monitoring of the device. • Diagnostic messages output to – the local display. – an asset management system (e.g. FieldCare/DeviceCare). – an automation system (e.g. PLC).

  • Page 76: Heartbeat Verification

    Micropilot FMR62 Heartbeat Verification Availability Available for the following options of feature 540 "Application Package": • EH: Heartbeat Verification + Monitoring • EJ:   Heartbeat Verification Device functionality checked on demand • Verification of the correct functioning of the measuring device within specifications.

  • Page 77: Heartbeat Monitoring

    Micropilot FMR62 Heartbeat Monitoring Availability Available for the following options of feature 540 "Application Package": EH: Heartbeat Verification + Monitoring Function • In addition to the verification parameters, the corresponding parameter values are also logged. • Existing measured variables, such as the echo amplitude, are used in the Foam detection and Build-up detection wizards.

  • Page 78: Accessories

    Micropilot FMR62 Accessories Device-specific accessories Weather protection cover Accessory Description Weather protection cover A0015466 300 (11.8) 275 (10.8) 255.1 (10) 164 (6.46) A0015472  30 Weather protection cover; Dimensions: mm (in)  The weather protection cover can be ordered together with the device (product structure, feature 620 "Accessory Enclosed", option PB "Weather Protection Cover").
  • Page 79 Micropilot FMR62 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: – Plastic PBT – 316L/1.4404 – Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: – SD02 (push buttons) –...
  • Page 80 Micropilot FMR62 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold impulse voltage: < 800 V •...

  • Page 81: Communication-Specific Accessories

    For details refer to Technical Information TI00404F Accessory Description Commubox FXA291 Connects Endress+Hauser field devices with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a computer. Order code: 51516983  For details refer to Technical Information TI00405C...

  • Page 82: Service-Specific Accessories

    Fieldgate FXA42, FXA30 and FXA30B. SupplyCare Hosting is offered as a hosting service (Software as a Service, SaaS). In the Endress+Hauser portal, the user is provided with the data over the Internet. ...

  • Page 83: Supplementary Documentation

    • The W@M Device Viewer: enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. The following document types are available: In the Download Area of the Endress+Hauser Internet site: www.endress.com →...
  • Page 84 Micropilot FMR62 Feature 010 Approval Feature 020 "Power Supply; Output" EAC Ga/Gb Ex ia IIC T6...T3 X XA01617F XA01617F XA01617F EAC Ga/Gb Ex ia/db [ia Ga] IIC T6...T3 X XA01618F XA01618F XA01618F IEC Ex ia IIC T6 Ga XA01549F XA01549F...
