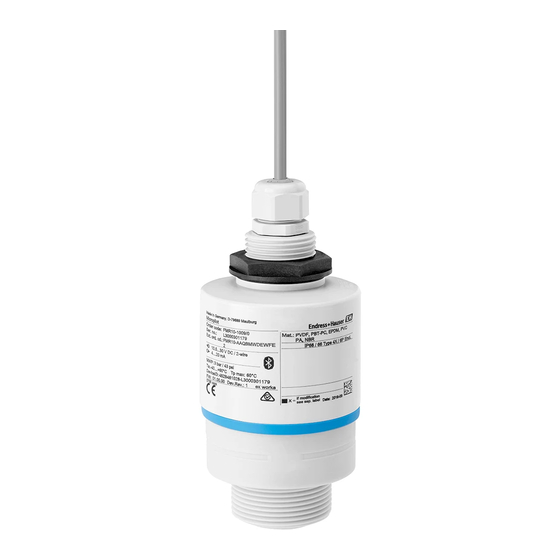

Summary of Contents for Endress+Hauser Micropilot FMR10
Page 1
These Instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. For detailed information, refer to the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/Tablet: Endress+Hauser Operations App...
Page 2
Micropilot FMR10 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
About this document Micropilot FMR10 About this document Symbols used 1.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Basic safety instructions...
Verification for borderline cases: ‣ With regard to special media and media used for cleaning, please contact the manufacturer. Endress+Hauser will be happy to assist in clarifying the corrosion-resistant properties of wetted materials but does not accept any warranty or liability. Residual risks...
The measuring system meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines.
‣ Enter the serial number from the nameplate into the Endress+Hauser Operations App or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code) provided on the nameplate All the information about the measuring device and the scope of the associated Technical Documentation are displayed.
Incoming acceptance and product identification Micropilot FMR10 Nameplate Order code: Ser. no.: Ext. ord. cd.: MWP: Tp max: DeviceID: Dev .Rev.: ex works Mat.: if modification Date: see sep. label A0029096 2 Nameplate of Micropilot Manufacturer address Device name Order code Serial number (ser.
Page 11
Micropilot FMR10 Incoming acceptance and product identification Modification mark 2-D matrix code (QR code) Manufacturing date: year-month Up to 33 characters of the extended order code are indicated on the nameplate. If the extended order code contains additional characters, these cannot be displayed.
Installation Micropilot FMR10 Installation Installation conditions 5.1.1 Installation types A0030605 3 Wall, ceiling or nozzle installation Wall or ceiling mount, adjustable Mounted at front thread Mounted at rear thread Ceiling installation with counter nut (included in delivery) Horizontal installation in confined spaces (sewer shaft)
Page 13
Micropilot FMR10 Installation A0028843 4 Nozzle mounting Nozzle length Nozzle diameter The maximum length of the nozzle L depends on the nozzle diameter D. Please note the limits for the diameter and length of the nozzle. Mounting outside the nozzle •...
Page 14
Installation Micropilot FMR10 5.1.3 Position for installation on a vessel A0028410 5 Installation position on a vessel • If possible install the sensor so that its lower edge projects into the vessel. • Recommended distance A wall - nozzle outer edge: ~ ¹⁄₆ of the vessel diameter D. Under no circumstances should the device be mounted closer than 15 cm (5.91 in) to the vessel wall.
Page 15
Micropilot FMR10 Installation ° ° ° A0028927 6 Device alignment for installation on a vessel 5.1.5 Beam angle α W = 2 × D × tan α A0033201 7 Relationship between beam angle α, distance D and beamwidth diameter W The beam angle is defined as the angle α...
Page 16
Installation Micropilot FMR10 40 mm (1.5 in) antenna, α 30 ° W = D × 0.54 40 mm (1.5 in) antenna with flooding protection tube, α 12 ° W = D × 0.21 5.1.6 Measurement in plastic vessels A0029540 8...
Page 17
Micropilot FMR10 Installation 5.1.7 Protective hood For outdoor use, a protective hood is recommended. The protective hood can be ordered as an accessory or together with the device via the product structure "Accessory enclosed". A0031277 9 Protective hood, e.g. with 40 mm (1.5") antenna The sensor is not completely covered by the protective hood.
Page 18
Installation Micropilot FMR10 A0030394 10 Function of flooding protection tube Air pocket O-ring (EPDM) seal Blocking distance Max. level The tube is screwed directly onto the sensor and seals off the system by means of an O-ring making it air-tight. In the event of flooding, the air pocket that forms in the tube ensures the measurement of the maximum level at the end of the tube.
Page 19
Micropilot FMR10 Installation A0040057 11 Installation with mounting bracket, adjustable • Wall or ceiling installation is possible. • Using the mounting bracket, position the antenna so that it is perpendicular to the product surface. NOTICE There is no conductive connection between the mounting bracket and transmitter housing.
Installation Micropilot FMR10 5.1.11 Installation of horizontal mounting bracket for sewer shafts The horizontal mounting bracket for sewer shafts is available as an accessory. A0037747 13 Installation of horizontal mounting bracket for sewer shafts 5.1.12 Mounting in a shaft The pivoted mounting bracket is available as an accessory.
Micropilot FMR10 Electrical connection Electrical connection Cable assignment A0028954 15 Cable assignment Plus, brown wire Minus, blue wire Supply voltage 10.5 to 30 V An external power supply is necessary. Endress+Hauser...
The sensor' s Bluetooth® wireless technology communication can be disabled to increase the operating life of the battery. Potential equalization No special measures for potential equalization are required. Various power supply units can be ordered as an accessory from Endress+Hauser. Connecting the device A0028907 17...
Micropilot FMR10 Operability Does the supply voltage match the specifications on the nameplate? No reverse polarity, is terminal assignment correct? Operability Operating concept • 4 to 20 mA • SmartBlue (app) via Bluetooth® wireless technology Operation via Bluetooth® wireless technology A0028895 ...
Page 24
Commissioning and operation Micropilot FMR10 8.1.2 SmartBlue system requirements SmartBlue system requirements SmartBlue is available as a download from the Google Play Store for Android devices and from the iTunes Store for iOS devices. • Devices with iOS: iPhone 4S or higher from iOS 9; iPad 2 or higher from iOS 9; iPod touch 5th generation or higher from iOS 9 •...
Page 25
Micropilot FMR10 Commissioning and operation A0029486 20 Envelope curve display (sample) in SmartBlue for Android Record video Create screenshot Display mapping menu Start/stop video recording Move time on time axis A0029487 21 Envelope curve display (sample) in SmartBlue for iOS...
Diagnostics and troubleshooting Micropilot FMR10 Diagnostics and troubleshooting General errors Errors Possible cause Solution Device does not respond Supply voltage does not match the Apply correct voltage specification on the nameplate The polarity of the supply voltage is wrong Correct the polarity...
Micropilot FMR10 Diagnostics and troubleshooting Errors Possible cause Solution Device cannot be operated via Password forgotten Contact the manufacturer' s Service Department SmartBlue Device cannot be operated via Sensor temperature too If the ambient temperature results in an elevated SmartBlue high sensor temperature of >60 °C (140 °F), Bluetooth...
